Connector Code Lists

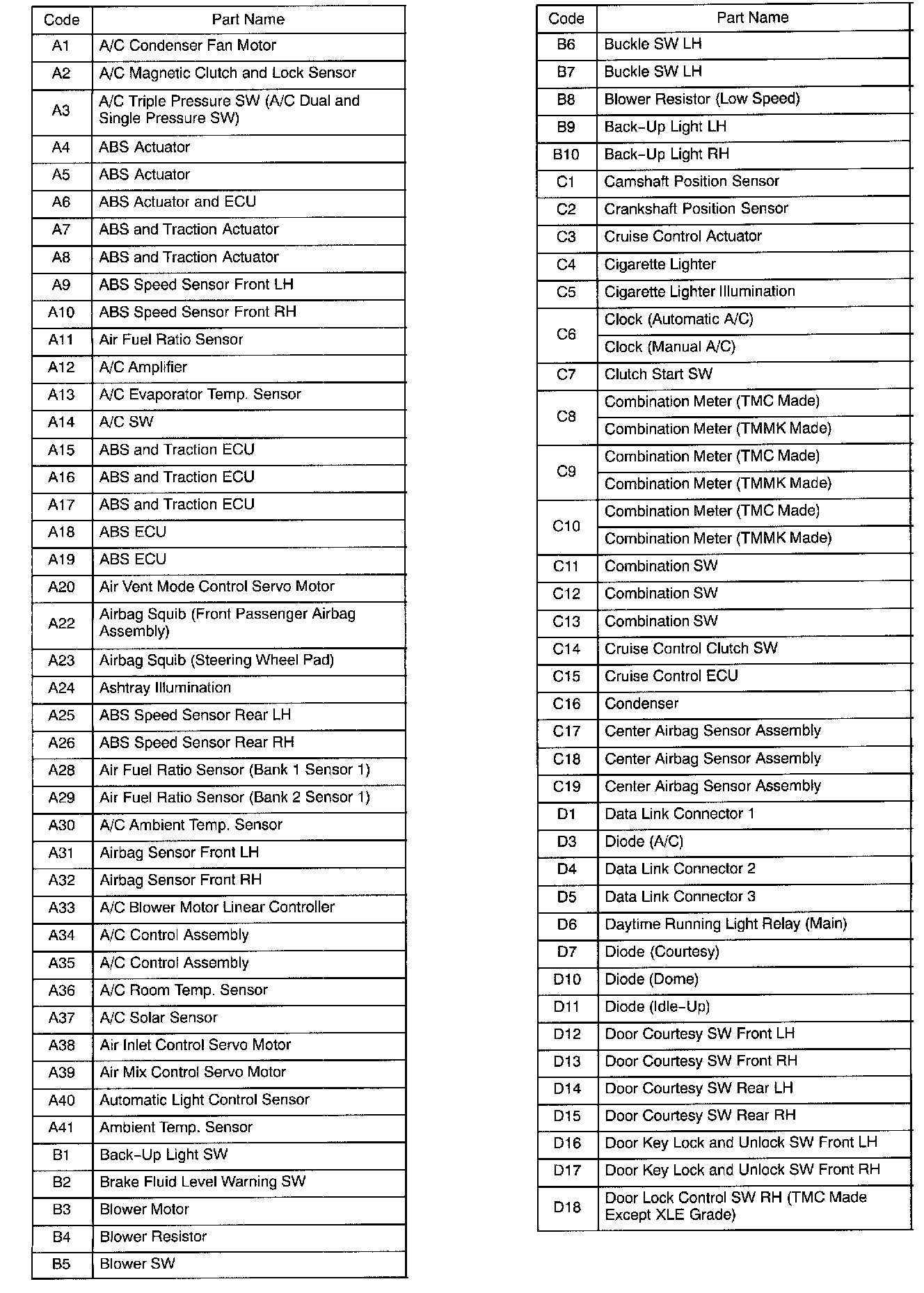

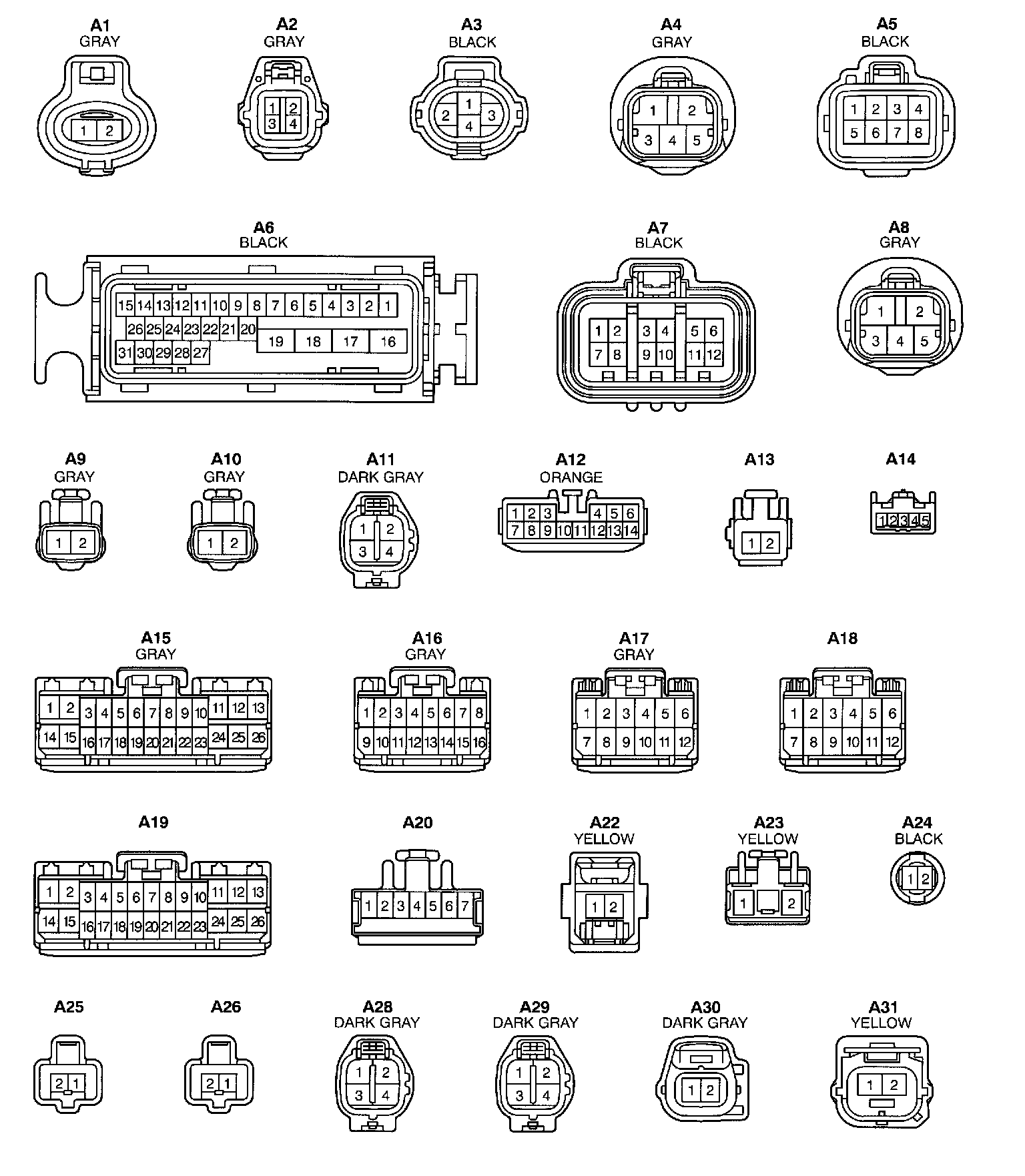

A1 - A31:

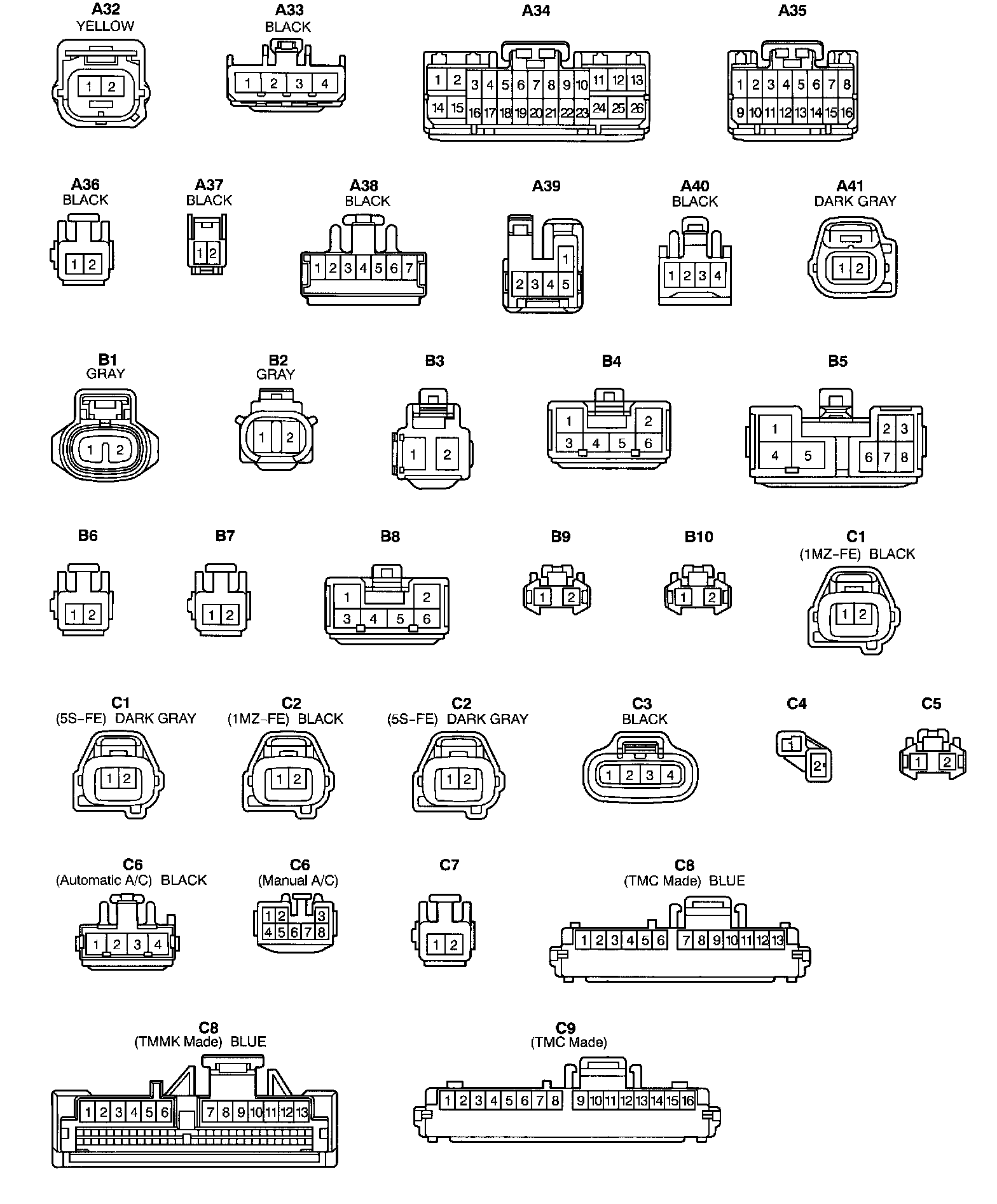

A32 - C9:

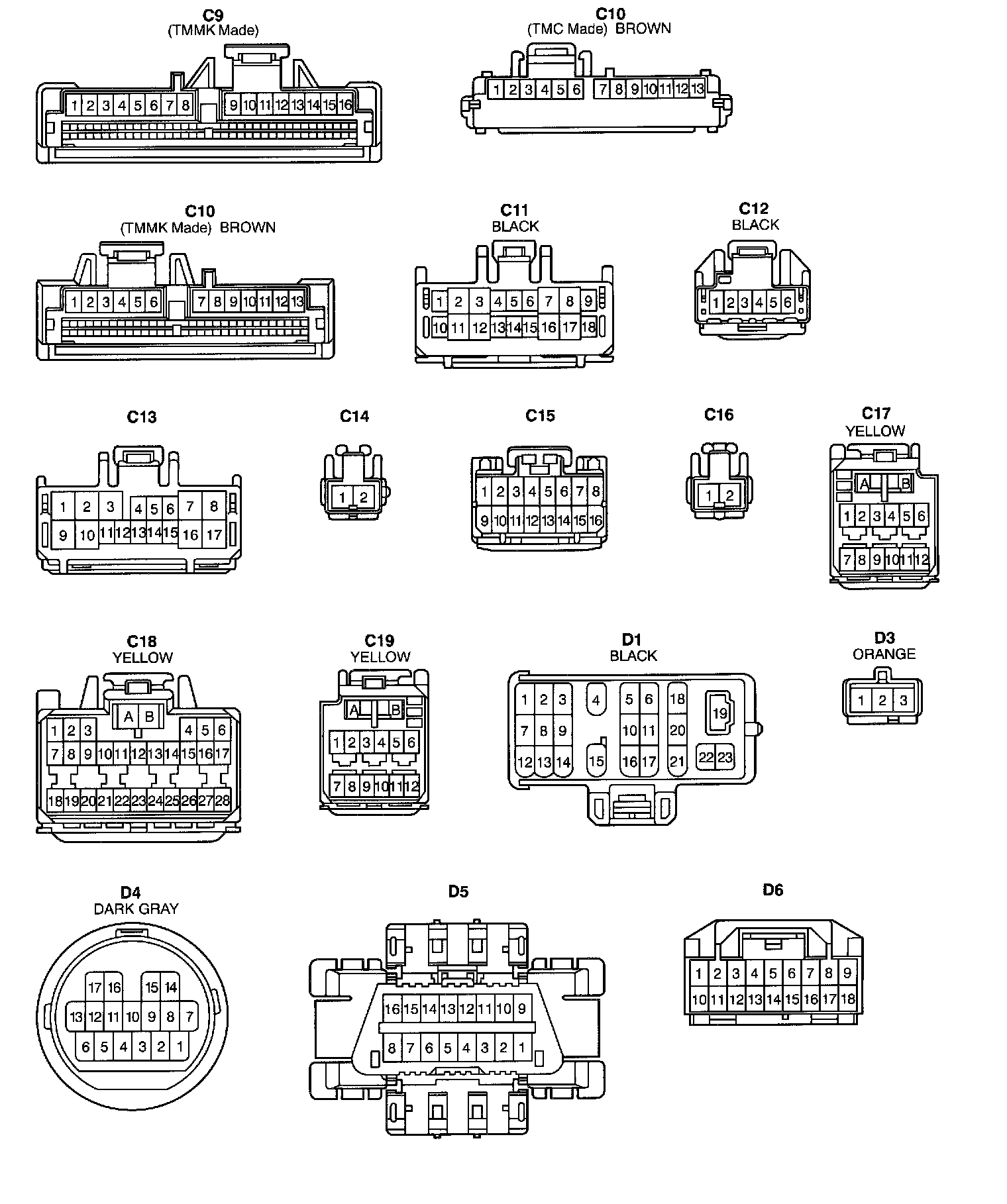

C9 - D6:

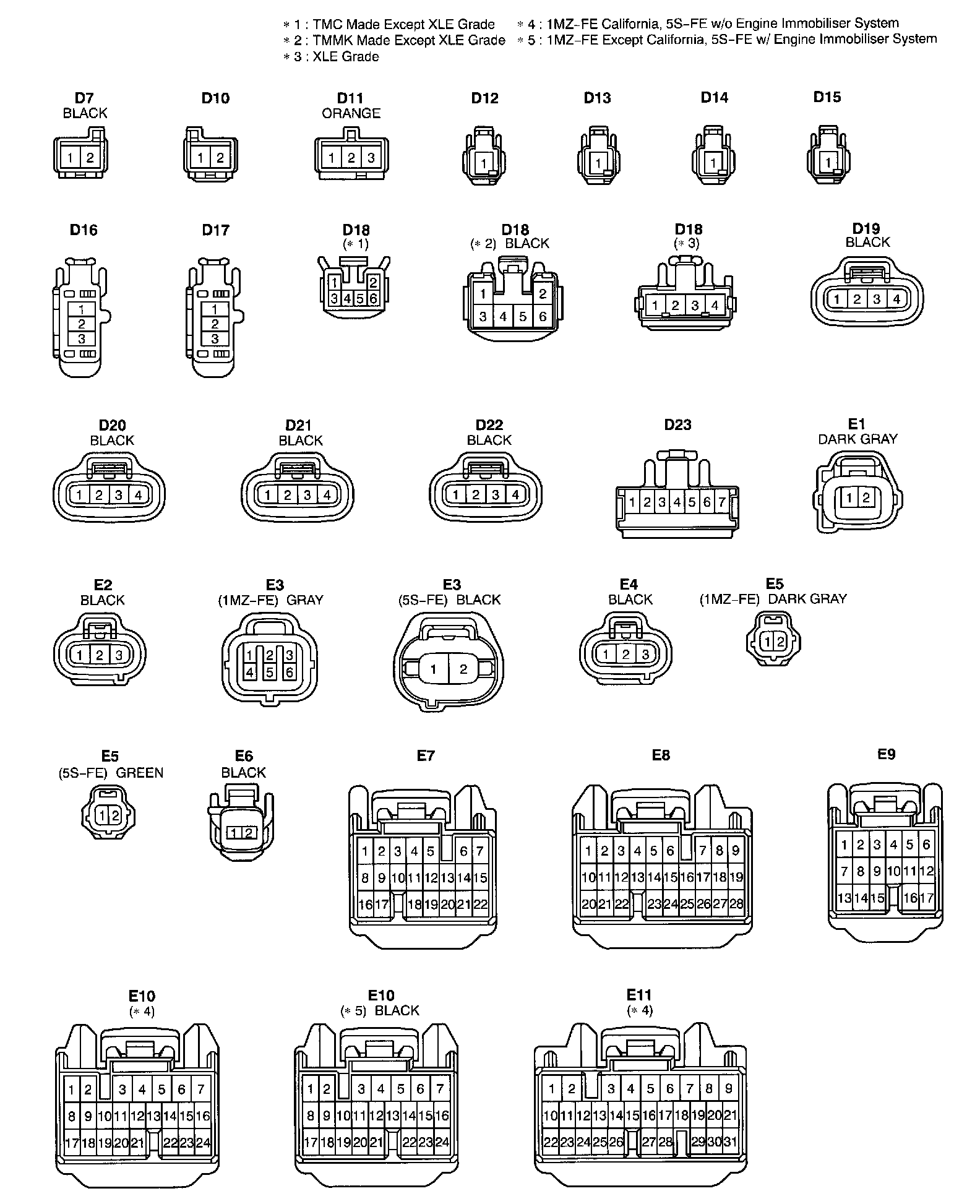

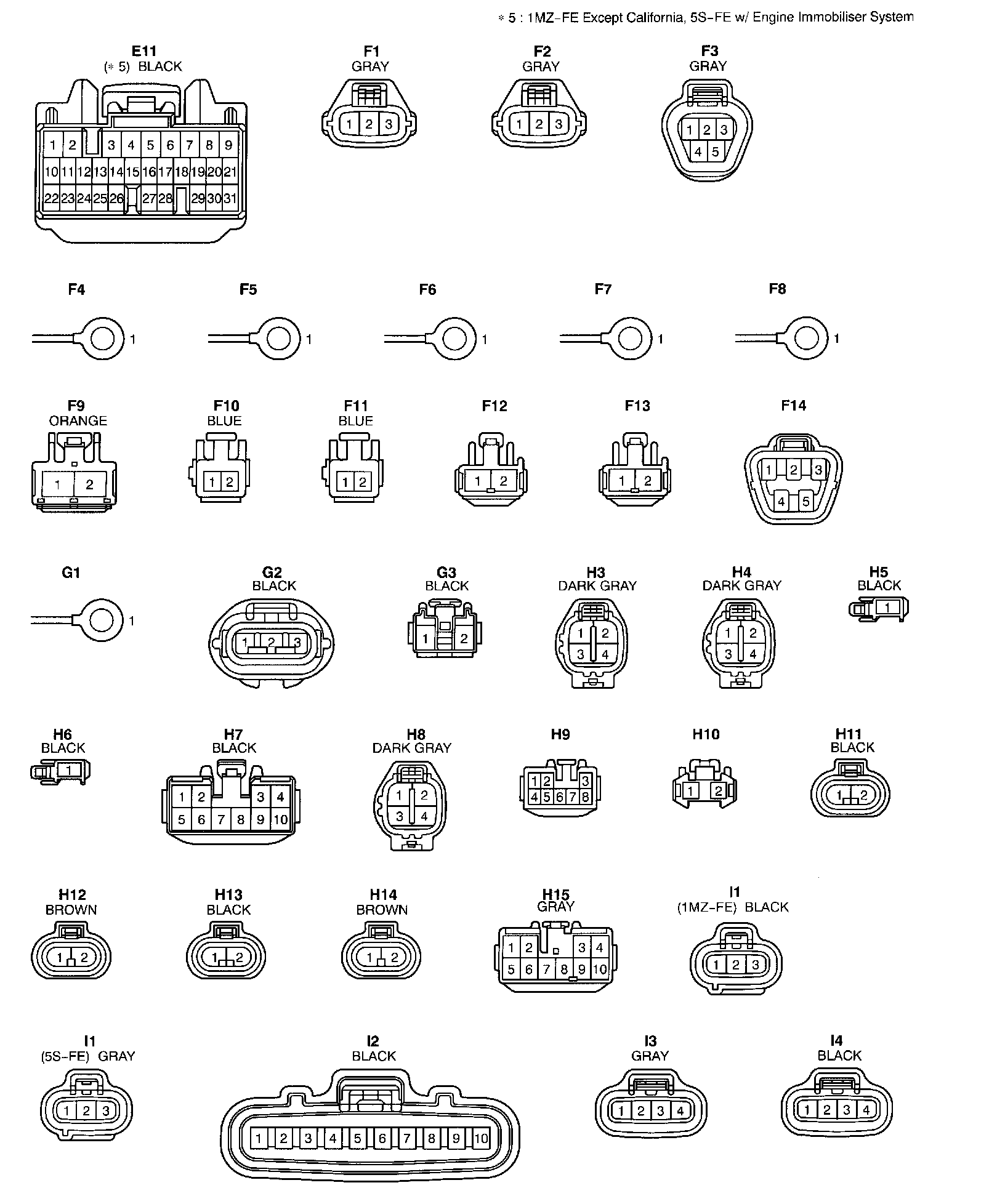

D7 - E11:

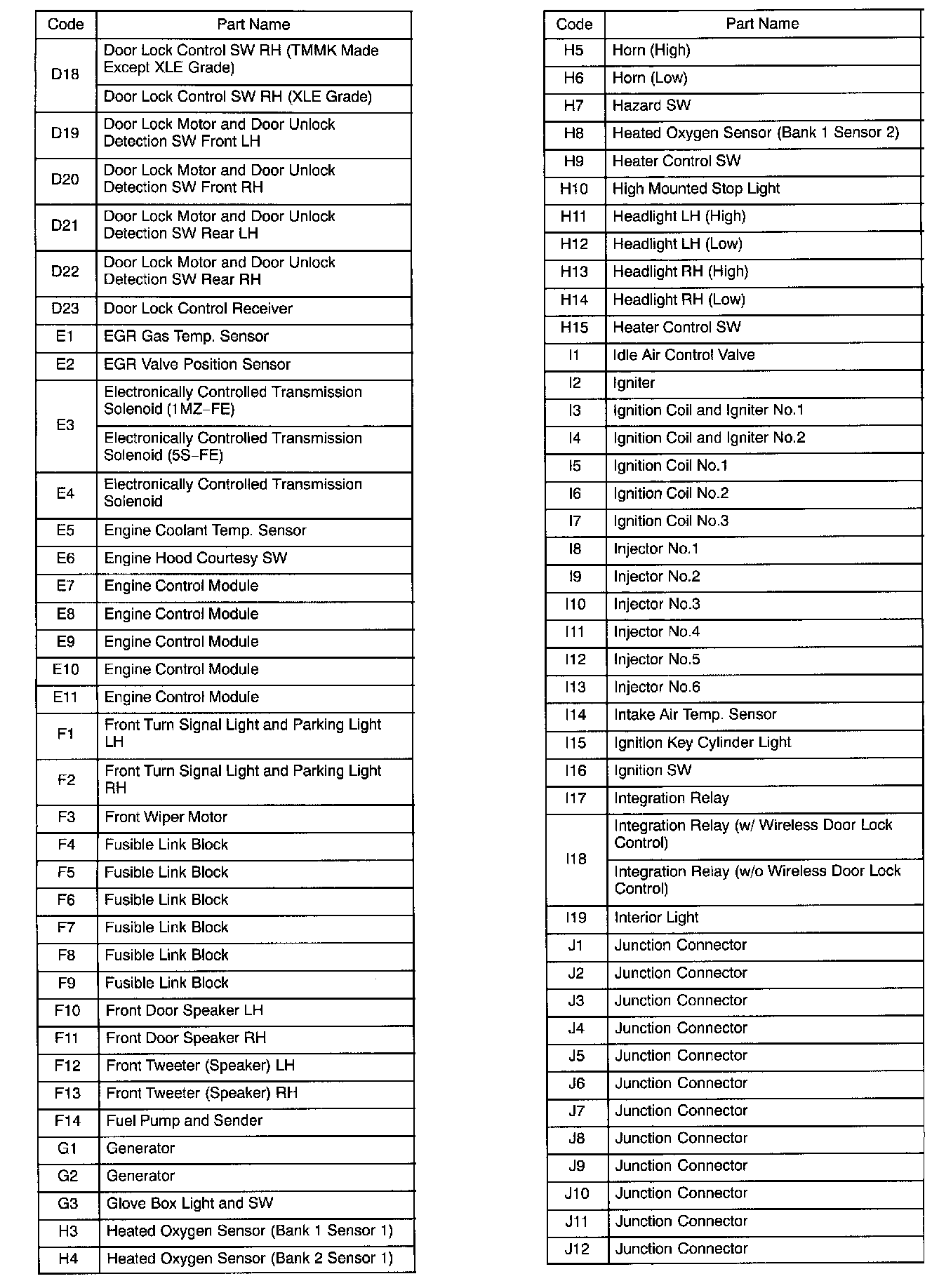

E11 - I4:

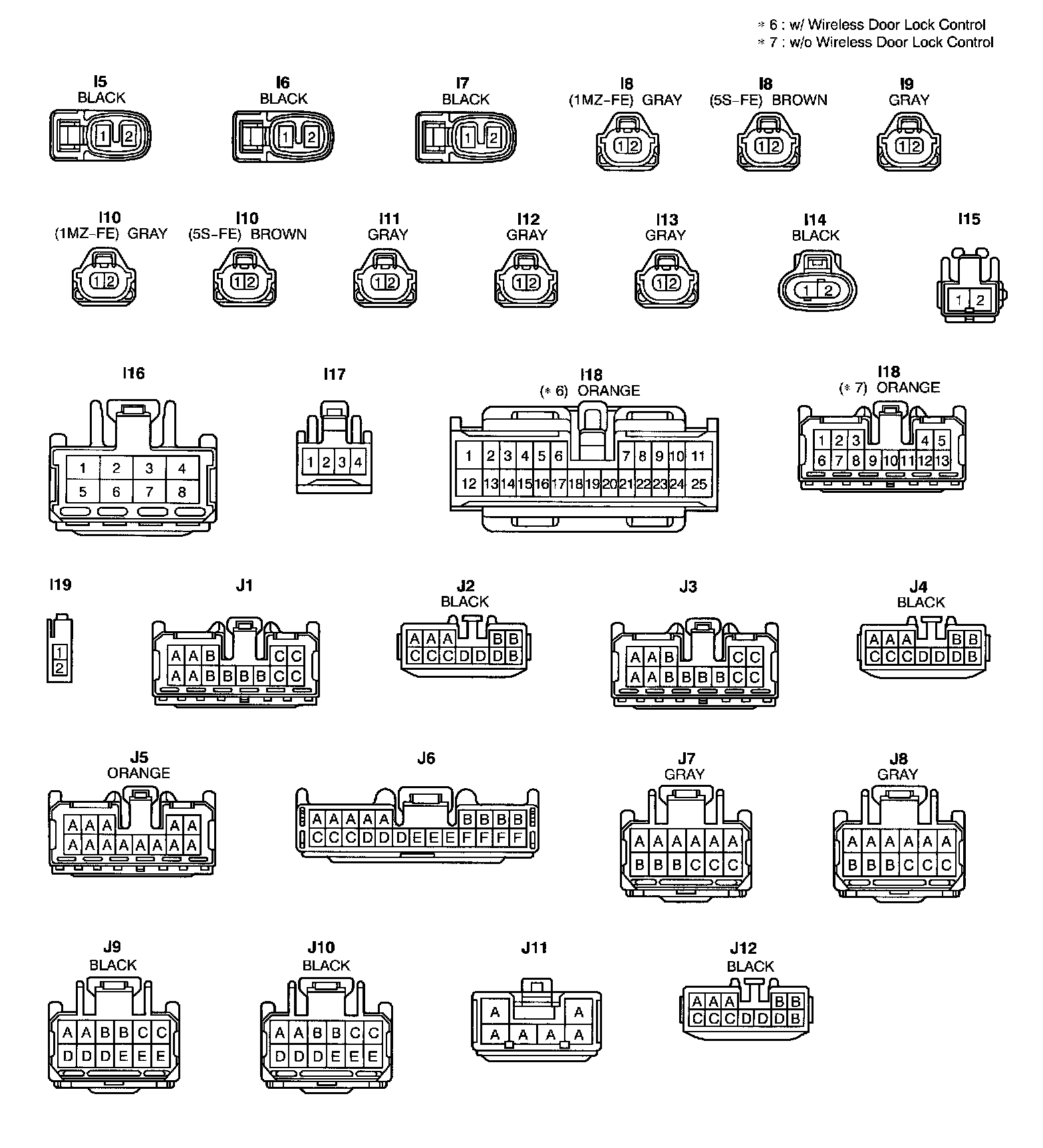

I5 - J12:

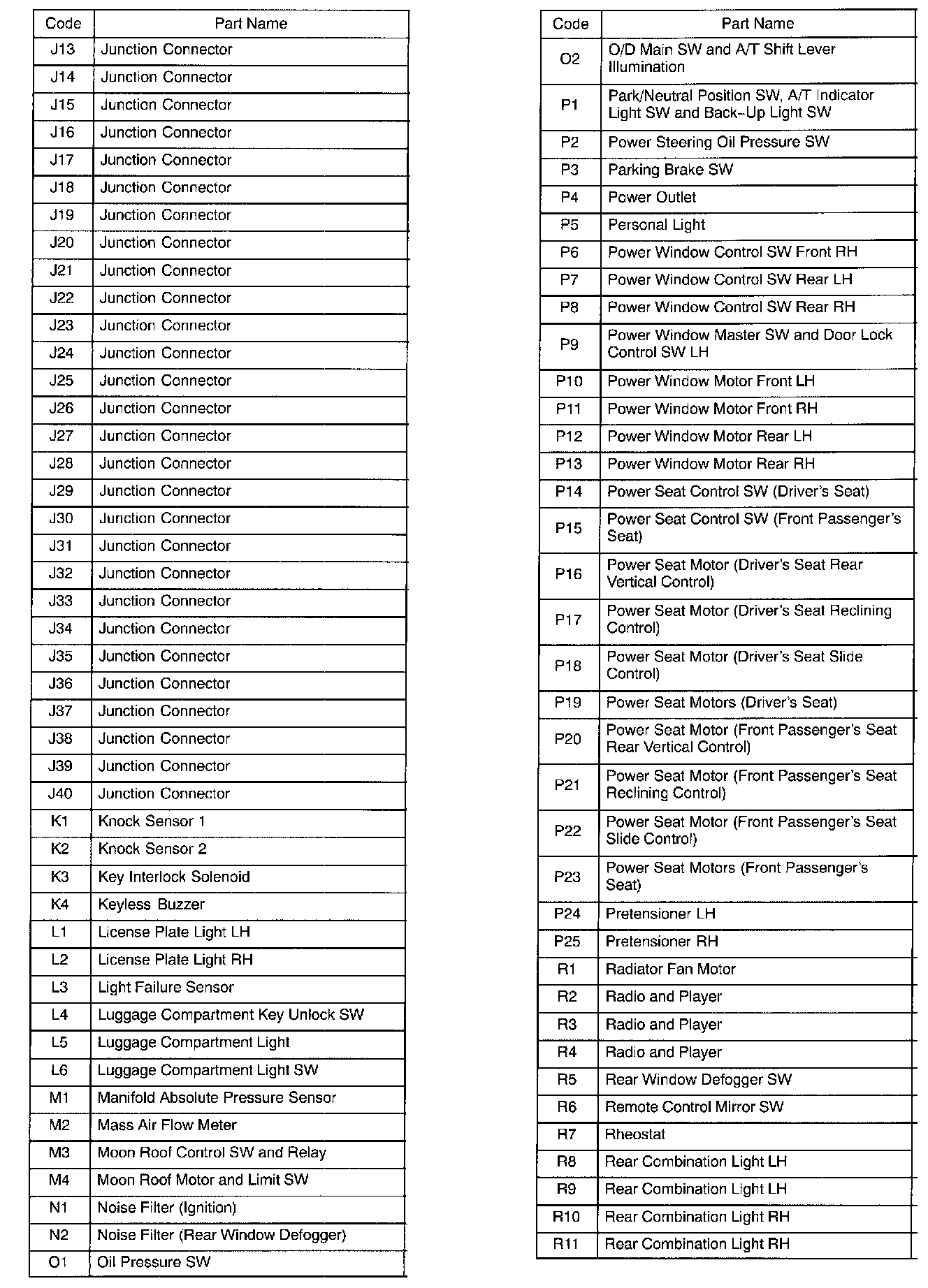

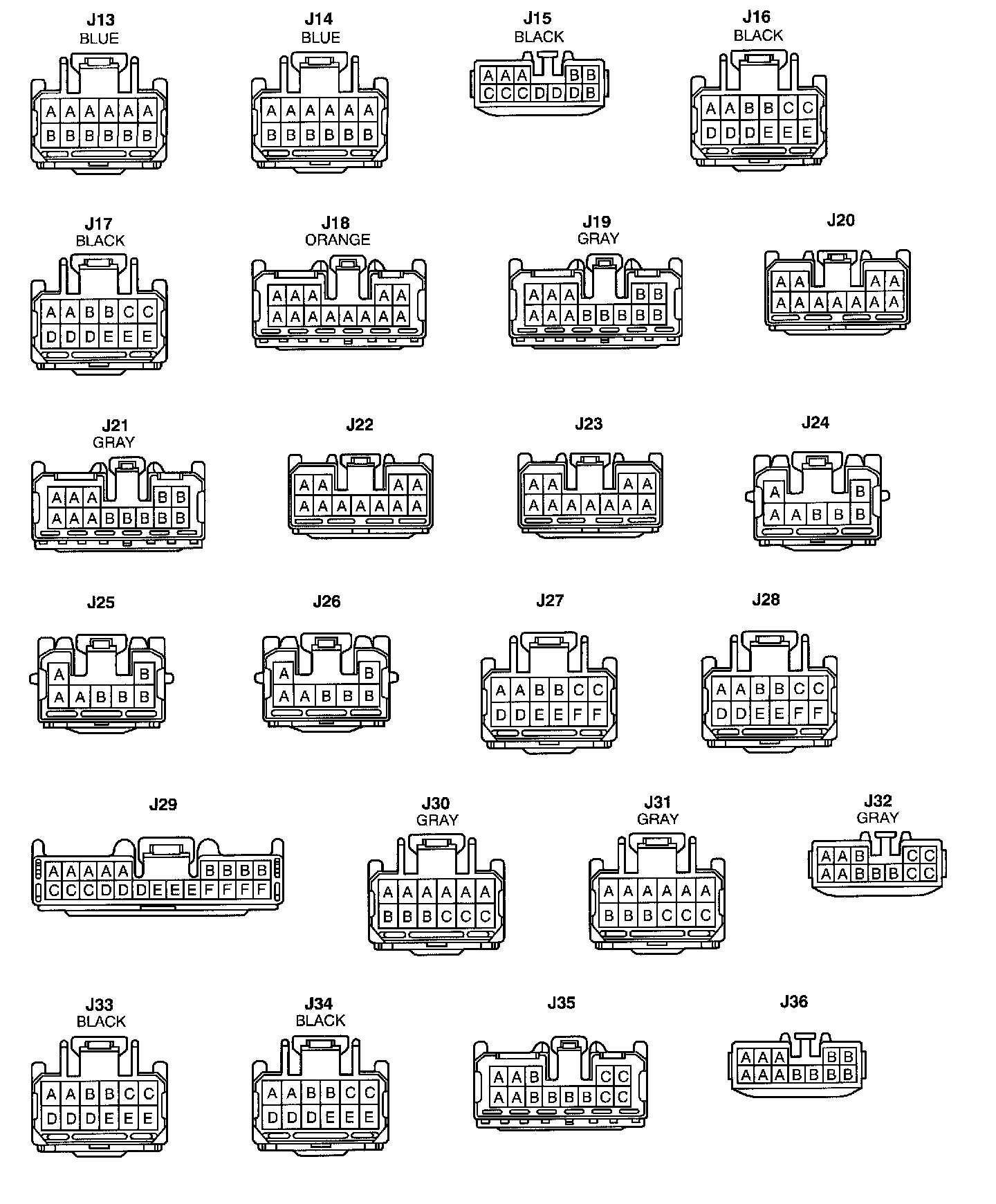

J13 - J36:

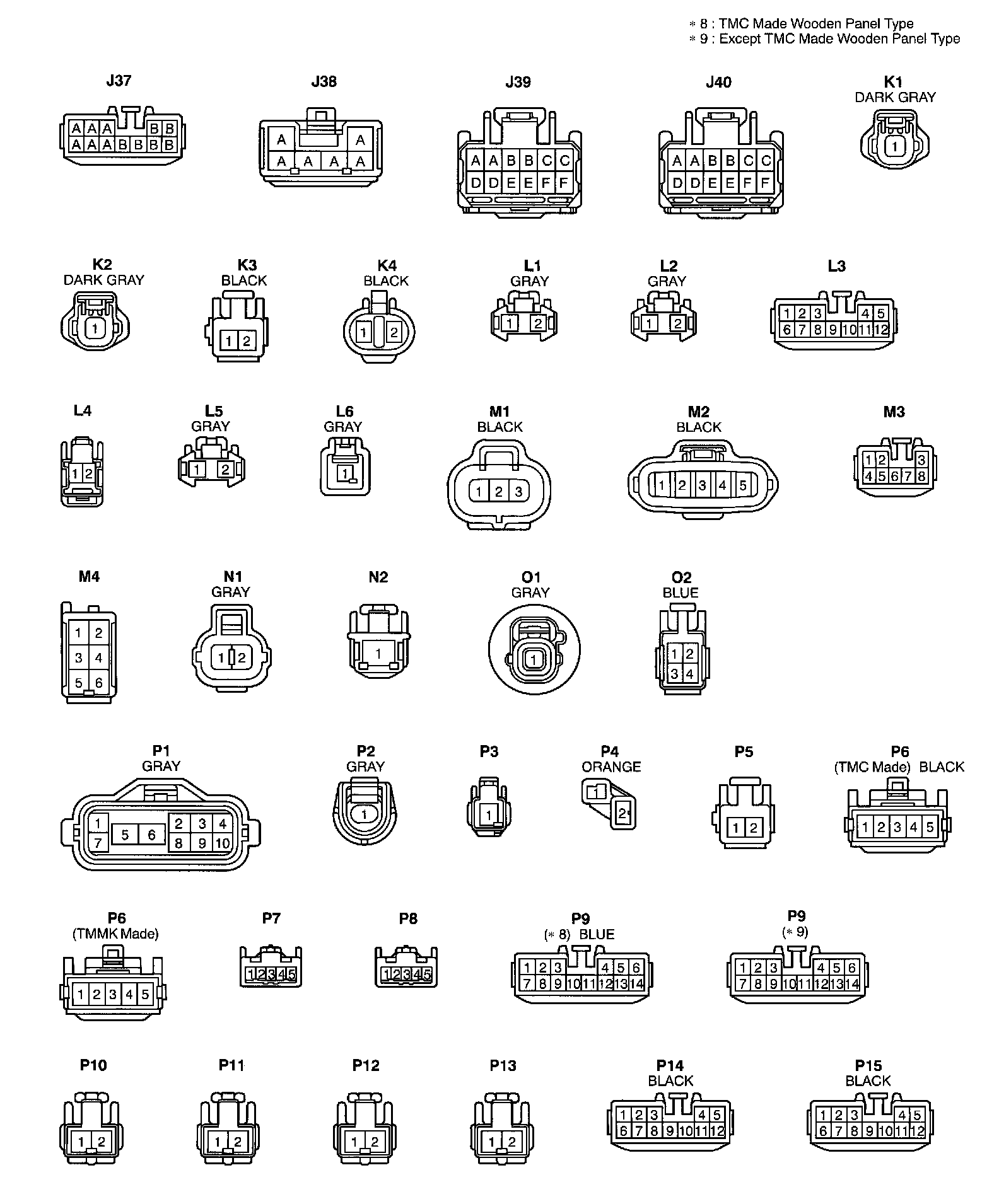

J37 - P15:

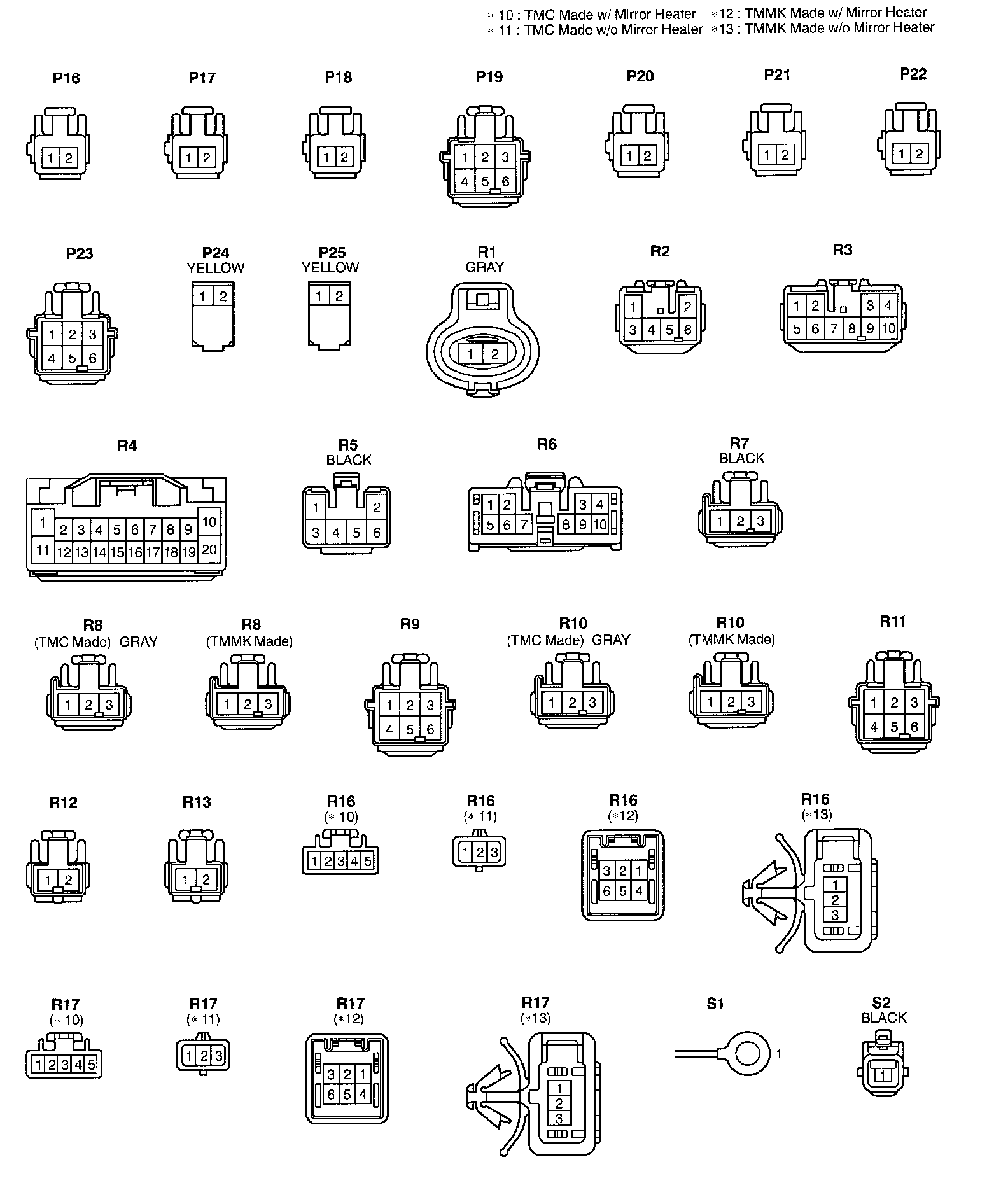

P16 - S2:

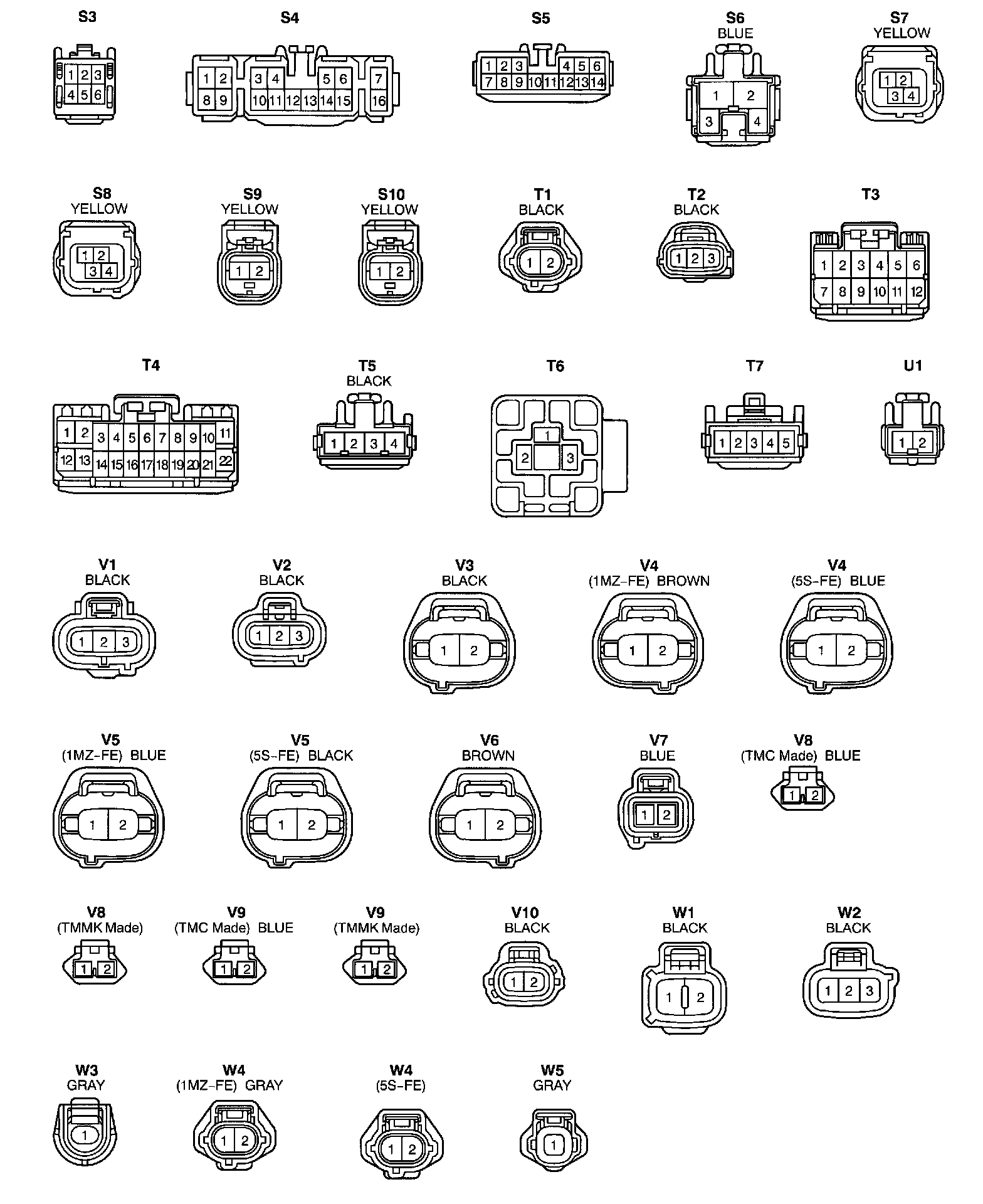

S3 - W5:
