System Diagram

ENGINE UNIT COMPONENTS

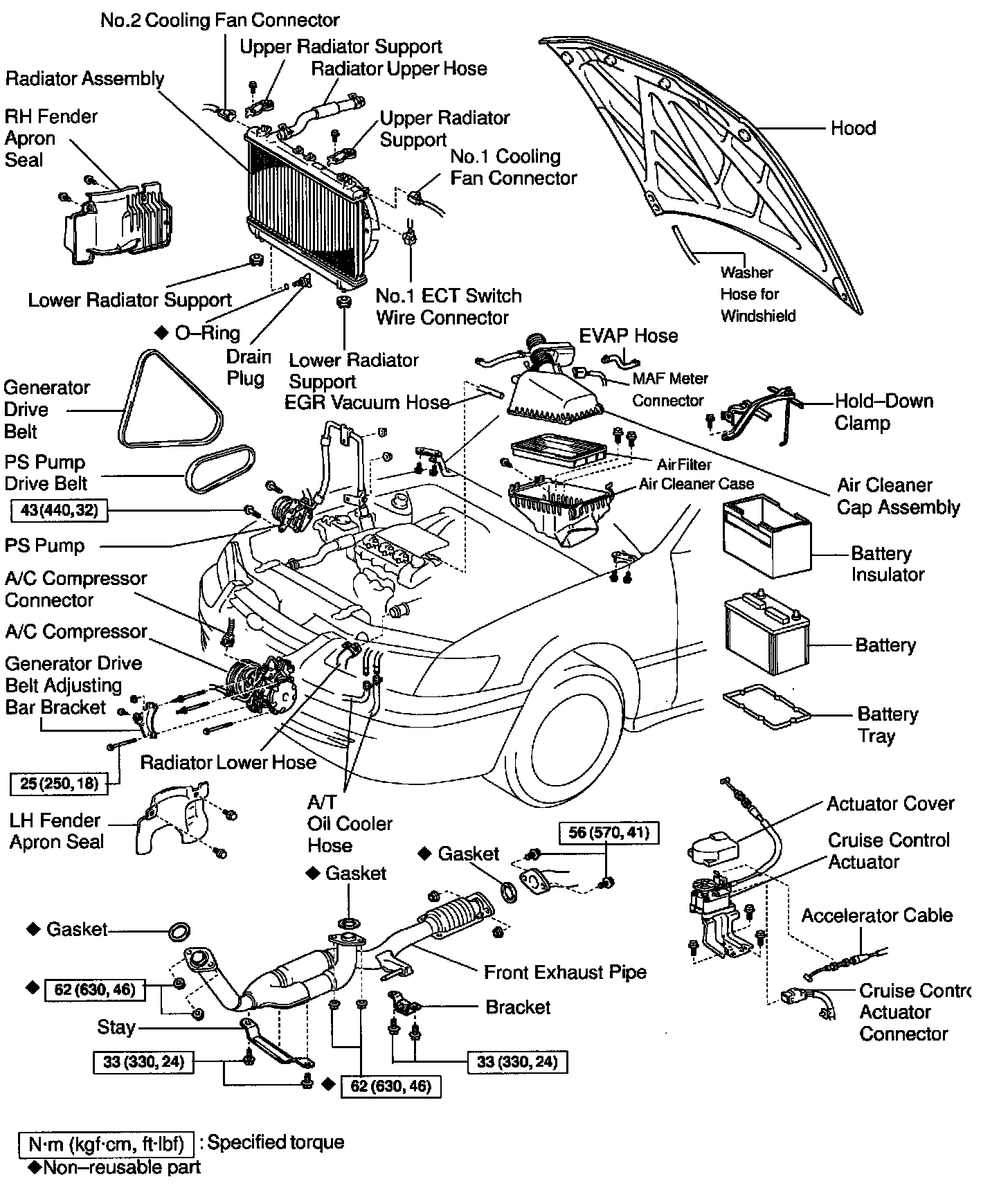

Radiator And Various Engine Compartment Components:

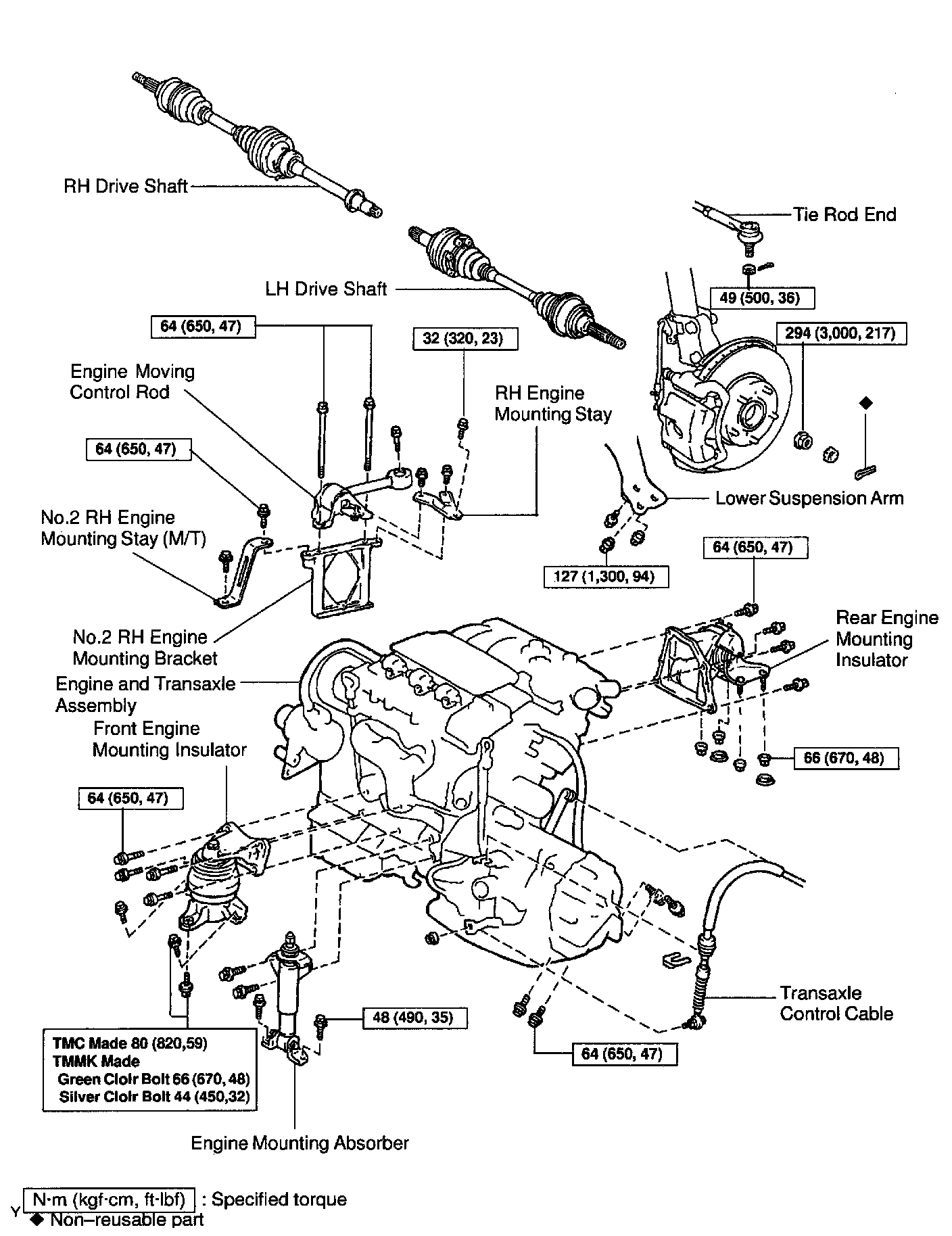

Engine And Transaxles (Mounts And Axles):
