Seats

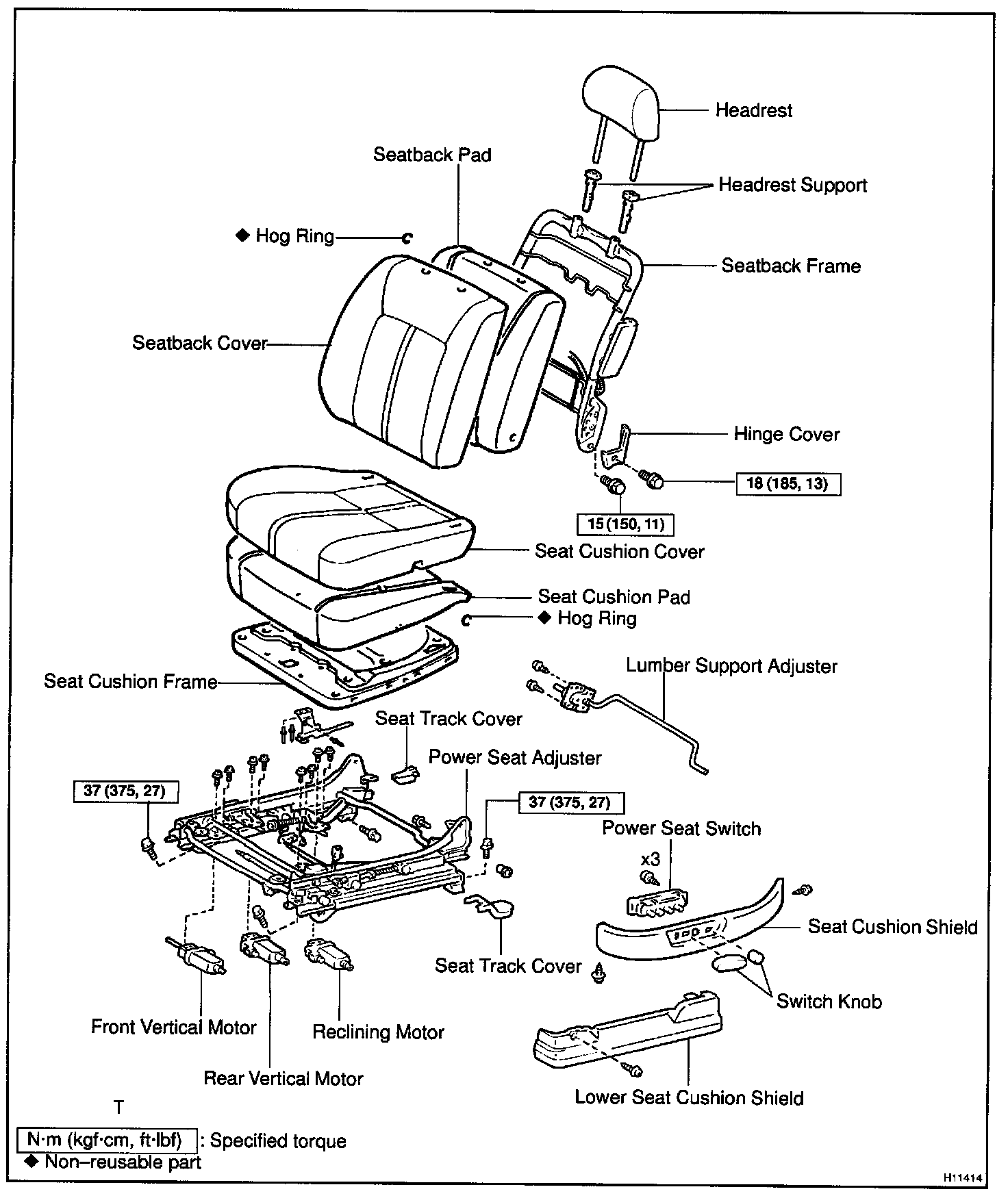

Front Seat (Power Seat For TMC Made):

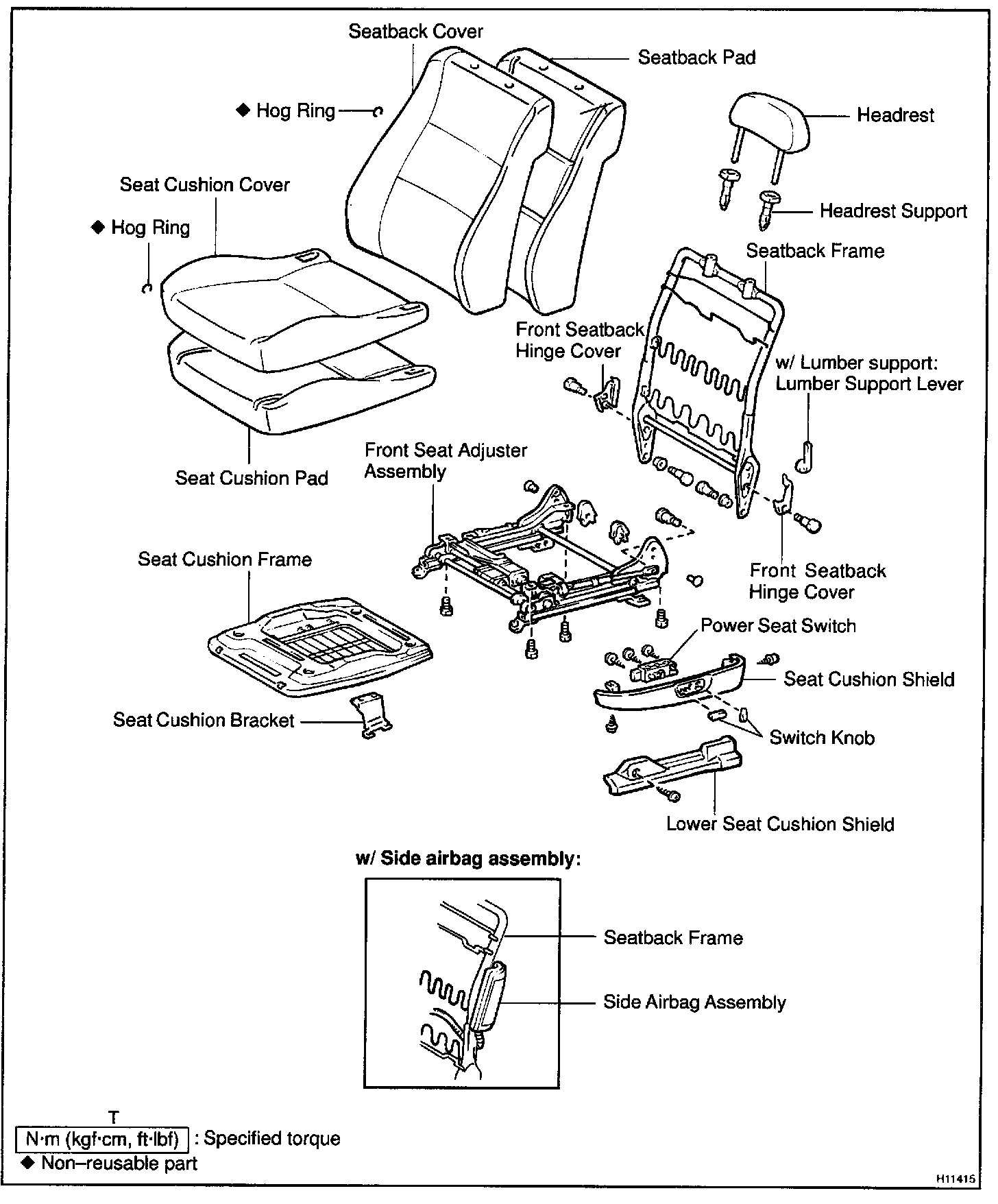

Front Seat (Power Seat For TMMK Made):

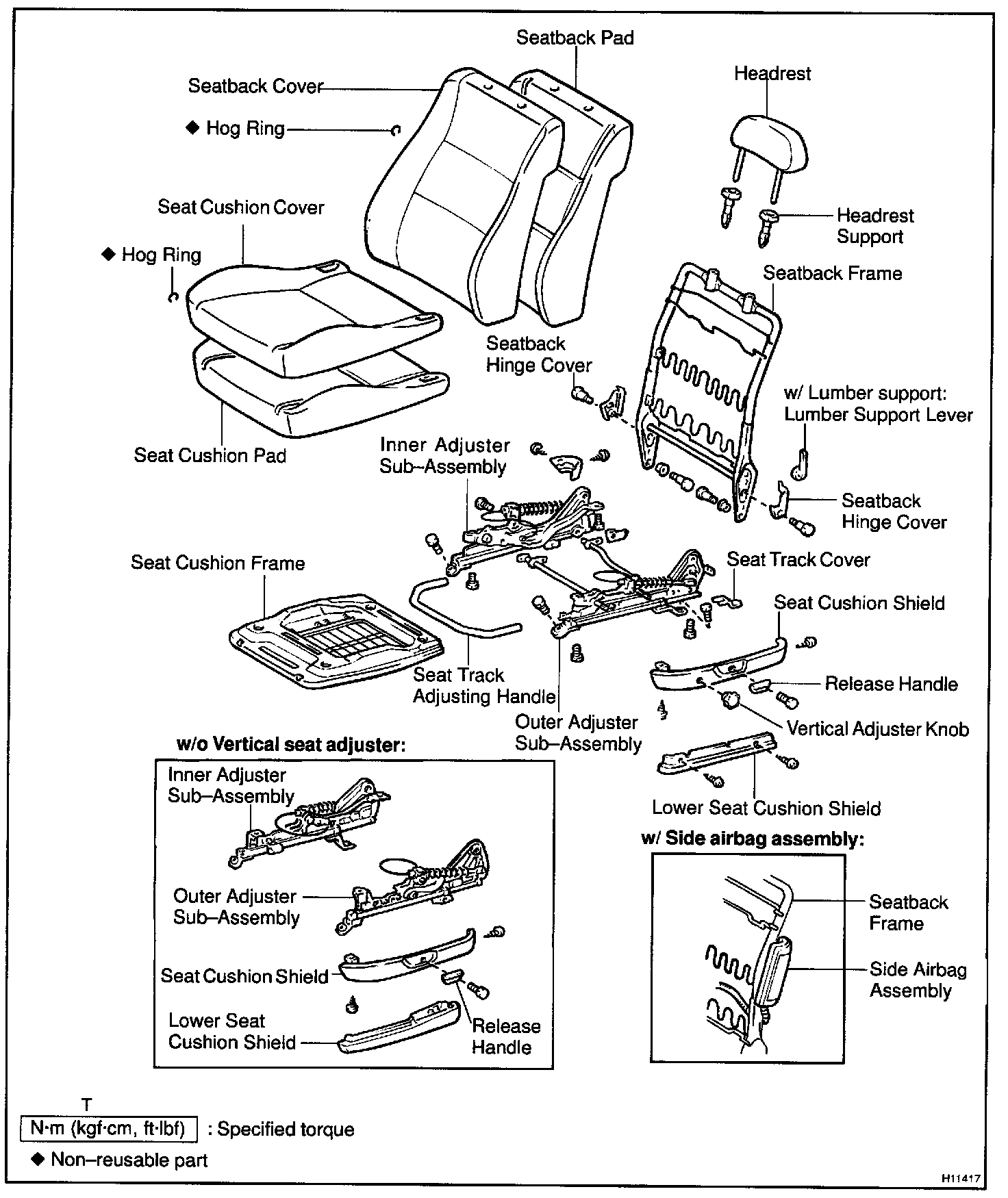

Front Seat (Manual Seat For TMC Made):

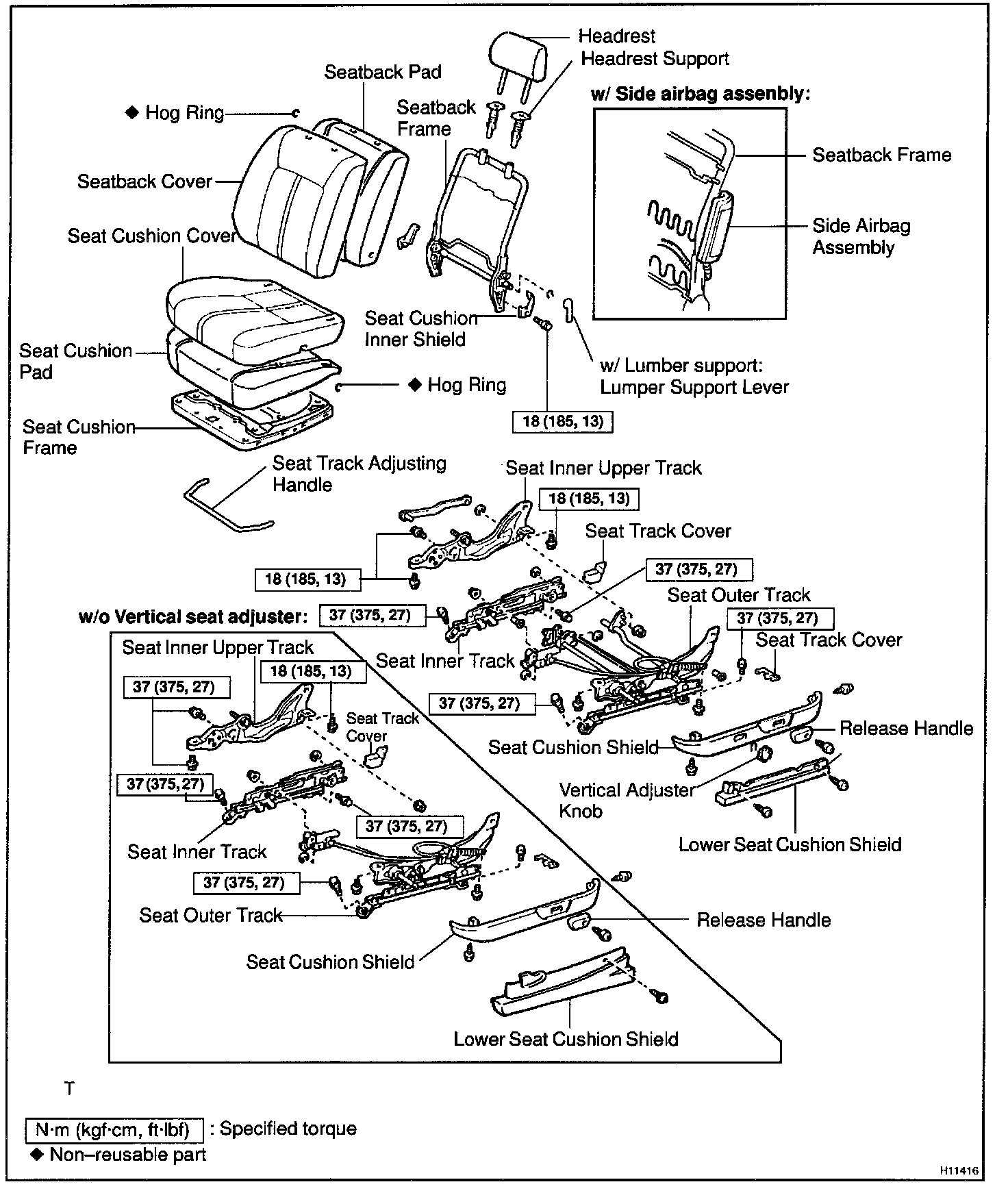

Front Seat (Manual Seat For TMMK Made):

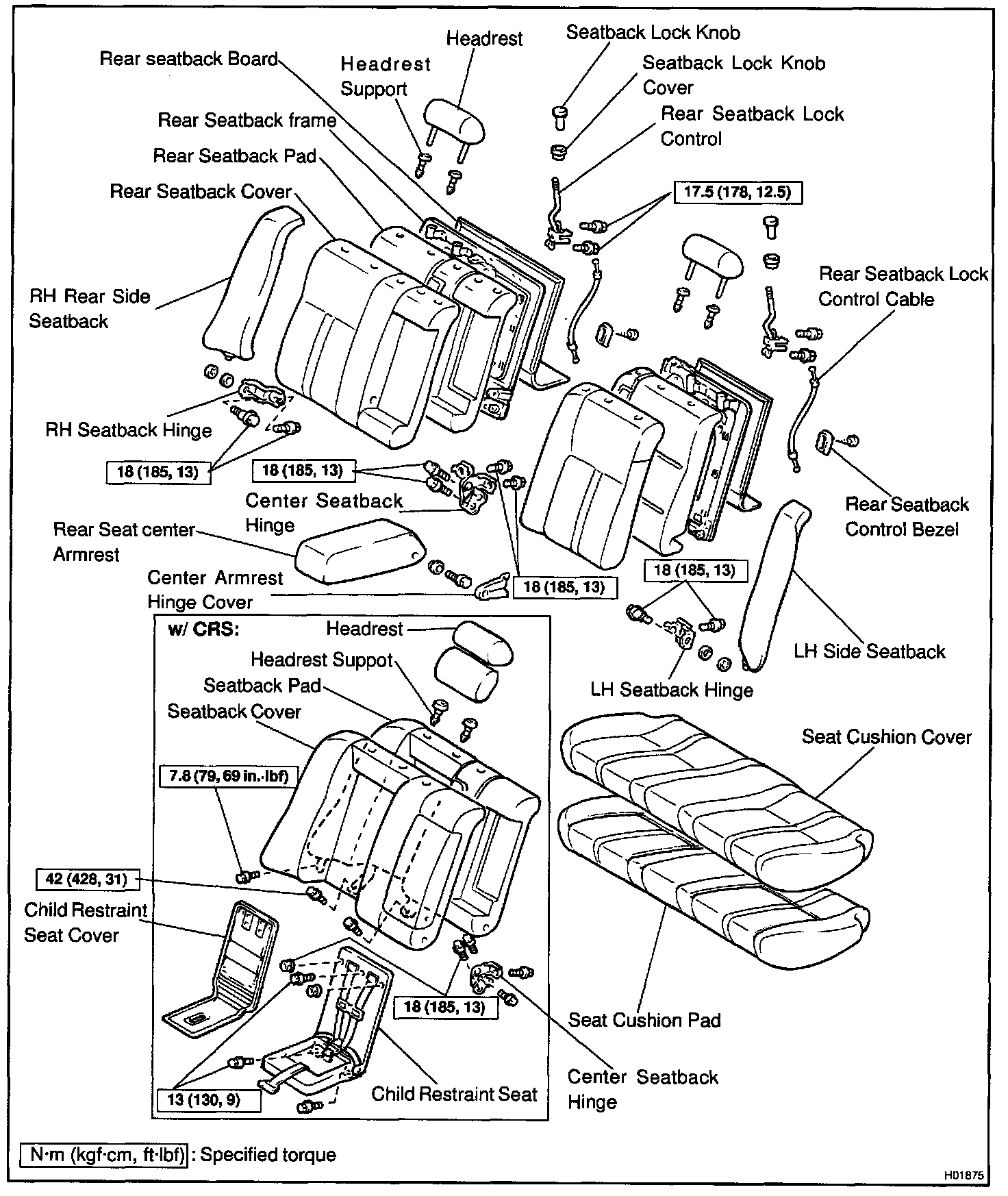

Rear Seat (TMC Made):



Rear Seat (TMMK Made):
