Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION SENSORREMOVAL
REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the camshaft position sensor connector.

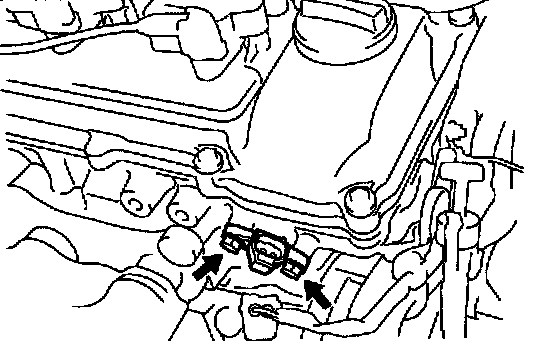

b. Remove the 2 bolts and camshaft position sensor.
- Torque: 8 Nm (80 kg.cm, 69 in.lb)
INSTALLATION
Installation is in the reverse order of removal.
