Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR

REMOVAL
1. REMOVE RH FENDER APRON SEAL

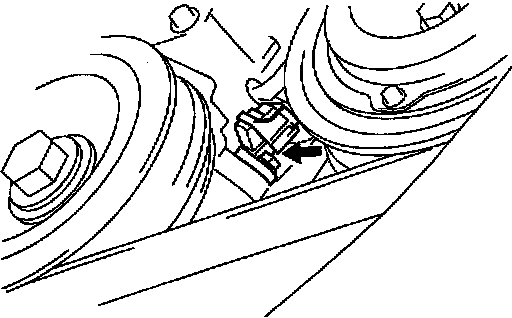

2. REMOVE CRANKSHAFT POSITION SENSOR




a. Remove the bolt and disconnect the crankshaft position sensor.
- Torque: 8 Nm (80 kg.cm, 69 in.lb)
b. Disconnect the crankshaft position sensor connector.

INSTALLATION
Installation is in the reverse order of removal.
