Power Window Switch: Locations

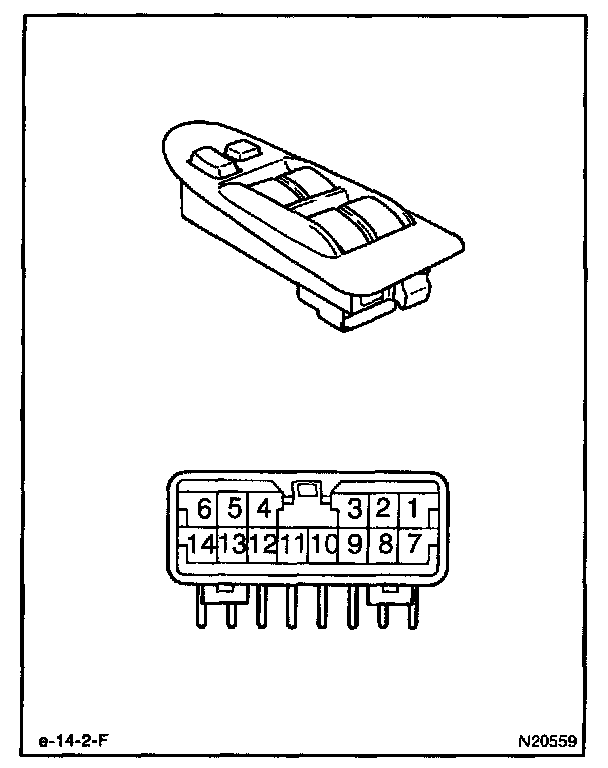

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

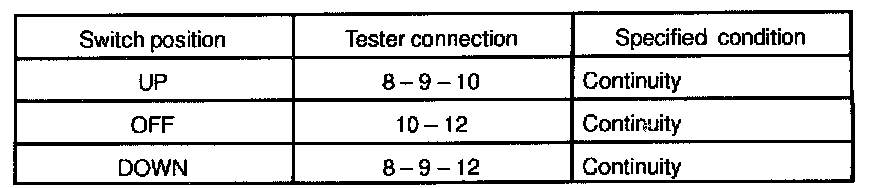

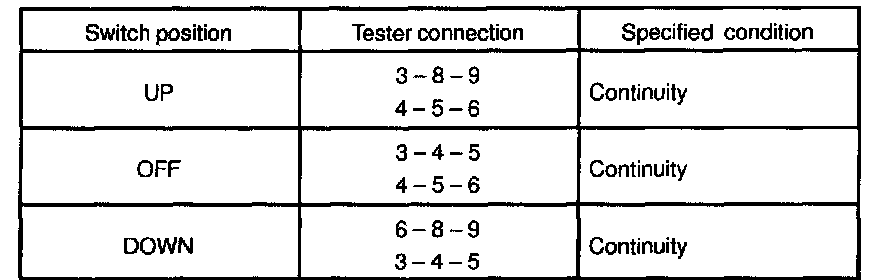

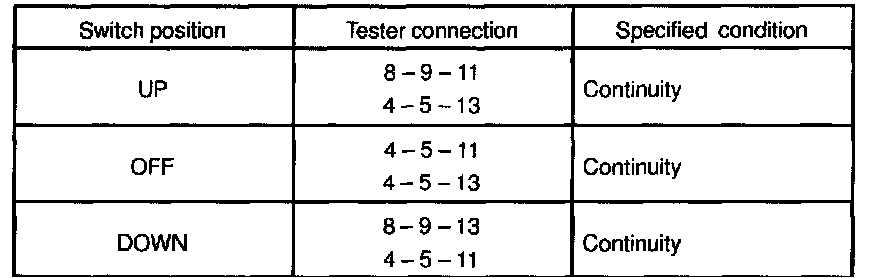

a. Inspect the front driver's switch.

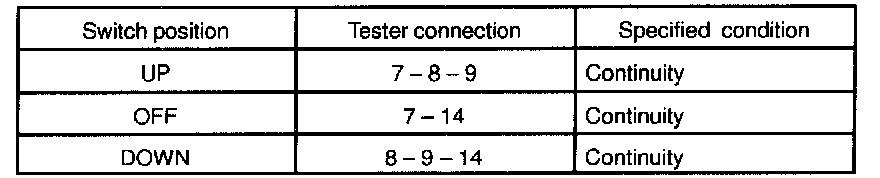

Window unlock:




Window lock:

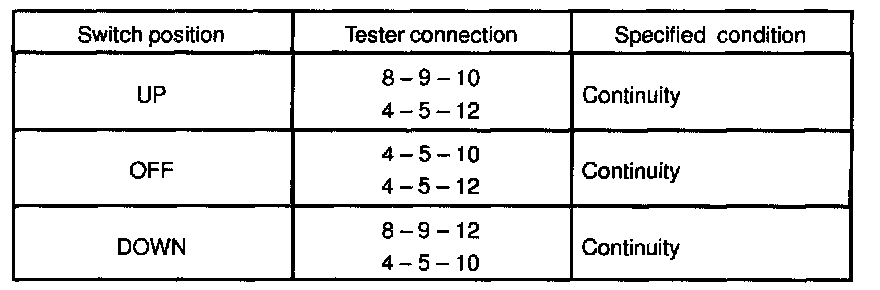

b. Inspect the front passenger's switch.




Window unlock:




Window lock:

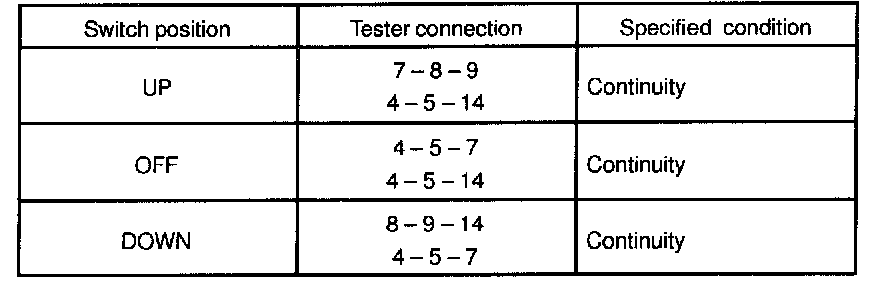

c. Inspect the rear left switch.




Window unlock:




Window lock:

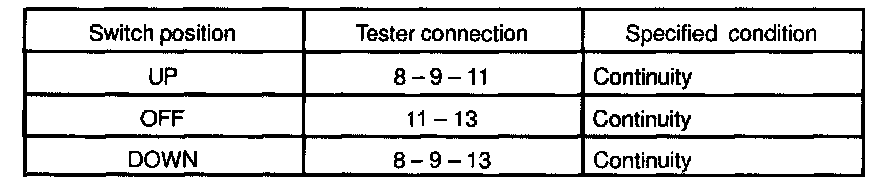

d. Inspect the rear right switch.




Window unlock:




Window lock:
If continuity is not as specified, replace the master switch.

INSPECT POWER WINDOW MASTER SWITCH ILLUMINATION




a. Set the window lock switch to the unlock position.

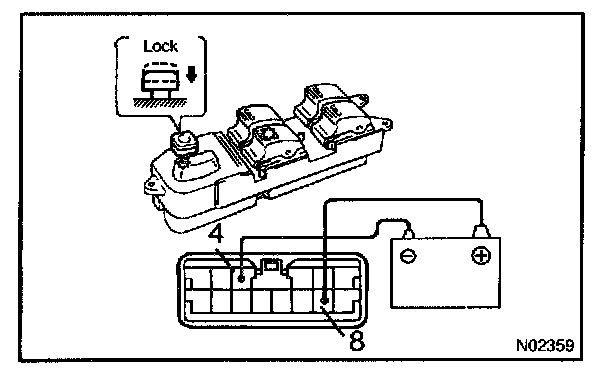

b. Connect the positive (+) lead from the battery to terminal 8 and the negative (-) lead to terminal 4, and check that all the illuminations light up.




c. Set the window lock switch to the lock position, check that all the passenger's power window switch illuminations go out.
If operation is not as specified, replace the master switch.

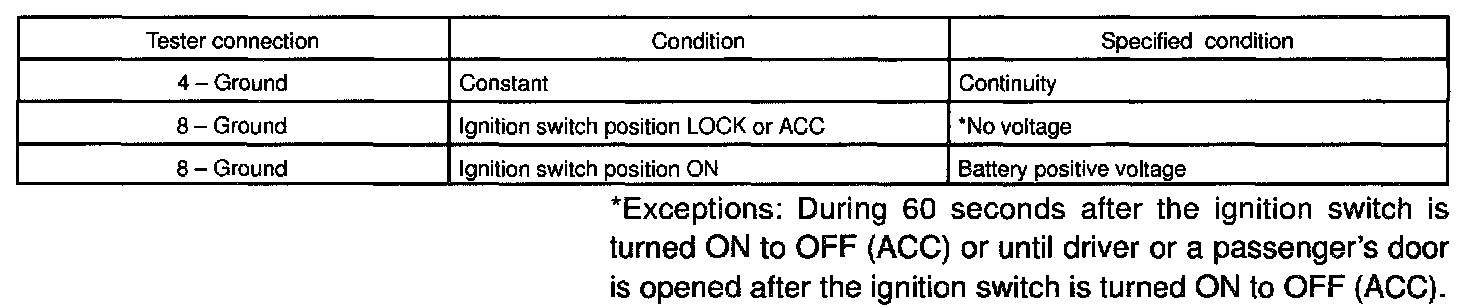

INSPECT POWER WINDOW MASTER SWITCH CIRCUIT

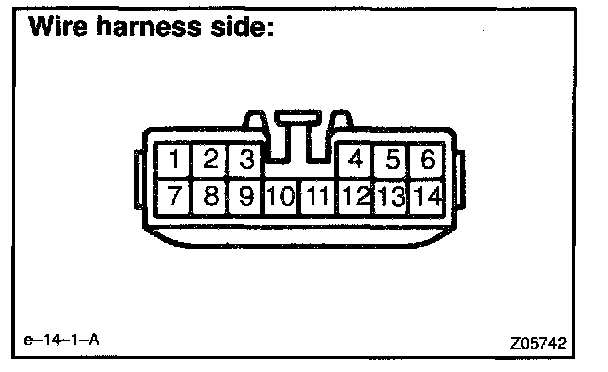

Disconnect the connector from the master switch and inspect the connector on the wire harness side, as shown in the following.
If the circuit is not as specified, inspect the circuits connected to other parts.

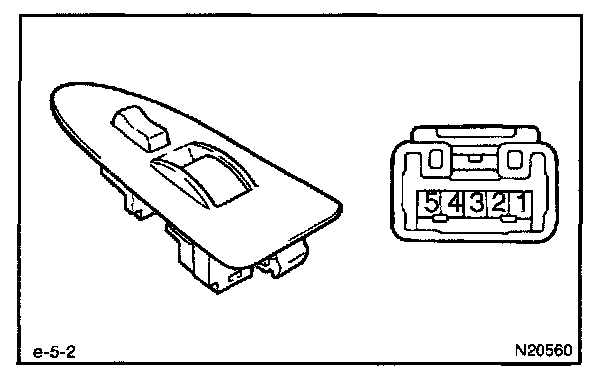

Front passenger's door:

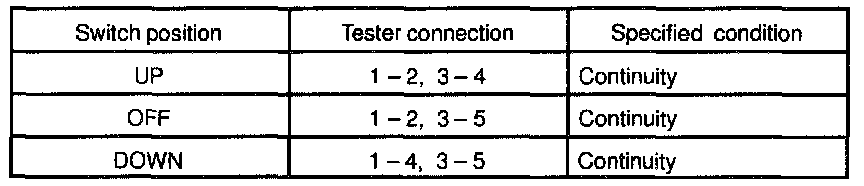

INSPECT POWER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

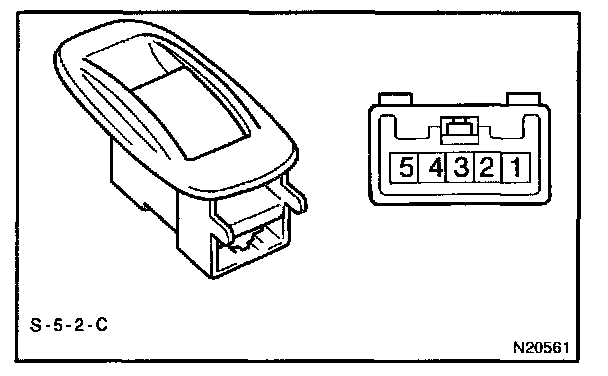

Rear door:

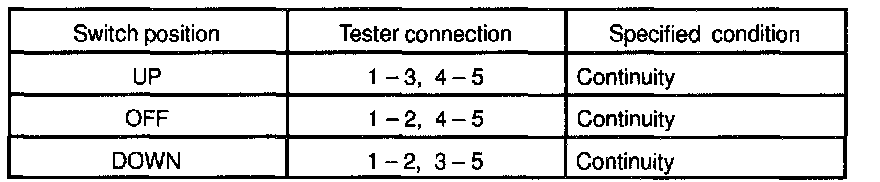

INSPECT POWER WINDOW SWITCH CONTINUITY 7
If continuity is not as specified, replace the switch.

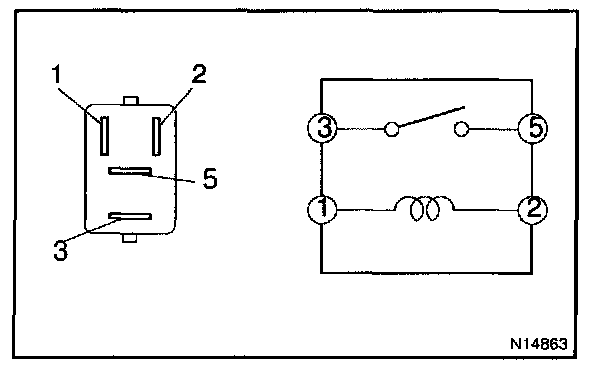

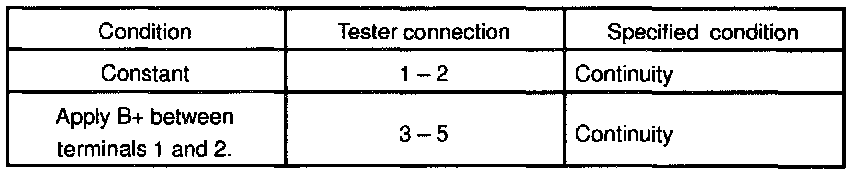

INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.
