Fuel Tank

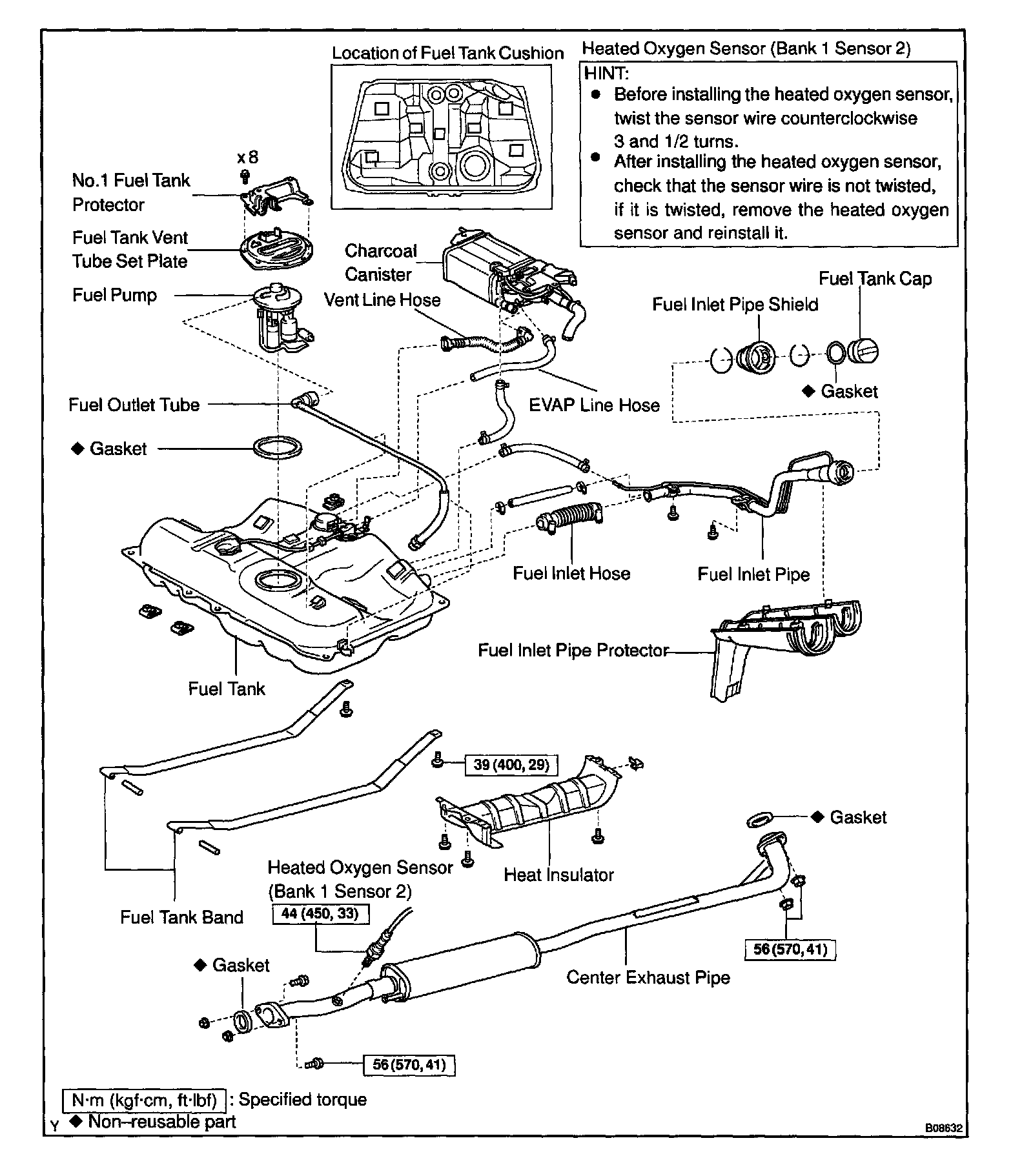

Fuel Tank
COMPONENTS
CAUTION:
-
Always use new gaskets when replacing the fuel tank or component parts.
-
Apply the proper torque to all parts tightened.
