Cylinder Head Torque and Sequence

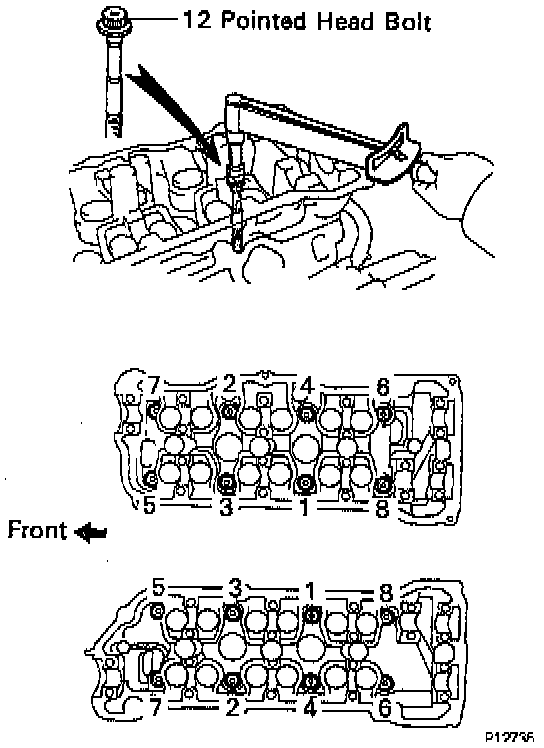

12 Point Cylinder Head Bolts
Torque
First Turn 54 Nm
Second Turn 90 degrees





Recessed Head Bolt
Torque 18.5 Nm

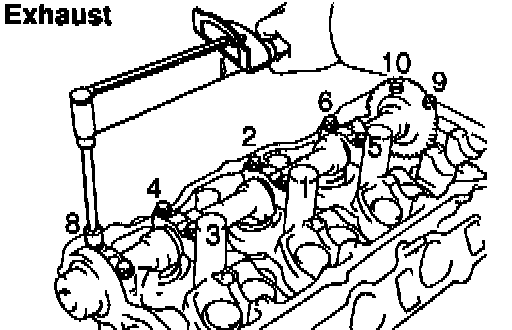

Exhaust:

Intake:

Camshaft Bearing Cap Bolts
Torque 16 Nm

Head Surface Warpage
Maximum 0.10 mm

If any cylinder head bolt is broken or deformed, replace it. Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
