Engine Control Module

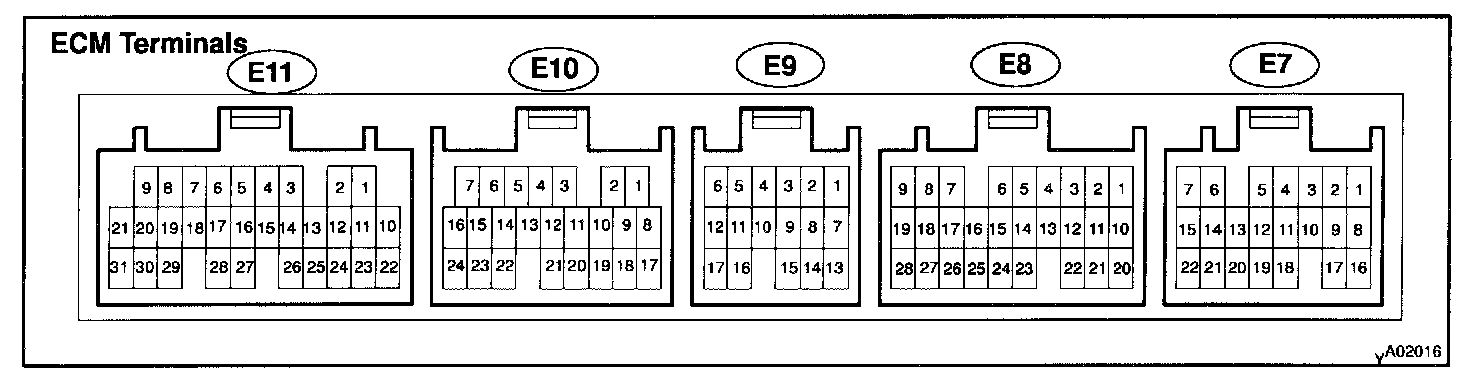

Connectors:

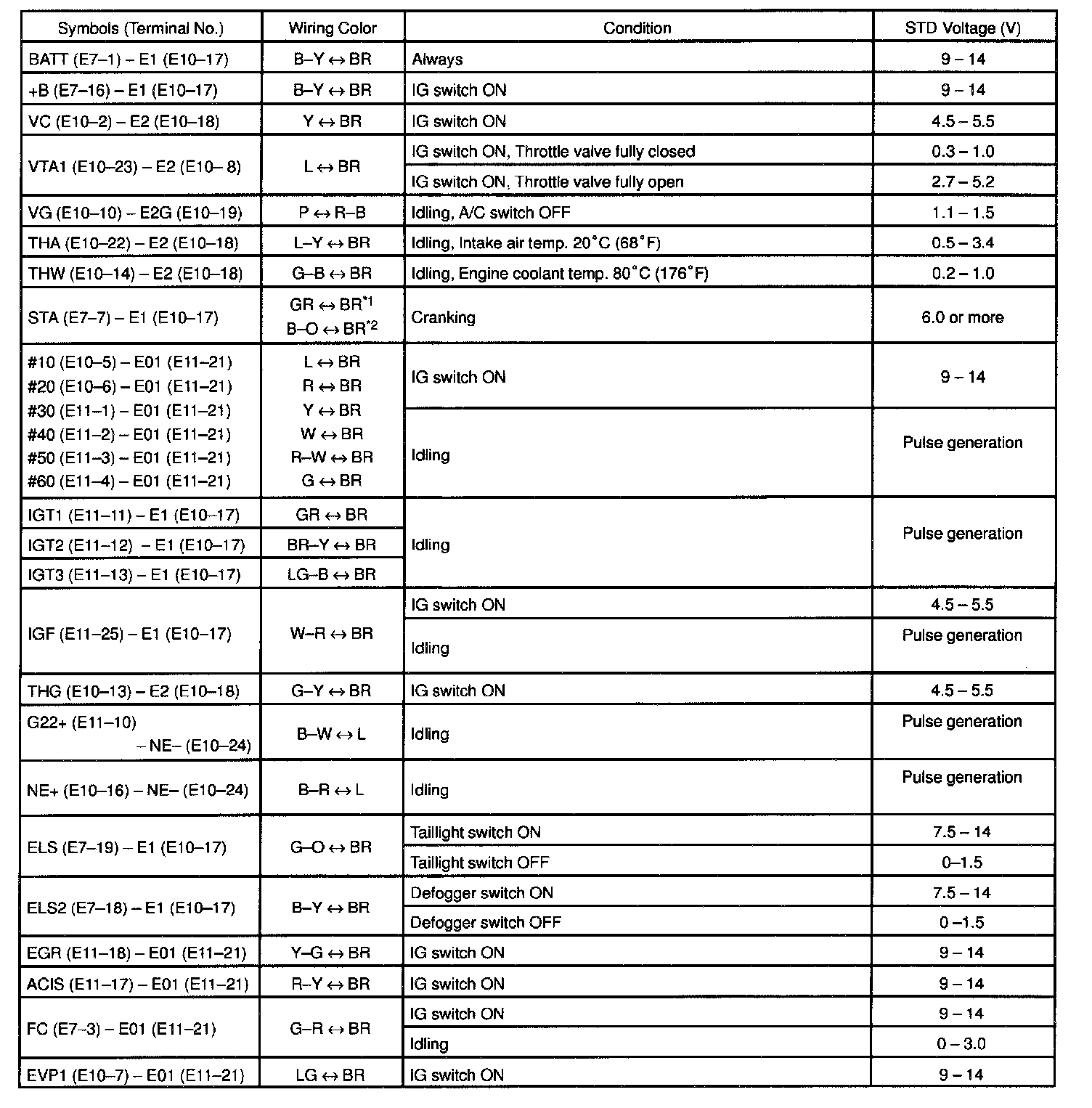

Part 1 Of 3:

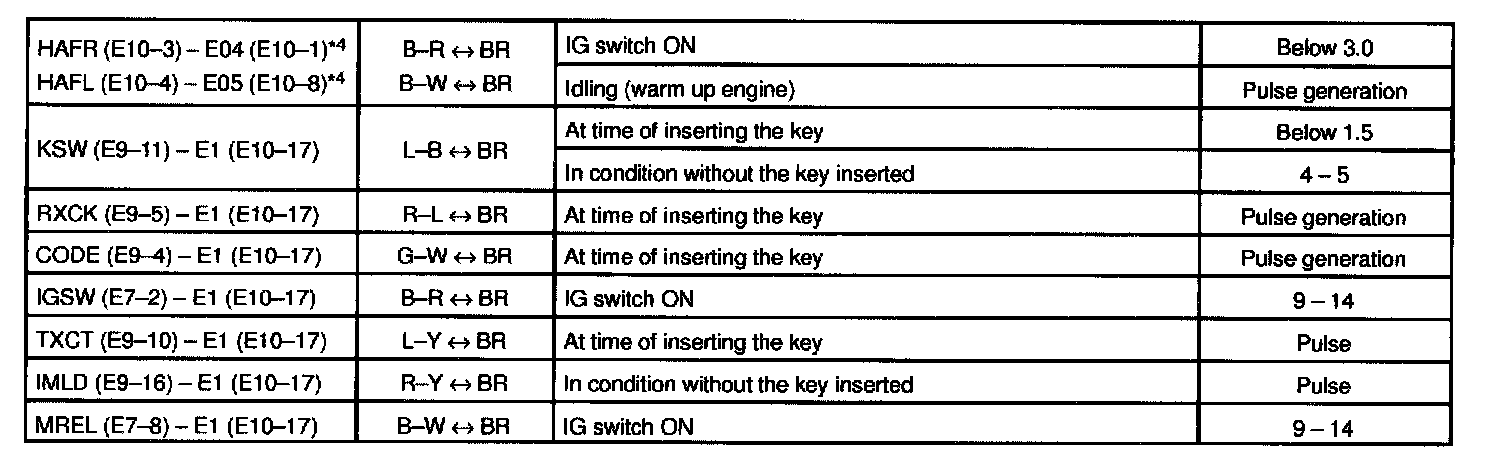

Part 2 Of 3:

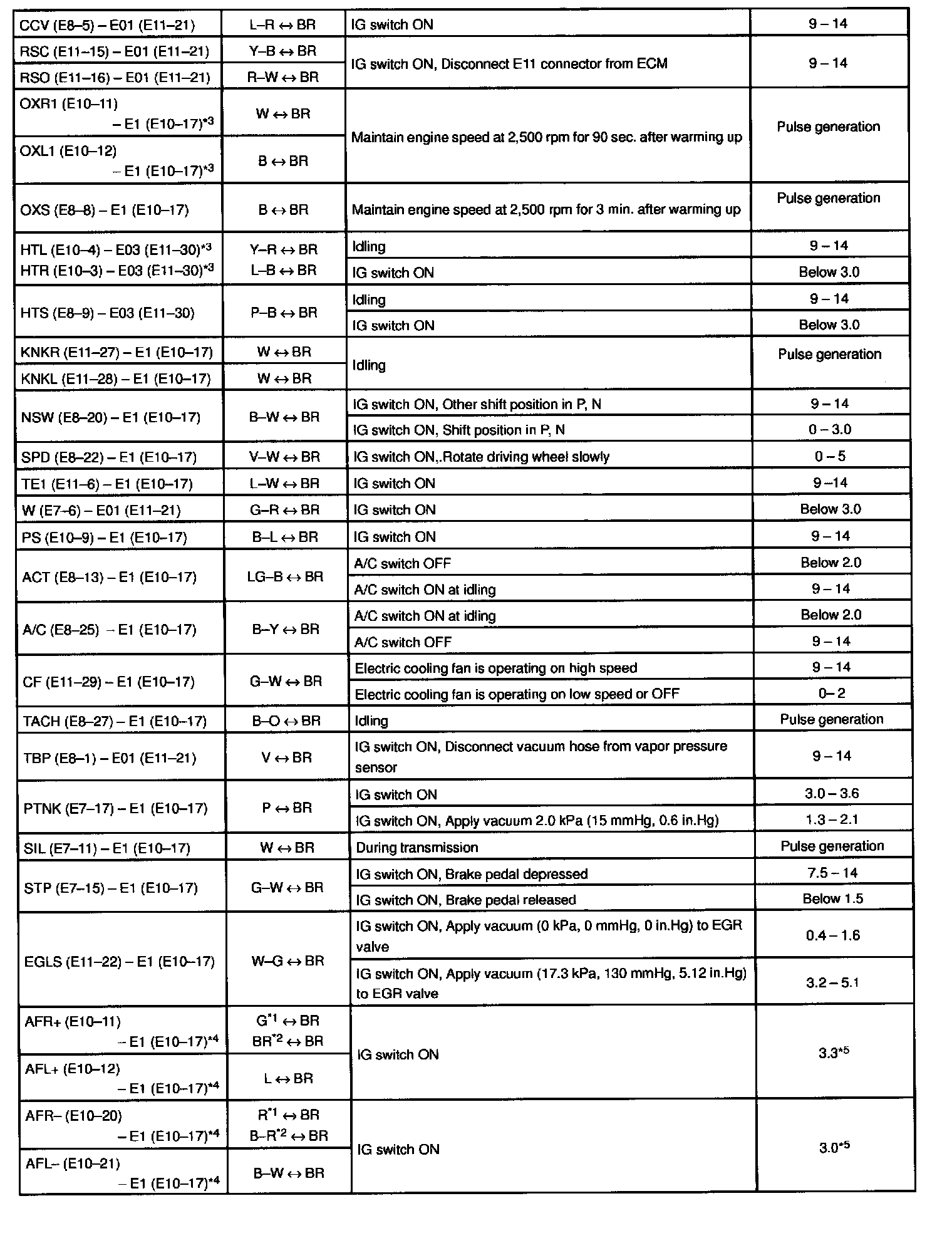

Part 3 Of 3:

*1: TMC made
*2: TMMK made
*3: Only for Except Calif.
*4: Only for Calif.
*5: The ECM terminal voltage is fixed regardless of the output voltage from the sensor.
