Engine
>>
Oil Pump, Engine
Oil Pump, Engine
OIL PUMP COMPONENTS

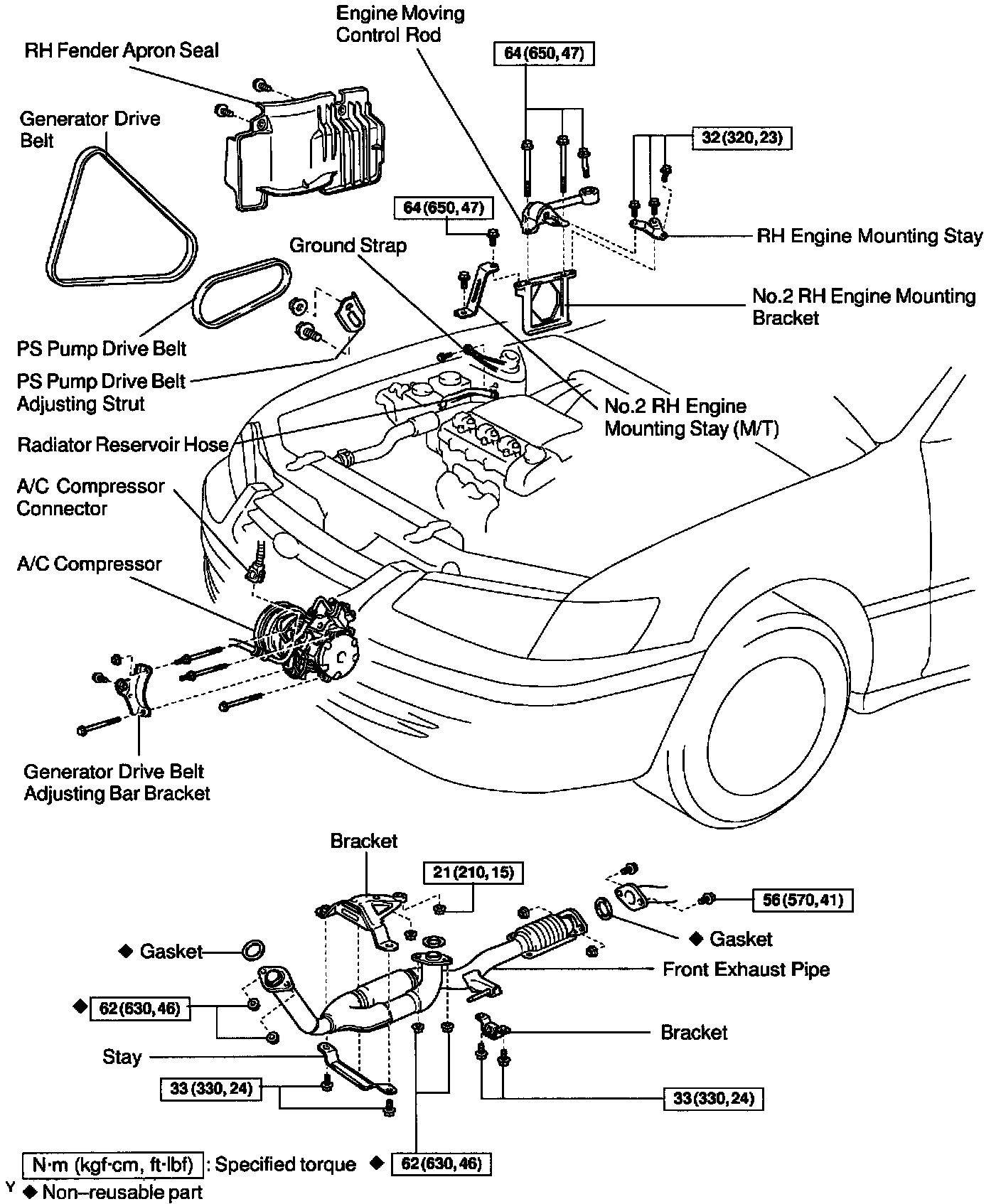

Engine Component And Front Exhaust Pipe:

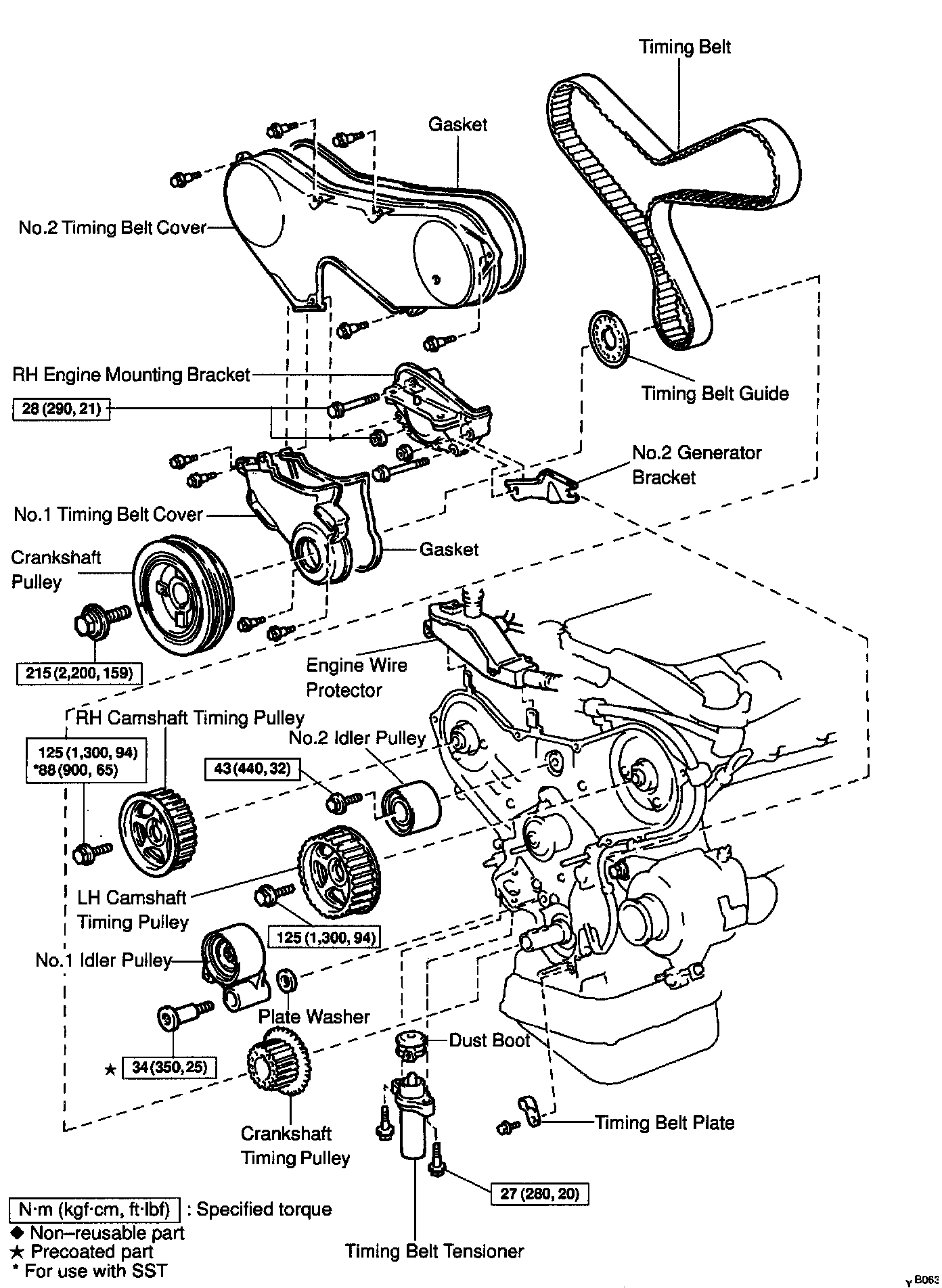

Timing Belt Components:

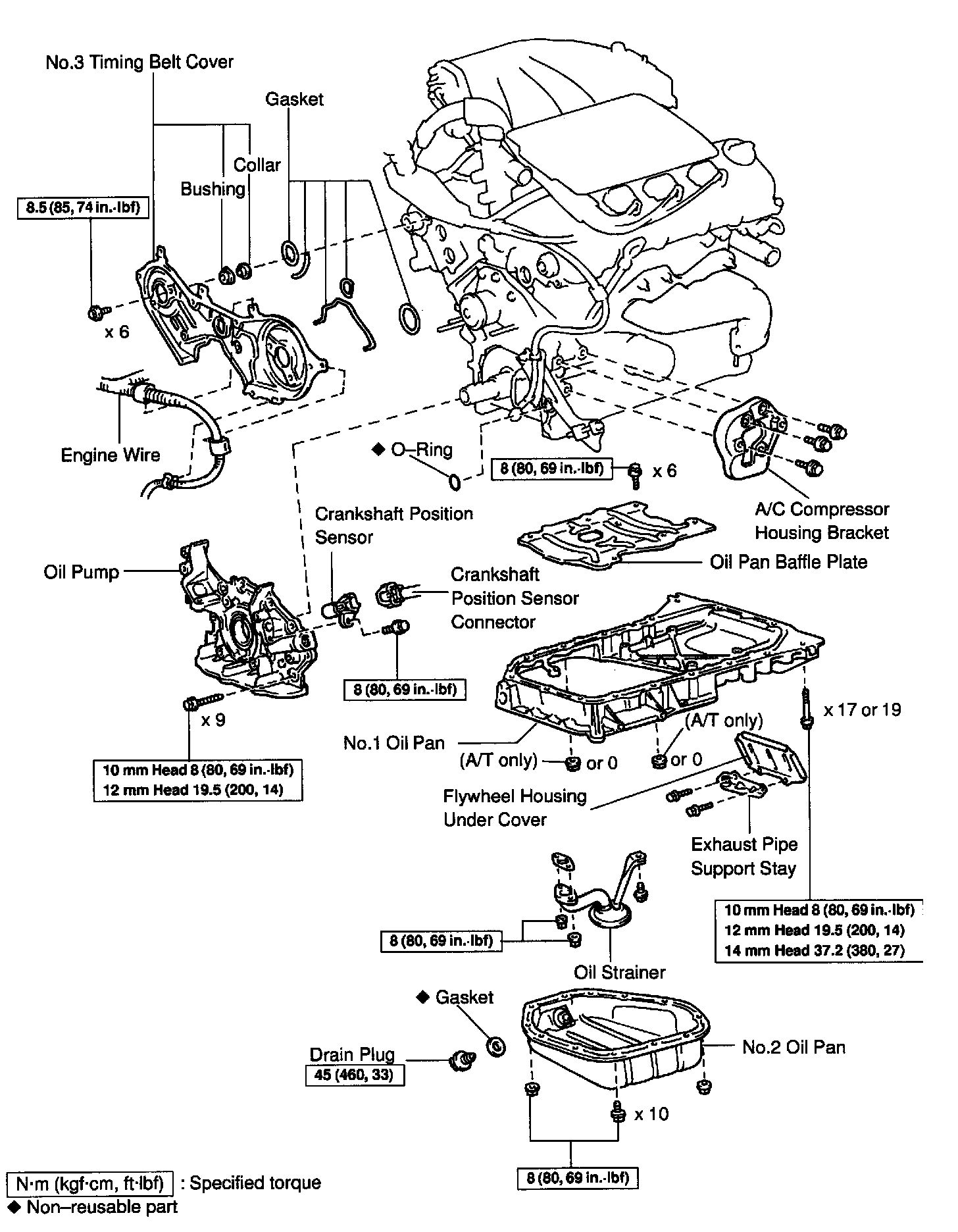

Lubrication Components:

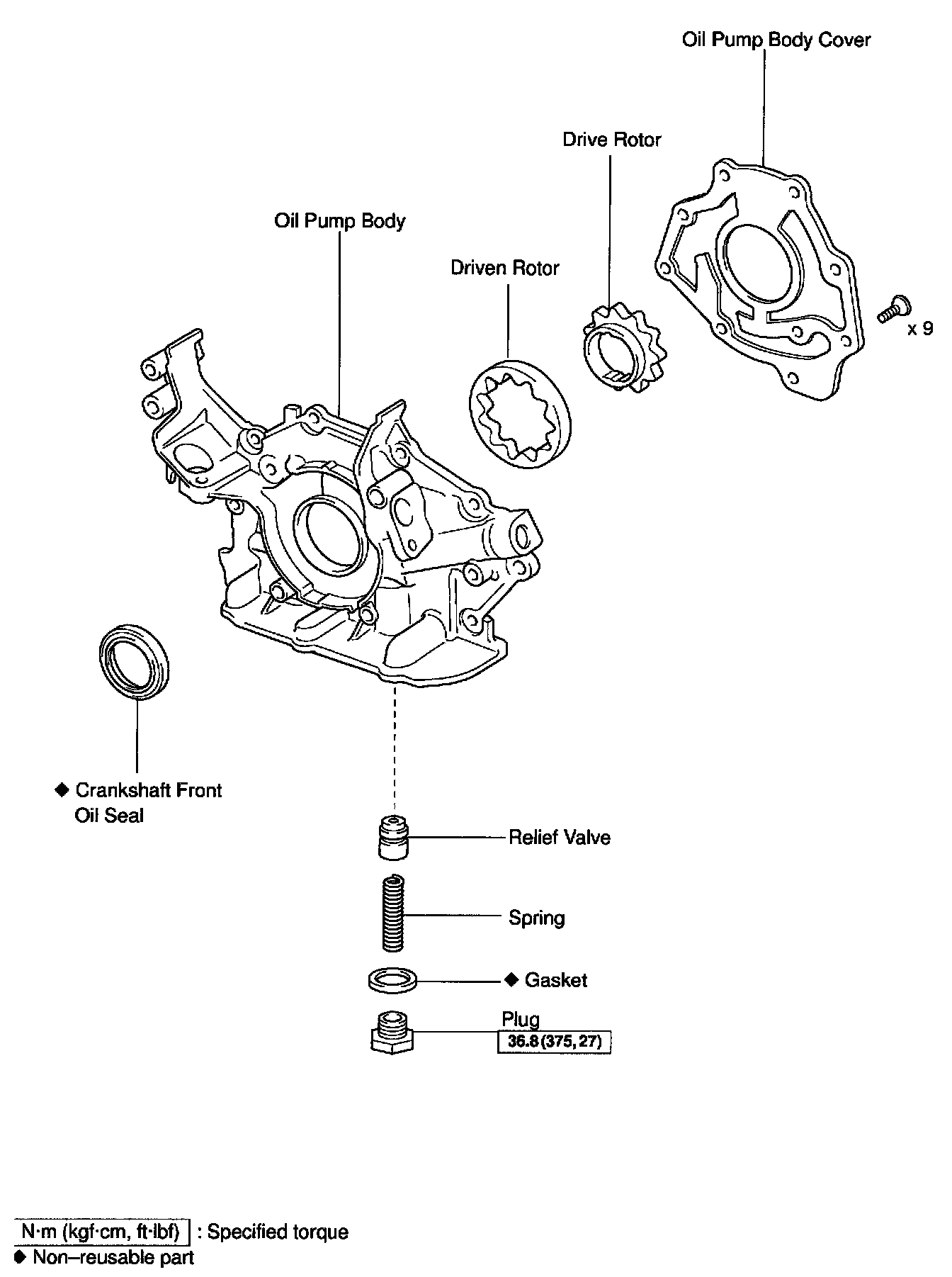

Oil Pump:
