Radiator
Radiator
RADIATOR COMPONENTS

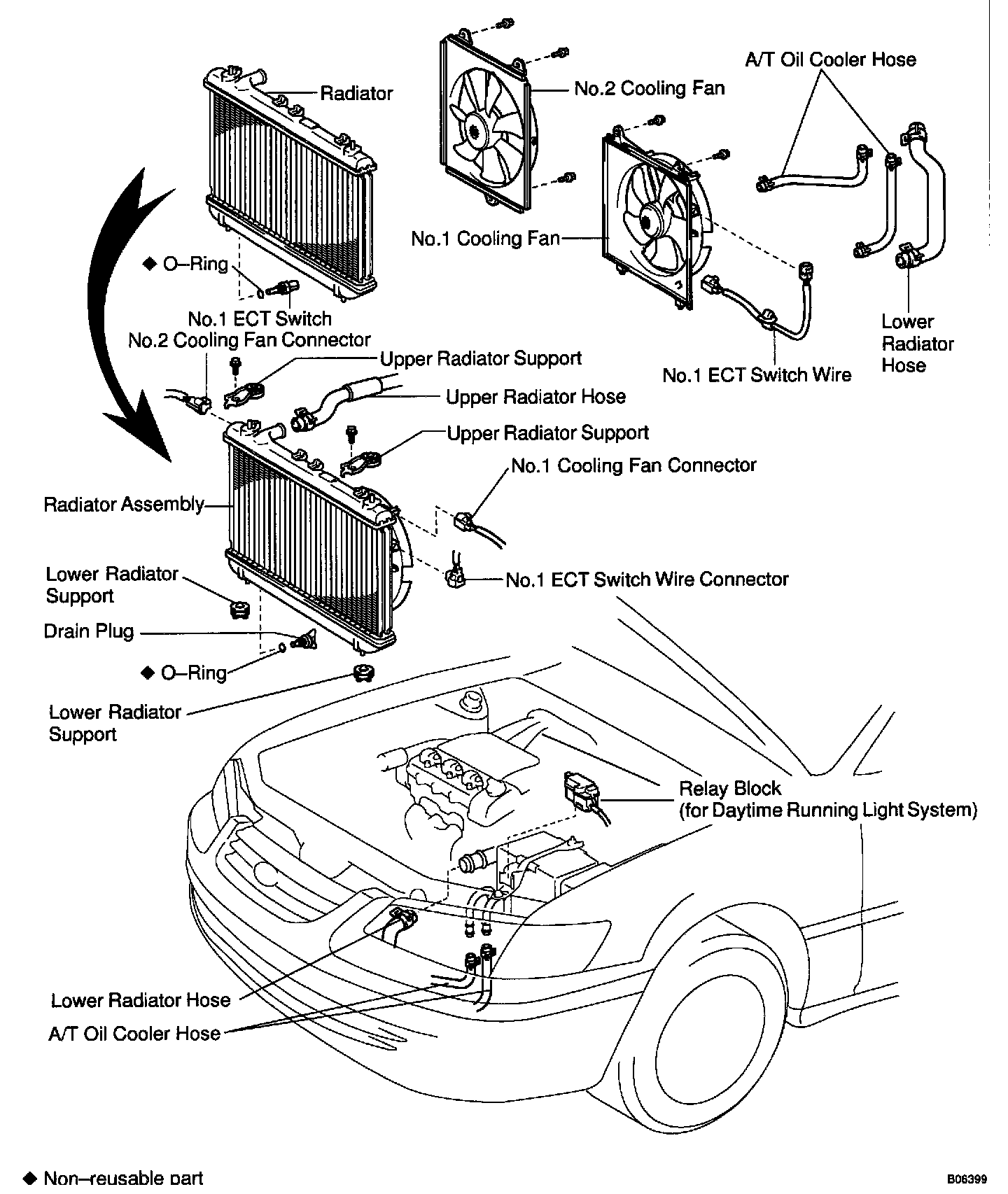

Radiator, Mounts, And Cooling Fans:

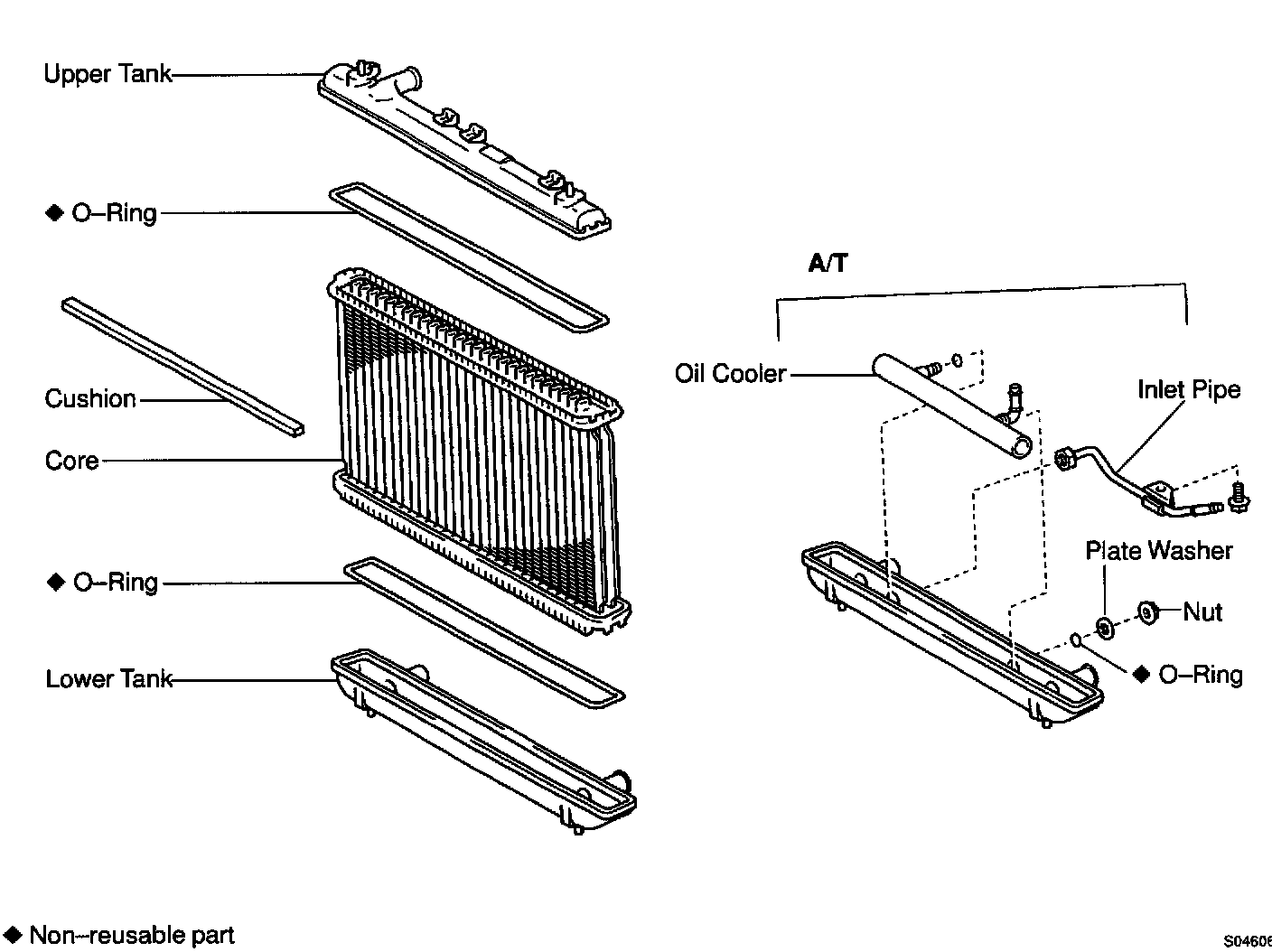

Radiator (Core And Tanks):
