Blower Motor Linear Controller


Blower Motor Linear (Auto A/C)
INSPECTION

1. REMOVE LOWER NO.1 PANEL




2. REMOVE HEATER PROTECTOR

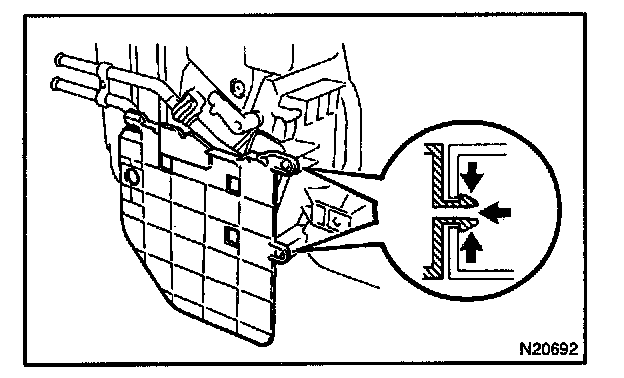

Release the 3 claws and pull out the heater protector.




3. REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.

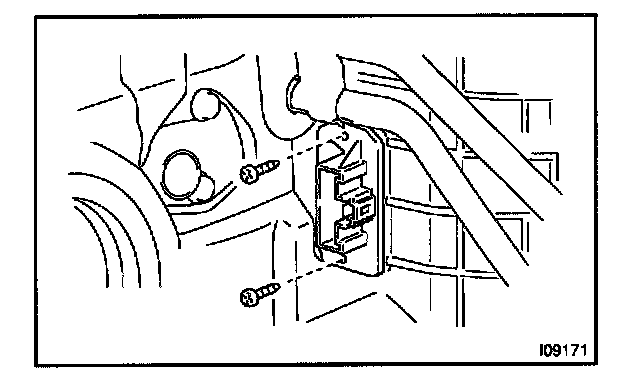

b. Remove the 2 screws and controller.

4. INSPECT BLOWER MOTOR LINEAR CONTROLLER

5. INSTALL BLOWER MOTOR LINEAR CONTROLLER
a. Install the controller with the 2 screws.
b. Connect the connector.

6. INSTALL HEATER PROTECTOR

7. INSTALL LOWER NO.2 PANEL
