Engine Compartment

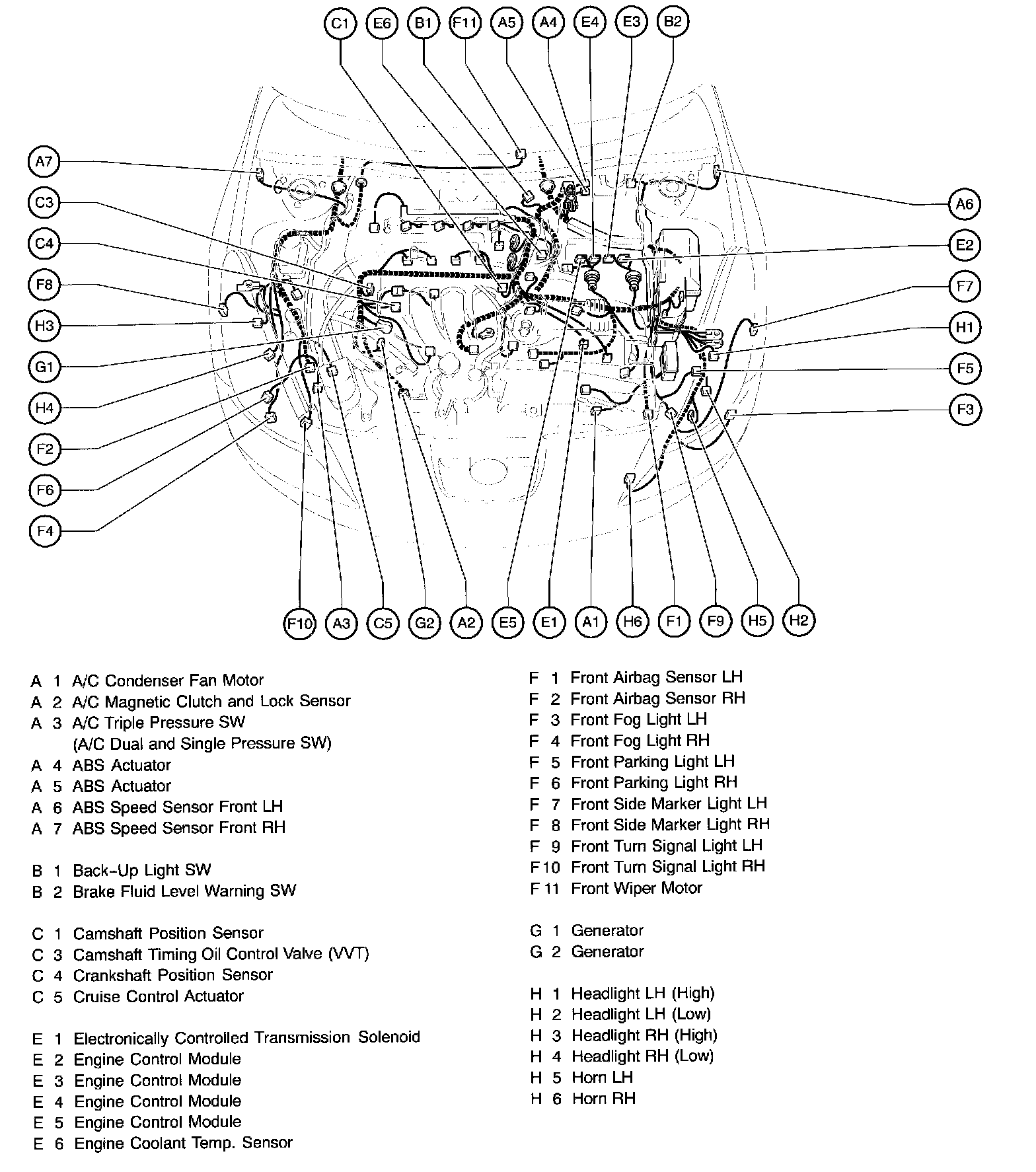

A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Speed Sensor Front LH
A 7 ABS Speed Sensor Front RH

B 1 Back-Up Light SW
B 2 Brake Fluid Level Warning SW

C 1 Crankshaft Position Sensor
C 3 Crankshaft Timing Oil Control Valve
C 4 Crankshaft Position Sensor
C 5 Crankshaft Control Actuator

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Control Module
E 3 Engine Control Module
E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Coolant Temp. Sensor

F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Fog Light LH
F 4 Front Fog Light RH
F 5 Front Parking Light LH
F 6 Front Parking Light RH
F 7 Front Side Marker Light LH
F 8 Front Side Marker Light RH
F 9 Front Turn Signal Light LH
F10 Front Turn Signal Light RH
F11 Front Wiper Motor

G 1 Generator
G 2 Generator

H 1 Headlight LH (High)
H 2 Headlight LH (Low)
H 3 Headlight RH (high)
H 4 Headlight RH (Low)
H 5 Horn LH
H 6 Horn RH

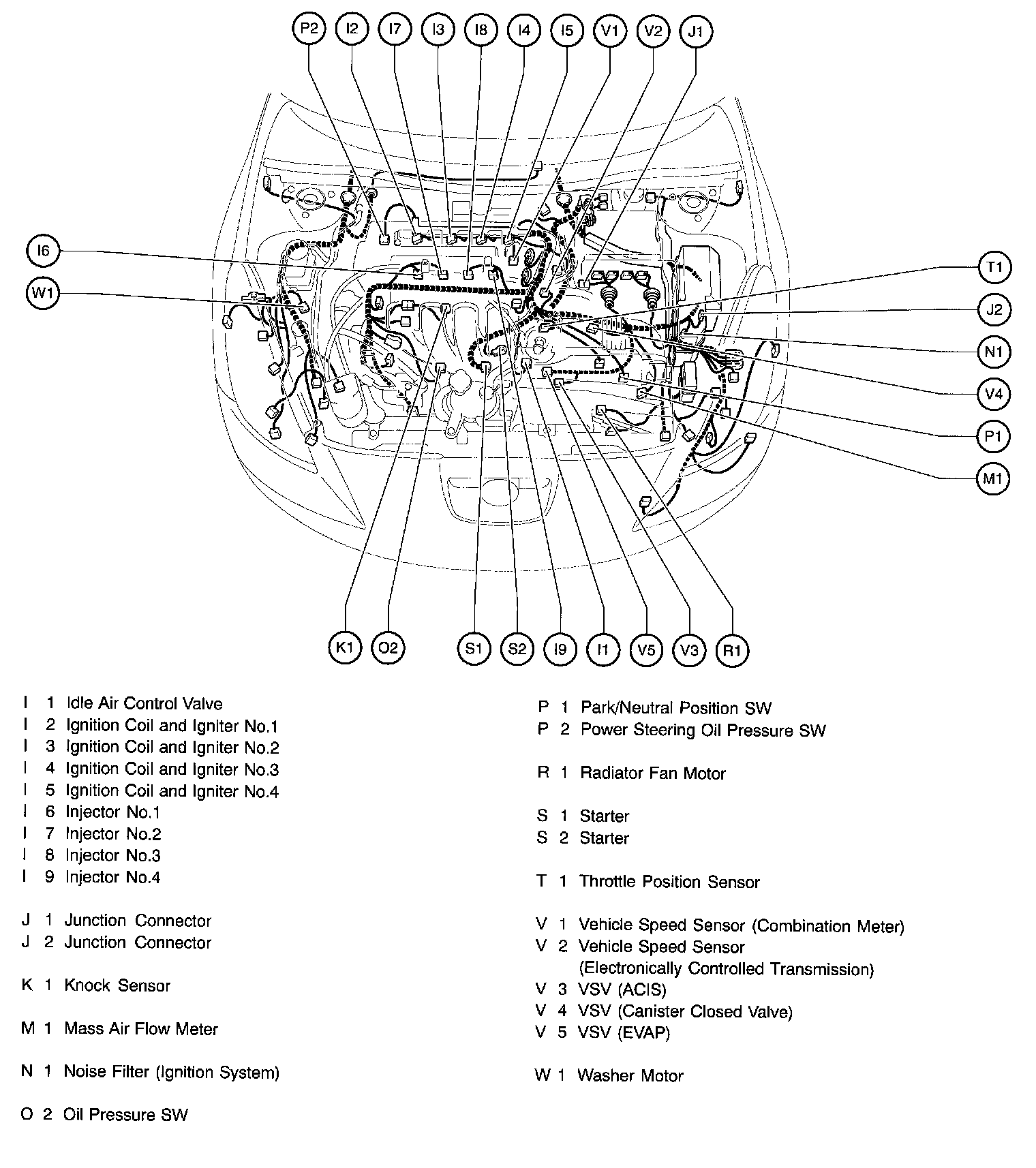

I 1 Idle Air Control Valve
I 2 Ignition Coil and Igniter No. 1
I 3 Ignition Coil and Igniter No. 2
I 4 Ignition Coil and Igniter No. 3
I 5 Ignition Coil and Igniter No. 4
I 6 Injector No. 1
I 7 Injector No. 2
I 8 Injector No. 3
I 9 Injector No. 4

J 1 Junction Connector
J 2 Junction Connector

K 1 Knock Sensor

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition System)

O 2 Oil Pressure SW

P 1 Park/Neutral Position SW
P 2 Power Steering Oil Pressure SW

R 1 Radiator Fan Motor

S 1 Starter
S 2 Starter

T 1 Throttle Position Sensor

V 1 Vehicle Speed Sensor (Combination Meter)
V 2 Vehicle Speed Sensor (Electronically Controlled Transmission)
V 3 VSV (ACIS)
V 4 VSV (Canister Closed Valve)
V 5 VSV (EVAP)

W1 Washer Motor
