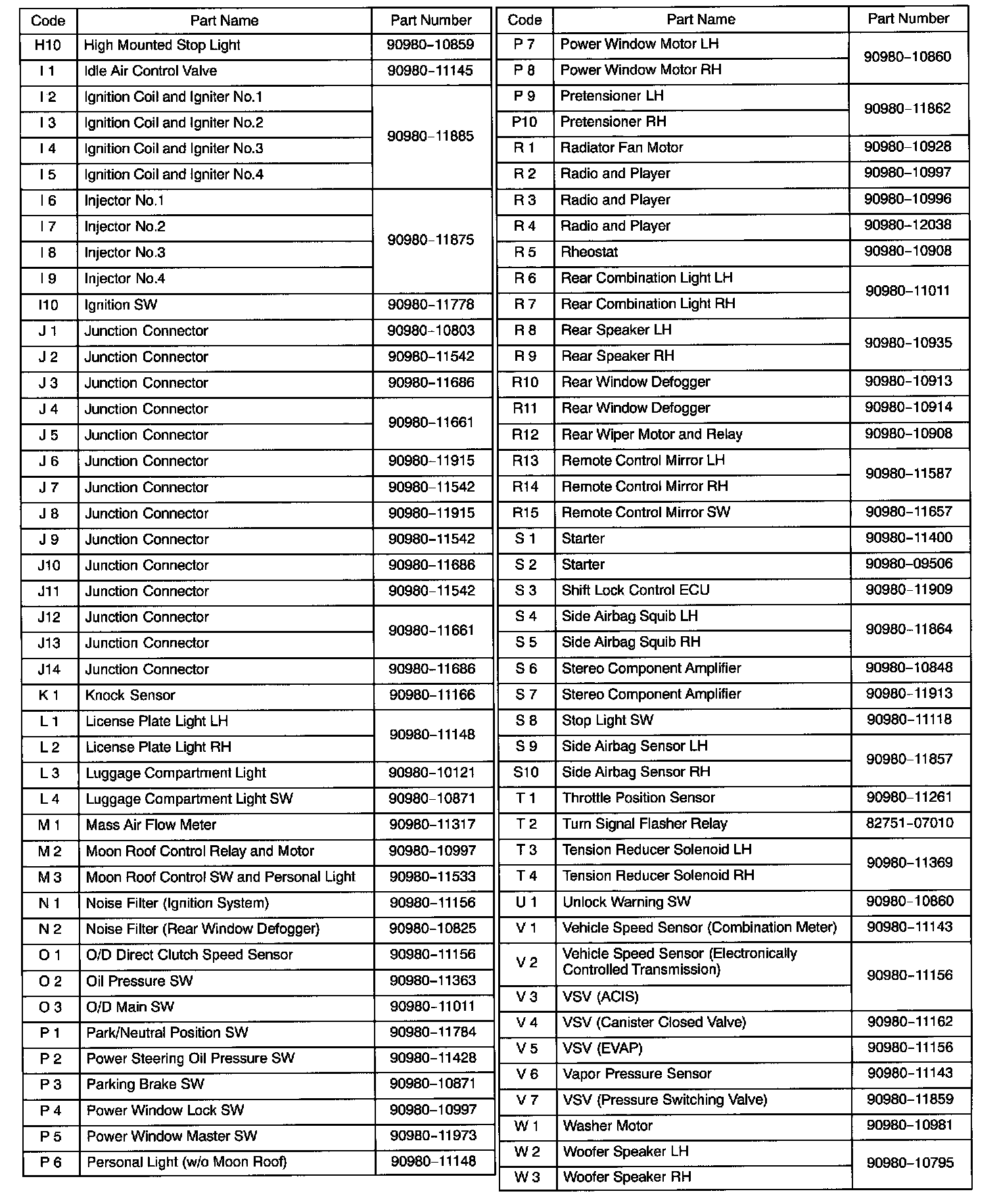

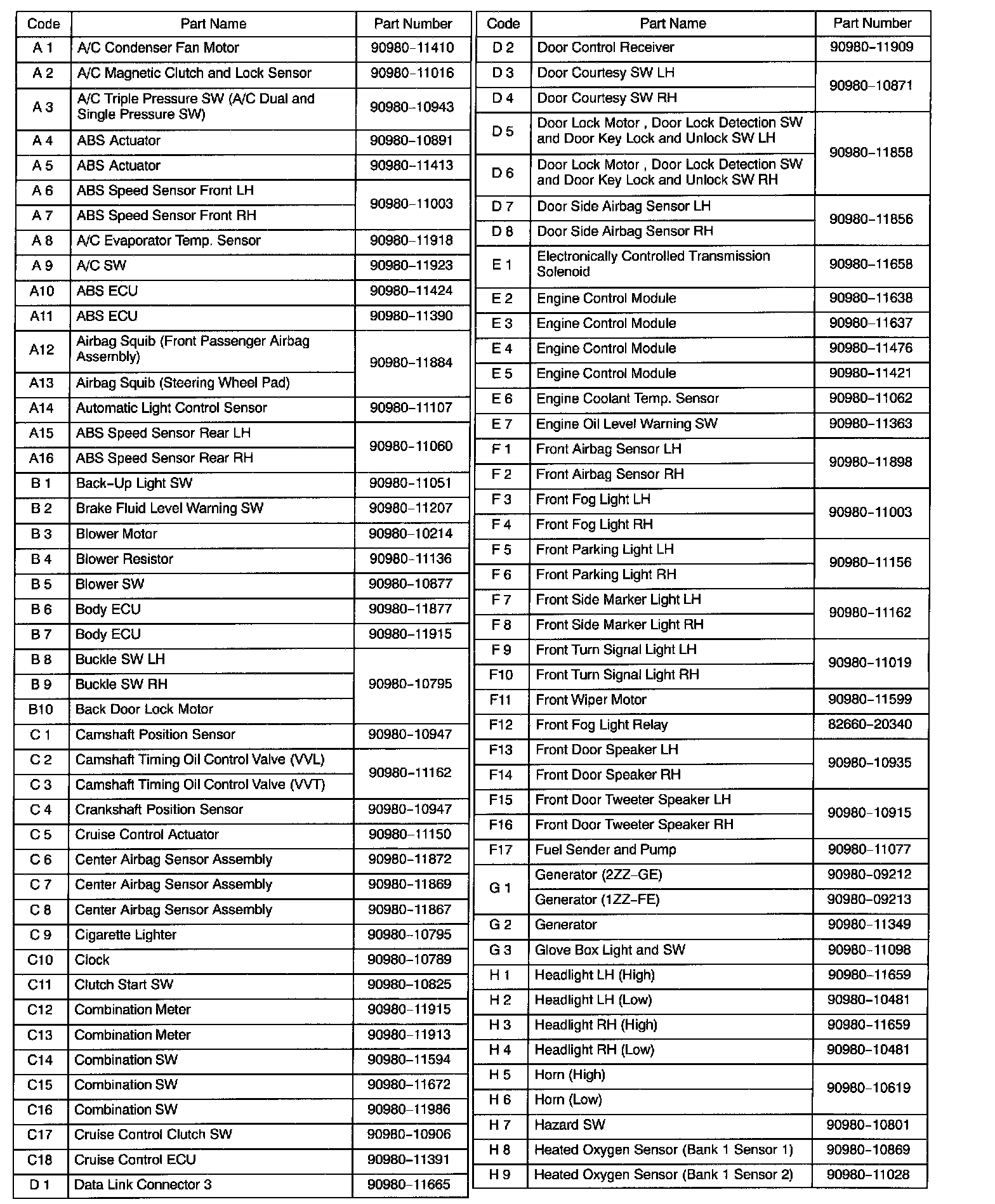

Connector Code Lists

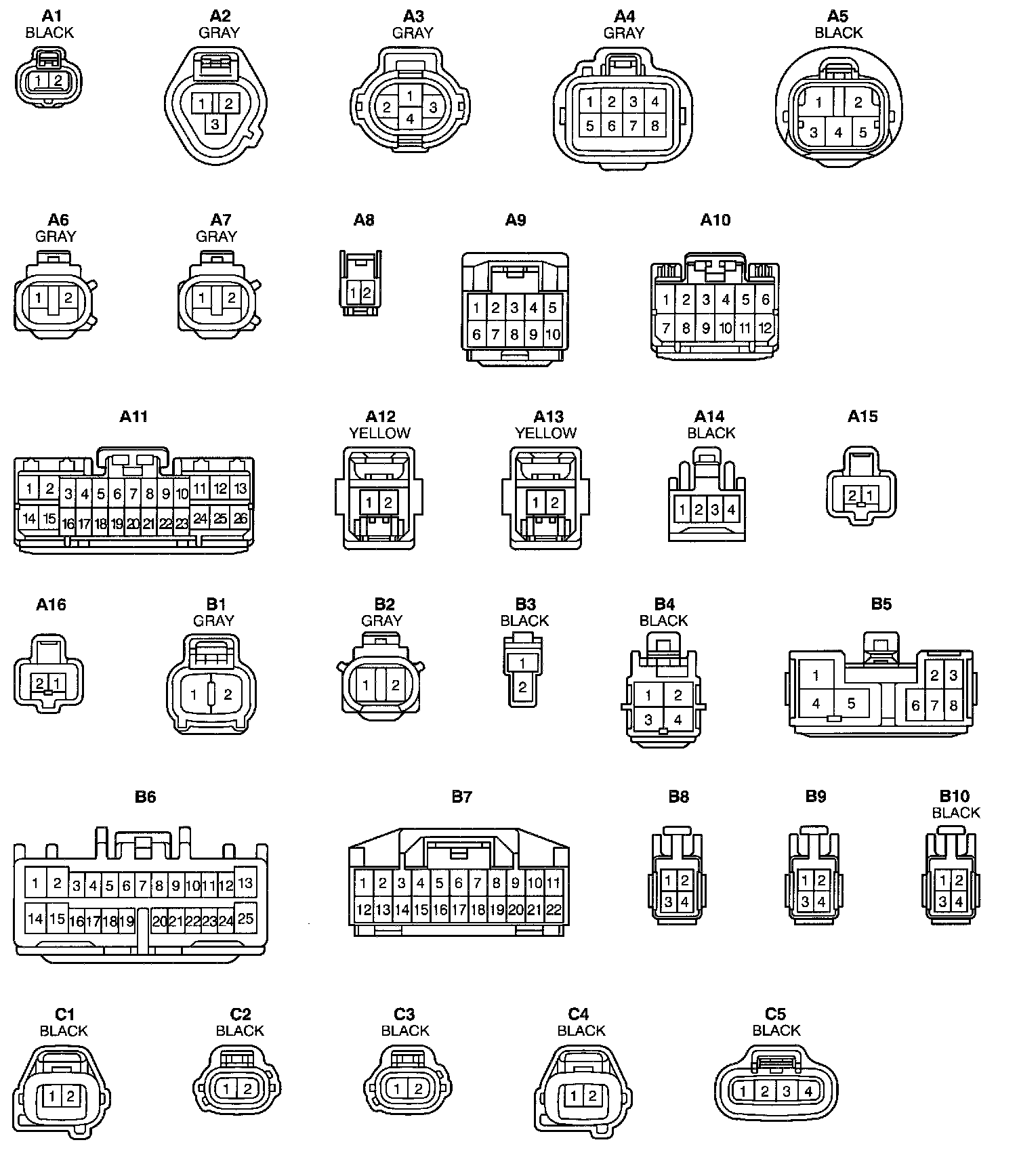

Connector Views (A1 Thorough C5):

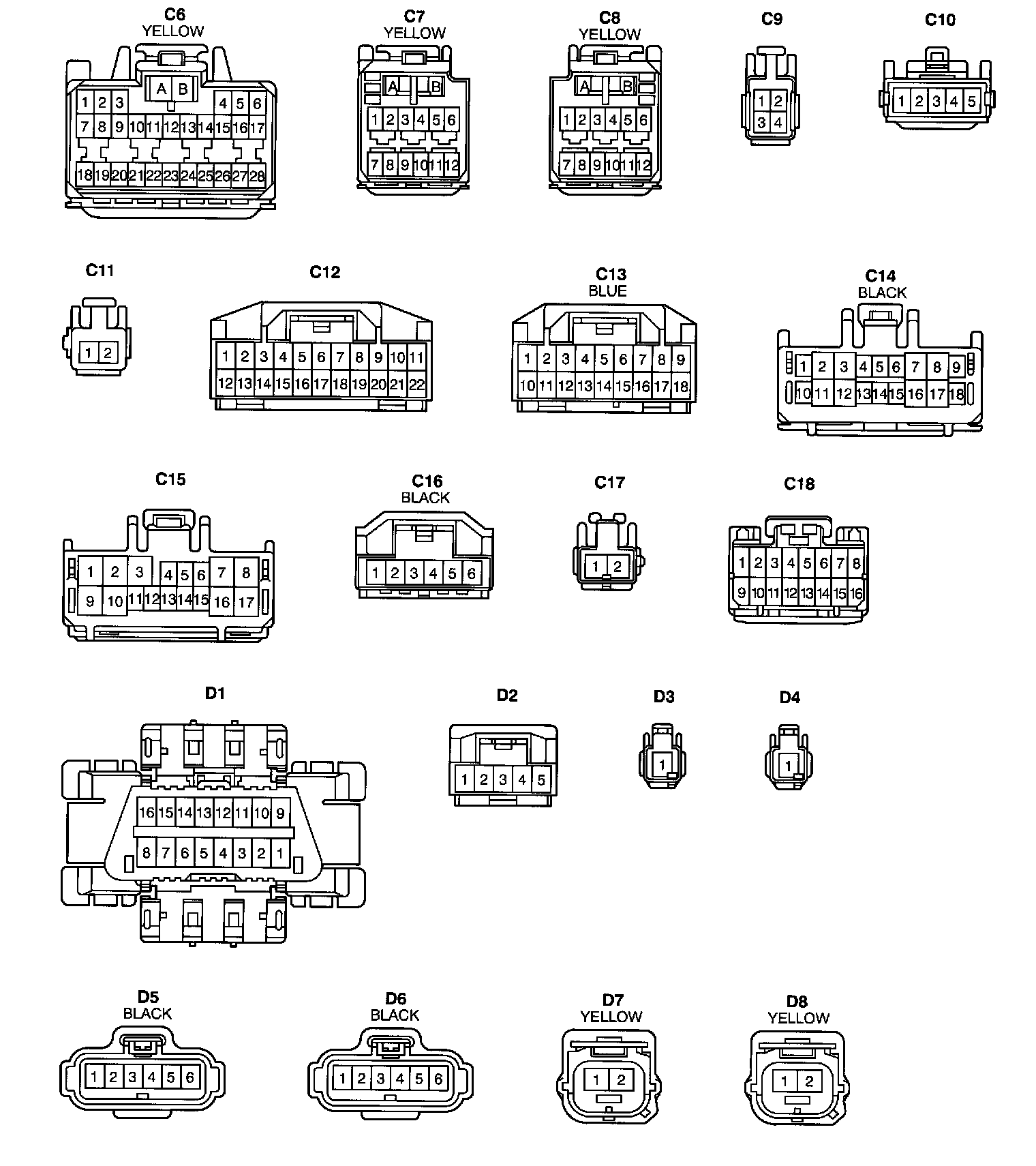

C6 - D8:

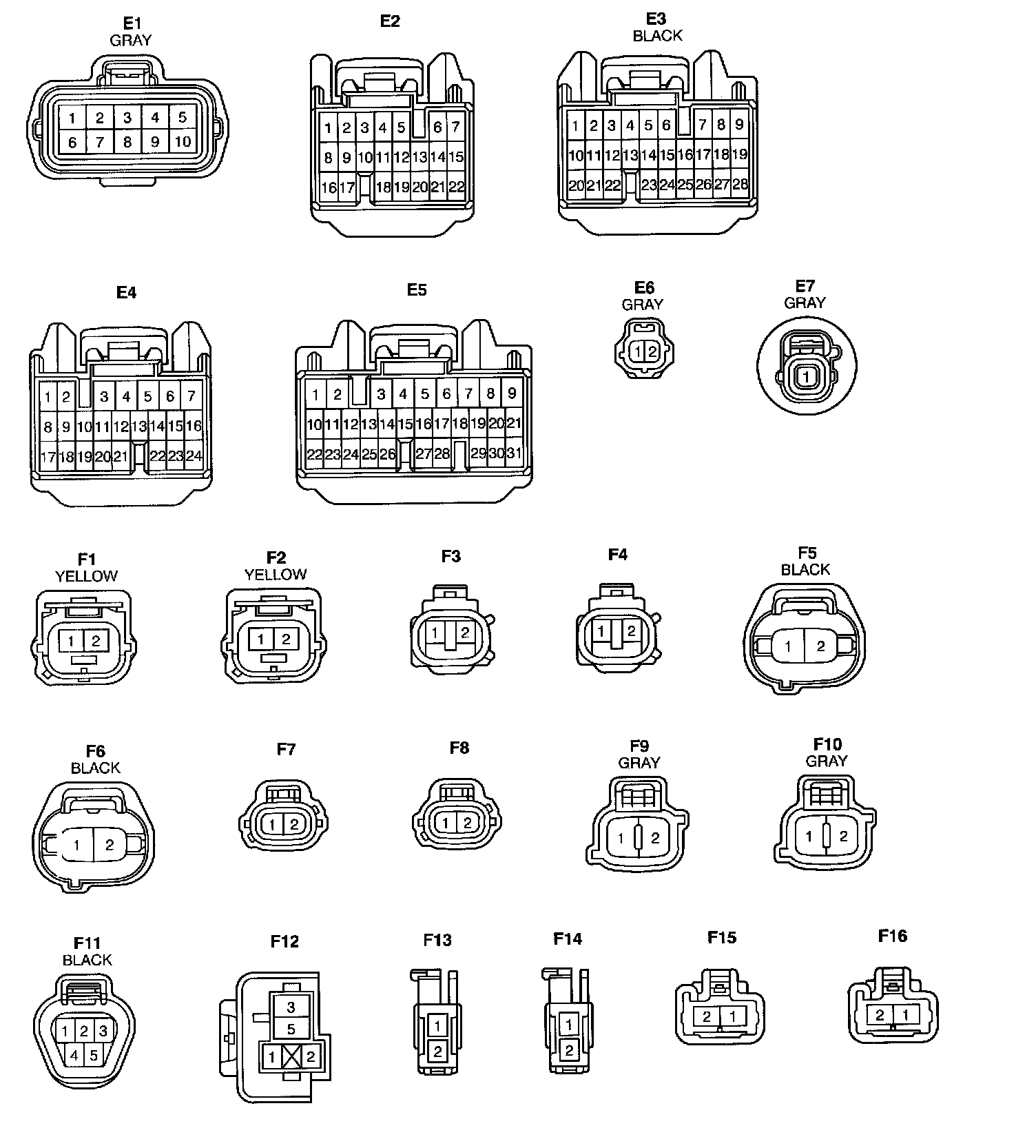

E1 - F16:

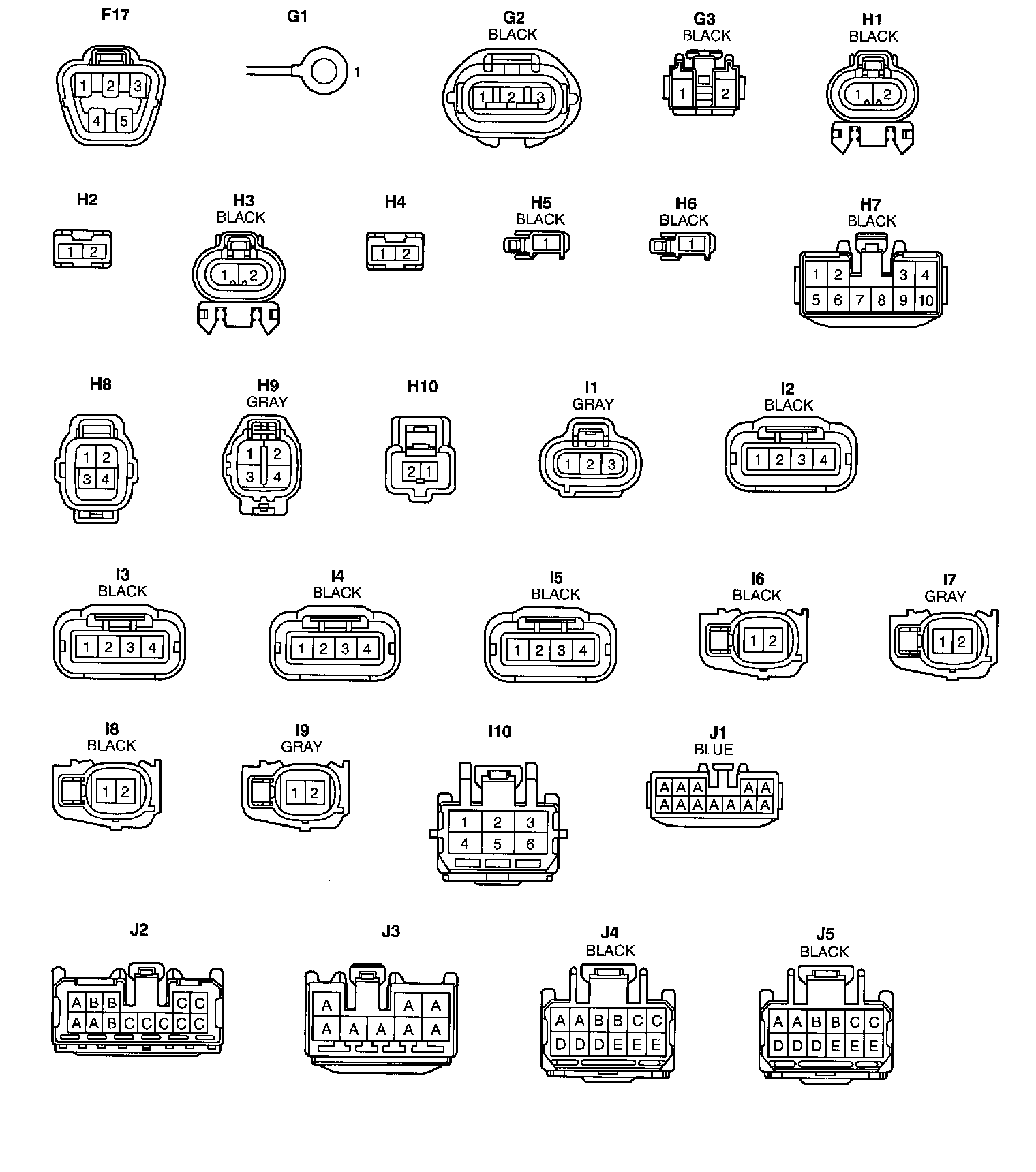

F17 - J5:

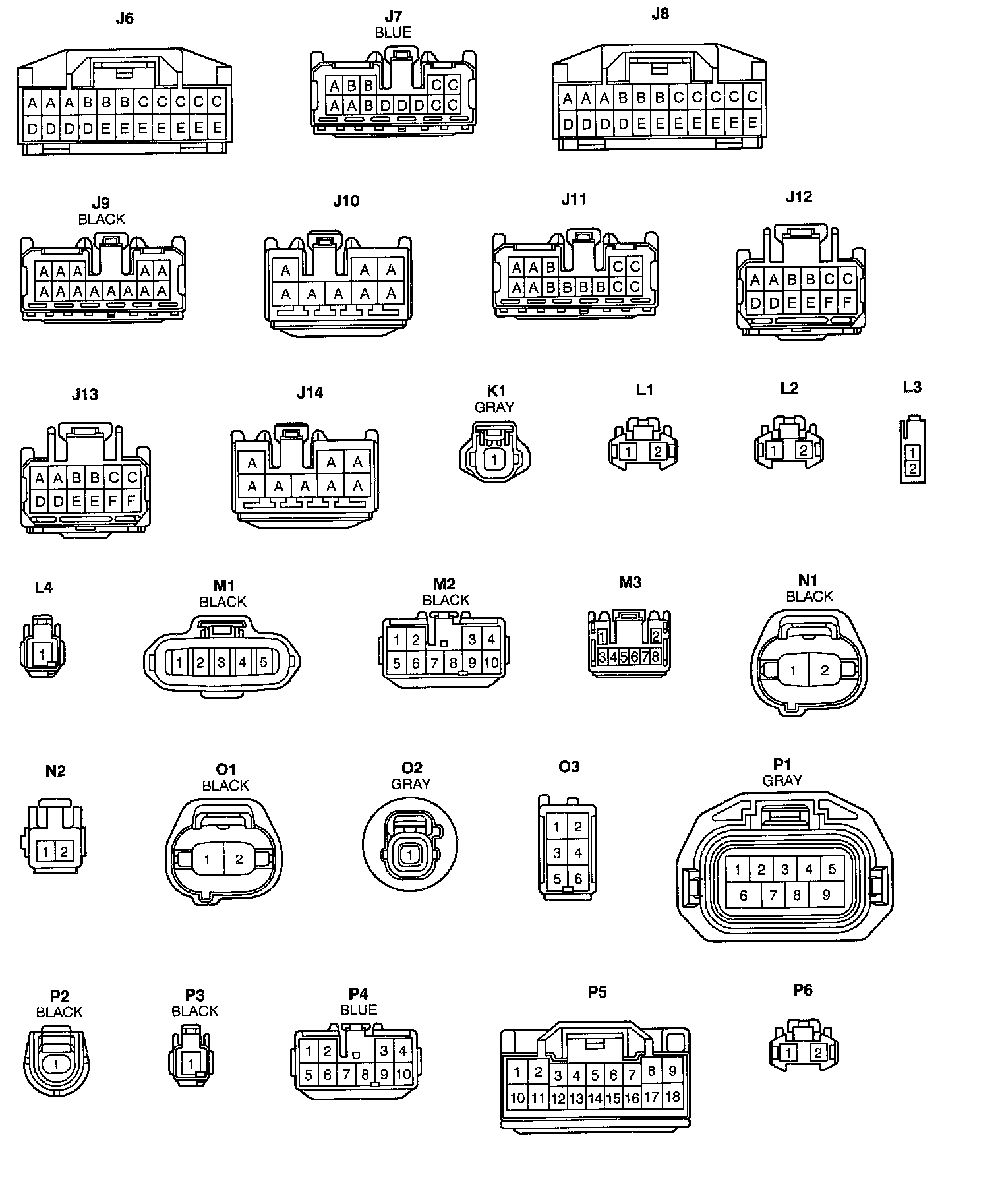

J6 - P6:

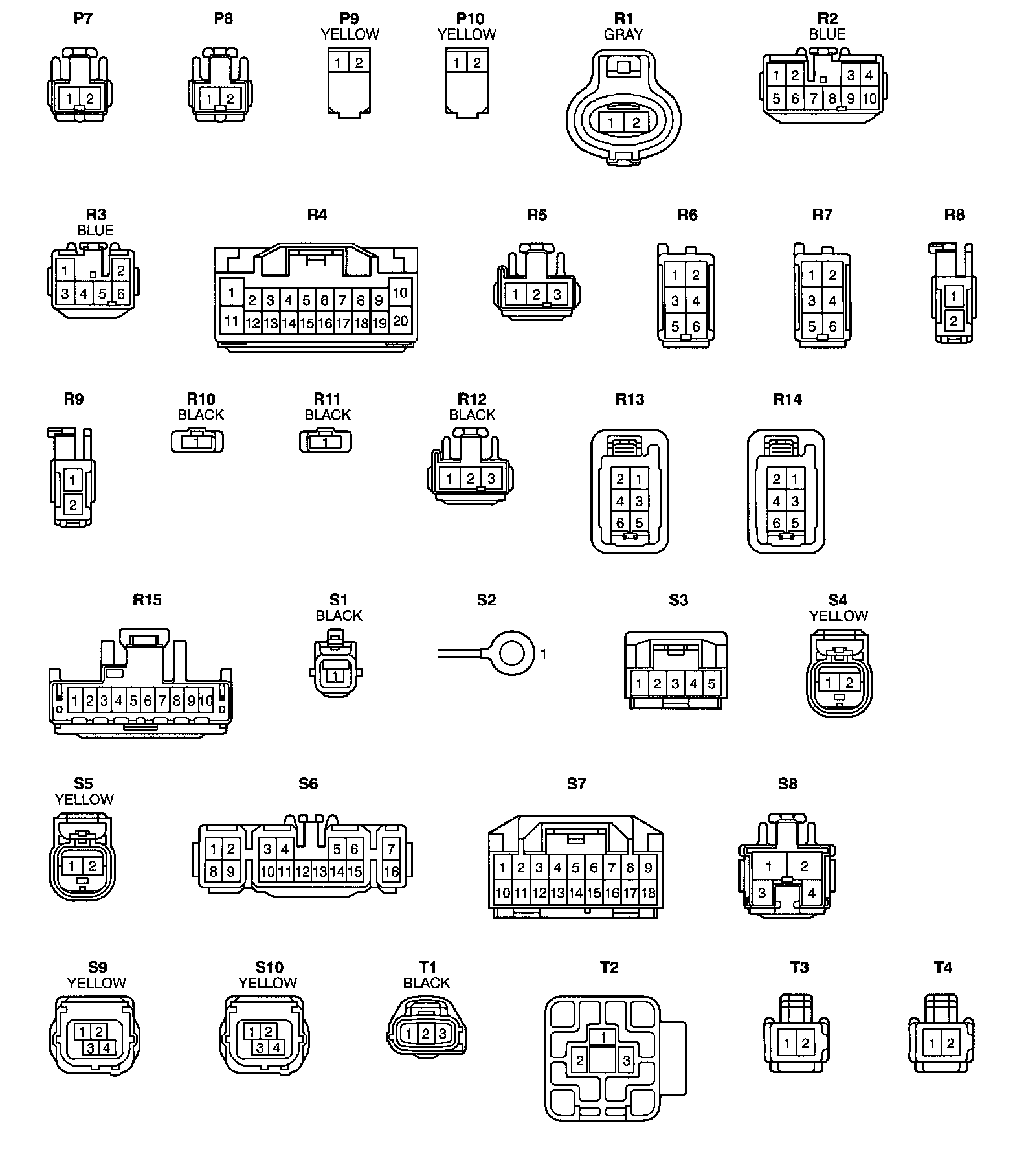

P7 - T4:

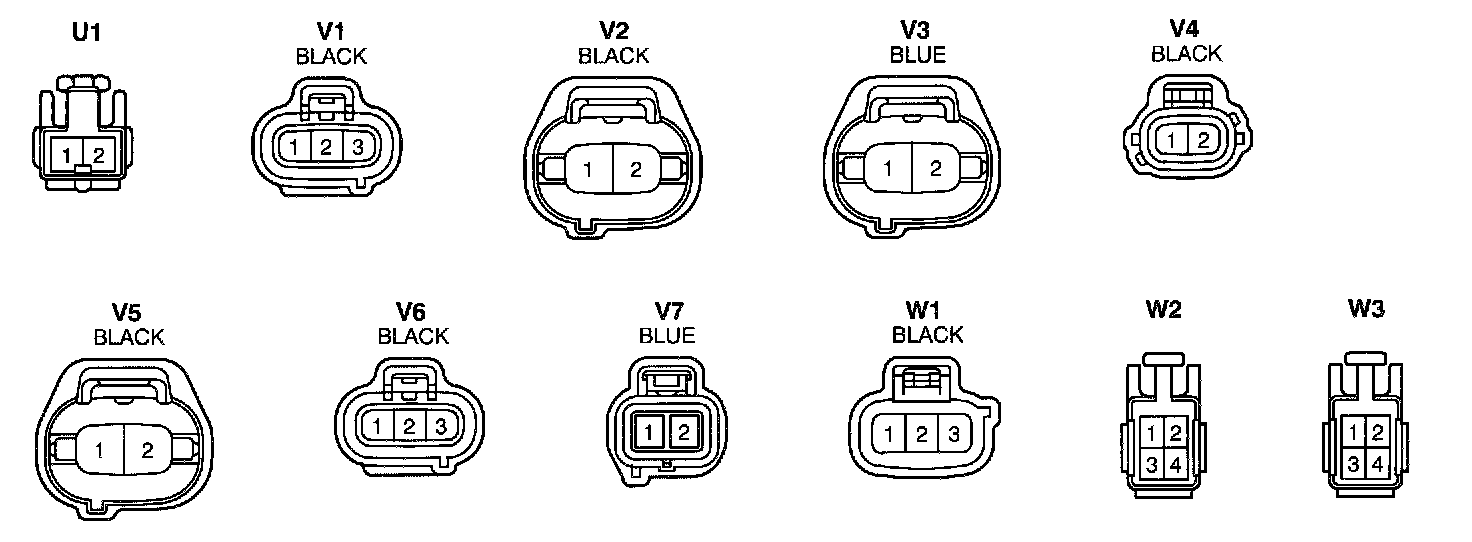

U1 - W3:
