Oil Pump, Engine

OIL PUMP REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

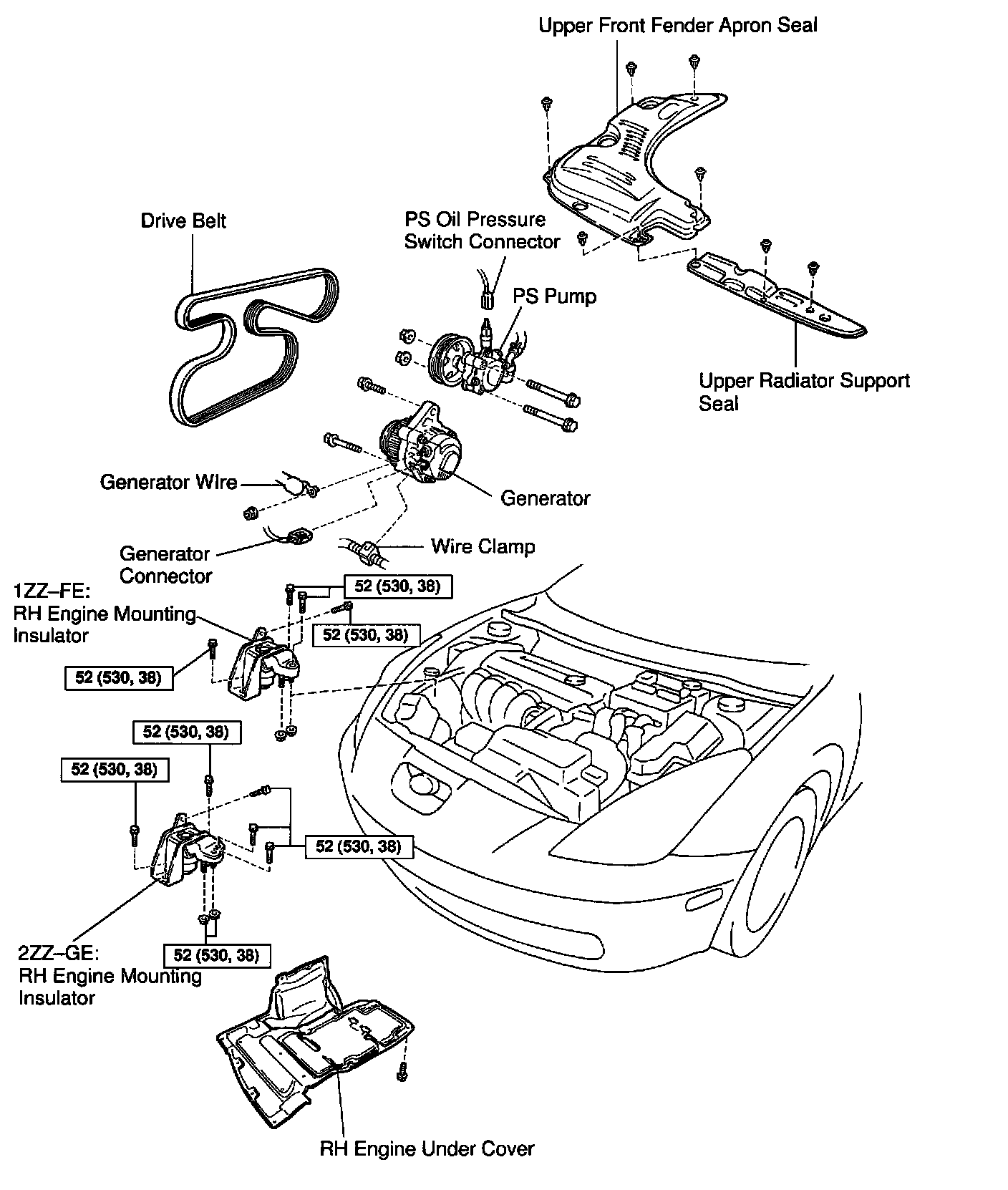

Drive Belt, Generator and Related Components

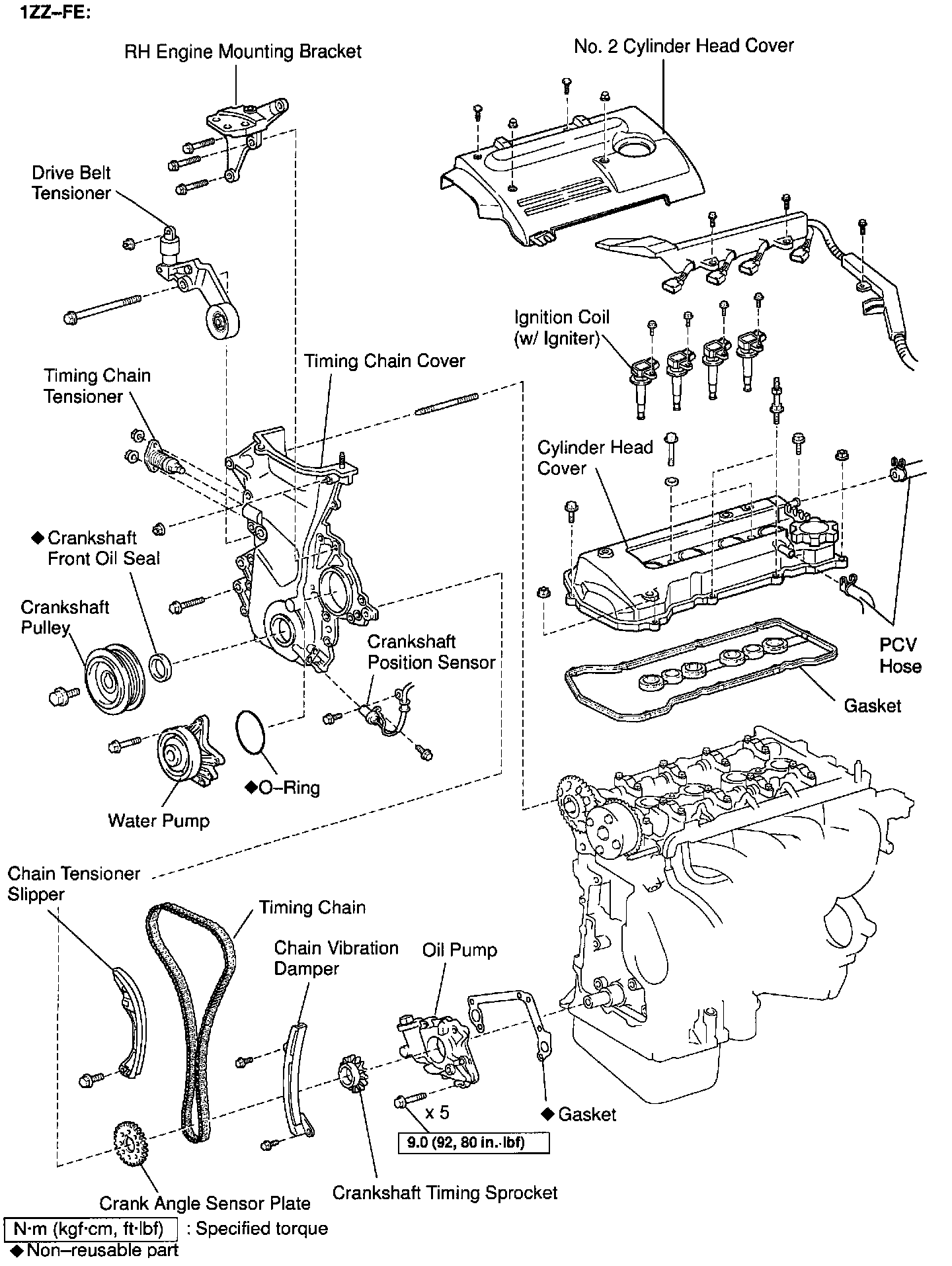

Valve Cover, Timing Chain Cover, and Related Components

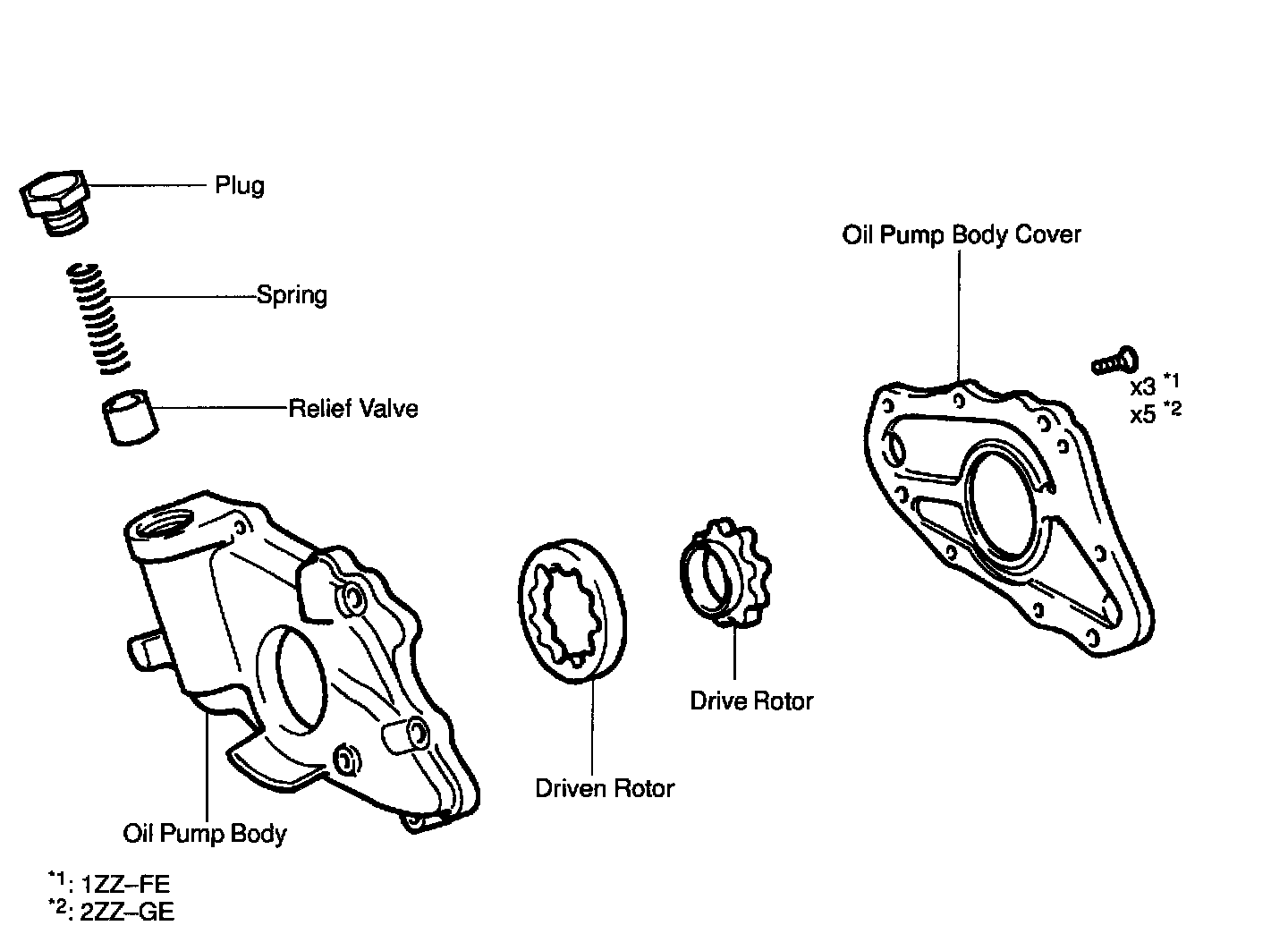

Oil Pump
