Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION SENSOR

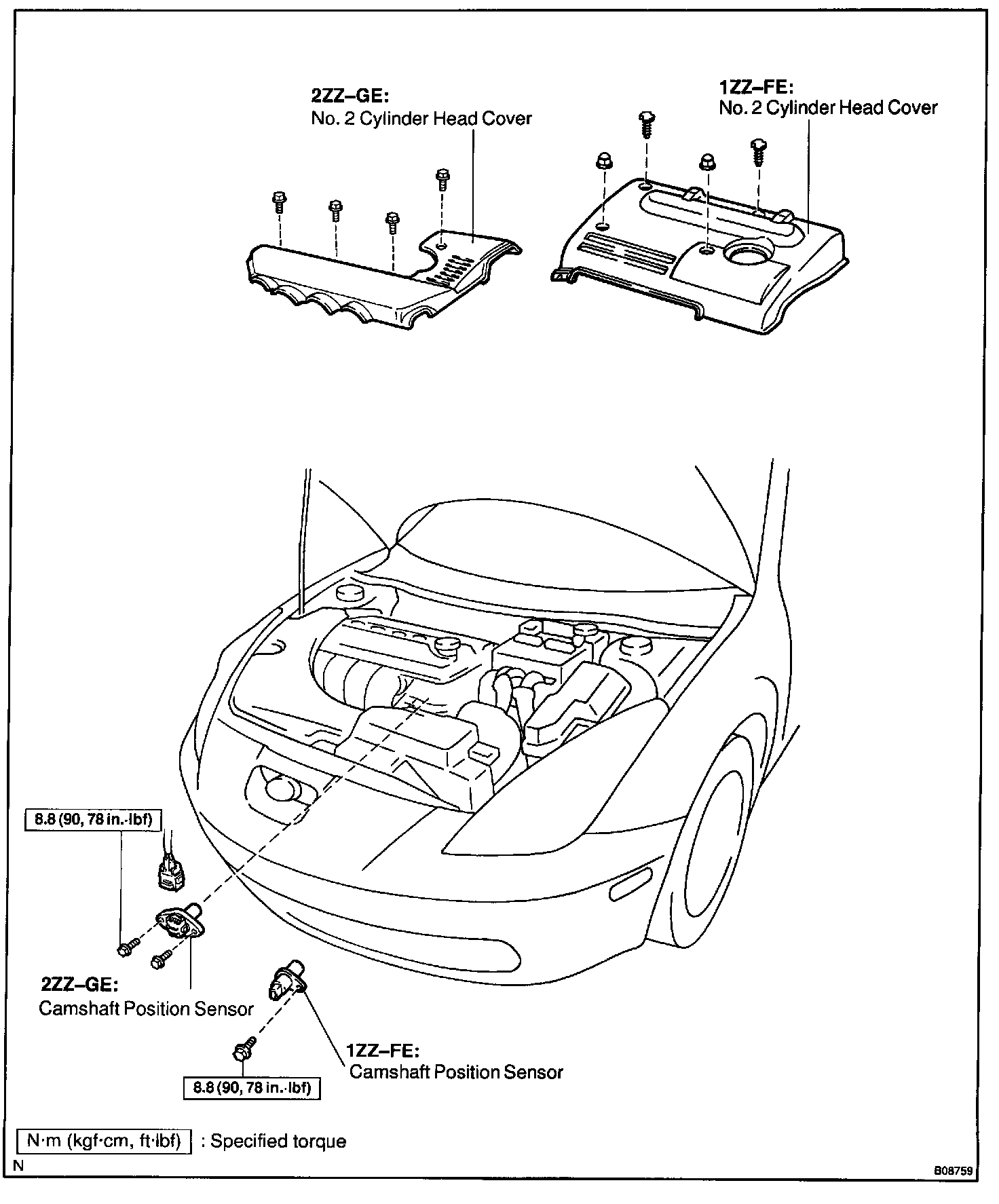

COMPONENTS


REMOVAL

1. REMOVE NO.2 CYLINDER HEAD COVER





2. REMOVE CAMSHAFT POSITION SENSOR

a. Disconnect the connector.

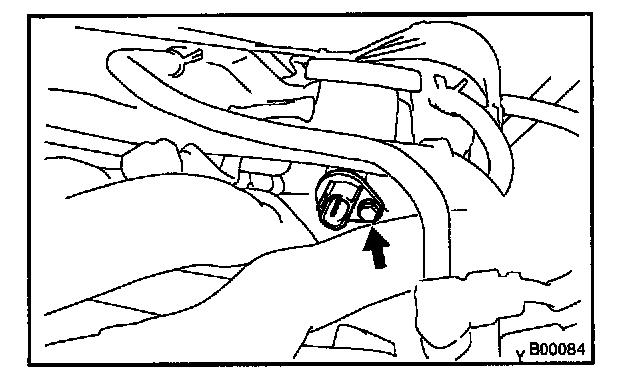

b. Remove the bolt and camshaft position sensor.
Torque: 8.8 Nm (90 kg.cm, 78 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
