Crankshaft Position Sensor: Service and Repair

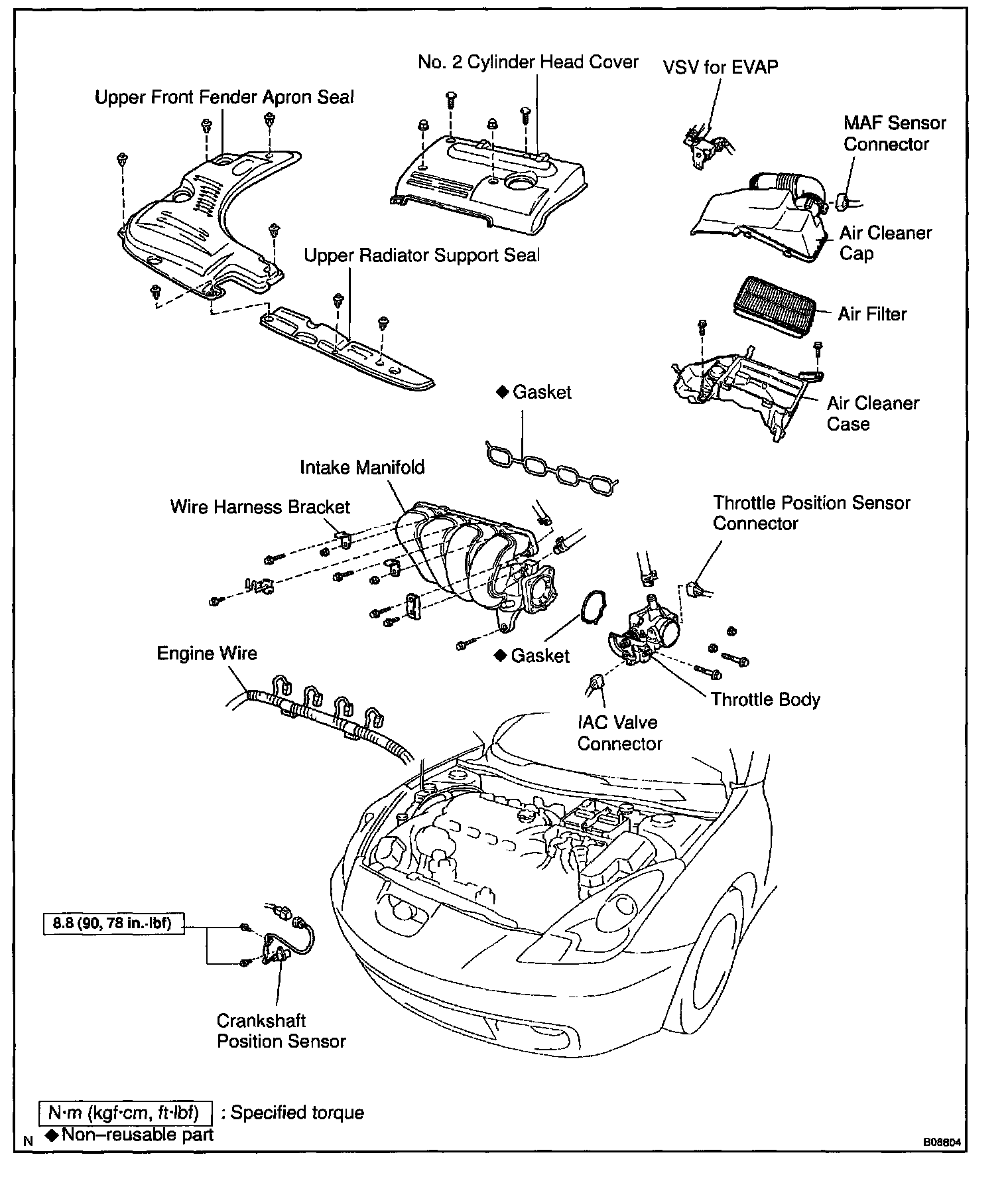

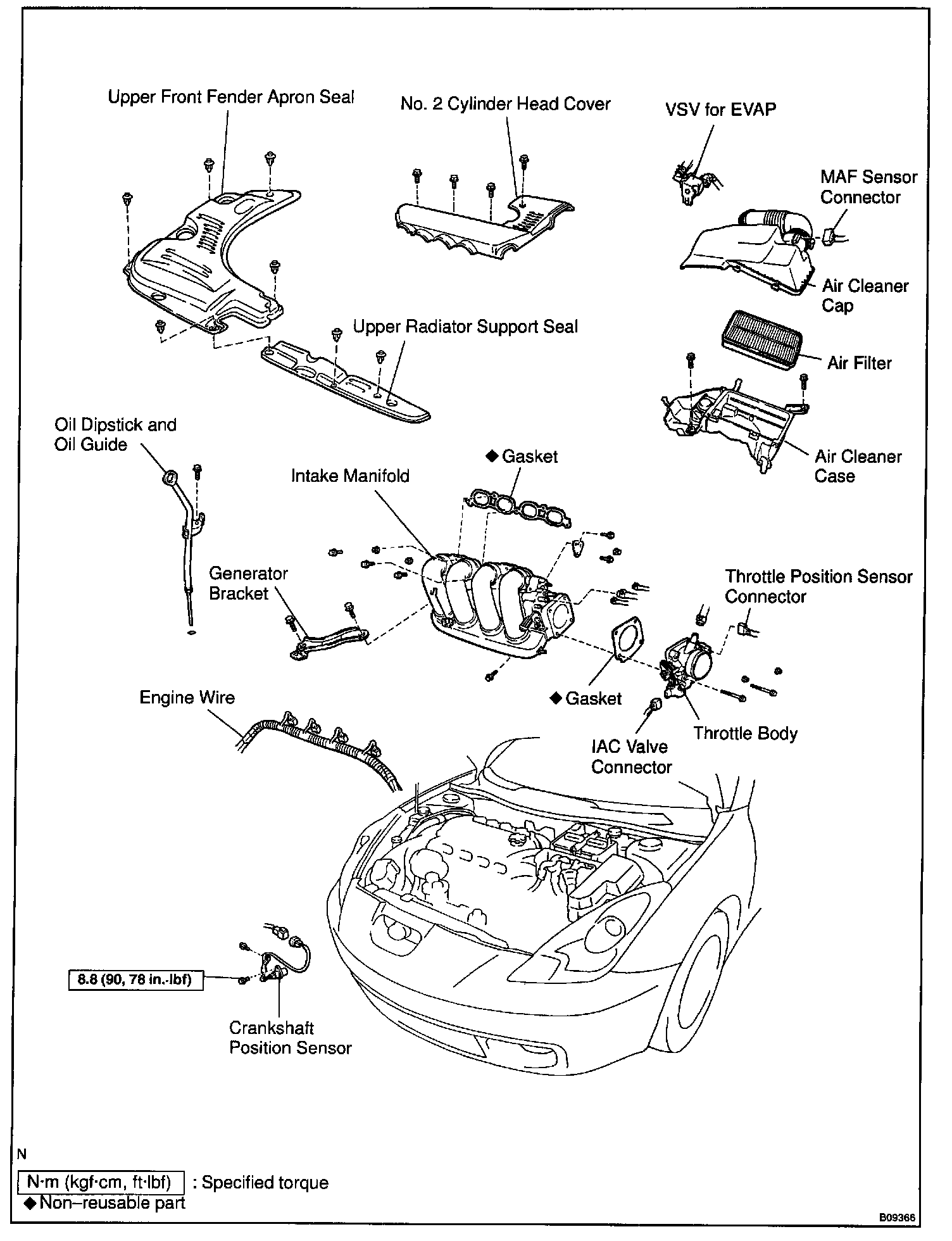

CRANKSHAFT POSITION SENSOR COMPONENTSREMOVAL 1. REMOVE INTAKE MANIFOLD 2. REMOVE ENGINE UNDER COVER RH 3. REMOVE CRANKSHAFT POSITION SENSOR a.

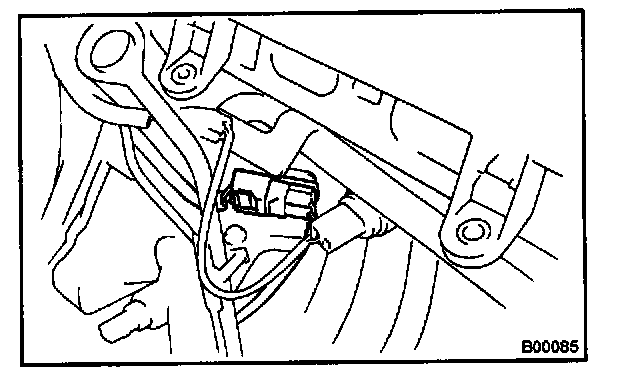

Disconnect the
crankshaft position sensor connector.
b.
Remove the 2 bolt and
crankshaft position sensor.
Torque:
8.8 Nm (90 kg.cm, 78 in.lb)INSTALLATIONInstallation is in the reverse order of removal.
