Connector Locations

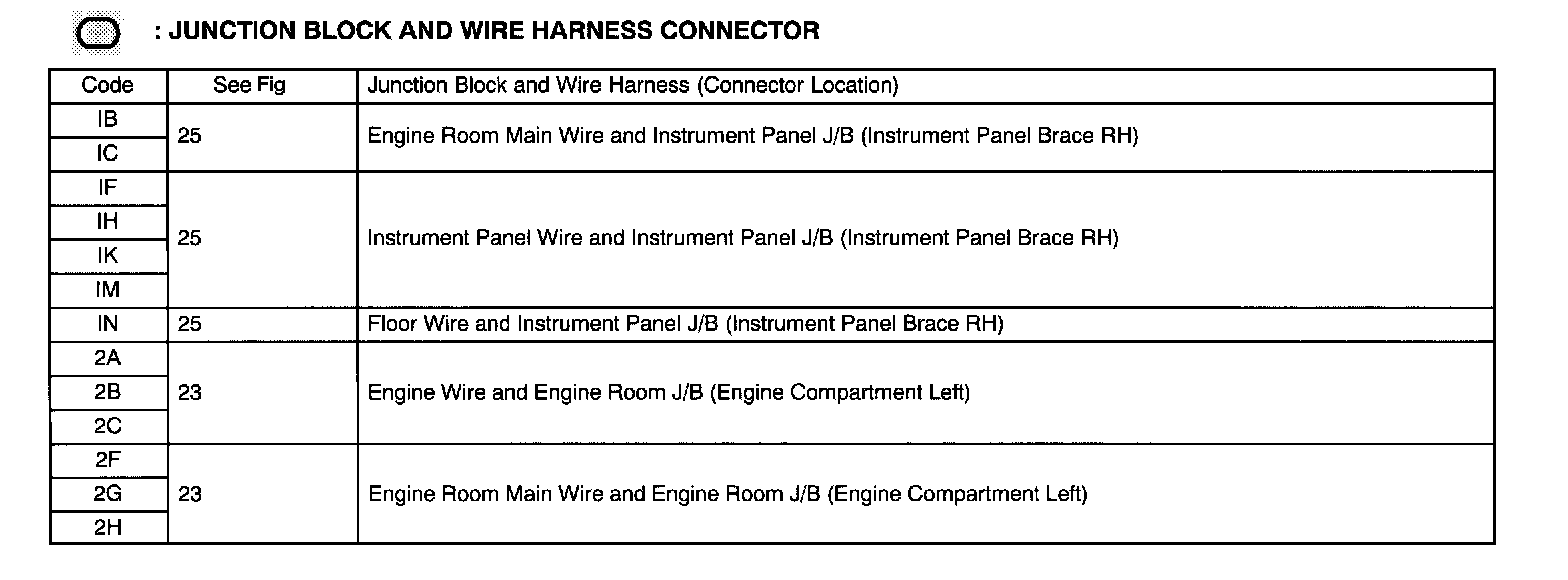

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

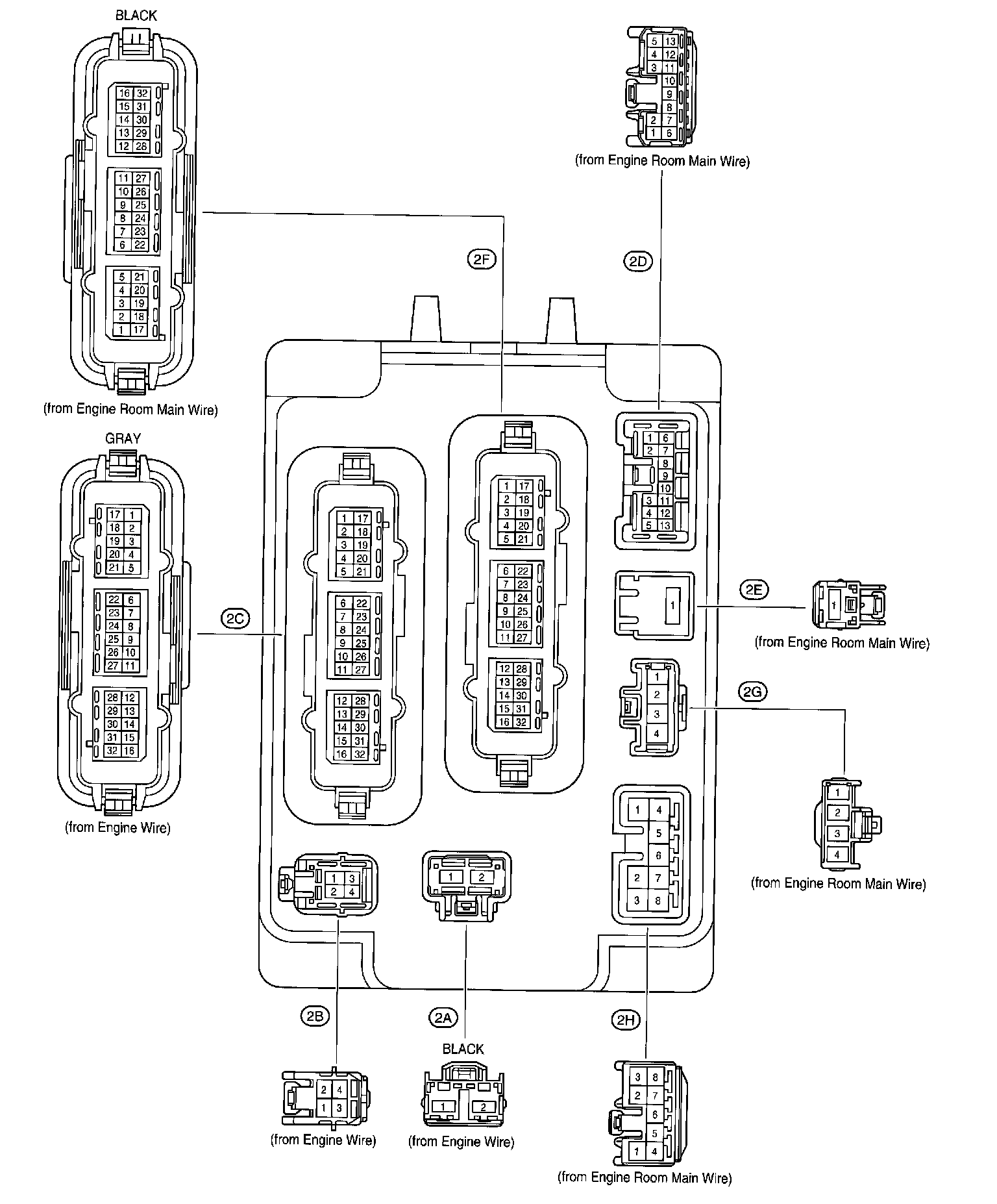

Engine Room J/B:




FIG 23

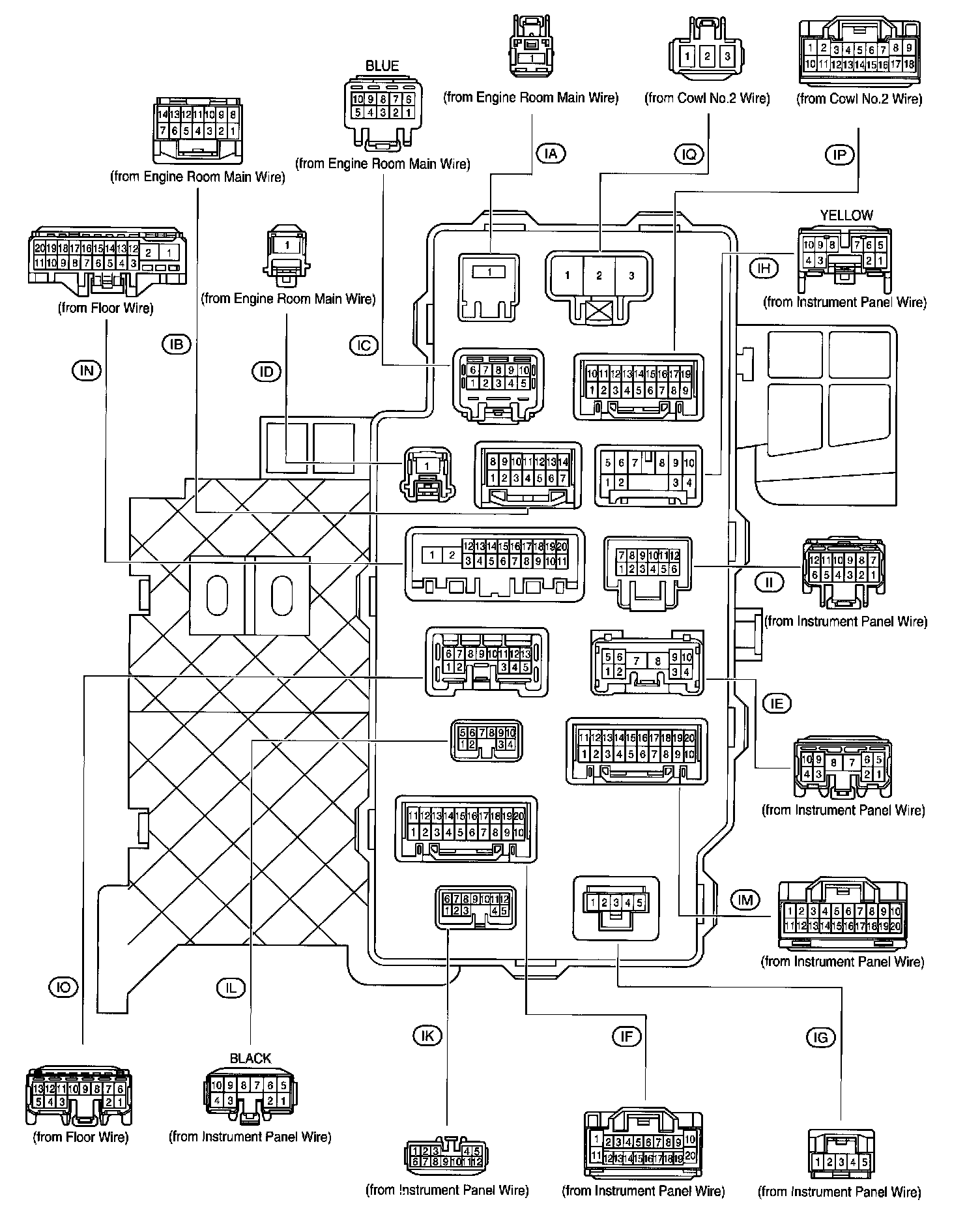

Instrument Panel J/B:




FIG 25
