Pinout Values and Diagnostic Parameters

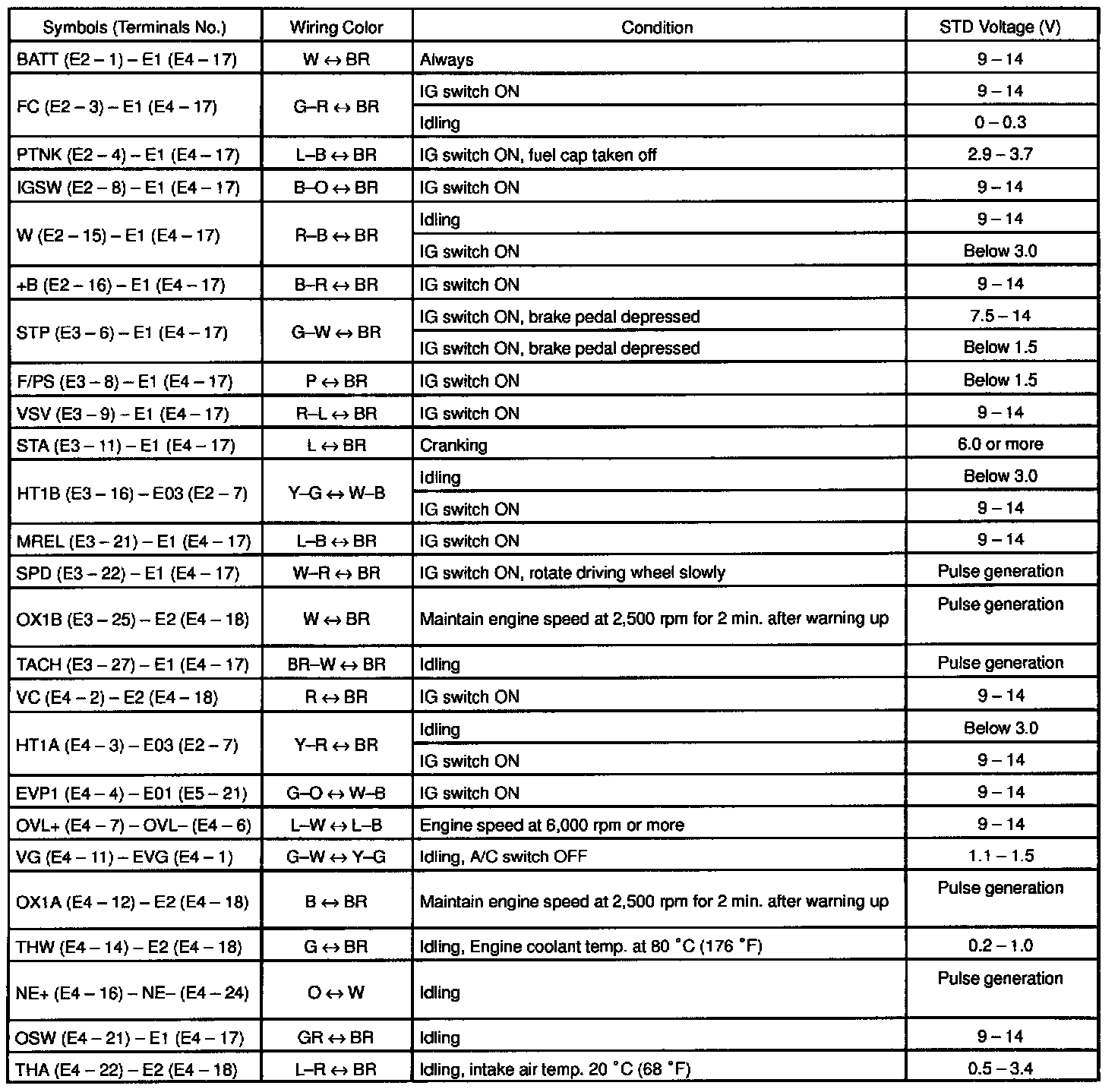

Part 1 Of 2:

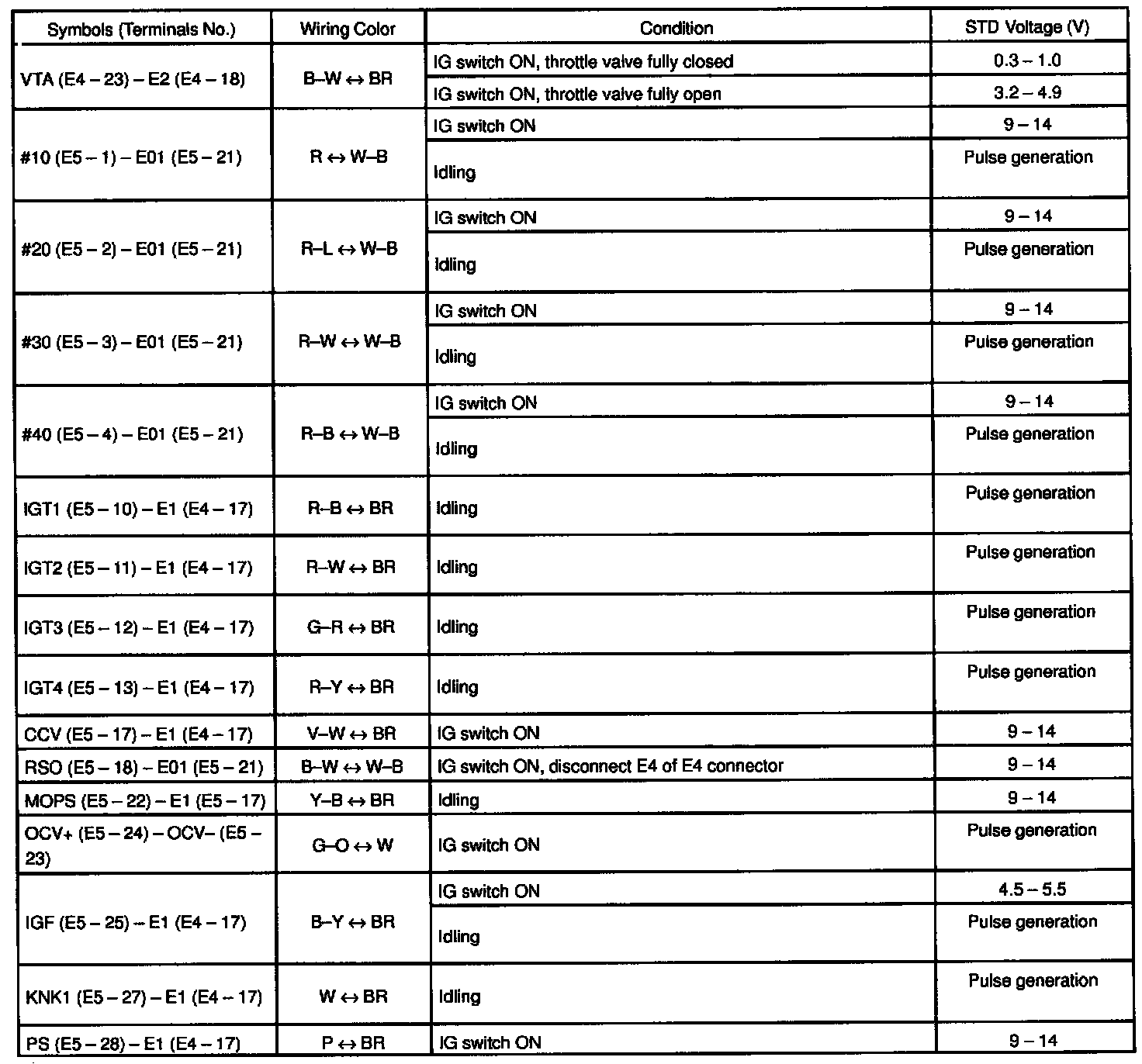

Part 2 Of 2:






*1: Only for A/T models.
*2: Only for 2ZZ-GE models.
