Connecting Rod Bearing

Connecting Rod Bearing

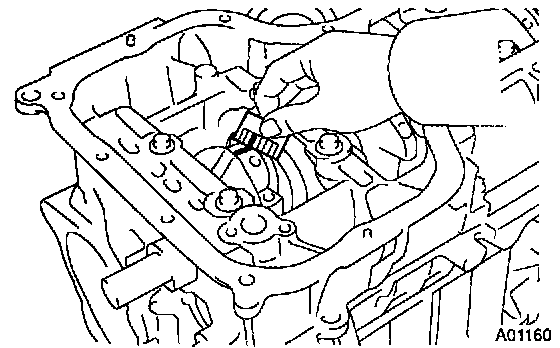

Measure the Plastigage at its widest point.
Standard oil clearance:
1ZZ-FE Engine: 0.028 - 0.060 mm (0.0011 - 0.0024 inch)
2ZZ-GE Engine: 0.028 - 0.052 mm (0.0011 - 0.0020 inch)
Maximum oil clearance; 0.08 mm (0.0031 inch)
If the oil clearance is greater than maximum, replace the bearings. If necessary, grind or replace the crankshaft.





HINT: If replacing a bearing, replace it with one having the same number as marked on the connecting rod. There are 3 sizes of standard bearings, marked "1", "2" and "3" accordingly.

Reference
Standard bearing center wall thickness:

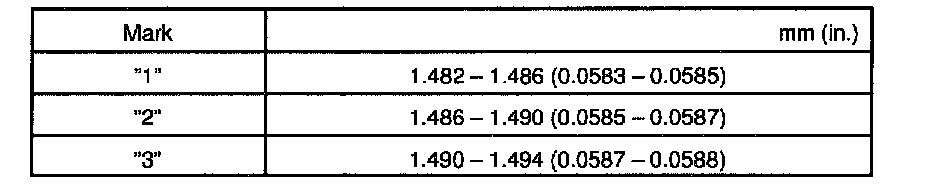

1ZZ-FE Engine

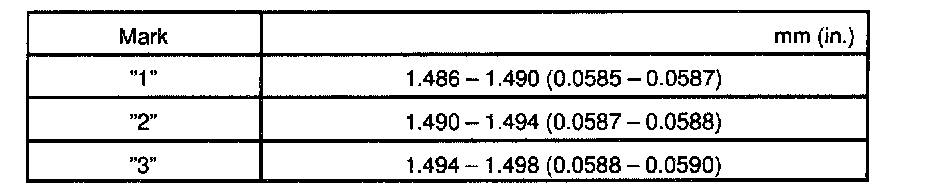

2ZZ-GE Engine
