Engine Service Data

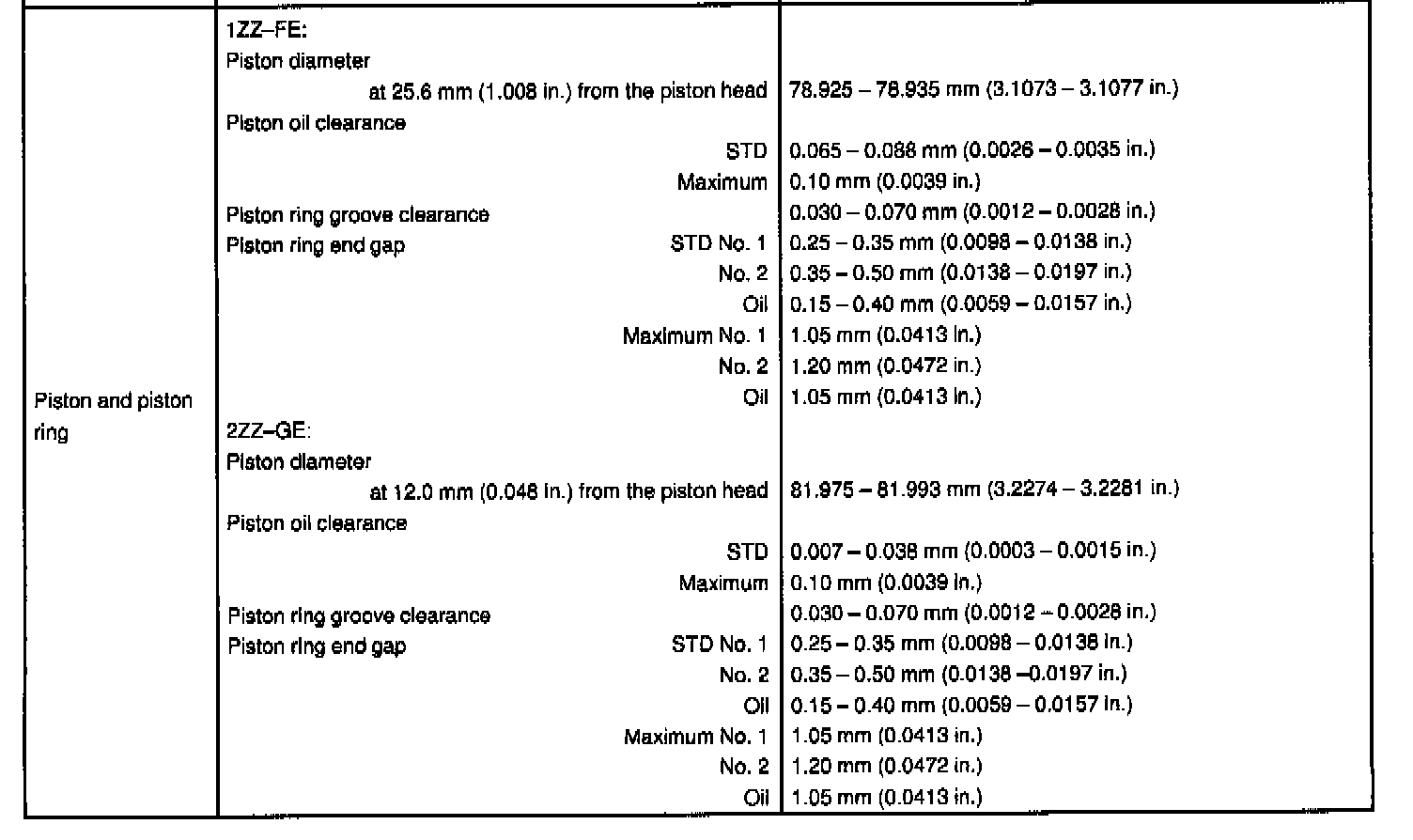

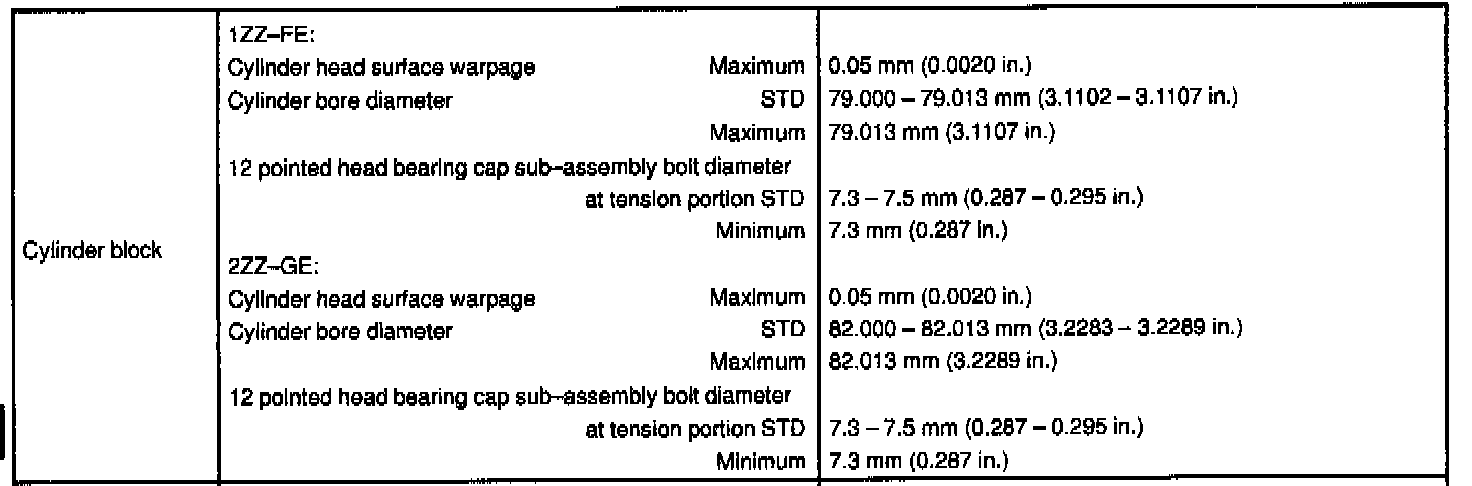

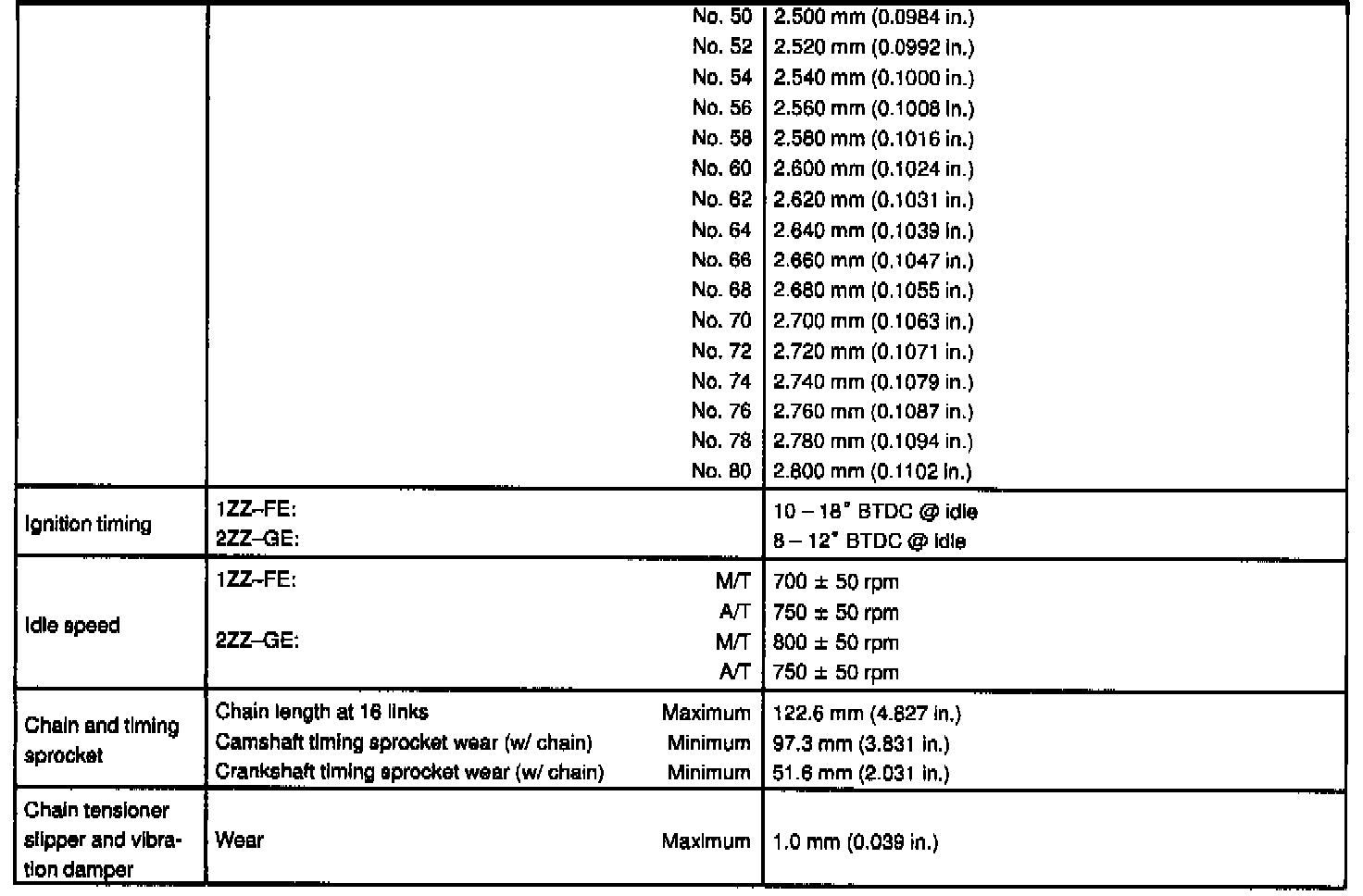

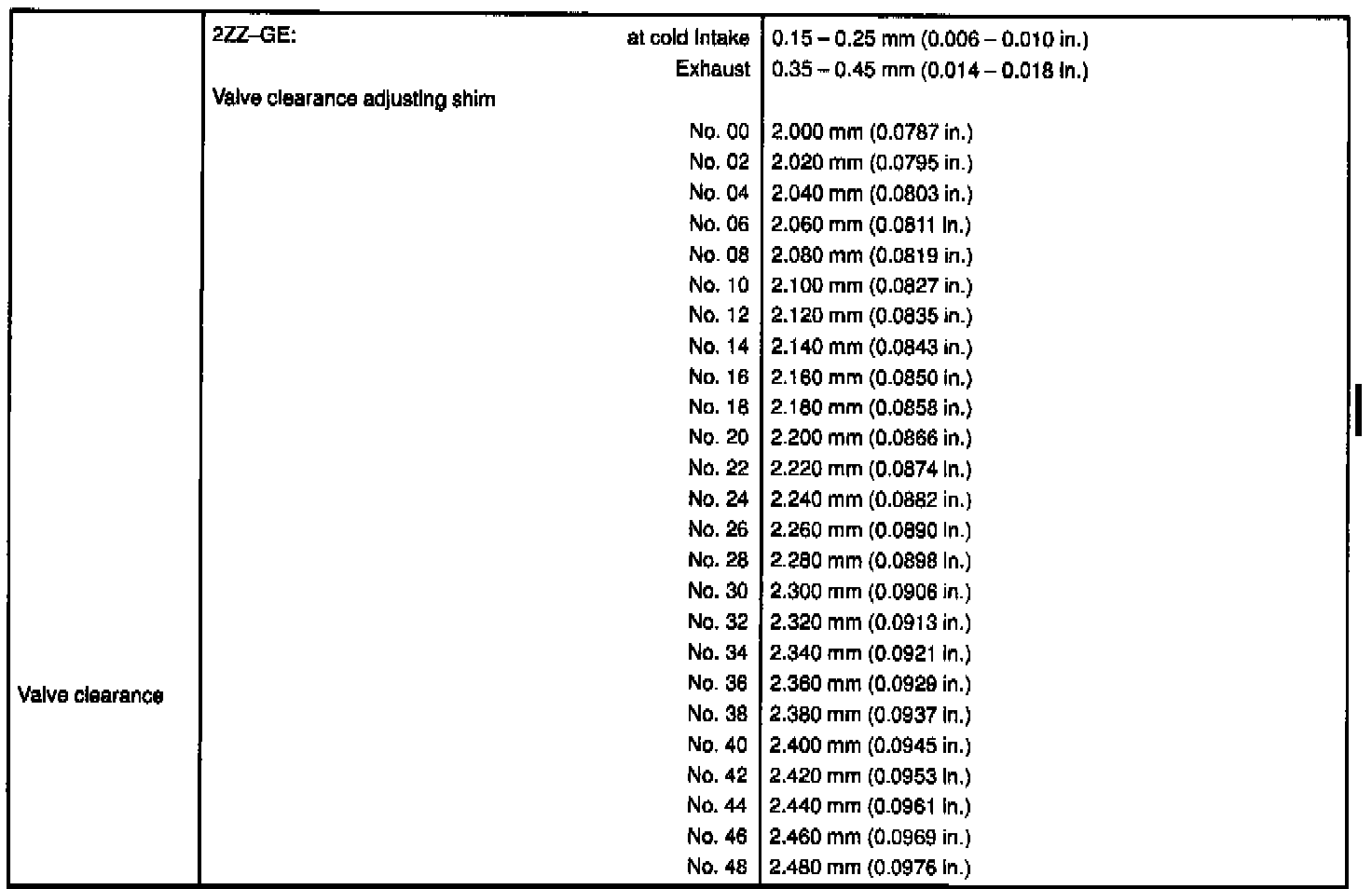

1.8L DOHC Engine Mechanical Data:

1.8l DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:

1.8L DOHC Engine Mechanical Cont.:
