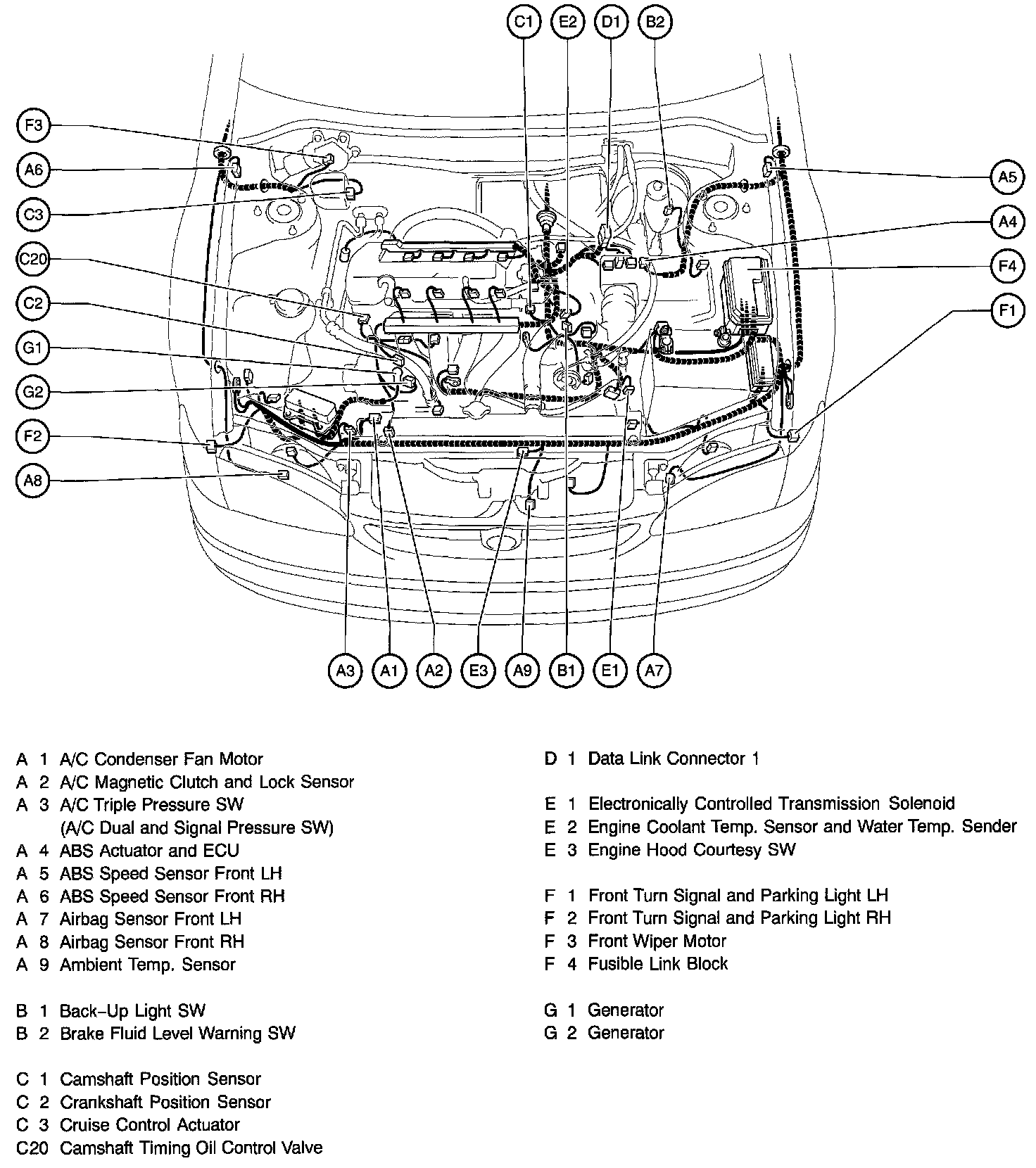

Engine Compartment

A 1 A/C Condenser Fan Motor
A 2 A/C Magnetic Clutch and Lock Sensor
A 3 A/C Triple Pressure SW (A/C Dual and Signal Pressure SW)
A 4 ABS Actuator and ECU
A 5 ABS Speed Sensor Front LH
A 6 ABS Speed Sensor Front RH
A 7 Airbag Sensor Front LH
A 8 Airbag Sensor Front RH
A 9 Ambient Temp. Sensor

B 1 Back-Up Light SW
B 2 Brake Fluid Level Warning SW

C 1 Camshaft Position Sensor
C 2 Crankshaft Position Sensor
C 3 Cruise Control Actuator
C20 Camshaft Timing Oil Control Valve

D 1 Data Link Connector 1

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor and Water Temp. Sender
E 3 Engine Hood Courtesy SW

F 1 Front Turn Signal and Parking Light LH
F 2 Front Turn Signal and Parking Light RH
F 3 Front Wiper Motor
F 4 Fusible Link Block

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Horn

I 1 Idle Air Control Valve
I 2 Ignition Coil and Igniter No.1
I 3 Ignition Coil and Igniter No.2
I 4 Injector No.1
I 5 Injector No.2
I 6 Injector No.3
I 7 Injector No.4
I 14 Ignition Coil and Igniter No.3
I 15 Ignition Coil and Igniter No.4

K 1 Knock Sensor

M 5 Mass Air Flow Meter

O 1 Oil Pressure SW

P 1 Park/Neutral Position SW
P 2 Power Steering Oil Pressure SW

R 1 Radiator Fan Motor

S 1 Starter
S 2 Starter

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor

V 1 Vehicle Speed Sensor
V 2 VSV(ORVR)
V 5 VSV (Canister Closed Valve)

W 1 Washer Level Warning SW
W 2 Washer Motor
