Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2000 >> Corolla CE Sedan L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Without Tilt Column

Without Tilt Column

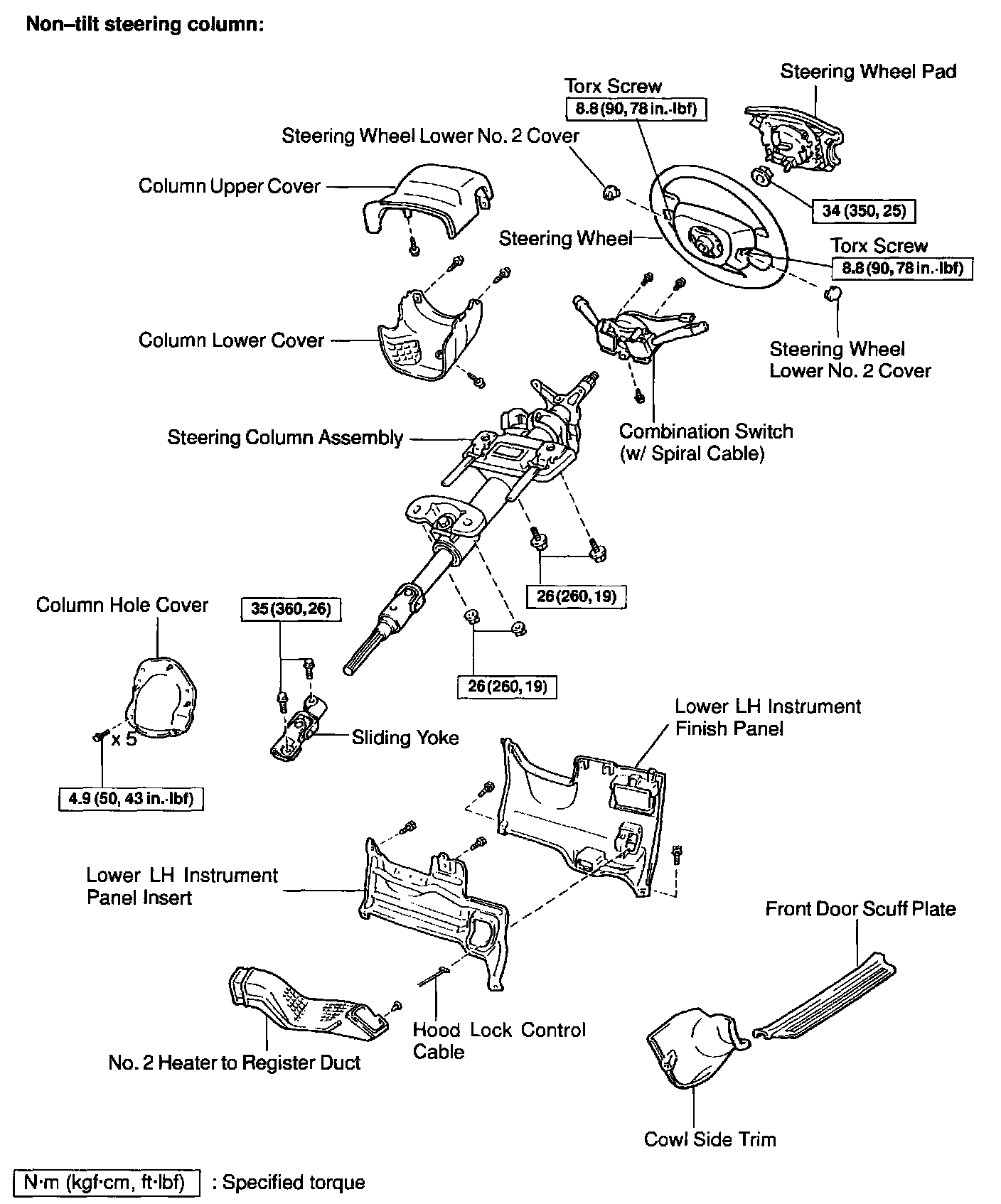

Part 1 Of 2:

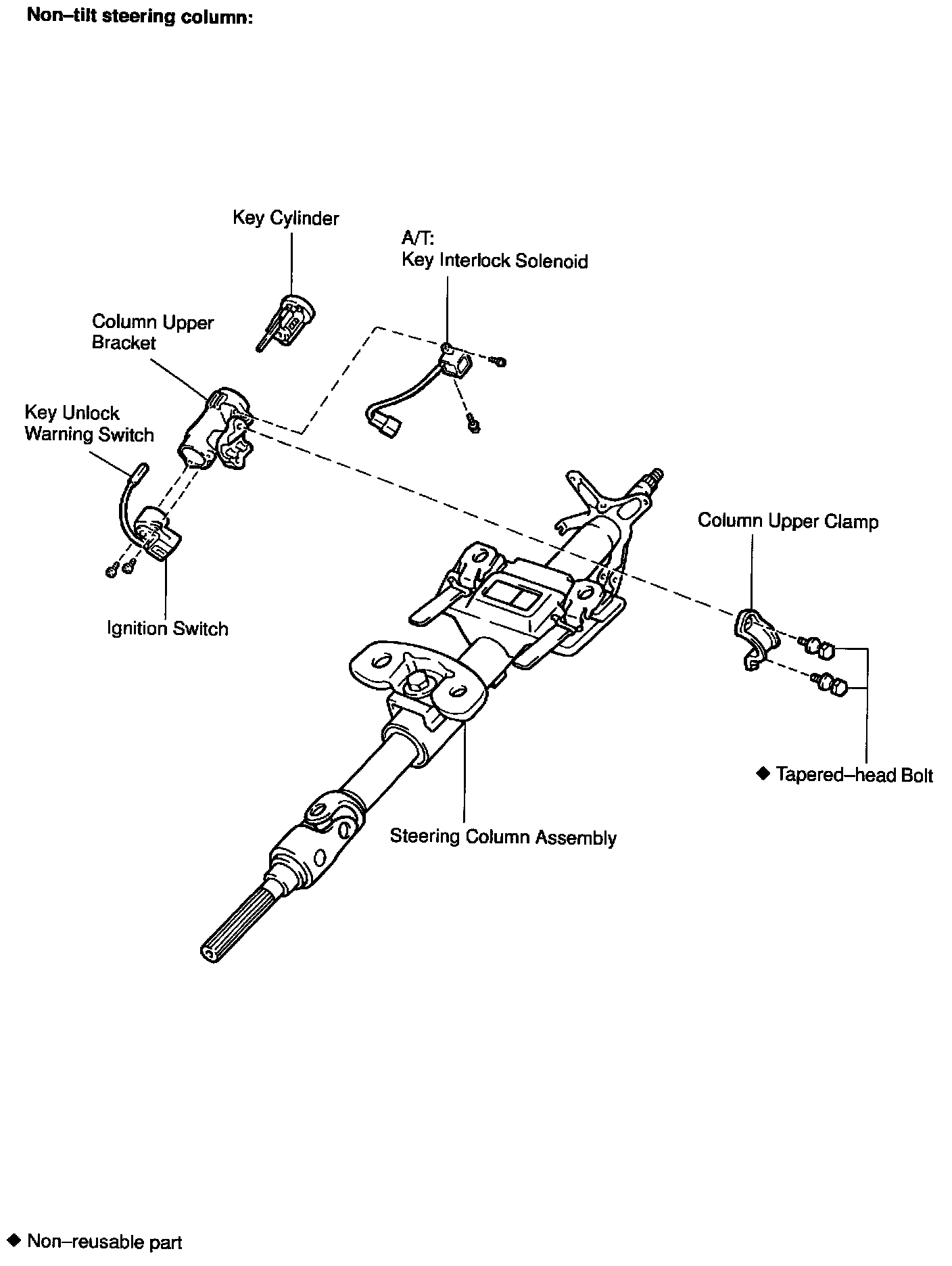

Part 2 Of 2:





STEERING COLUMN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
