Air Flow Meter/Sensor: Testing and Inspection

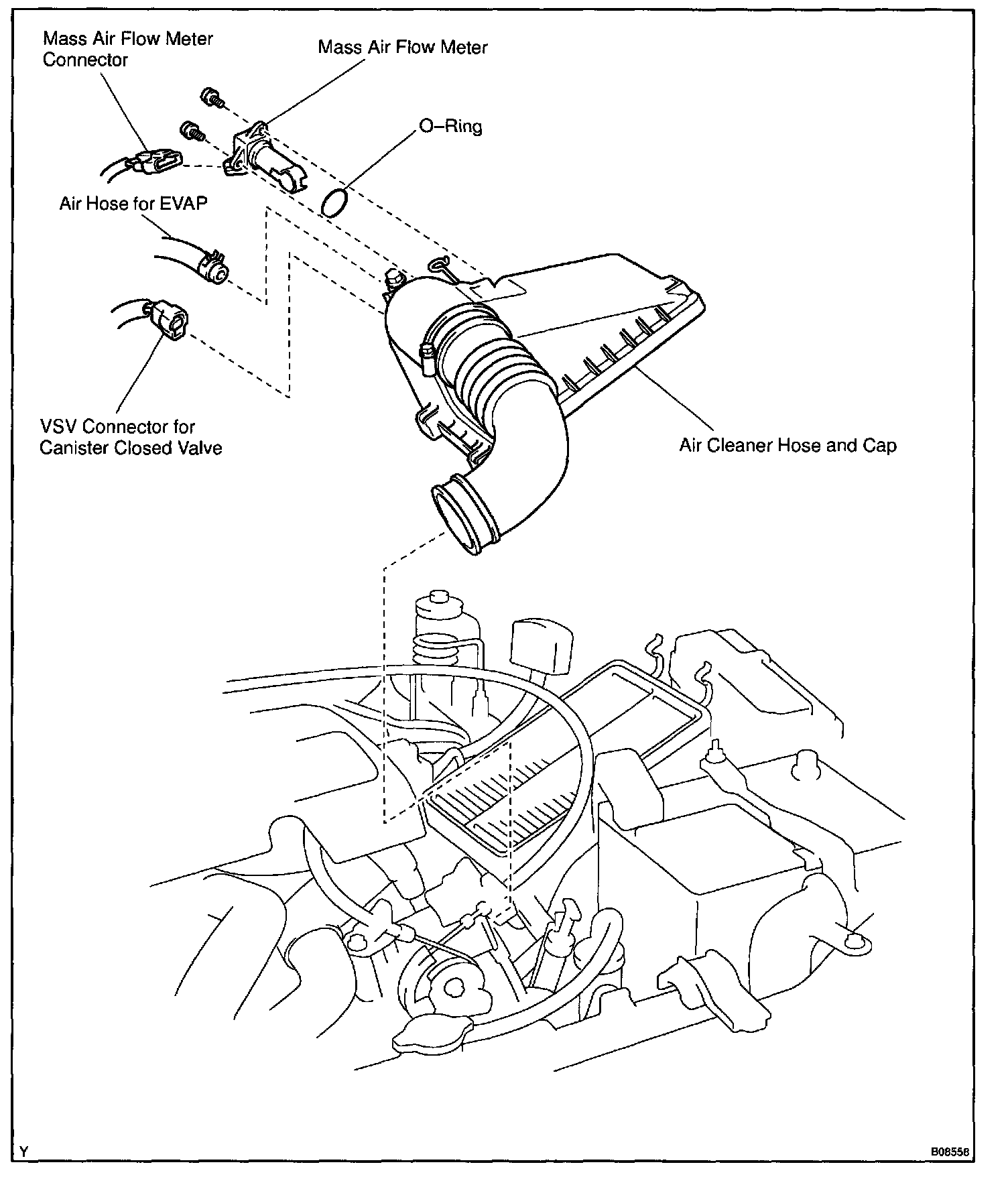

COMPONENTS

INSPECTION

1. INSPECT MAF METER RESISTANCE

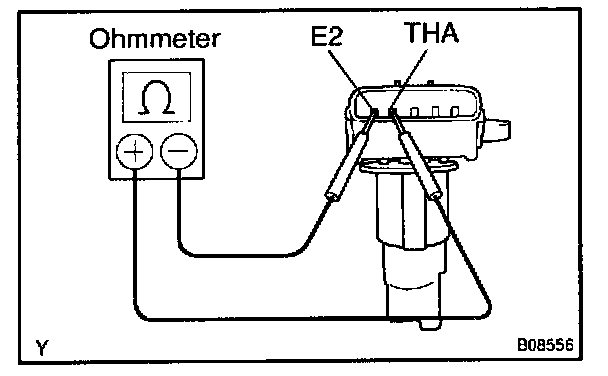

Using an ohmmeter, measure the resistance between terminals THA and E2.

Resistance Temperature
13.6 - 18.4 kOhms -20° C (-4° F)
2.2 - 2.7 kOhms 20° C (68° F)
0.5 - 0.7 kOhms 60° C (140° F)

If the resistance is not as specified, replace the MAF meter.

2. INSPECT MAF METER OPERATION
a. Connect the MAF meter connector.

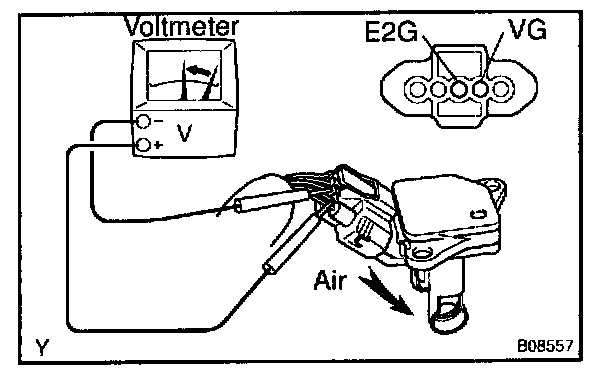

b. Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
c. Turn the ignition switch ON.
d. Blow air into the MAF meter, and check that the voltage fluctuates.
If operation is not as specified, replace the MAF meter.
e. Turn the ignition switch OFF.
f. Disconnect the MAF meter connector.
