Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION SENSORREMOVAL
REMOVE CAMSHAFT POSITION SENSOR

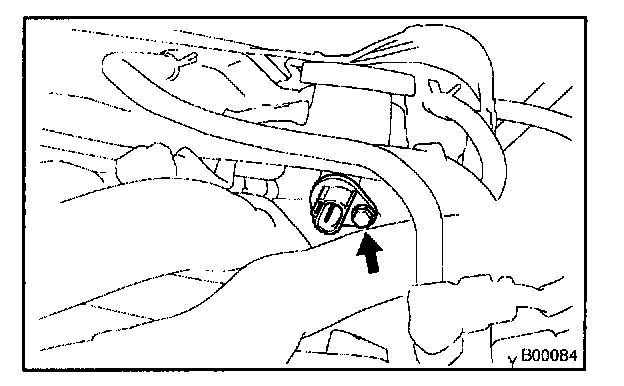

a. Disconnect the camshaft position sensor connector
b. Remove the bolt and camshaft position sensor.
Torque: 9 Nm (92 kg.cm, 79 in.lb)
INSTALLATION
Installation is in the reverse order of removal.
