With Manufacturer's Scan Tool

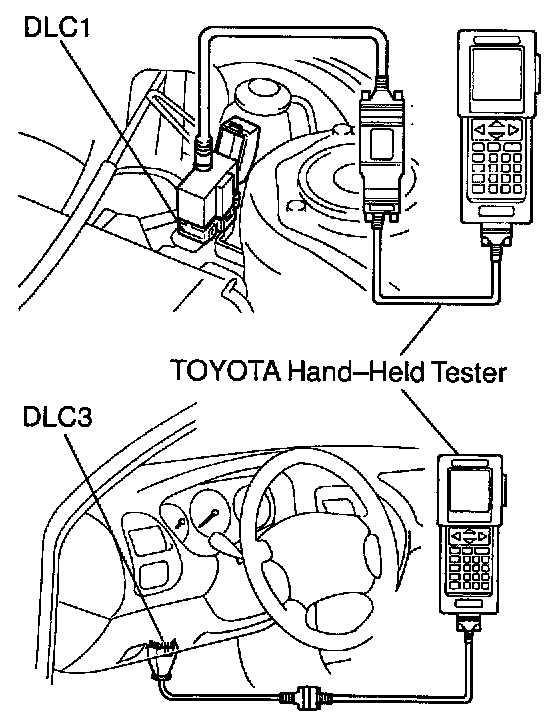

Data Link Connectors:




DTC CHECK (Using TOYOTA hand-held tester)
a. Hook up the TOYOTA hand-held tester to the [1][2]DLC1 or DLC3.
b. Read the DTCs by following the prompts on the tester screen.

HINT: Please refer to the TOYOTA hand-held tester operator's manual for further details.
