Connecting Rod Bearing
Connecting Rod Clearance Standard
0.028 - 0.060 mm (0.001 - 0.0024 in.)
Maximum
0.08 mm (0.0031 in.)

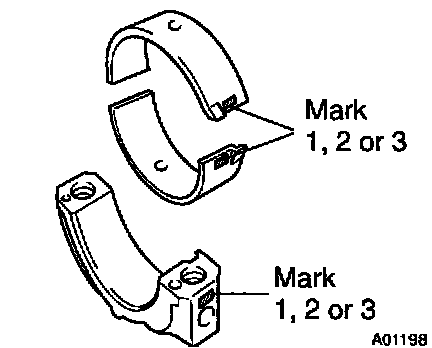

HINT: If replacing a bearing, replace it with one having the same number as marked on the
connecting rod. There are 3 sizes of standard bearings, marked "1", "2" and "3" accordingly.

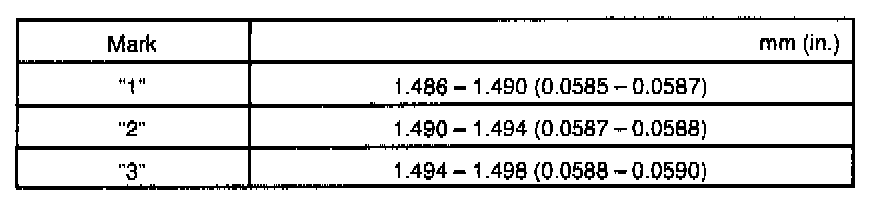

Reference: Standard bearing center wall thickness
