Engine Control Module

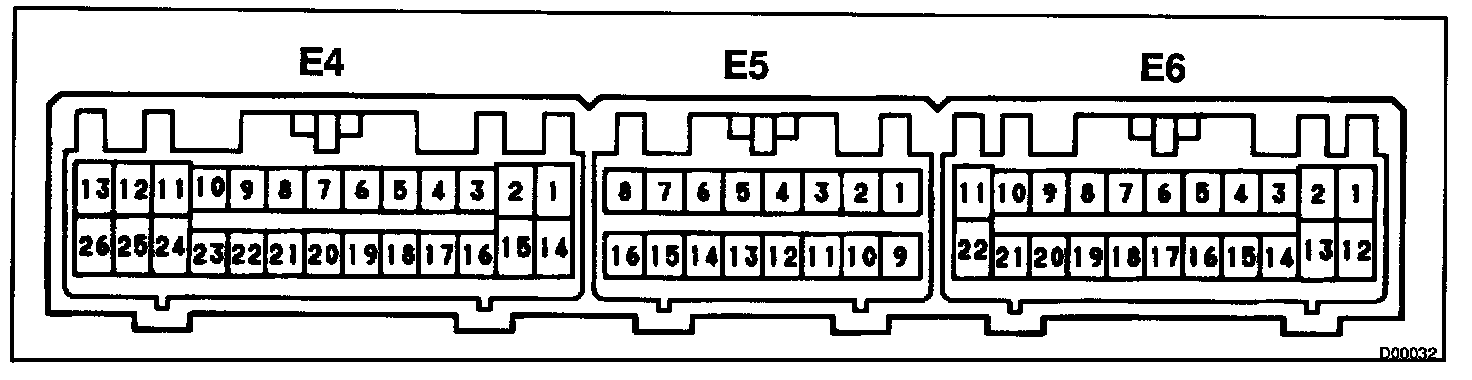

Connectors:

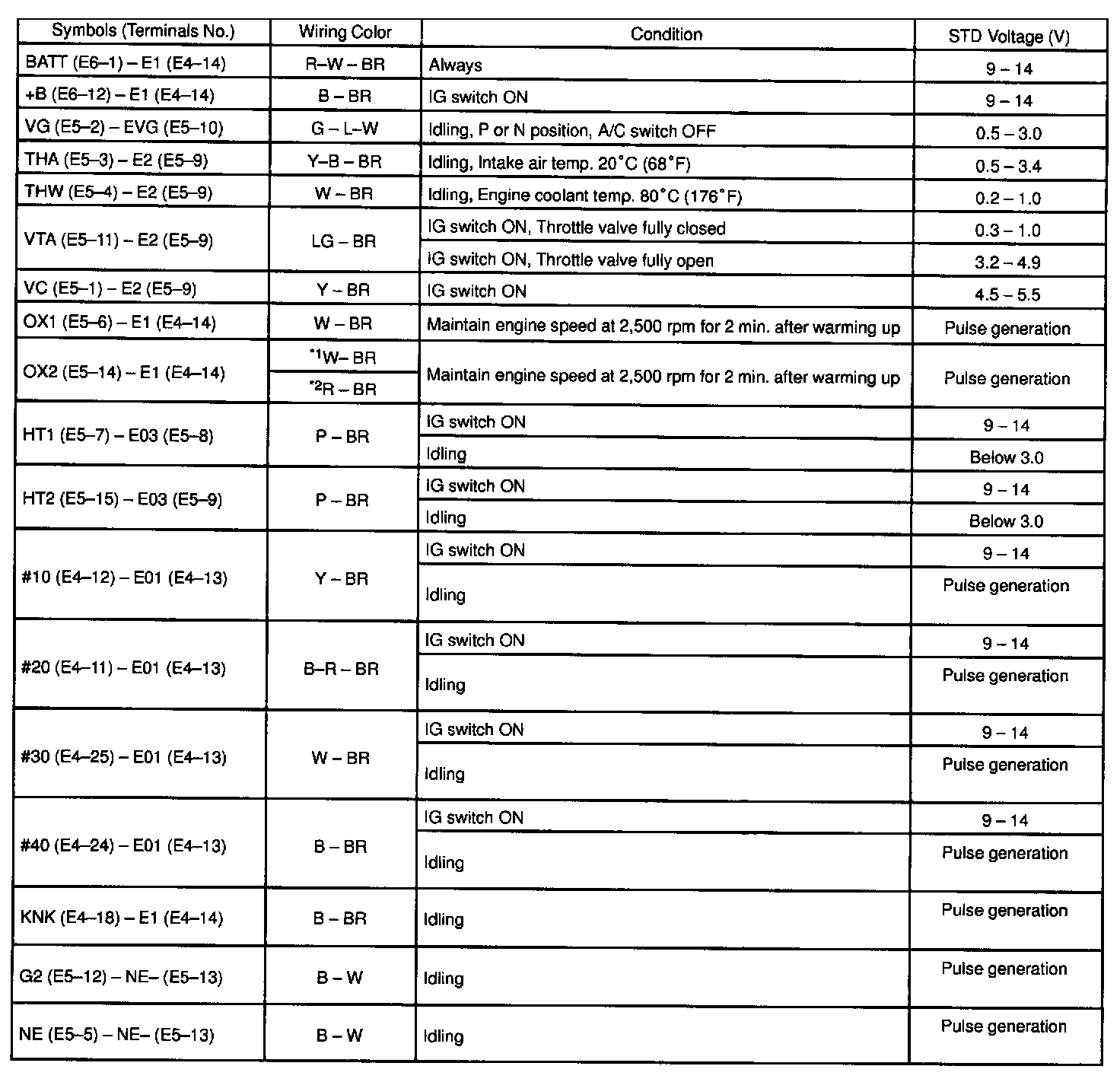

Part 1 Of 2:

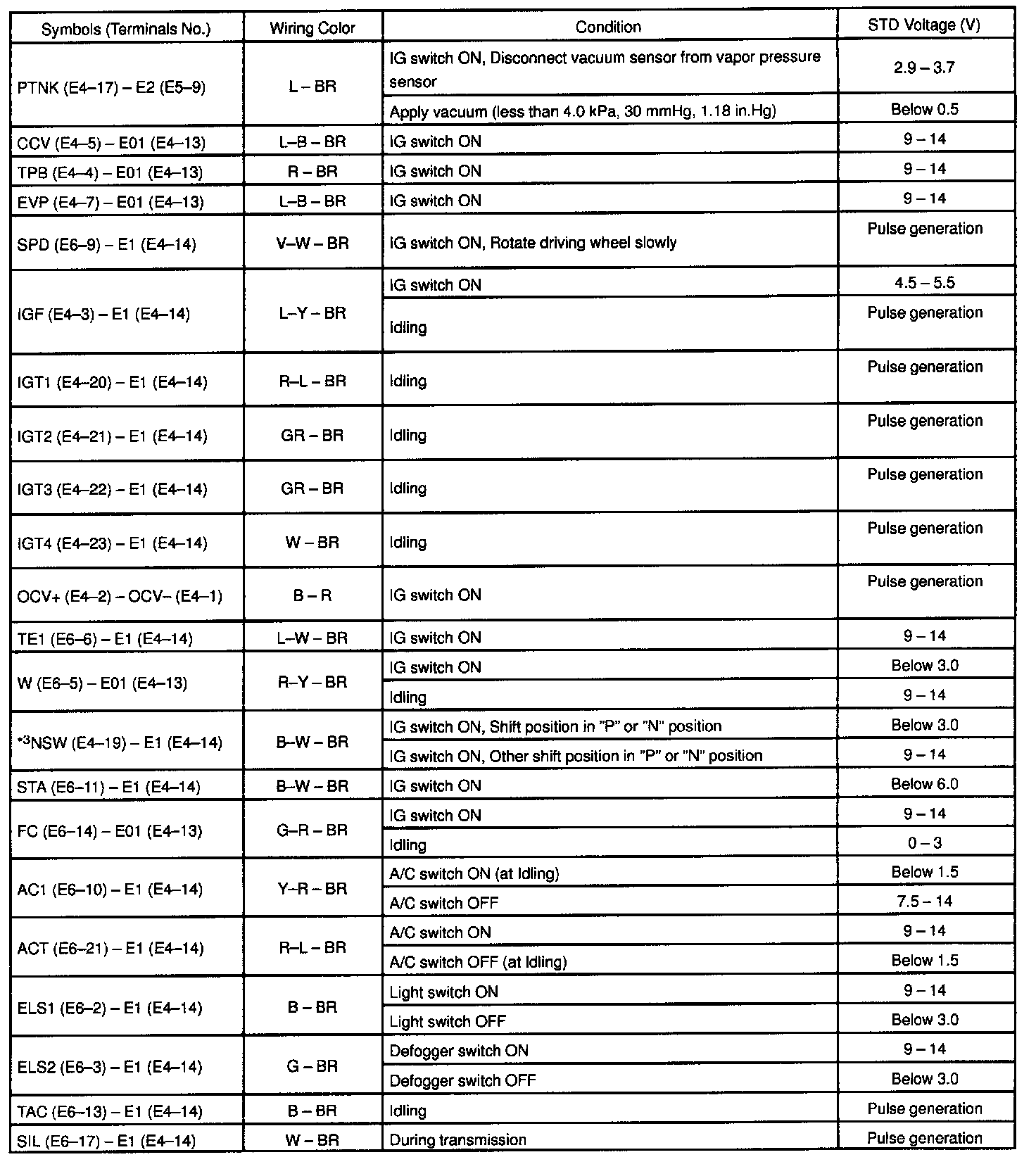

Part 2 Of 2:




M/T and 3 A/T

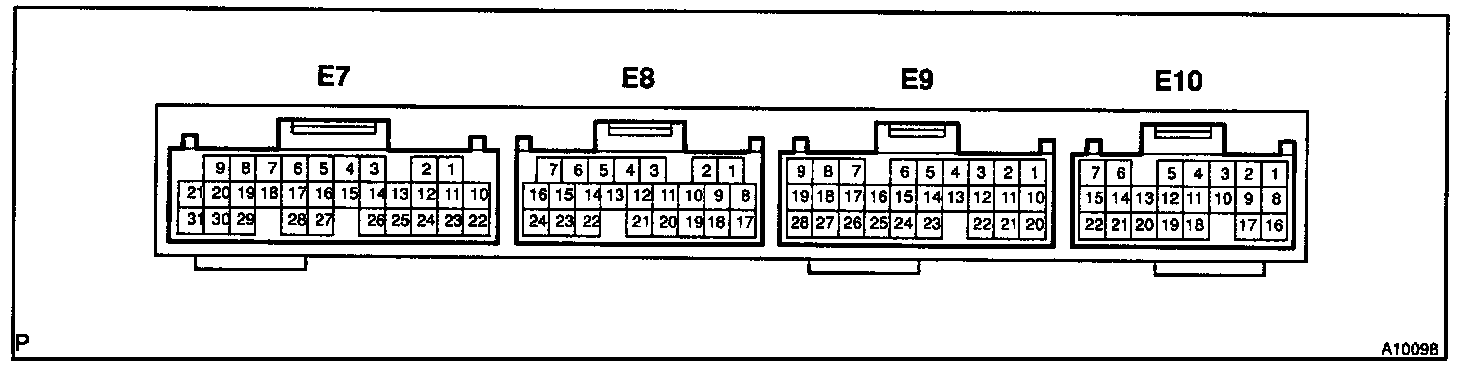

Connectors:

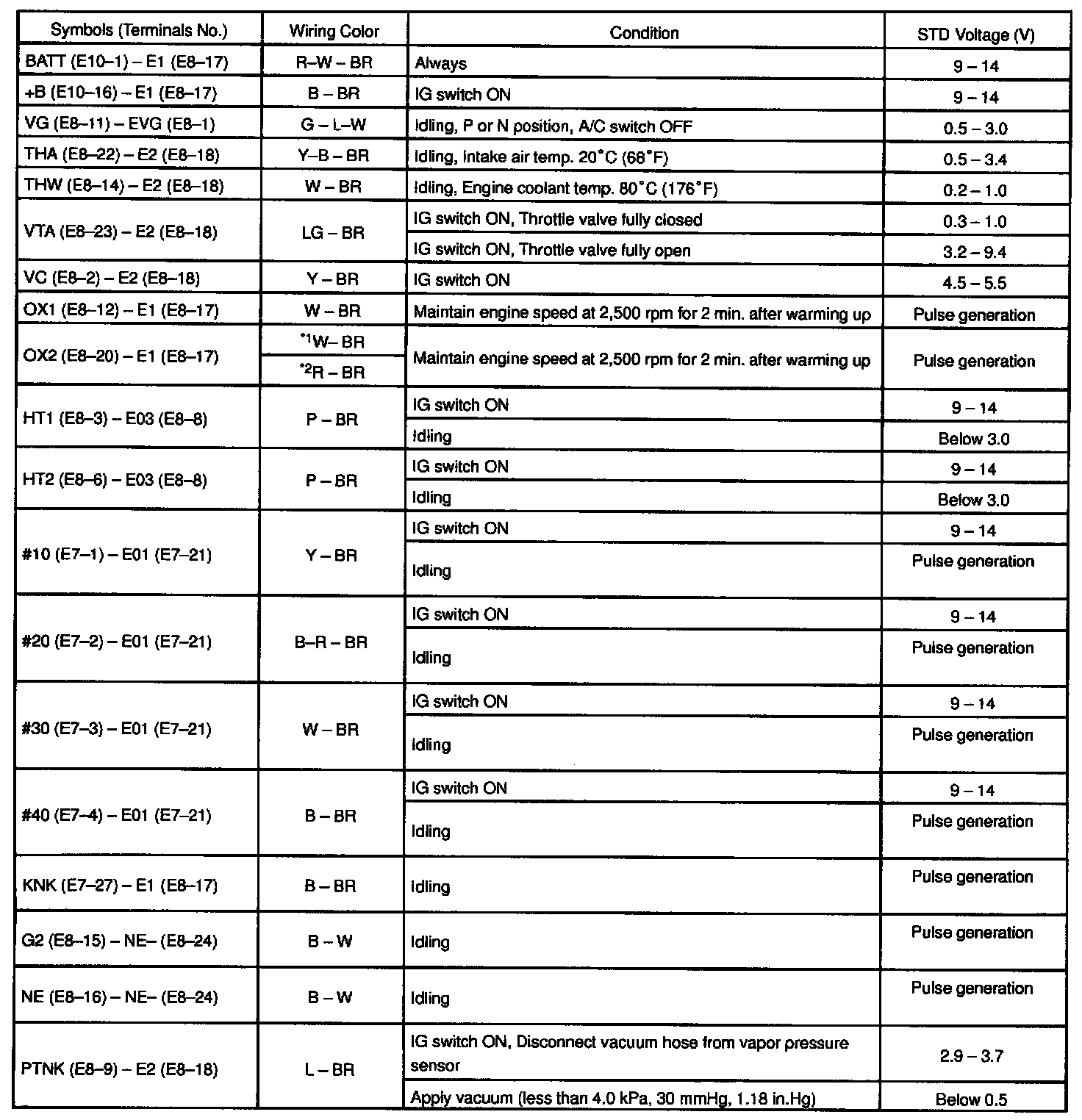

Part 1 Of 2:

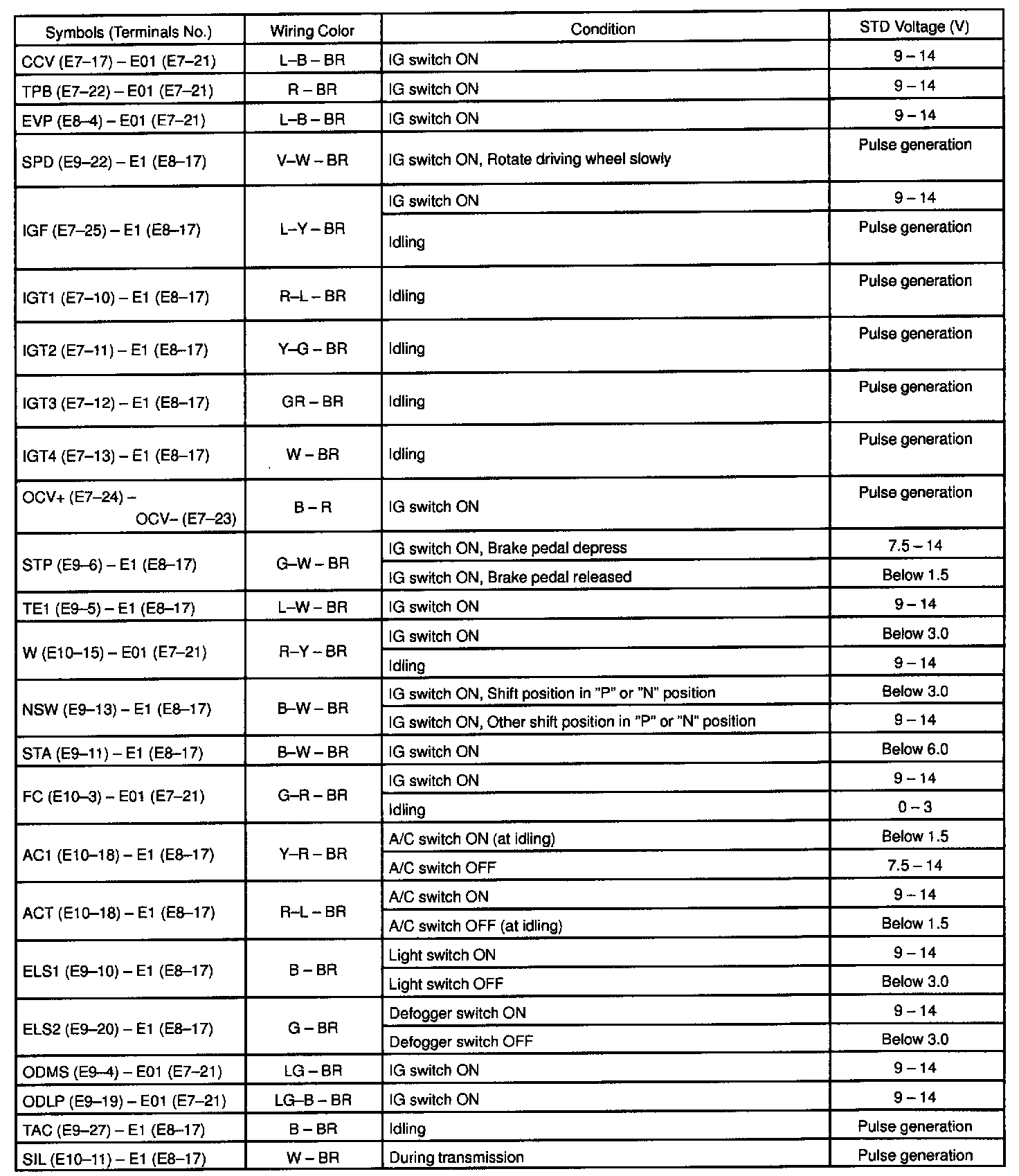

Part 2 Of 2:




4 A/T
