Connector Locations

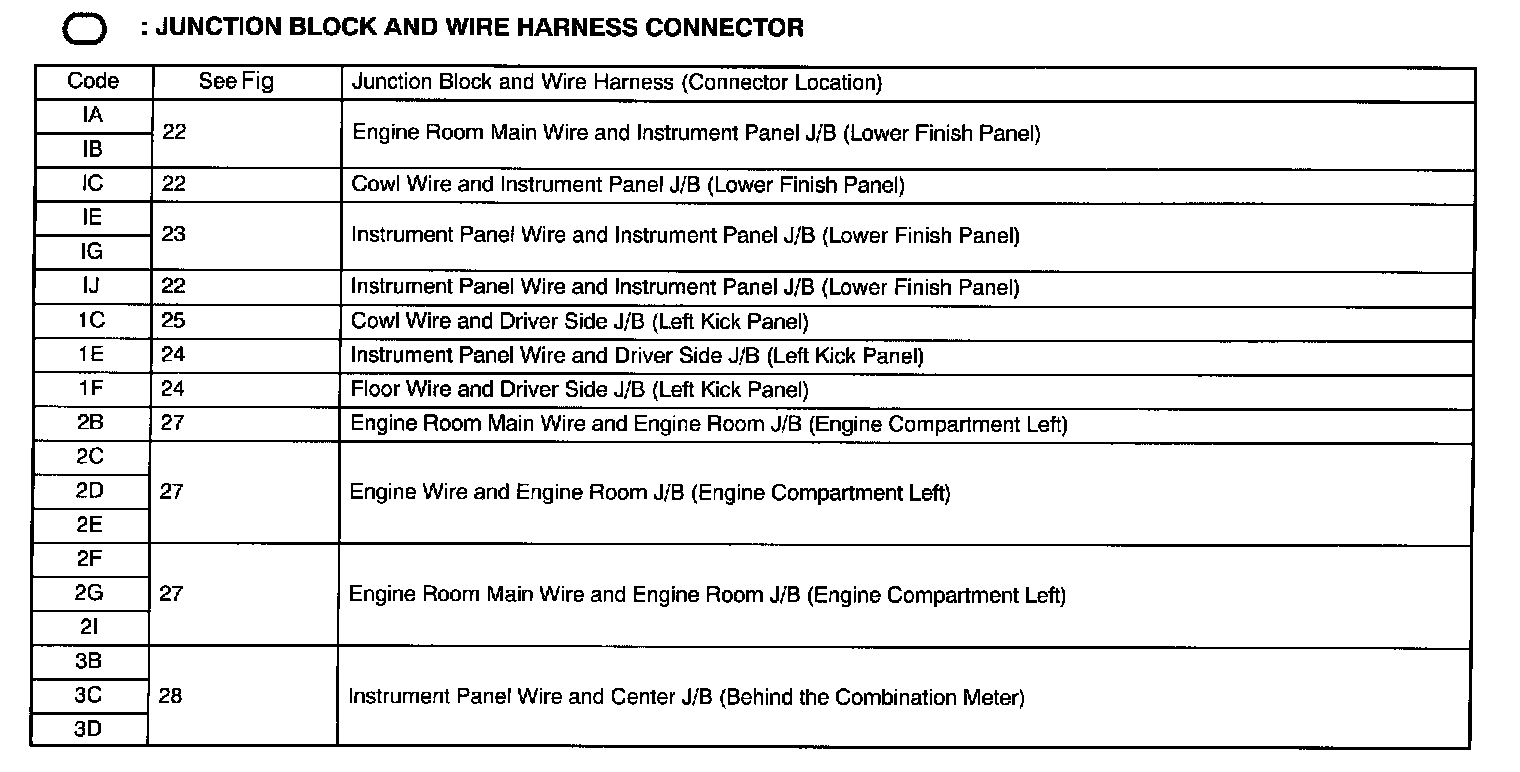

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

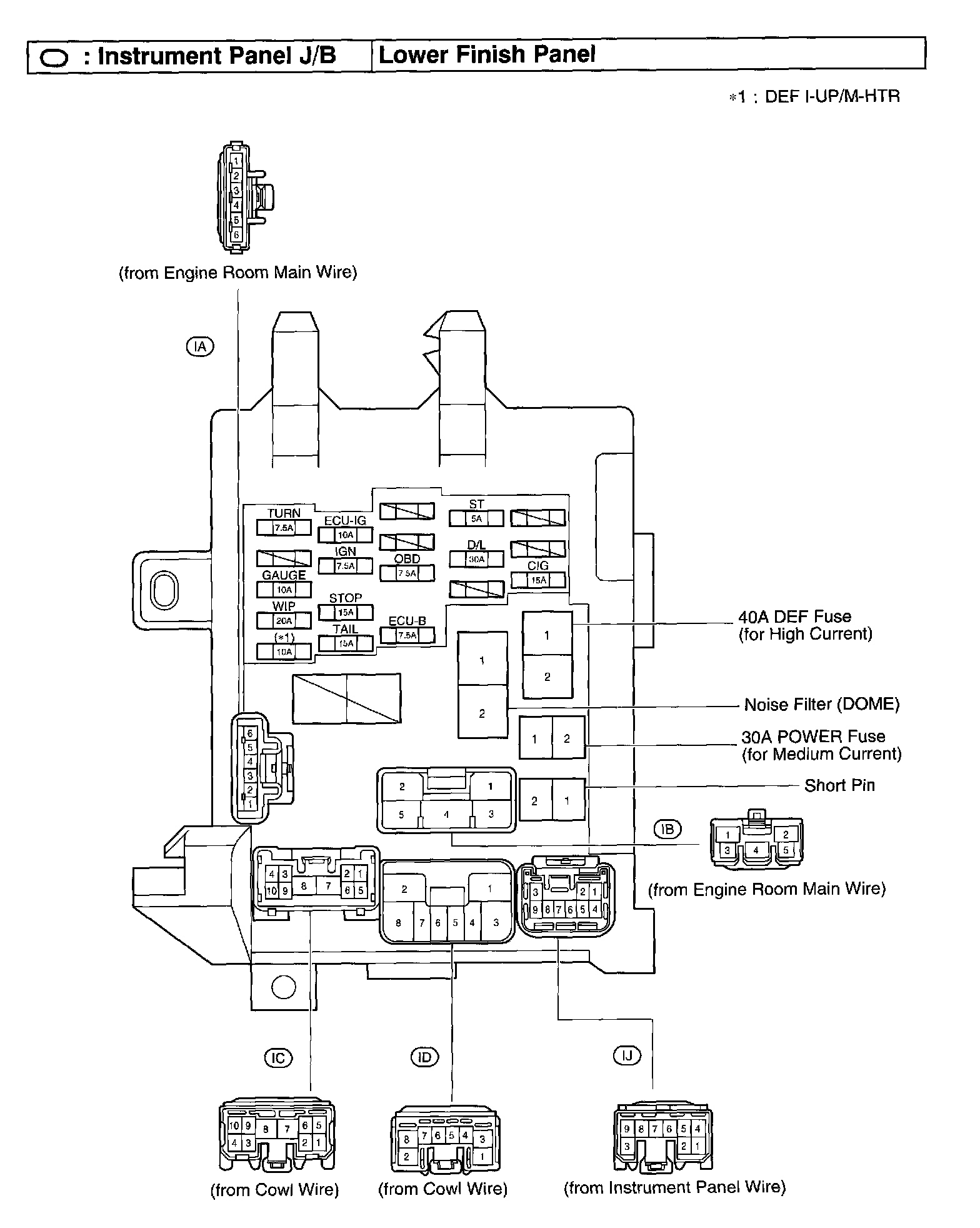

Instrument Panel J/B:

FIG 22

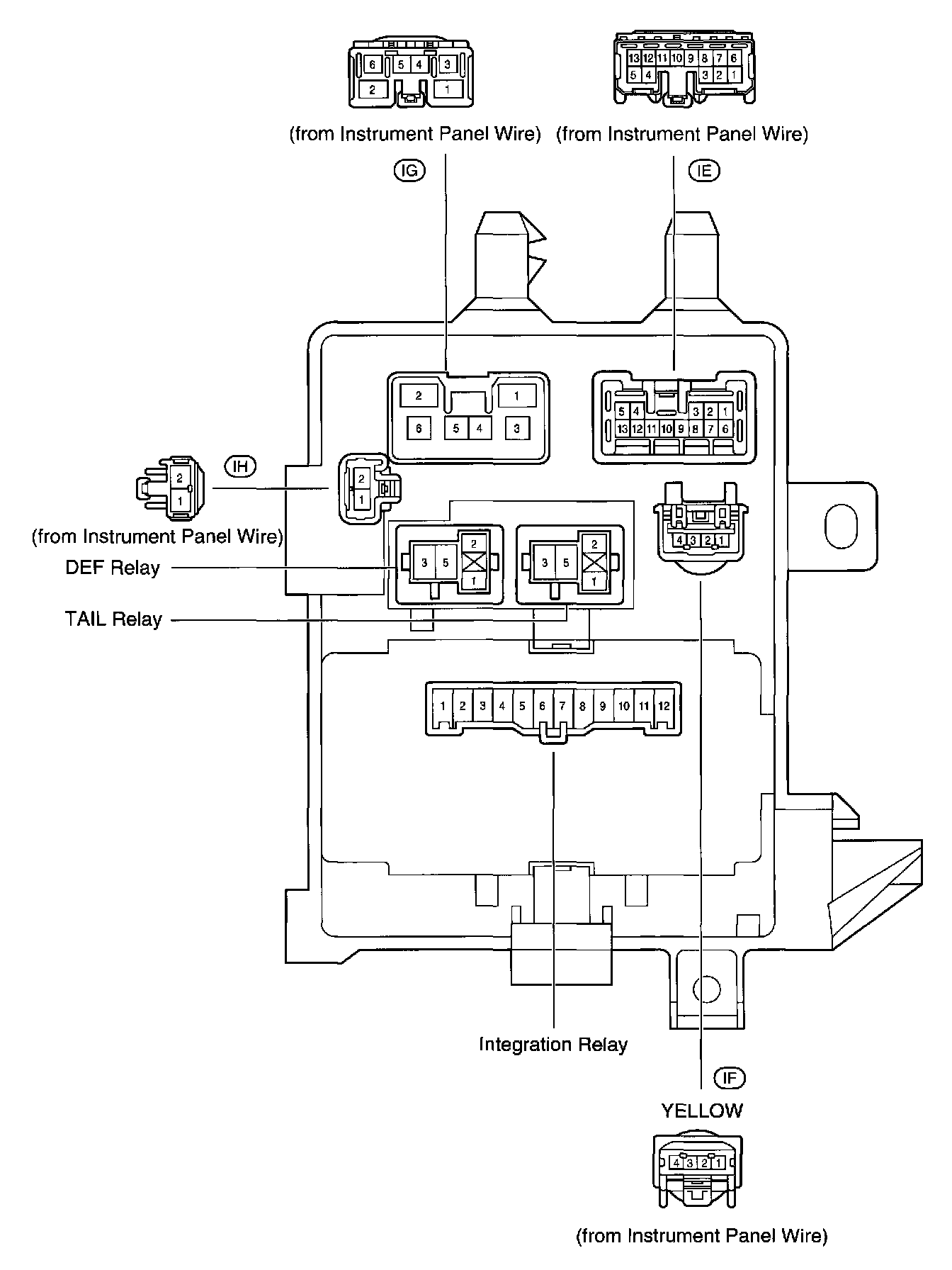

Instrument Panel J/B:

FIG 23

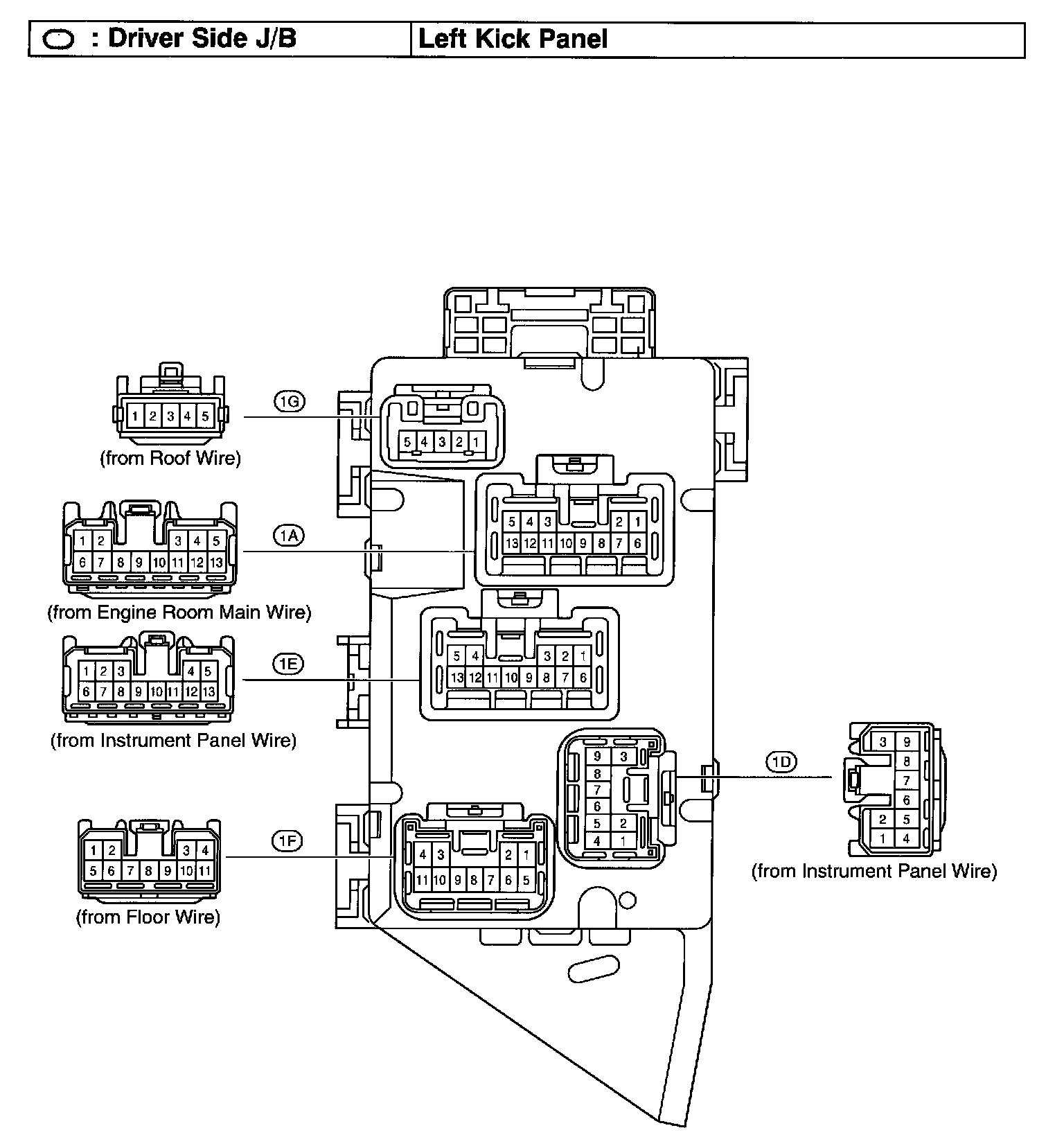

Driver Side J/B:

FIG 24

Driver Side J/B:

FIG 25

Engine Room J/B:

FIG 27

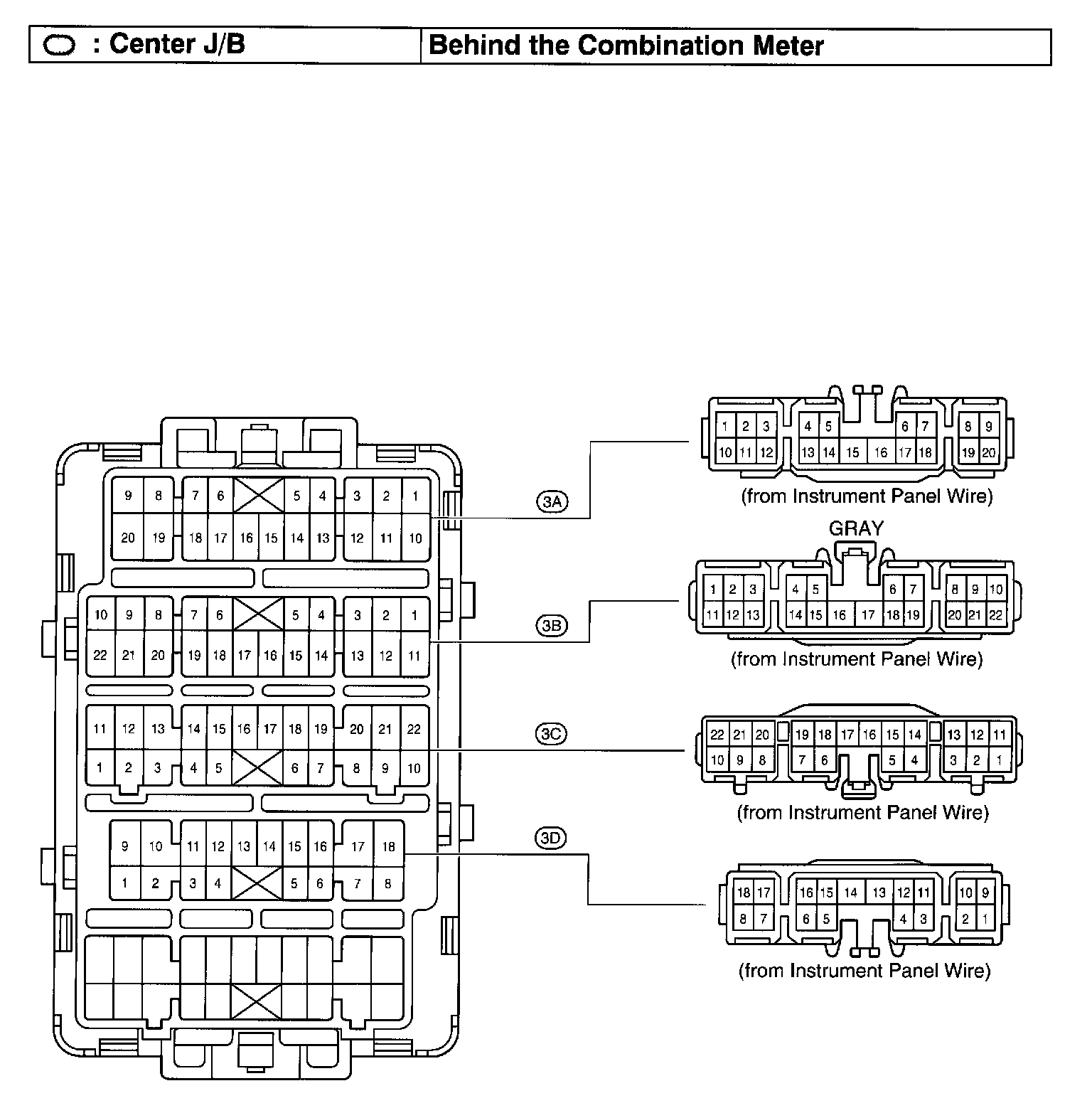

Center J/B:

FIG 28
