Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR

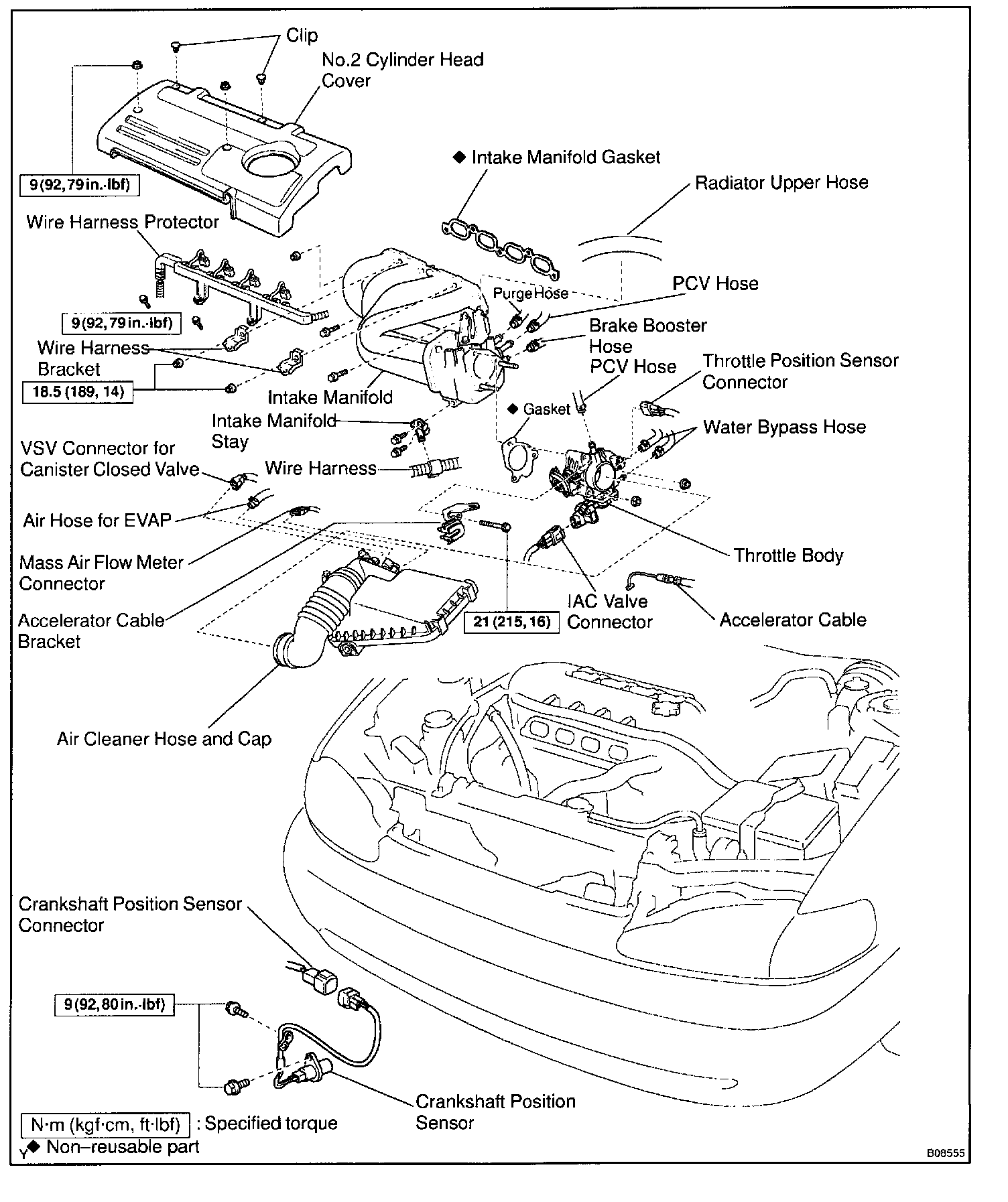

COMPONENTS







REMOVAL

1. REMOVE INTAKE MANIFOLD.

2. REMOVE CRANKSHAFT POSITION SENSOR

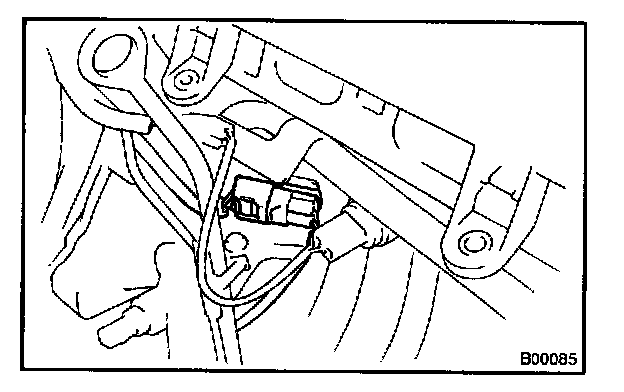

a. Disconnect the crankshaft position sensor connector.

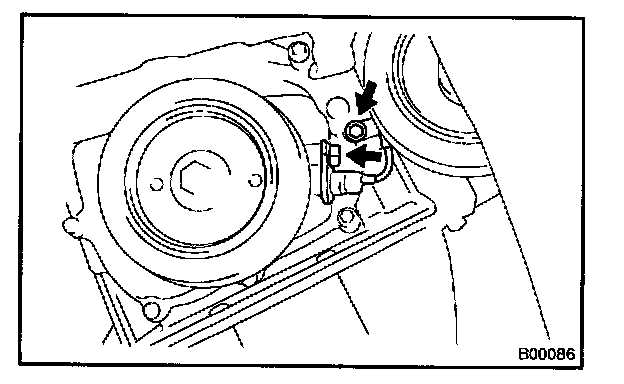

b. Remove the 2 bolts and disconnect the crankshaft position sensor.

Torque: 9 Nm (92 kg.cm, 79 in.lb)

INSTALLATION
Installation is in the reverse order of removal.
