Engine Torque and Sequence

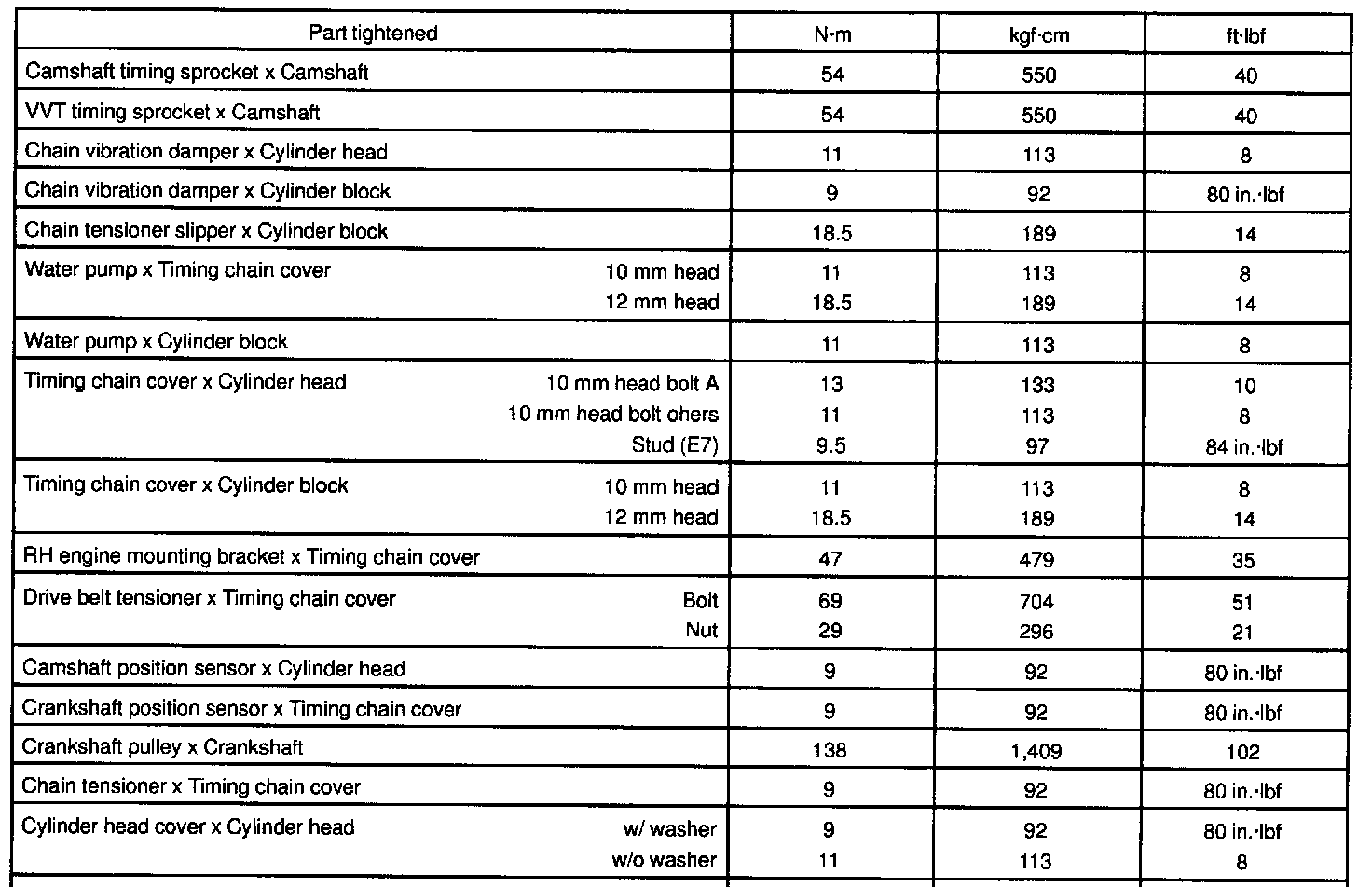

1ZZ-FE Engine Mechanical Torque:

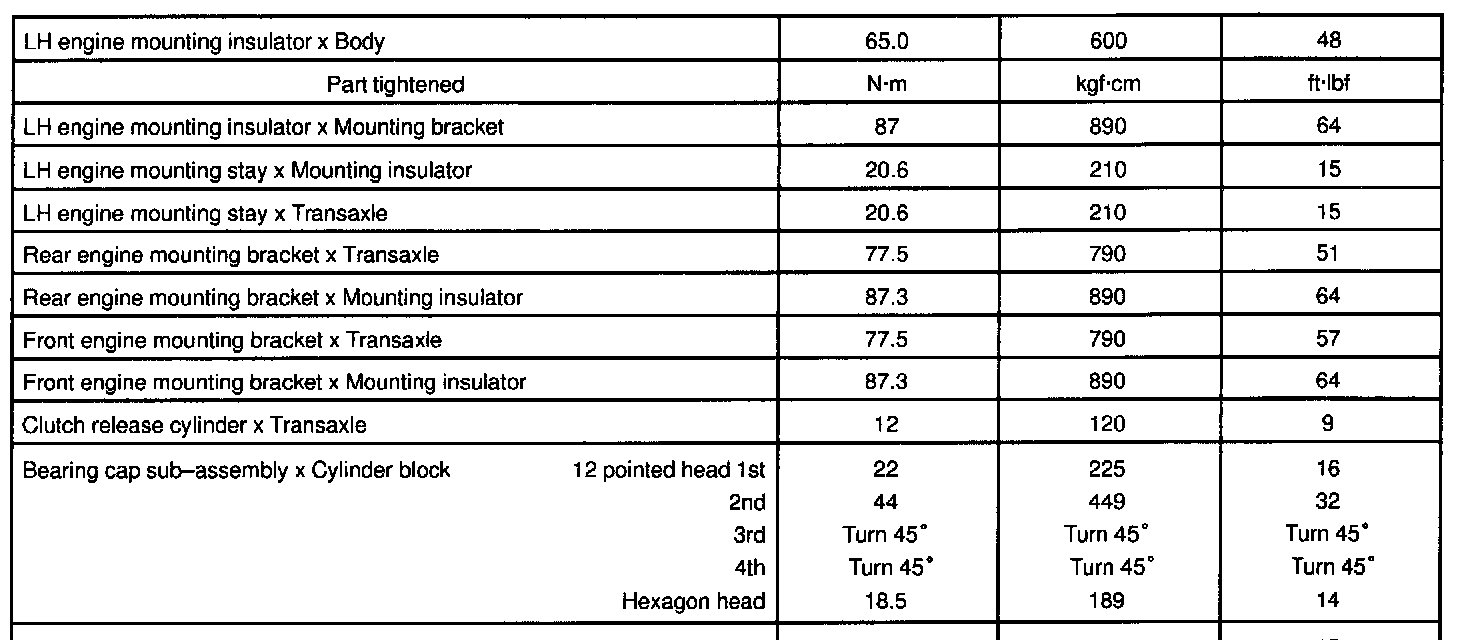

1ZZ-FE Engine Torque Cont.:

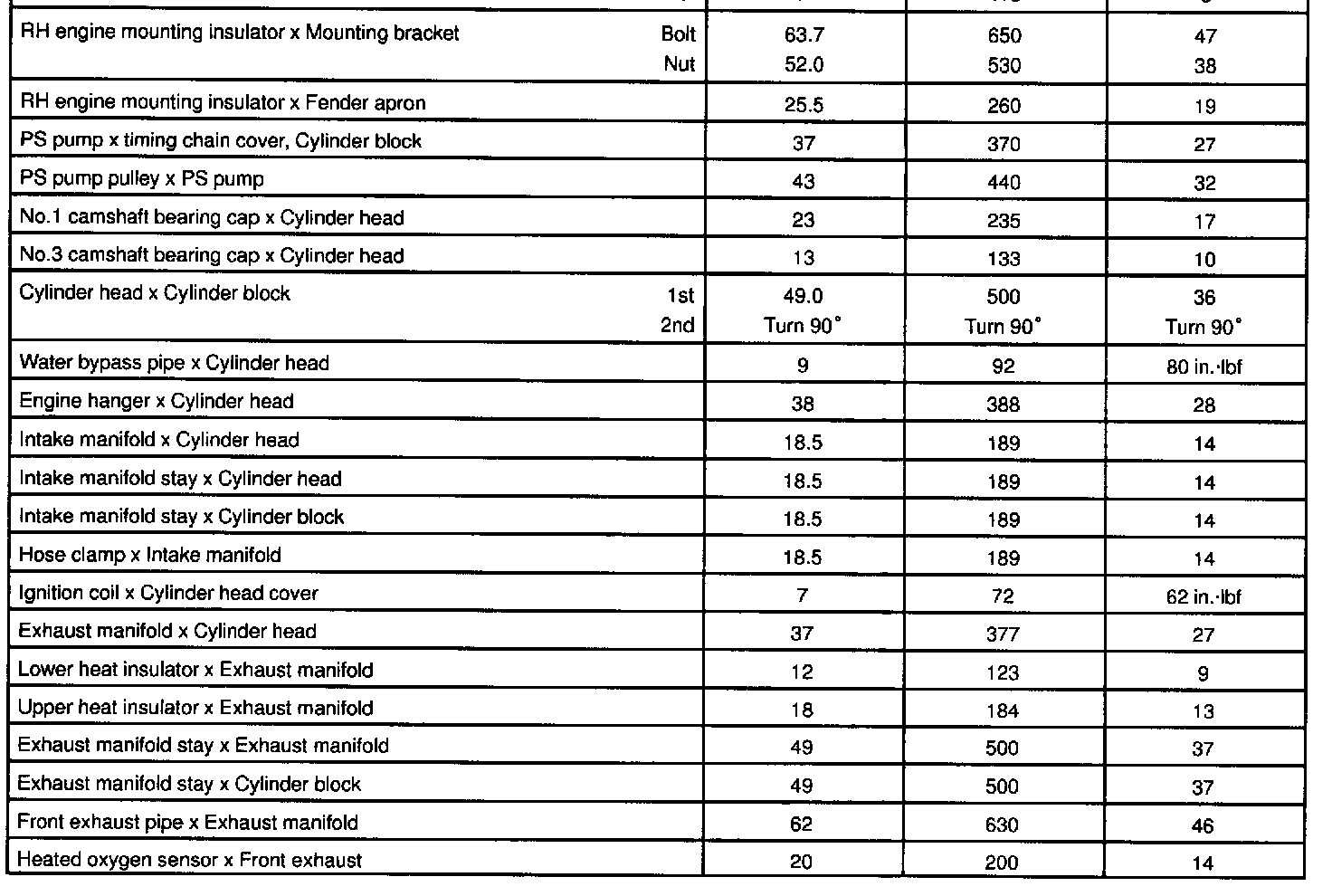

1ZZ-FE Engine Torque Cont.:




1ZZ-FE Engine Torque Cont.:

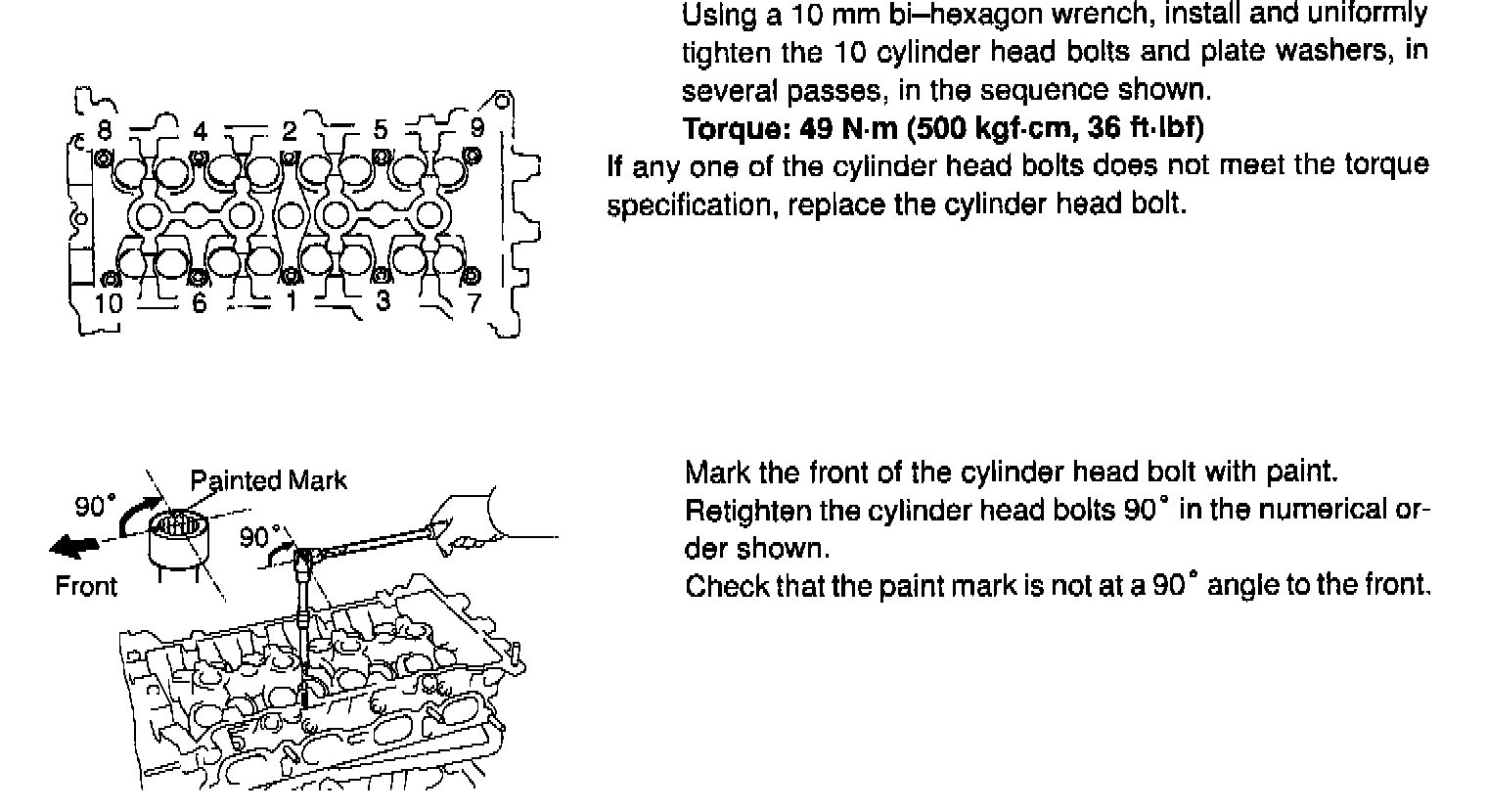

1ZZ-FE Cylinder Head Torque & Sequence:
