Component Tests and General Diagnostics
INSPECT WIRELESS DOOR LOCK TRANSMITTER OPERATIONHINT: Refer to "Wireless door lock control receiver and transmitter replacement".
a. Using a screwdriver, remove the cover.
b. Remove the battery (lithium battery).
c. Install a new or normal battery (lithium battery).

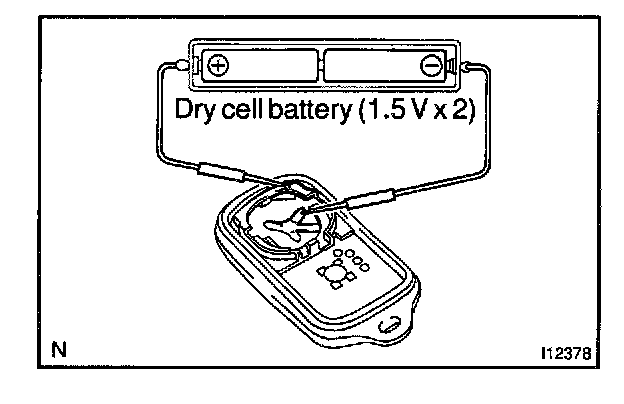

HINT: When a new or normal battery can not be obtained, connect 2 new 1.5 Volt batteries in series, connect the battery (+) to the battery receptacle side terminal and battery (-) to the bottom terminal, then apply 3 V voltage to the transmitter.
d. In the location where is approx. 1 M away from driver's outside handle in the right direction, and check the transmitter operation when pressing transmission switch on the surface of the transmitter body.
Standard: Remote control of vehicle door lock can be operated.
HINT:
- The minimum operation distance differs according to operator, the way of holding, and location.
- As weak wave is used, operation distance might be shortened when noise is detected in strong wave or used frequency.
e. Install the battery (lithium battery).
f. Install a cover, so that rubber cover is not distorted or slipped off.
