Heater Control (Center Cluster Integration)
DISASSEMBLY 1.

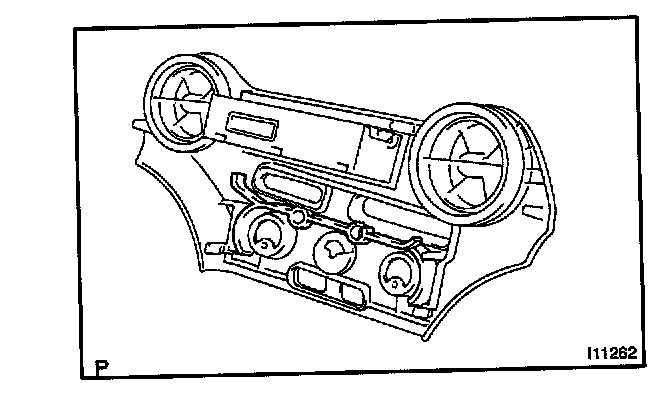

REMOVE CLUSTER FINISH PANEL.
2.
REMOVE CENTER CLUSTER SWITCH.
a.
Remove the knob.
b.
Release the 2 claws and remove the switch.
3.
REMOVE LENS.
REASSEMBLYReassembly is in the reverse order of disassembly.
