Confirmation Driving Pattern

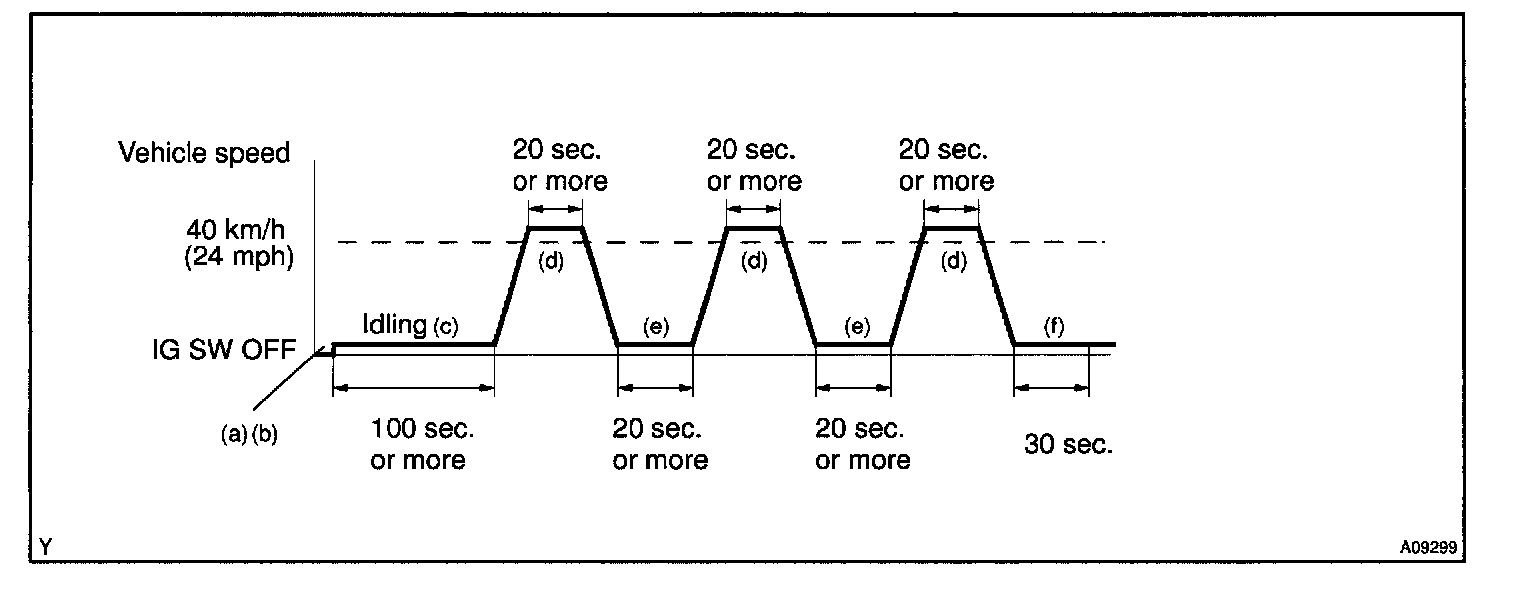

CONFIRMATION DRIVING PATTERN
a. Connect the TOYOTA hand-held tester to the DLC3.
b. Switch the TOYOTA hand-held tester from normal mode to check mode .
c. Start the engine and let the engine idle for 100 sec. or more.
d. Drive the vehicle at 40 kph (24 mph) or more for 20 sec. or more.
e. Let the engine idle for 20 Sec. or more.
f. Let the engine idle for 30 Sec.

HINT: If a malfunction exists, the MIL will light up during step (f).

NOTE: If the conditions in this test are not strictly followed, detection of the malfunction will not be possible.
If you do not have a TOYOTA hand-held tester, turn the ignition switch OFF after performing steps (c) to (f), then perform steps (c) to (f) again.
