Variable Valve Timing Solenoid: Service and Repair

Camshaft Timing Oil Control Valve:

REMOVAL

1. REMOVE N0.2 CYLINDER HEAD COVER
Remove the 4 nuts and No. 2 cylinder head cover.

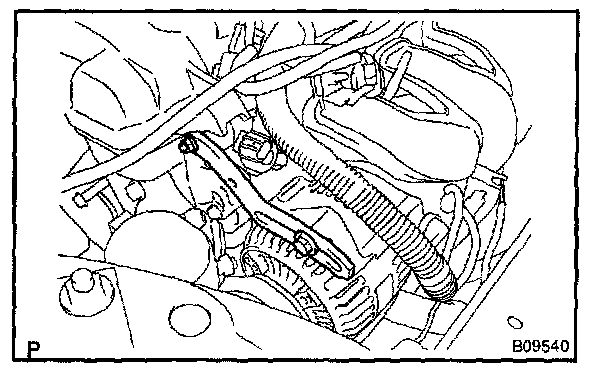

2. REMOVE GENERATOR BRACKET




Remove the bolt, nut and generator bracket.

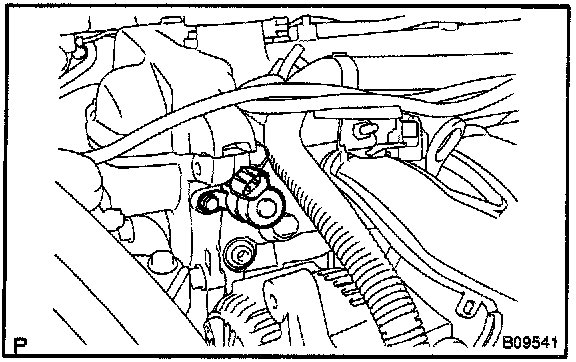

3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the oil control valve connector.
b. Remove the bolt, oil control valve and O-ring.

INSPECTION

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE OPERATION

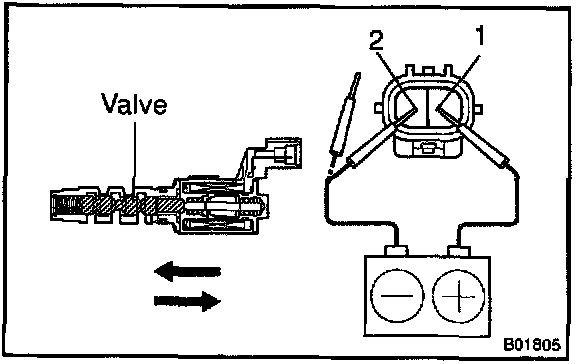

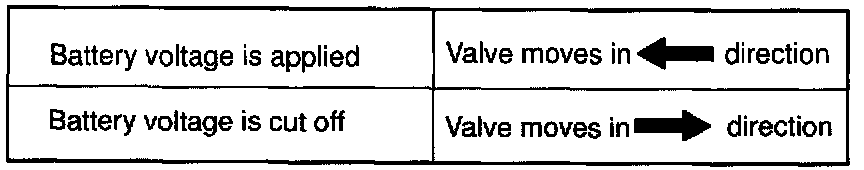

Connect positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.

If operation is not as specified, replace the valve.

INSTALLATION

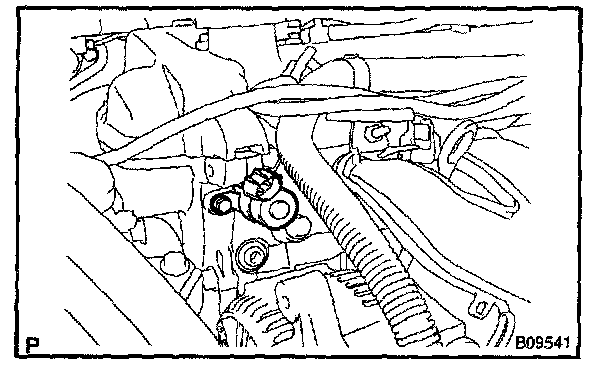

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE




a. Install the bolt, oil control valve and O-ring.

Torque: 8.5 N.m (85 kgf.cm, 75 in.lbf)

b. Connect the oil control valve connector.

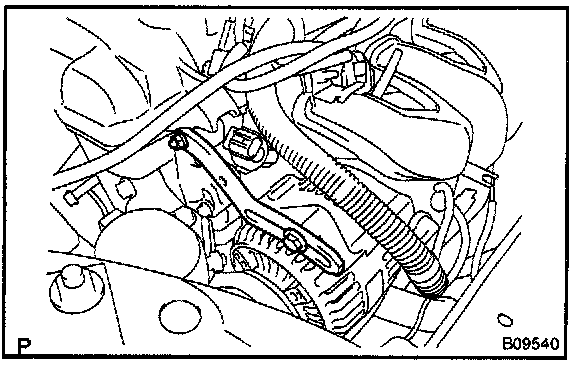

2. INSTALL GENERATOR STAY




a. Install the generator bracket with the nut.

Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

b. Adjust the belt tension and torque the bolt.

Torque: 18 N.m (185 kgf.cm, 14 ft.lbf)

3. INSTALL N0.2 CYLINDER HEAD COVER
Install the 4 nuts and No. 2 cylinder head cover.
