Ignition Coil: Service and Repair

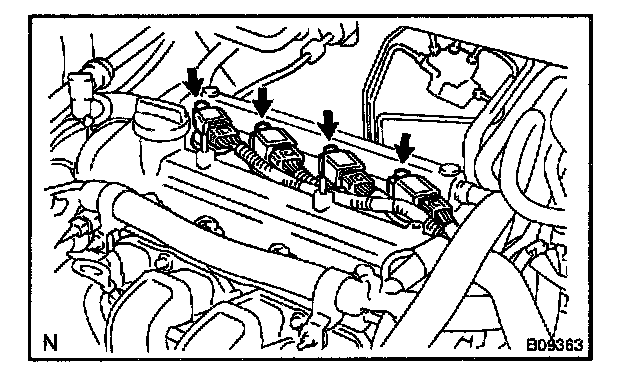

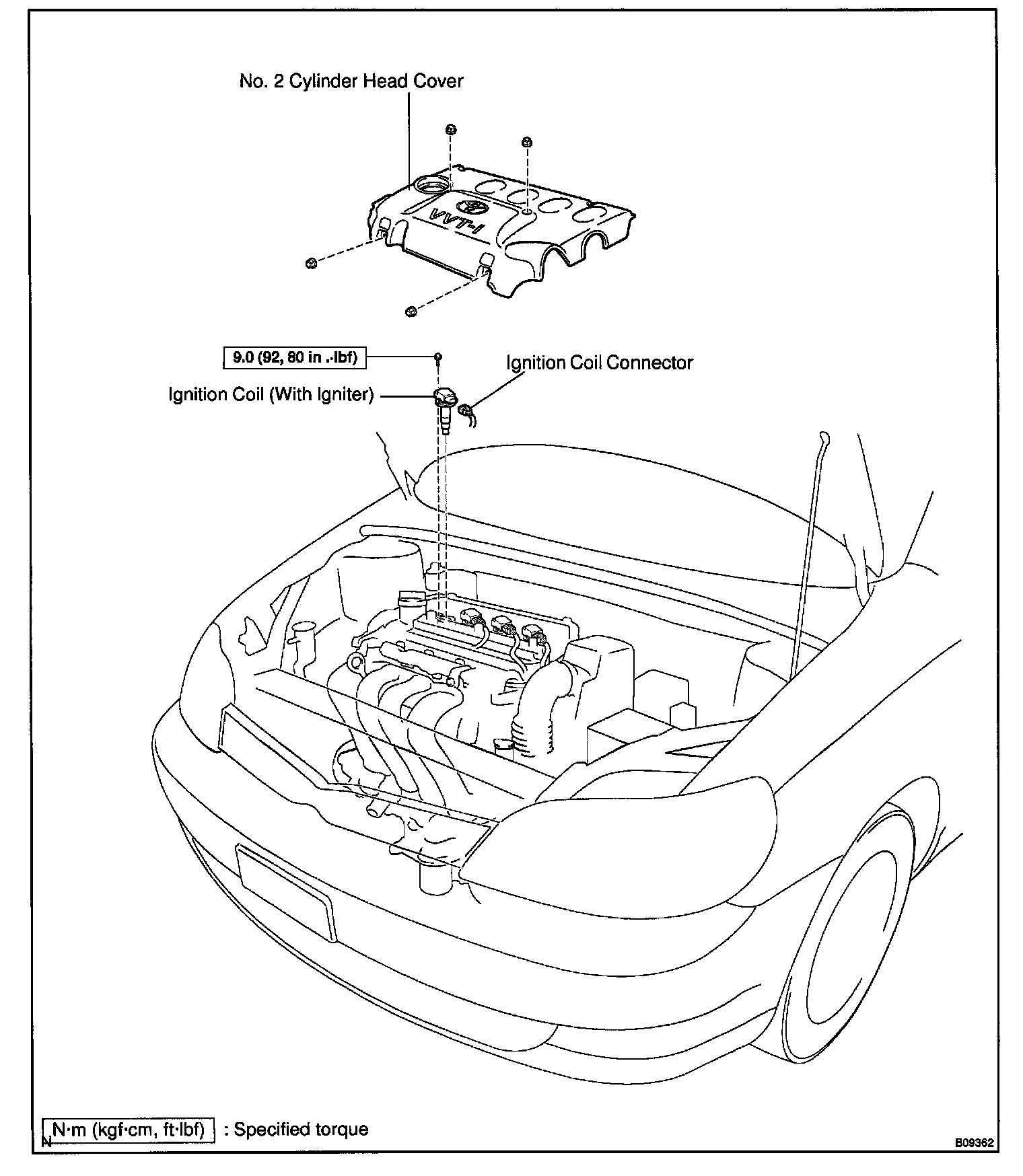

COMPONENTSREMOVAL 1. REMOVE NO.2 CYLINDER HEAD COVER 2. DISCONNECT 4 IGNITION COIL CONNECTORS 3. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS Remove the 4 bolts and pull out the 4 ignition coils (with igniter).
Torque:
9.0 Nm (92 kg.cm, 80 in.lb)INSTALLATIONInstallation is in the reverse order of removal.
