Symptom Related Diagnostic Procedures

HINT: If a normal code is displayed during the DTC check but the trouble still occurs, check the circuits for each symptom in the order given in the charts and proceed to the relevant troubleshooting.

The Matrix Chart is divided into 3 charts.
Chart 1: Electronic circuit matrix chart
Chart 2: On-vehicle repair matrix Chart
Chart 3: Off-vehicle repair matrix chart

If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

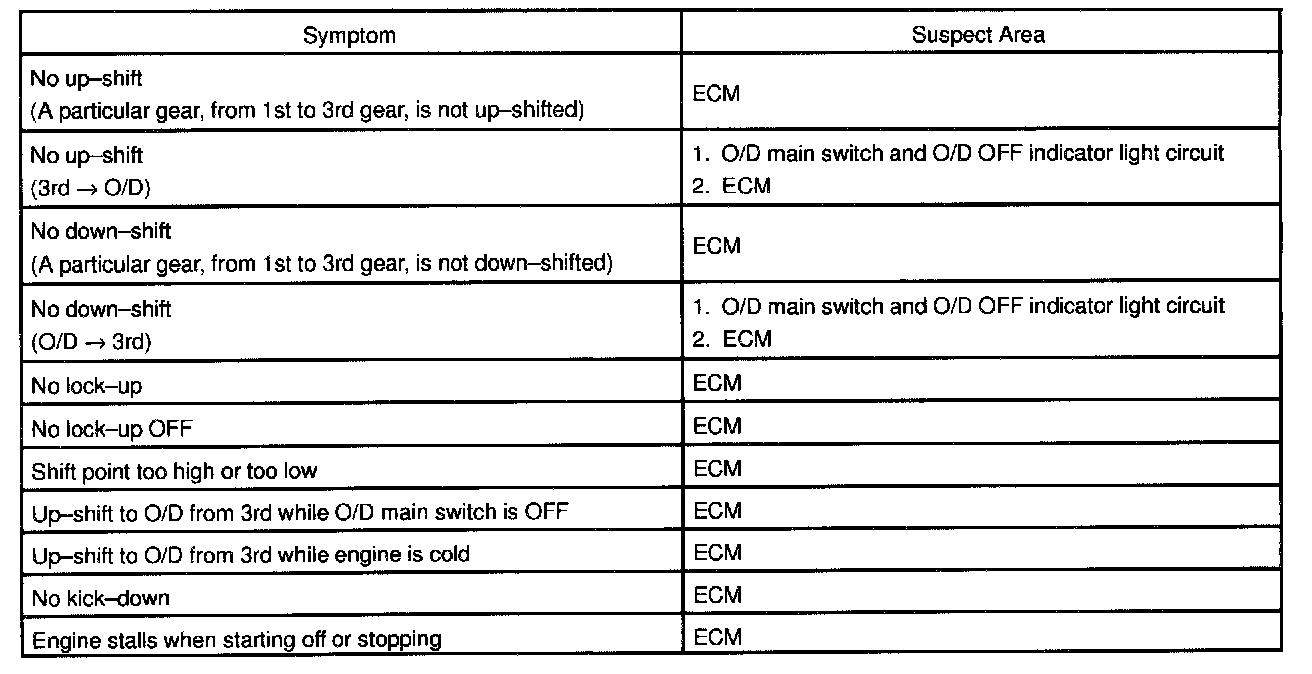

Chart 1: Electronic circuit matrix chart

Part 1 Of 2:

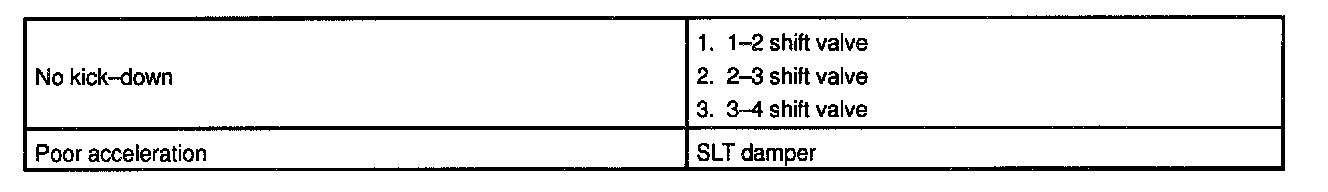

Part 2 Of 2:

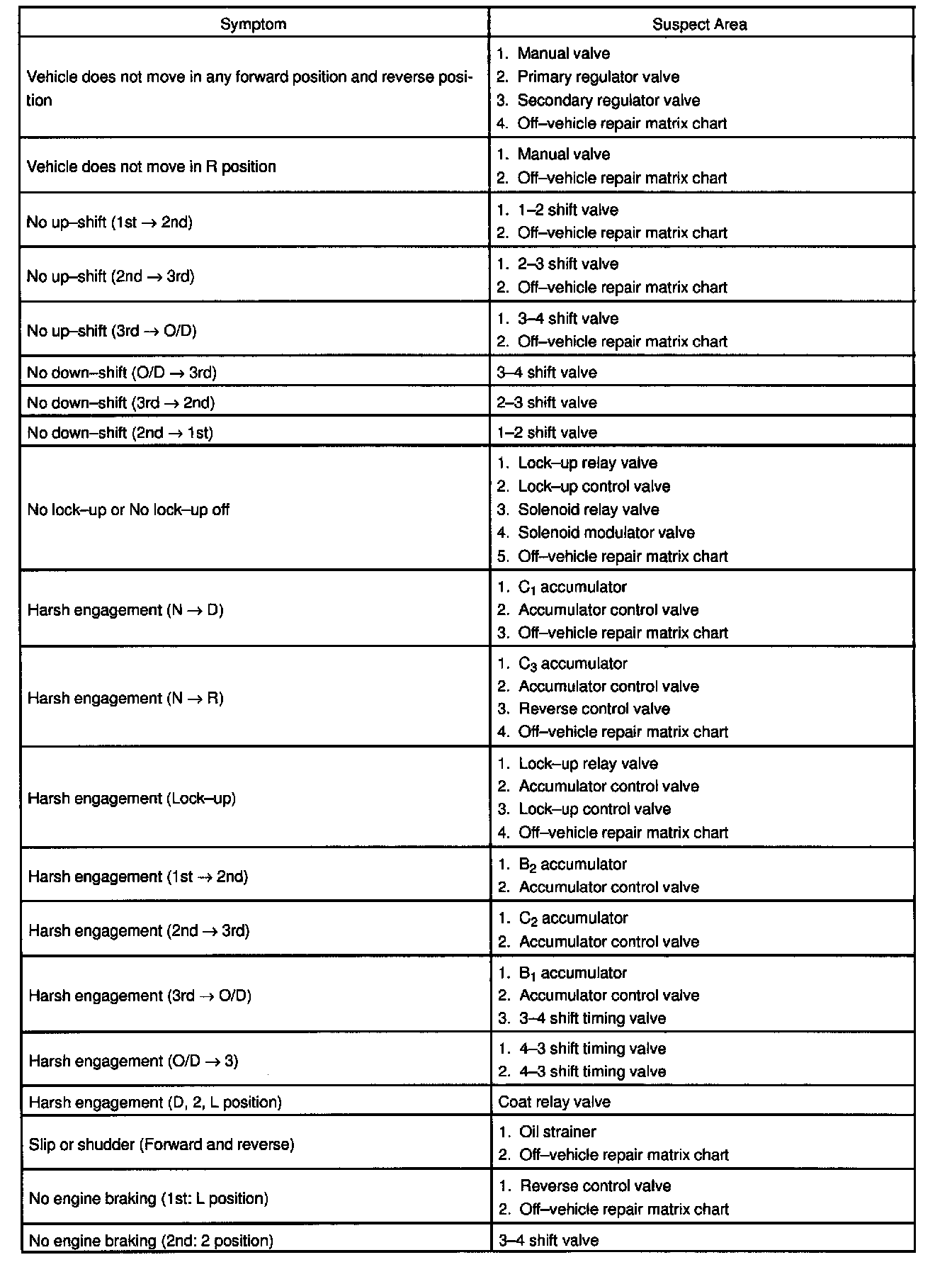

Chart 2: On-vehicle repair

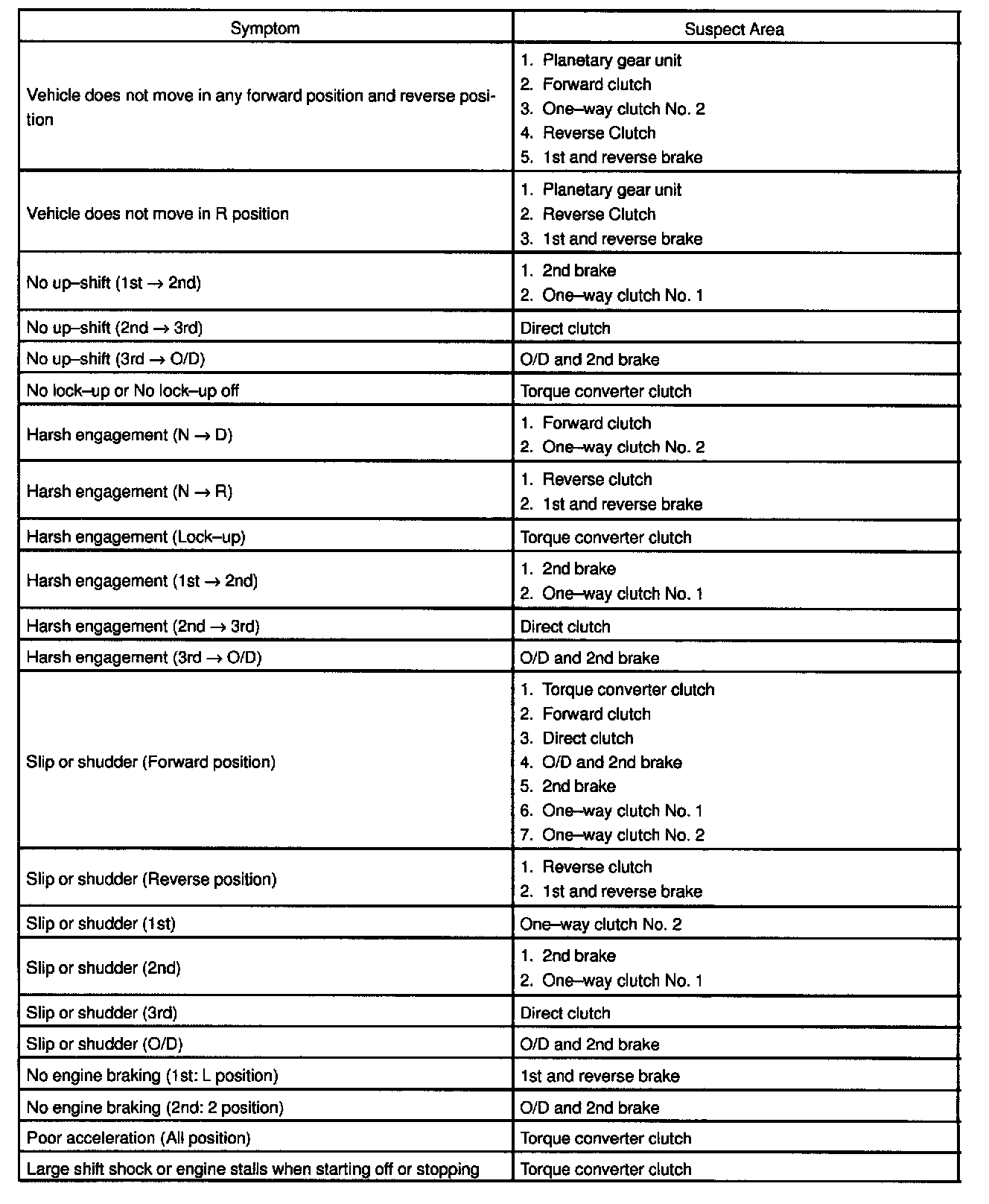

Chart 3: Off-vehicle repair
