Cylinder Head Torque and Sequence



Tightening Specifications and Sequences

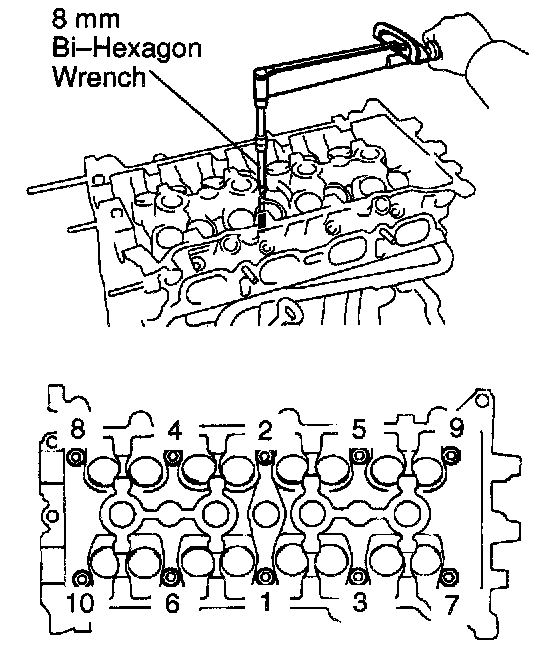

Cylinder Head Bolts
1st Pass 29.4 Nm
2nd Pass 90 degrees
3rd Pass 90 degrees

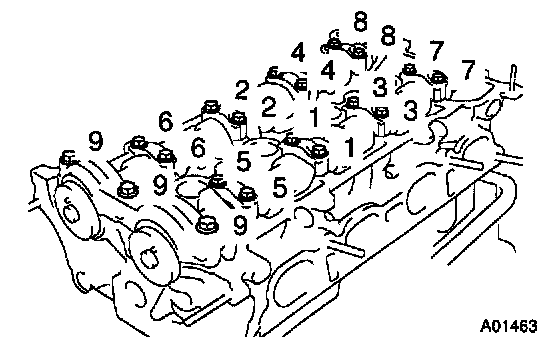

Camshaft Bearing Cap Bolts
No. 1 23 Nm
No. 2 12.7 Nm
