Engine Torque and Sequence

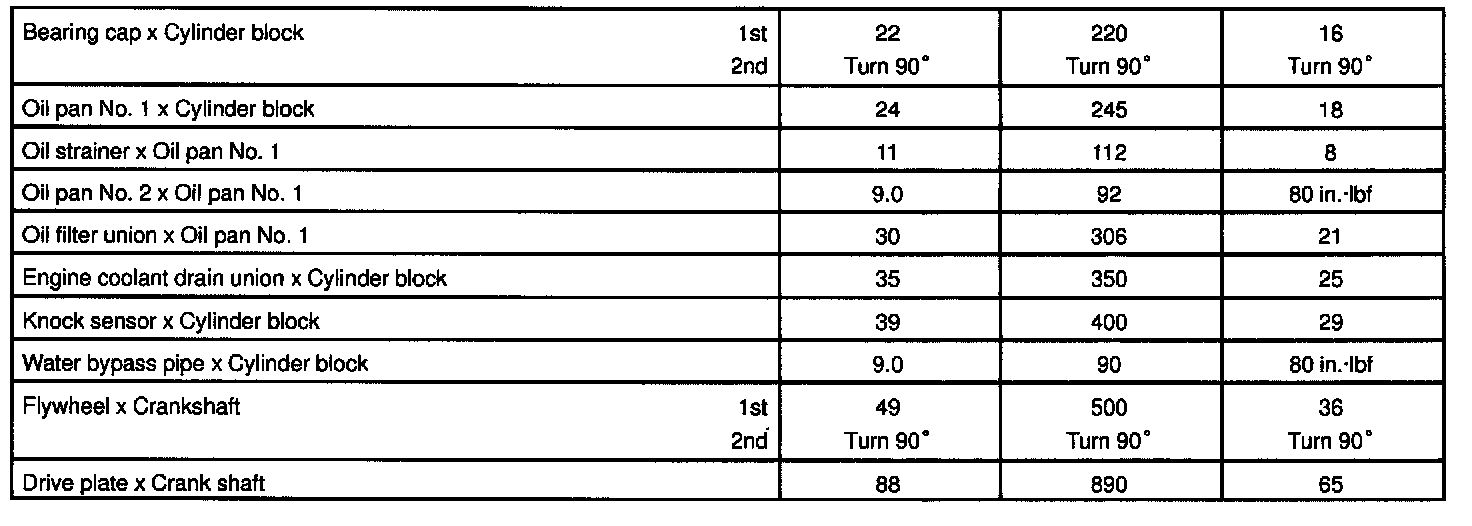

1.5L Engine Mechanical Torque:

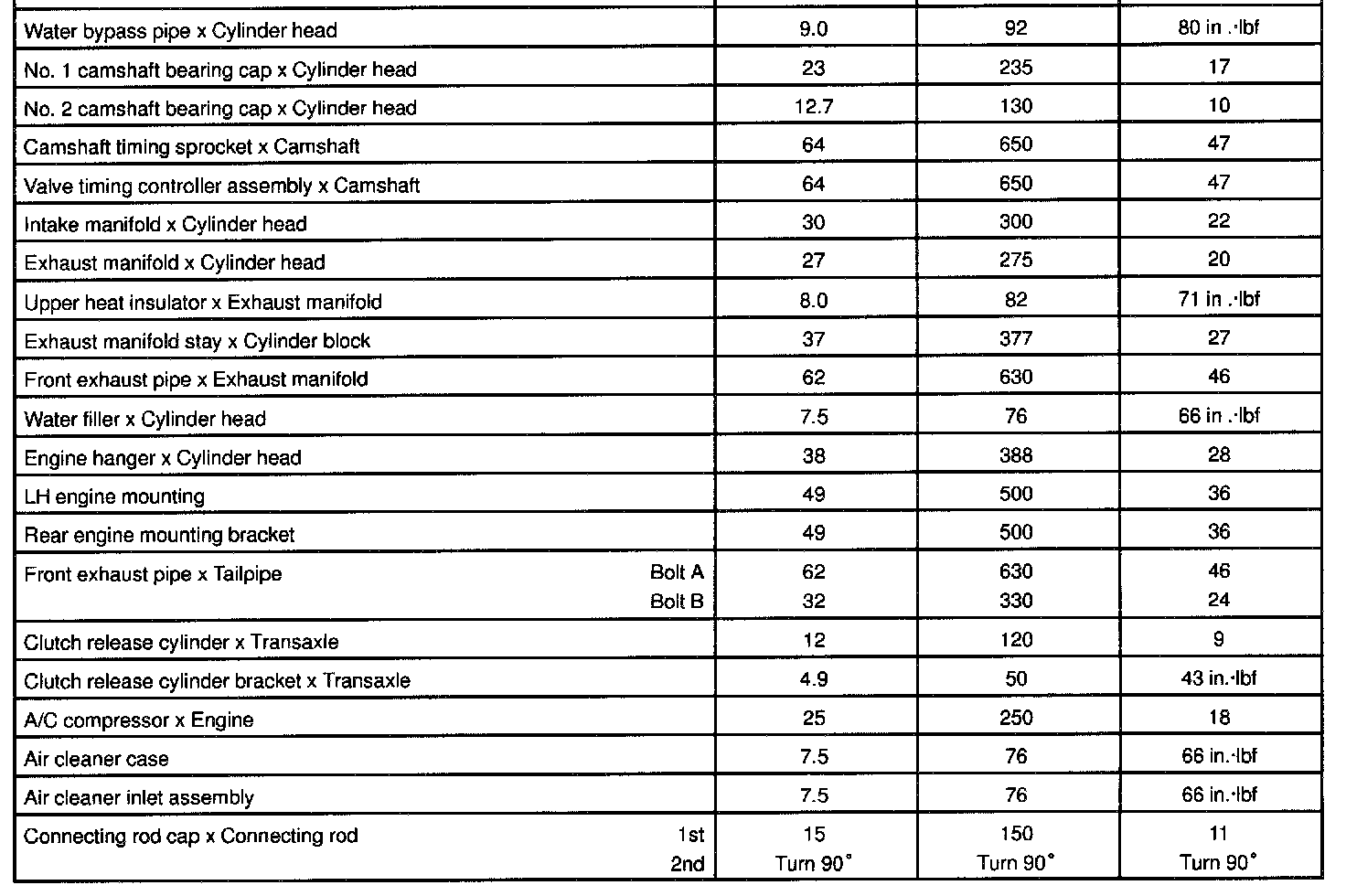

1.5L Engine Torque Cont.:

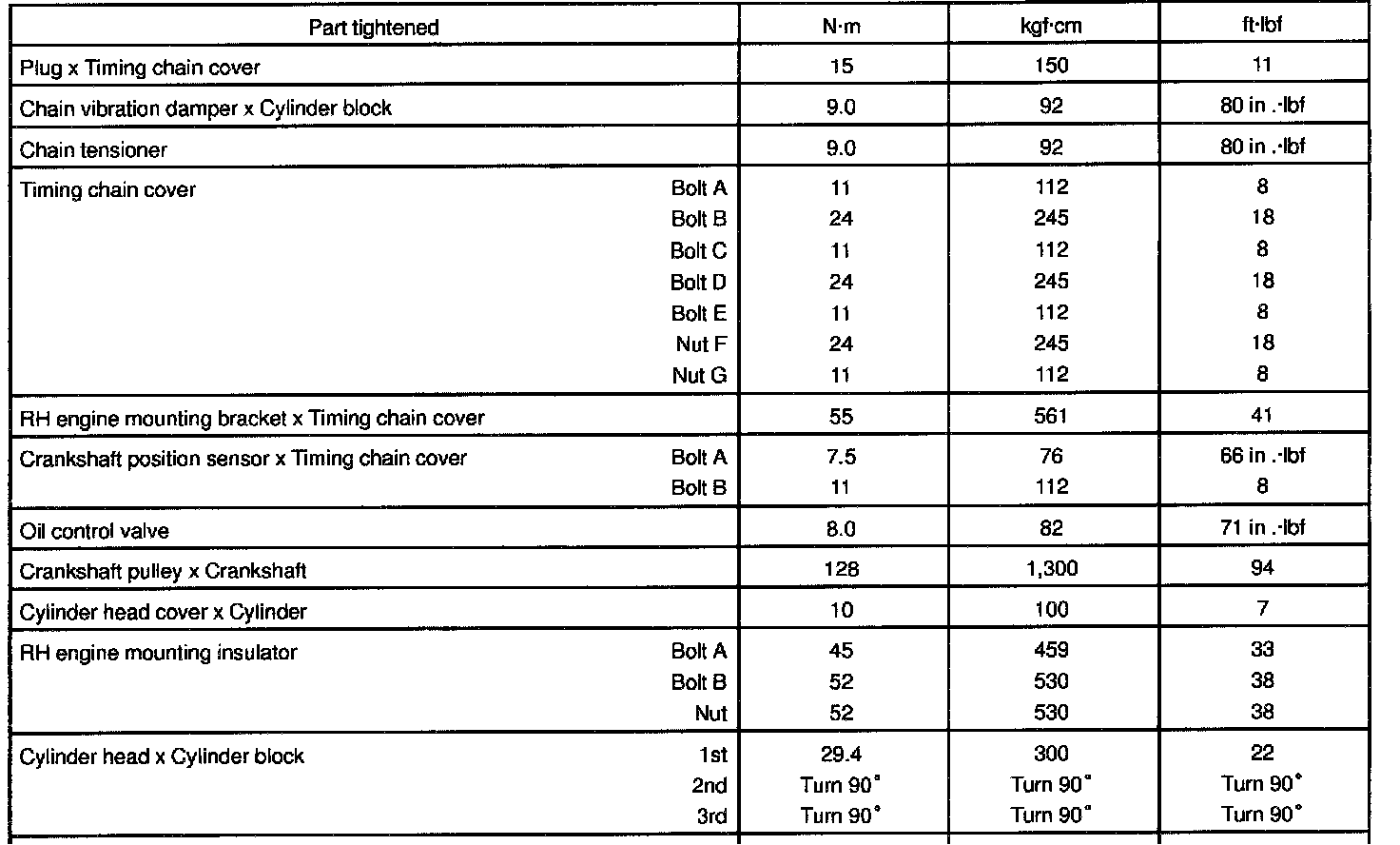

1.5L Engine Torque Cont.:

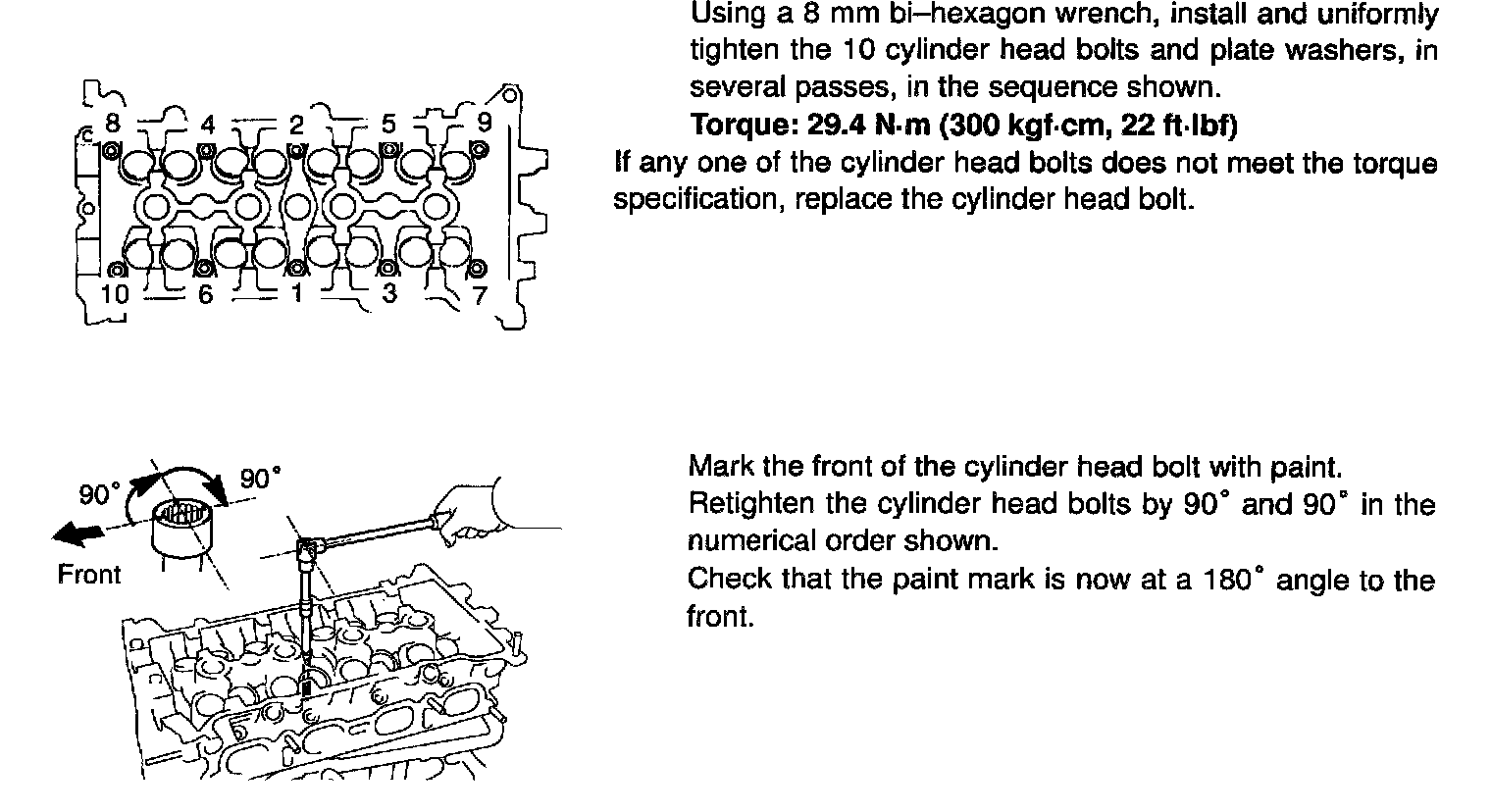

1.5L Cylinder Head Torque & Sequence:

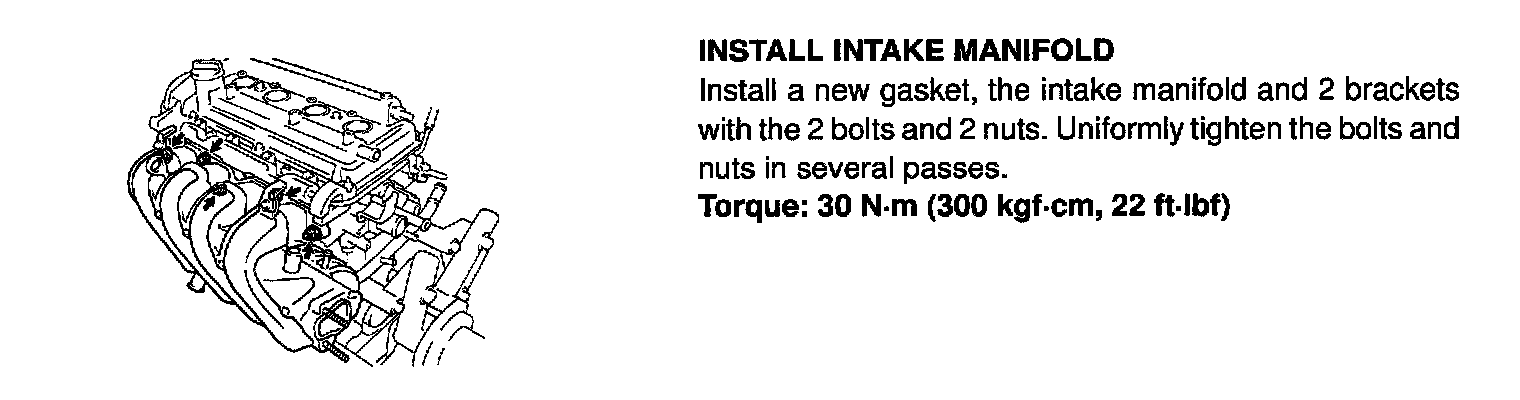

1.5L Intake Manifold Torque:
