Sensor Power Source Circuit

CIRCUIT DESCRIPTION
Power to the position sensor is output from ECU.

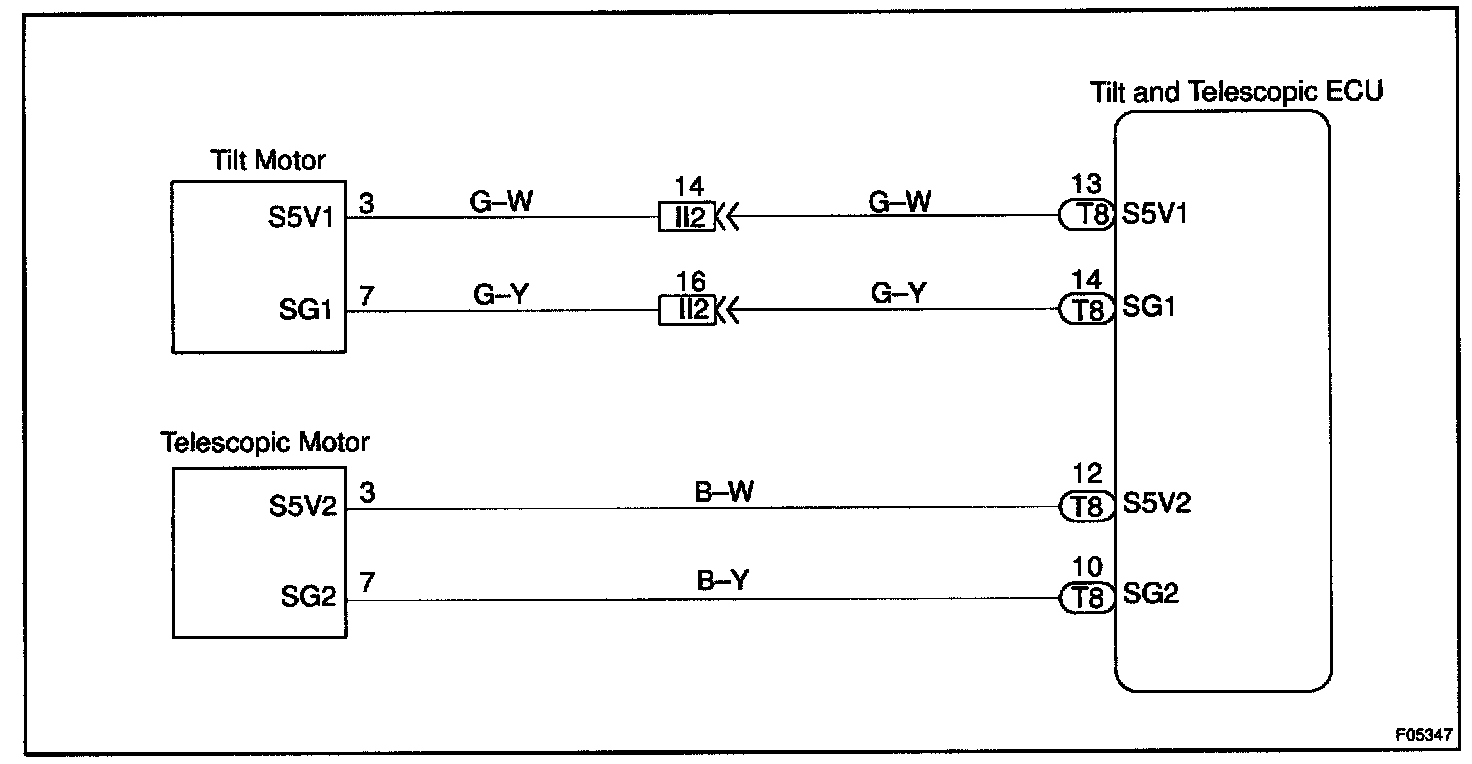

WIRING DIAGRAM

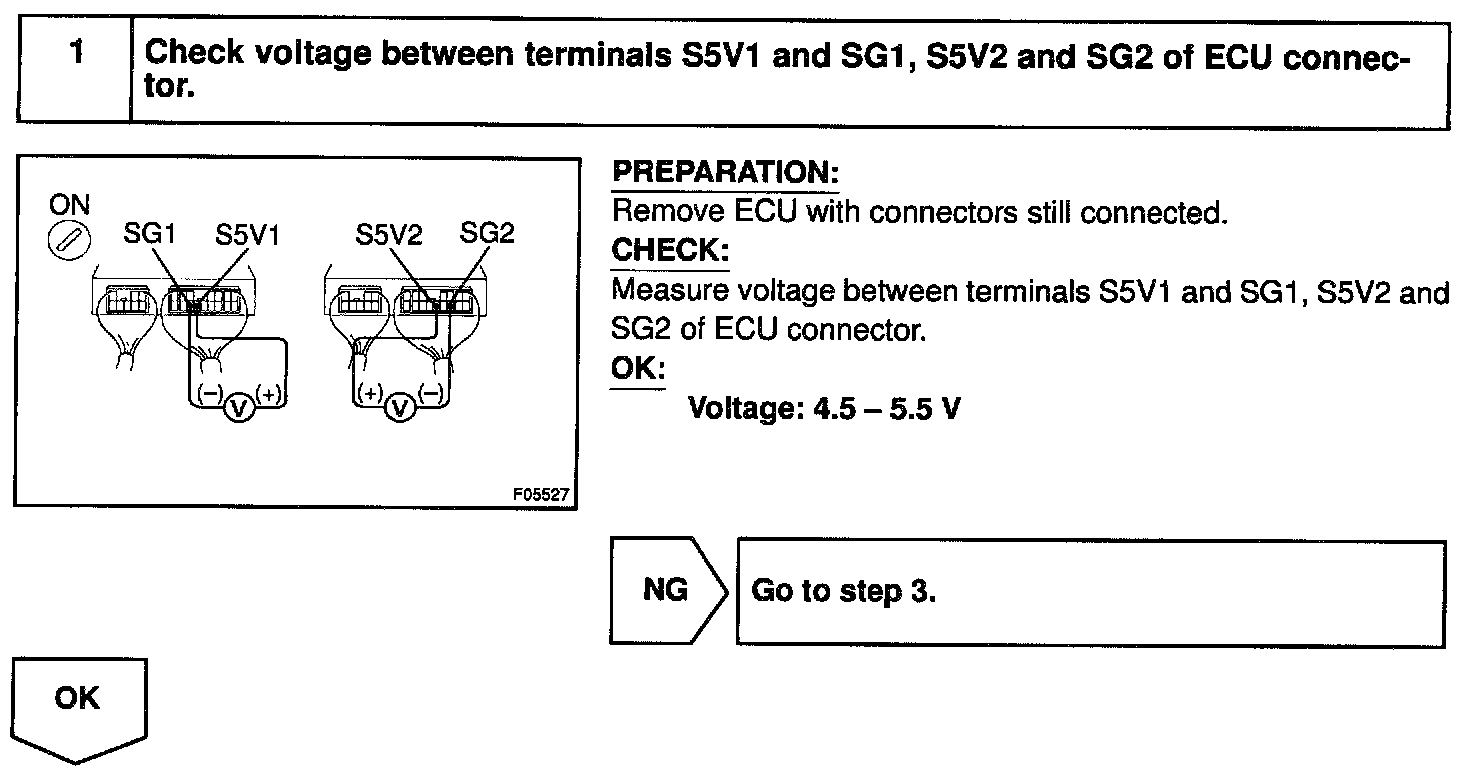

Step 1:

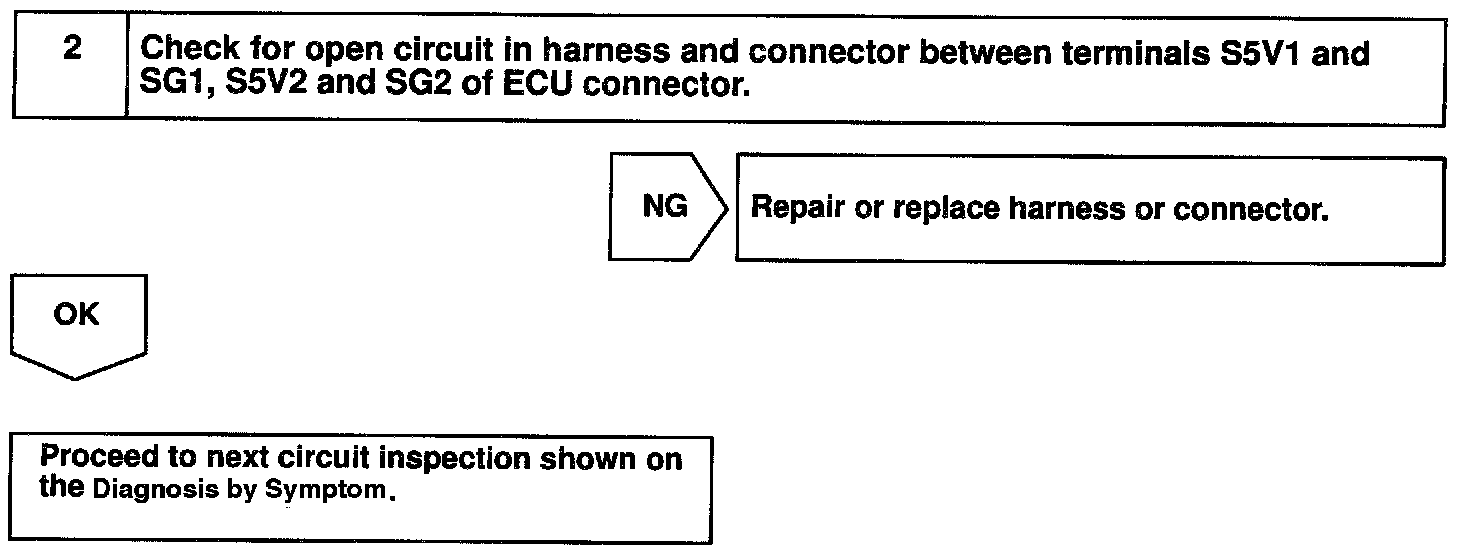

Step 2:

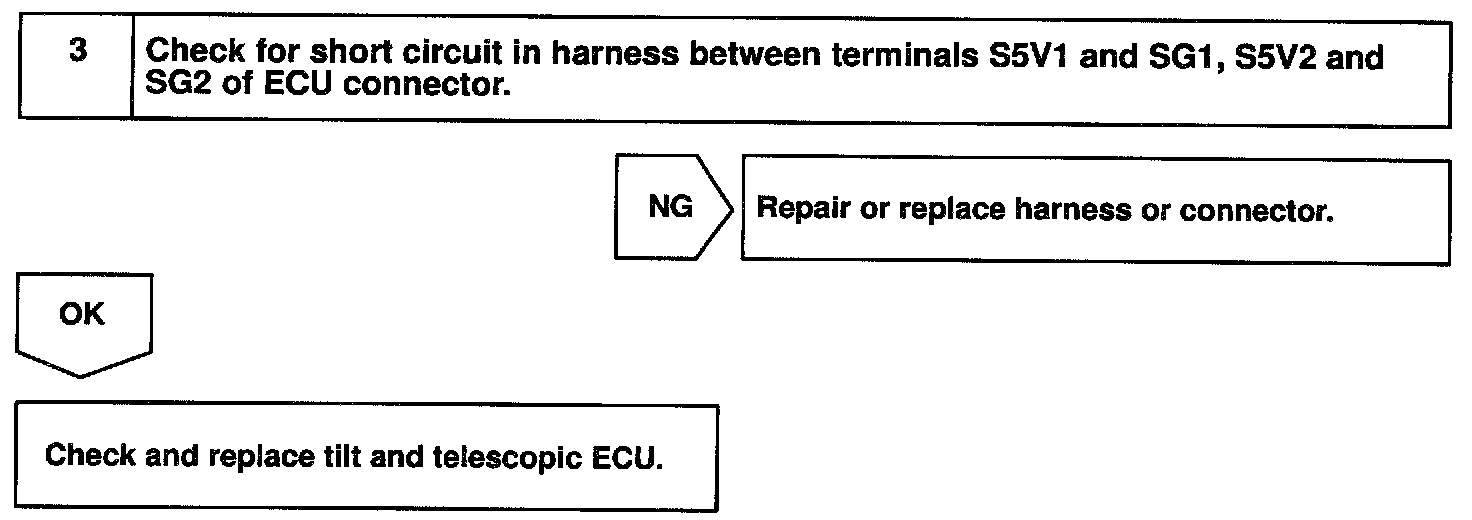

Step 3:




INSPECTION PROCEDURE
