Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2000 >> Landcruiser V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Body

Body

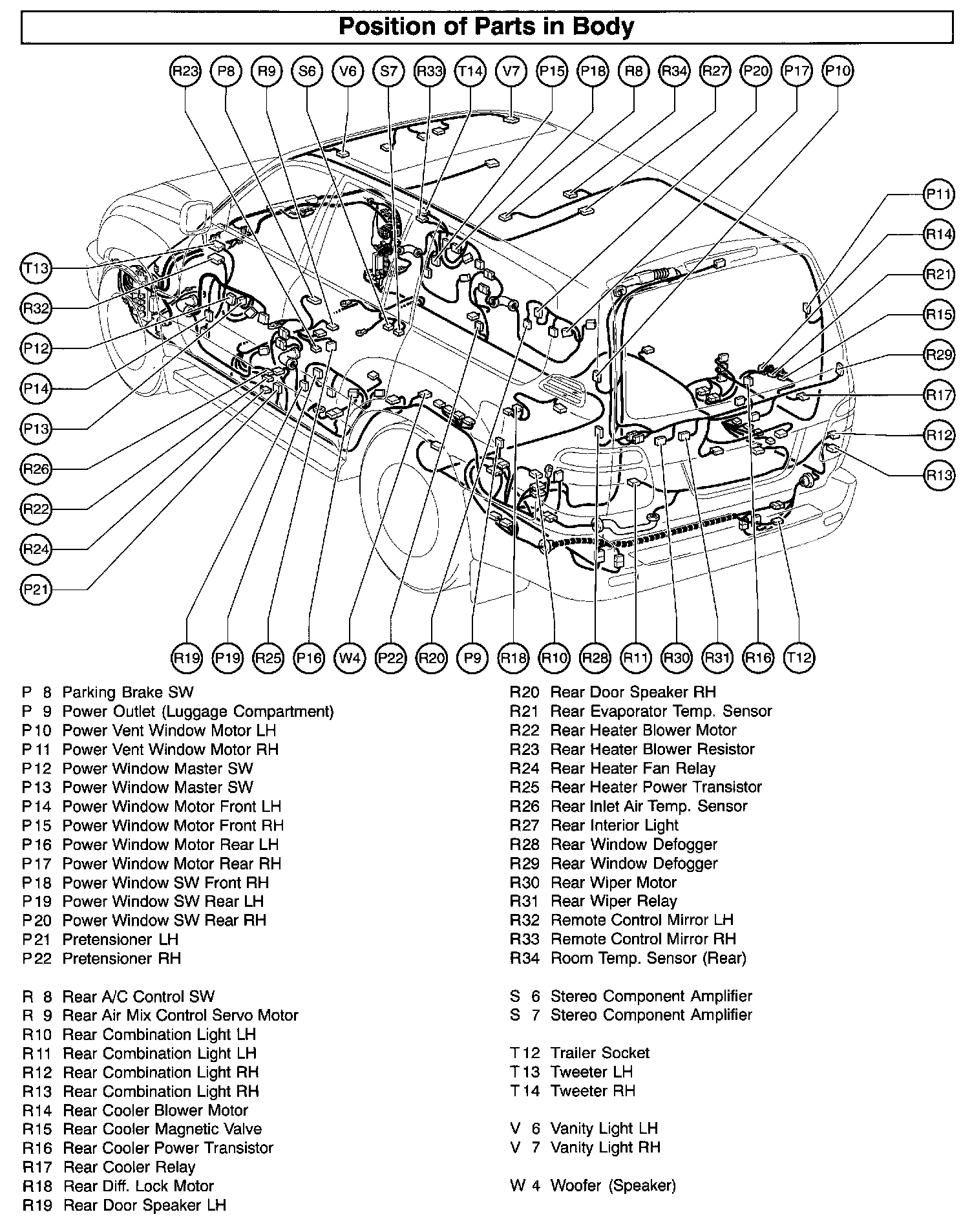

Fig 42 - Position Of Parts In Body:



Fig 43 - Position Of Parts In Body:
