Instrument Panel / Center Console

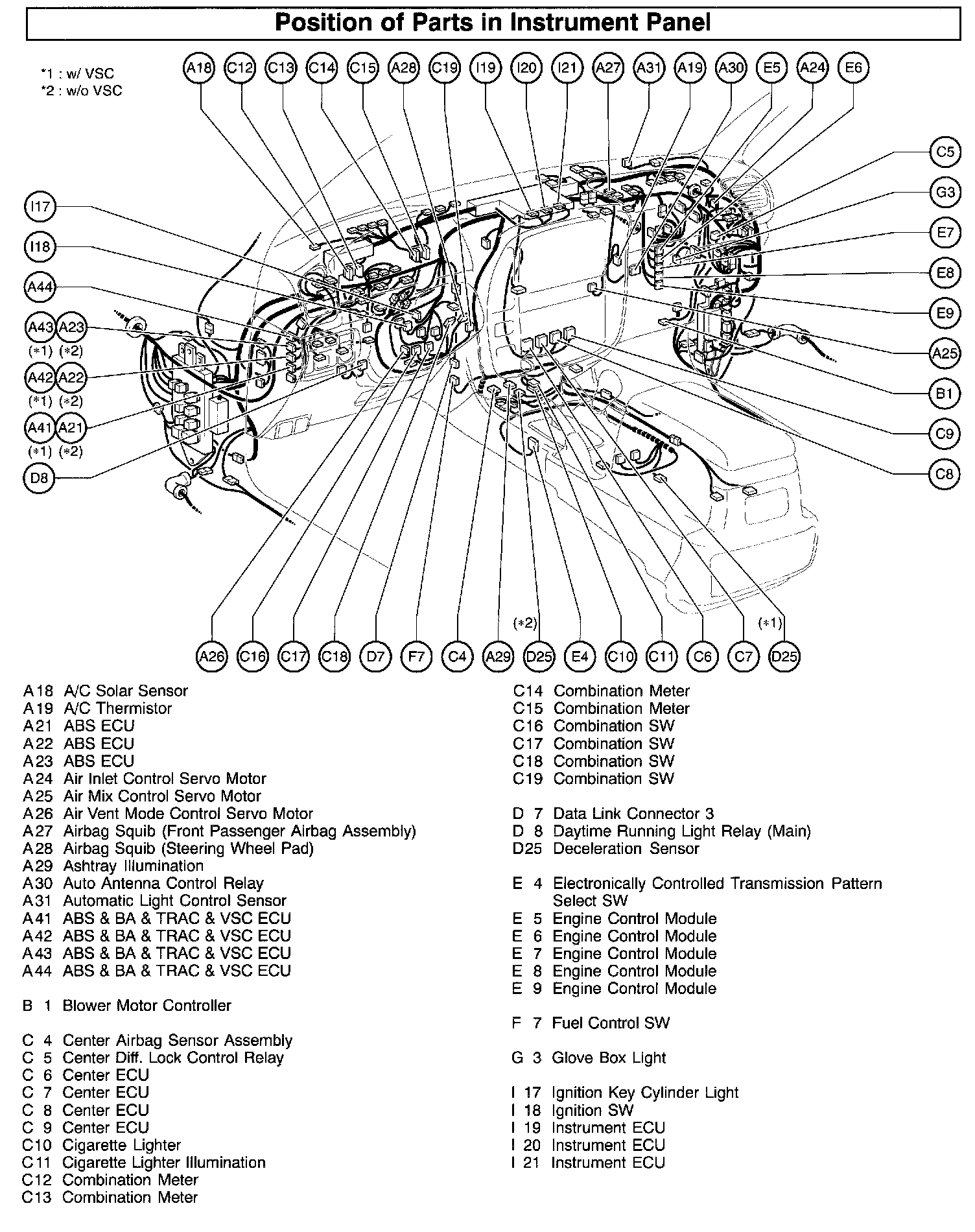

Fig 40 - Position Of Parts In Instrumental Panel:

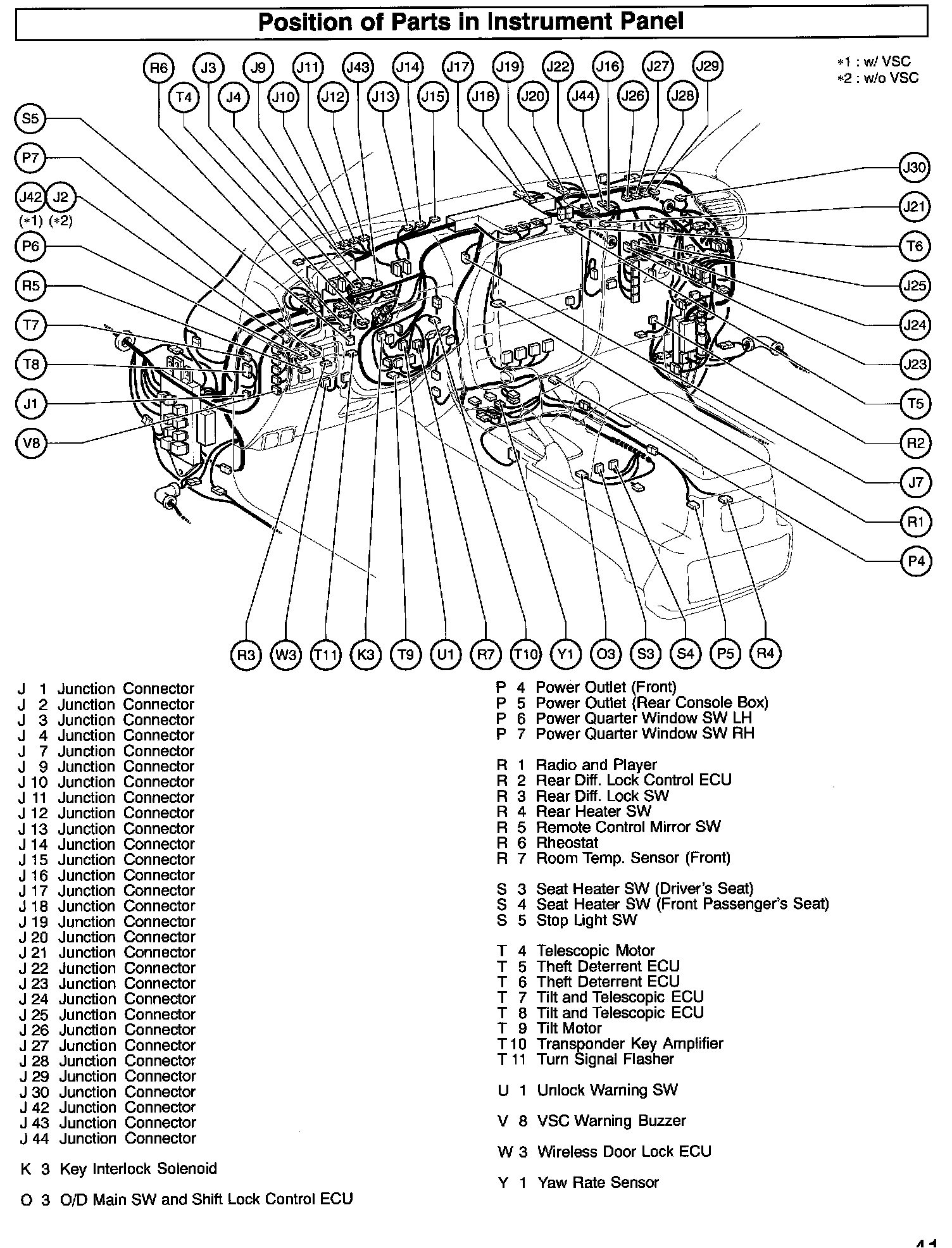

Fig 41 - Position Of Parts In Instrument Panel:
