Connector Code Lists

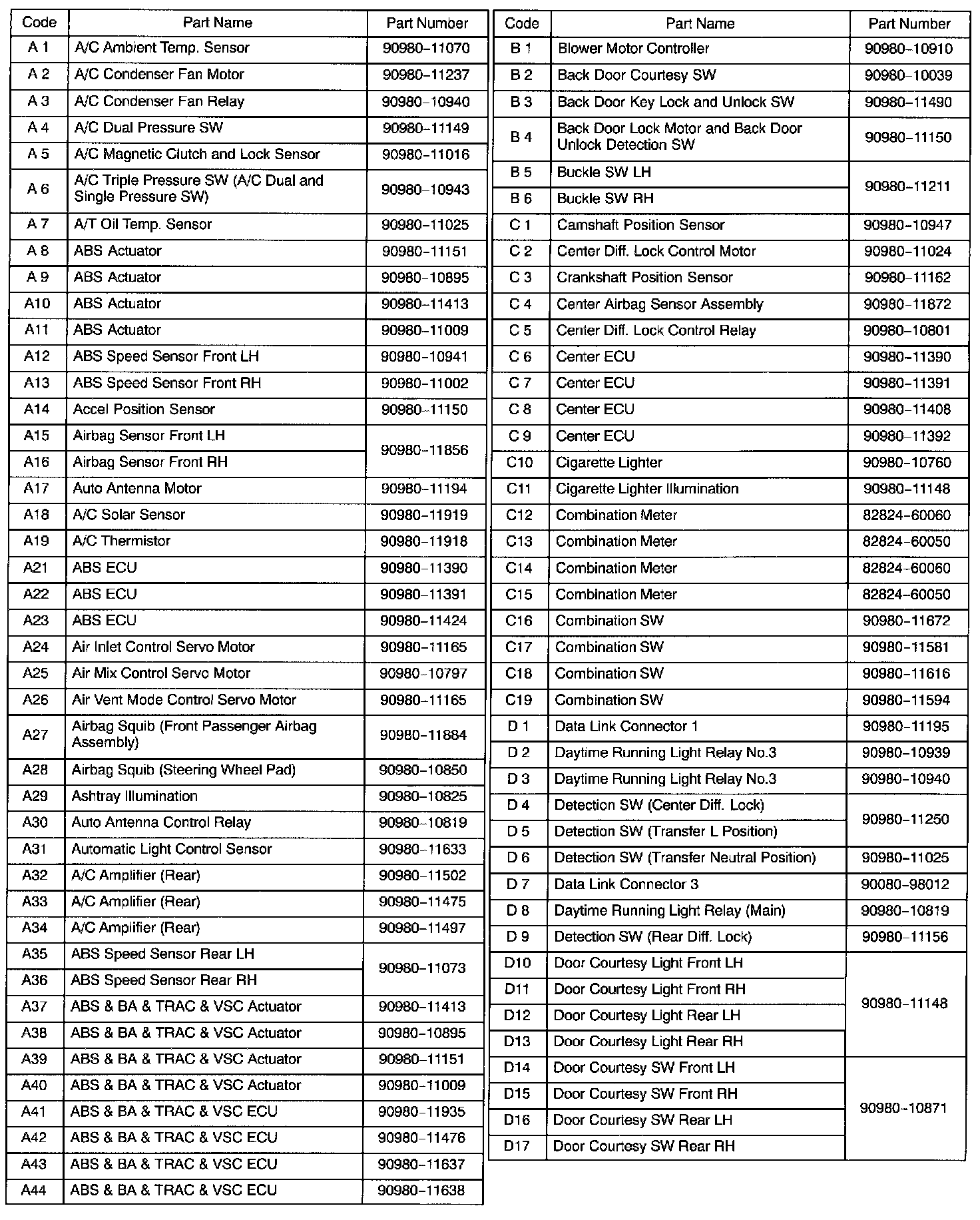

A1 - A/C Ambient Temperature Sensor thro D17 Door Courtesy SW Rear RH:

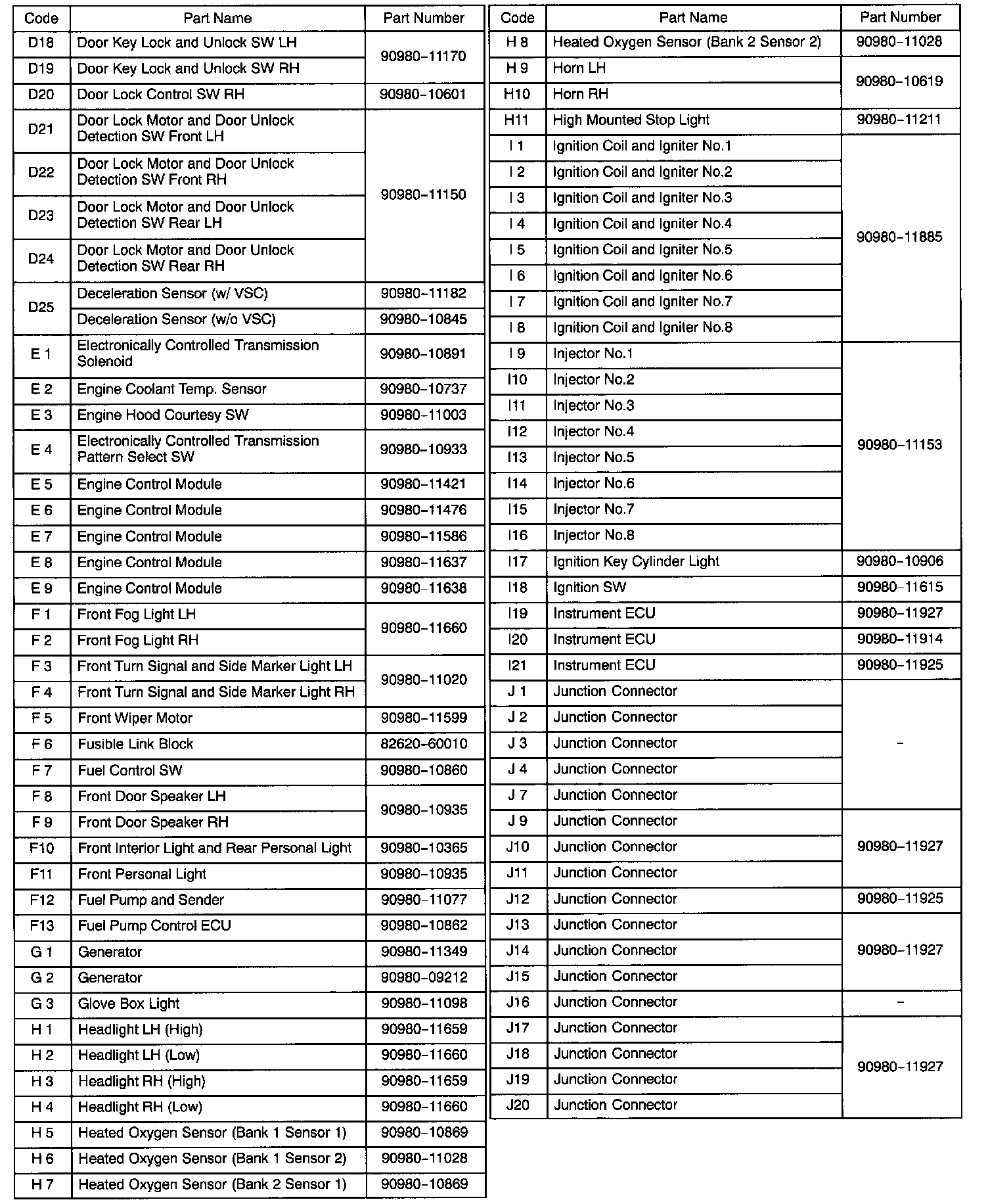

D18 - Door Key Lock And Unlock SW LH thro J20 - Junction Connector:

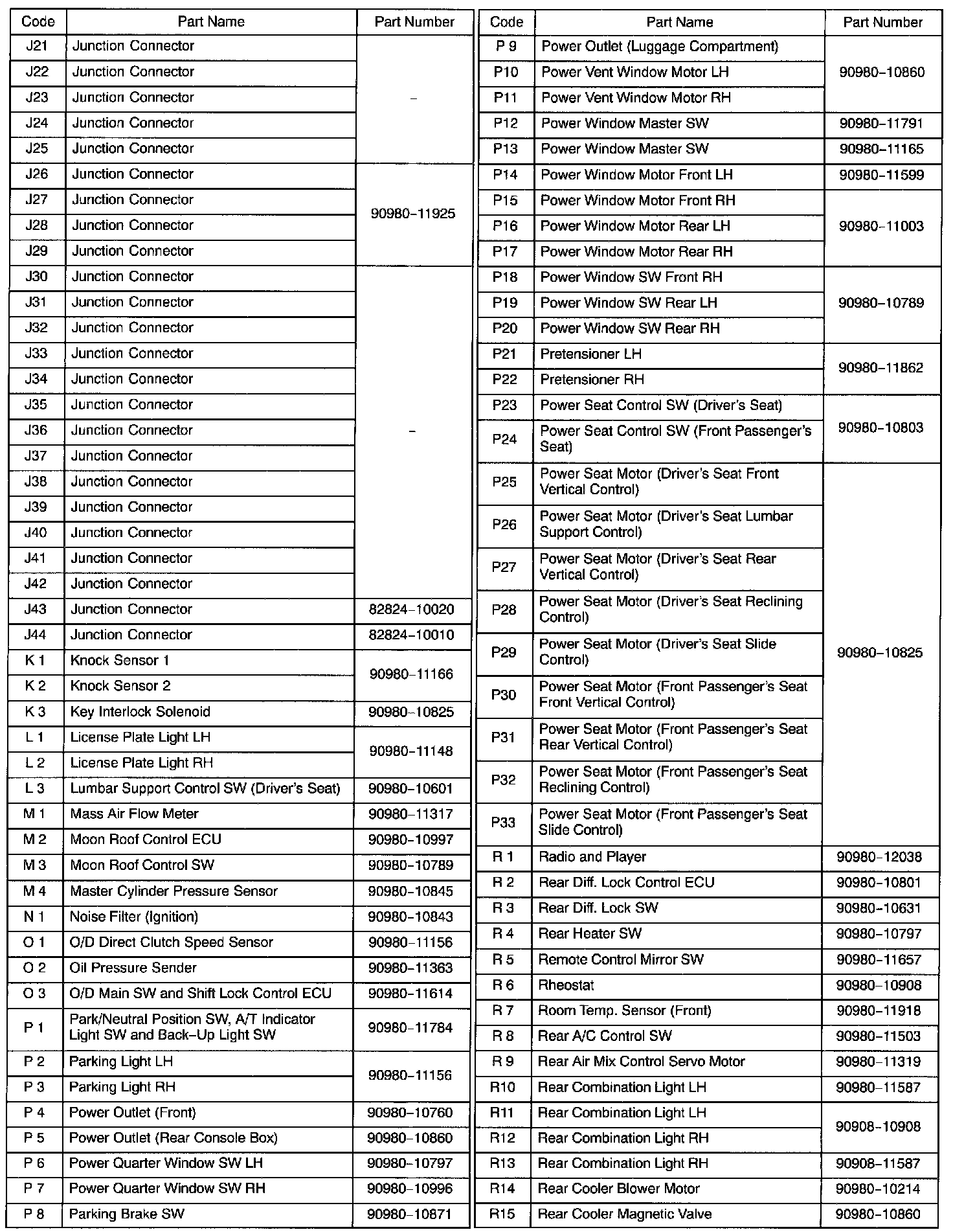

J21 - Junction Connector thro R15 - Rear Cooler Magnetic Valve:

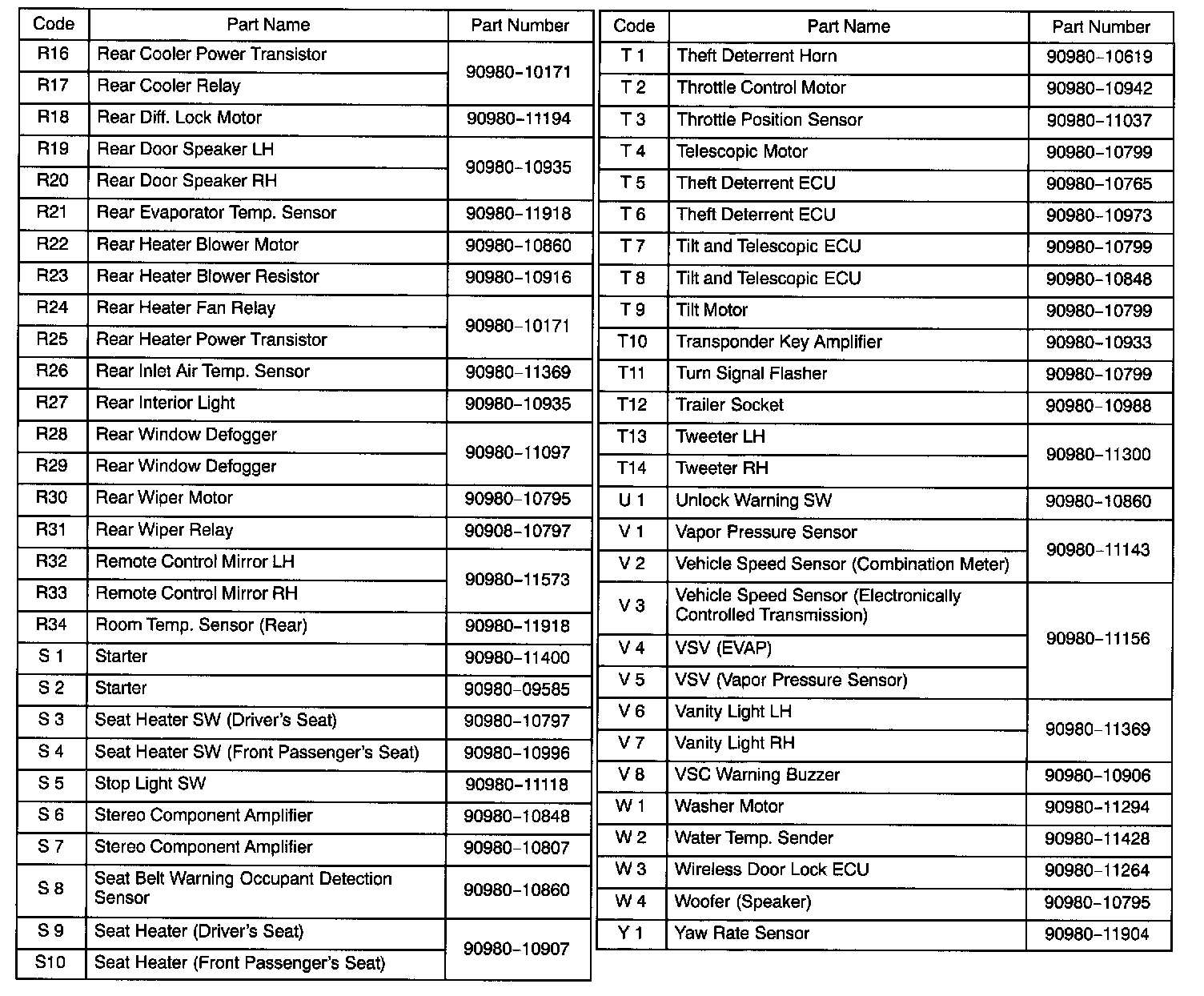

R16 - Rear Cooler Power Transistor thro Y1 - Yaw Rate Sensor:

NOTE: Not all of the above part numbers of the connector are established for the supply. In case of ordering a connector or terminal with wire please confirm in advance if there is supply for it using "Parts Catalog News" (published by Parts Engineering Administration Dept.).

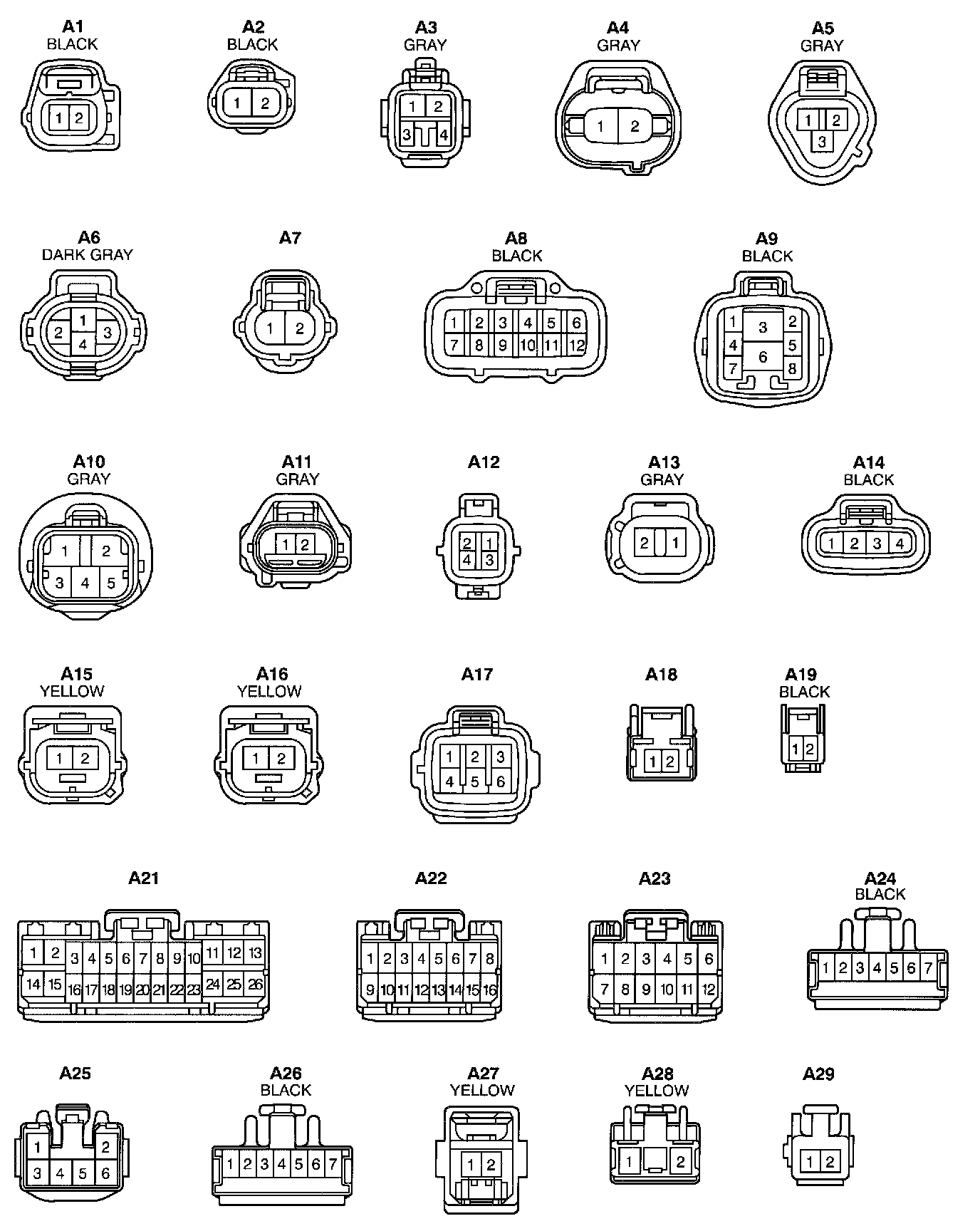

A1 - A29:

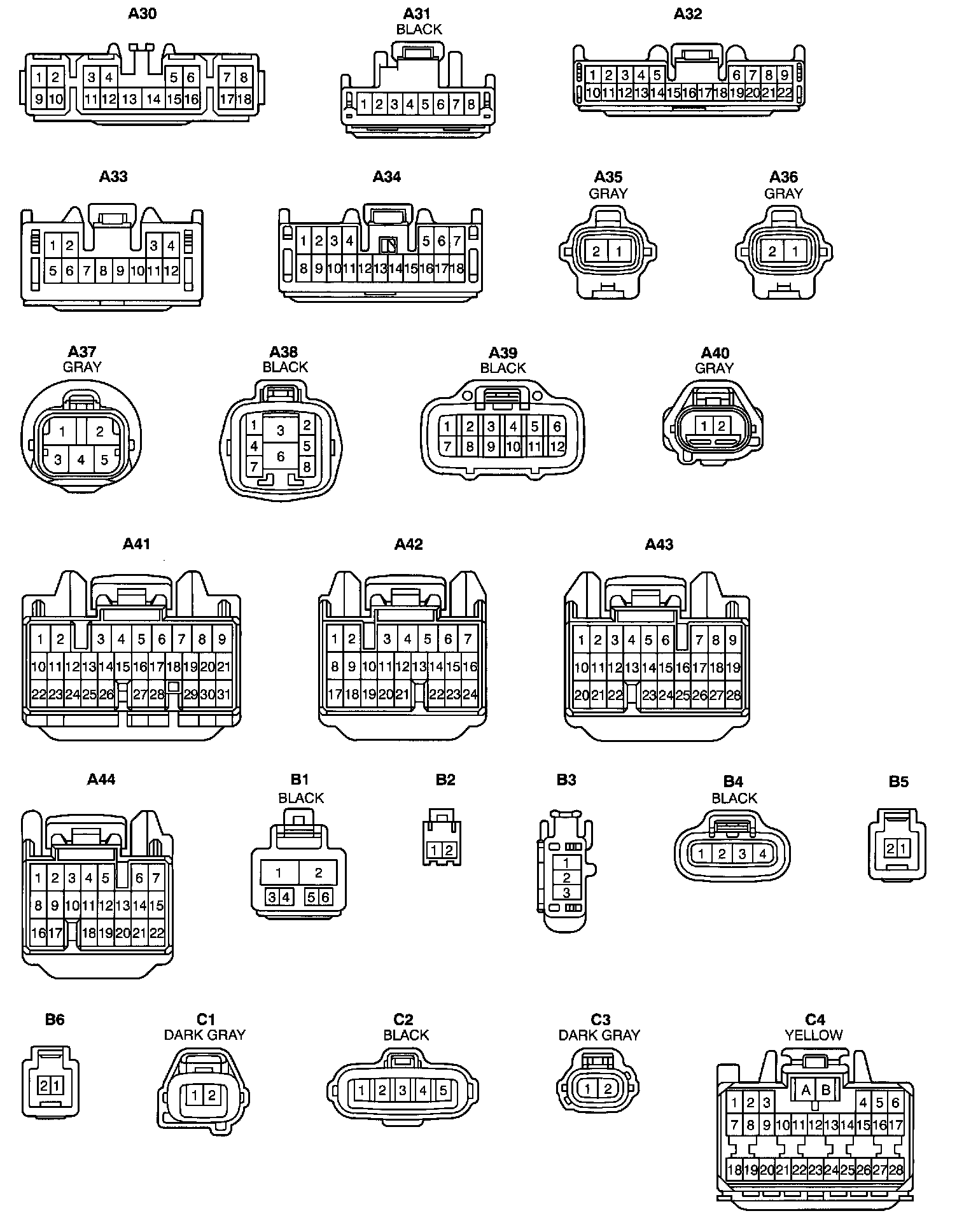

A30 - C4:

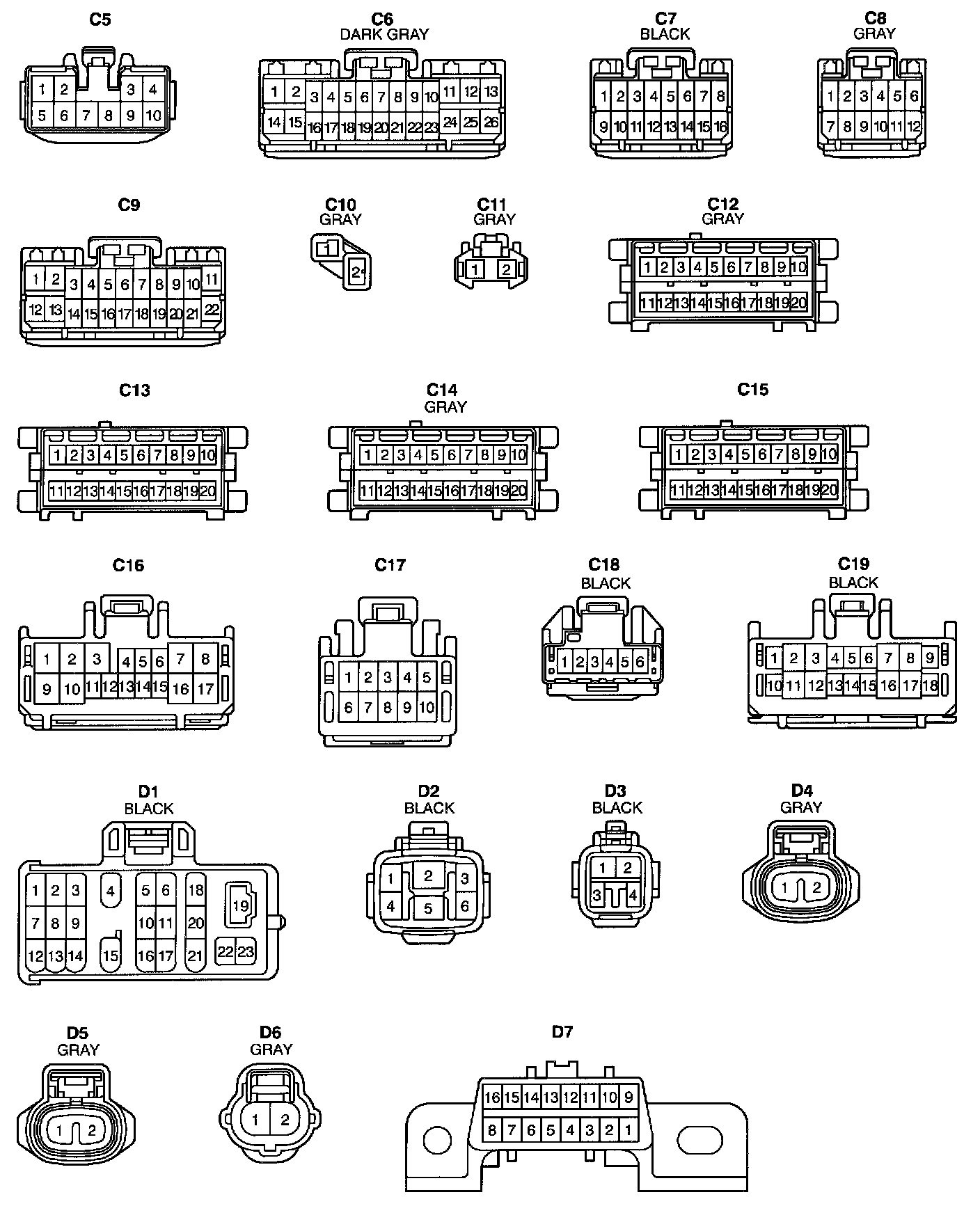

C5 - D7:

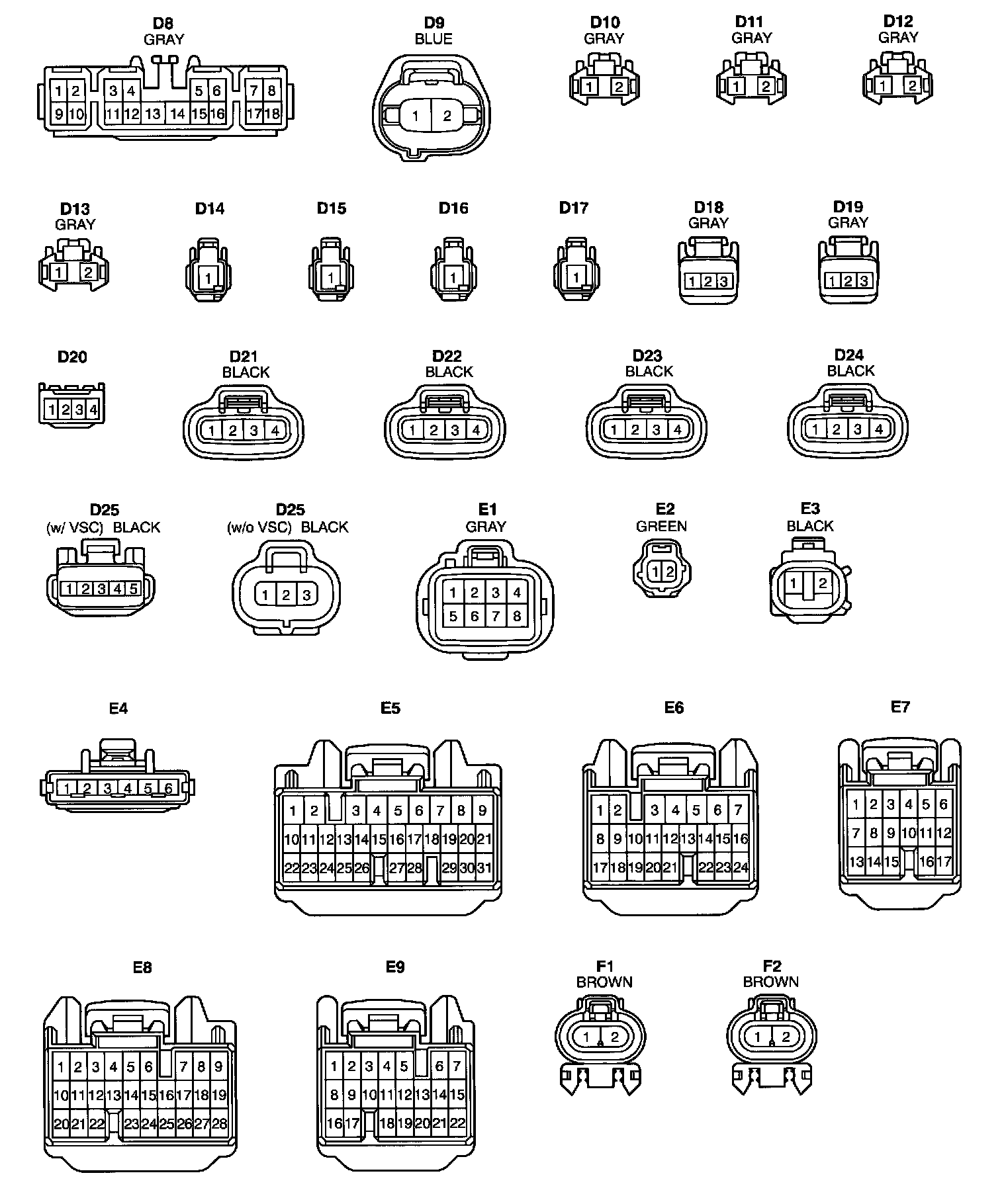

D8 - F2:

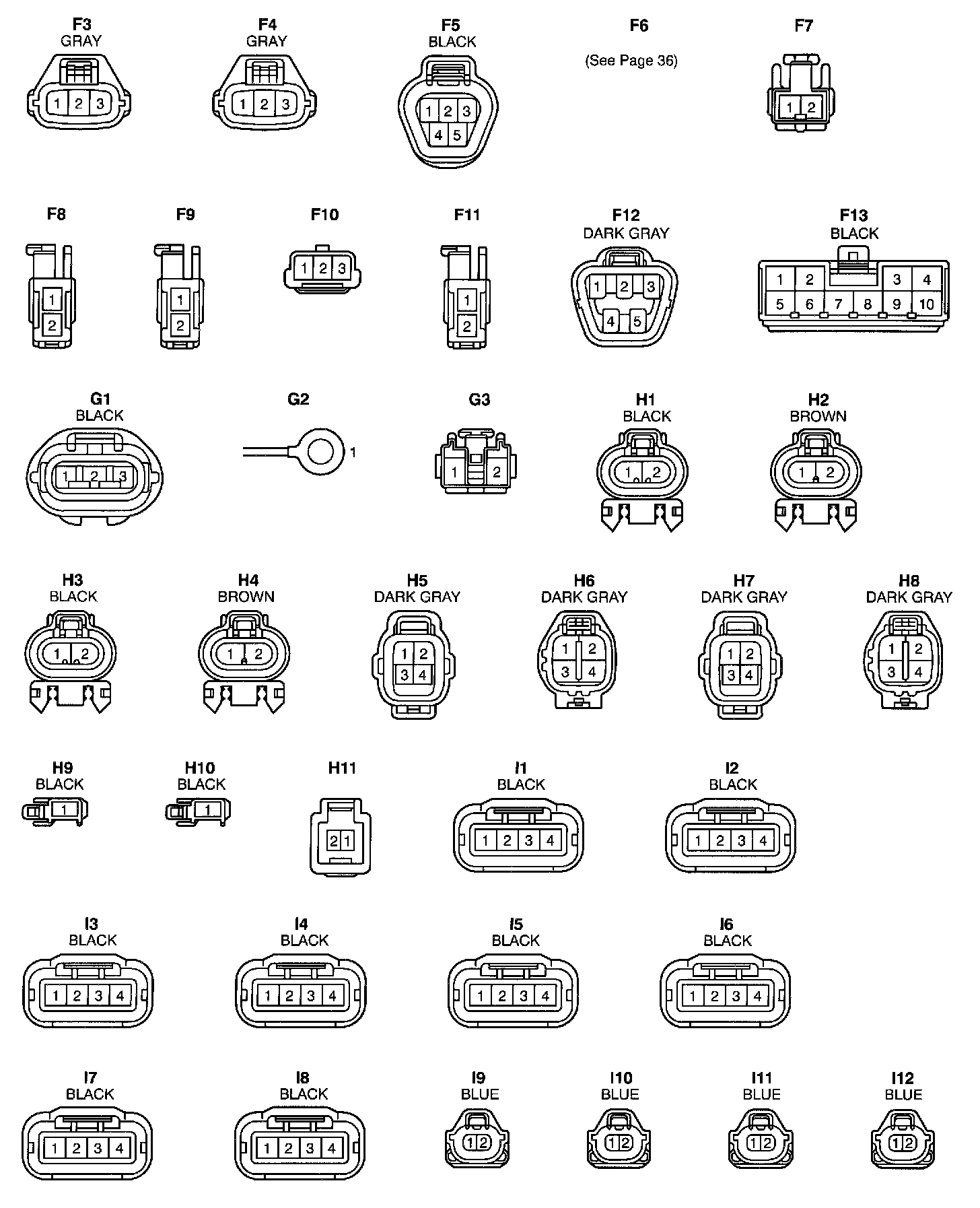

F3 - I12:

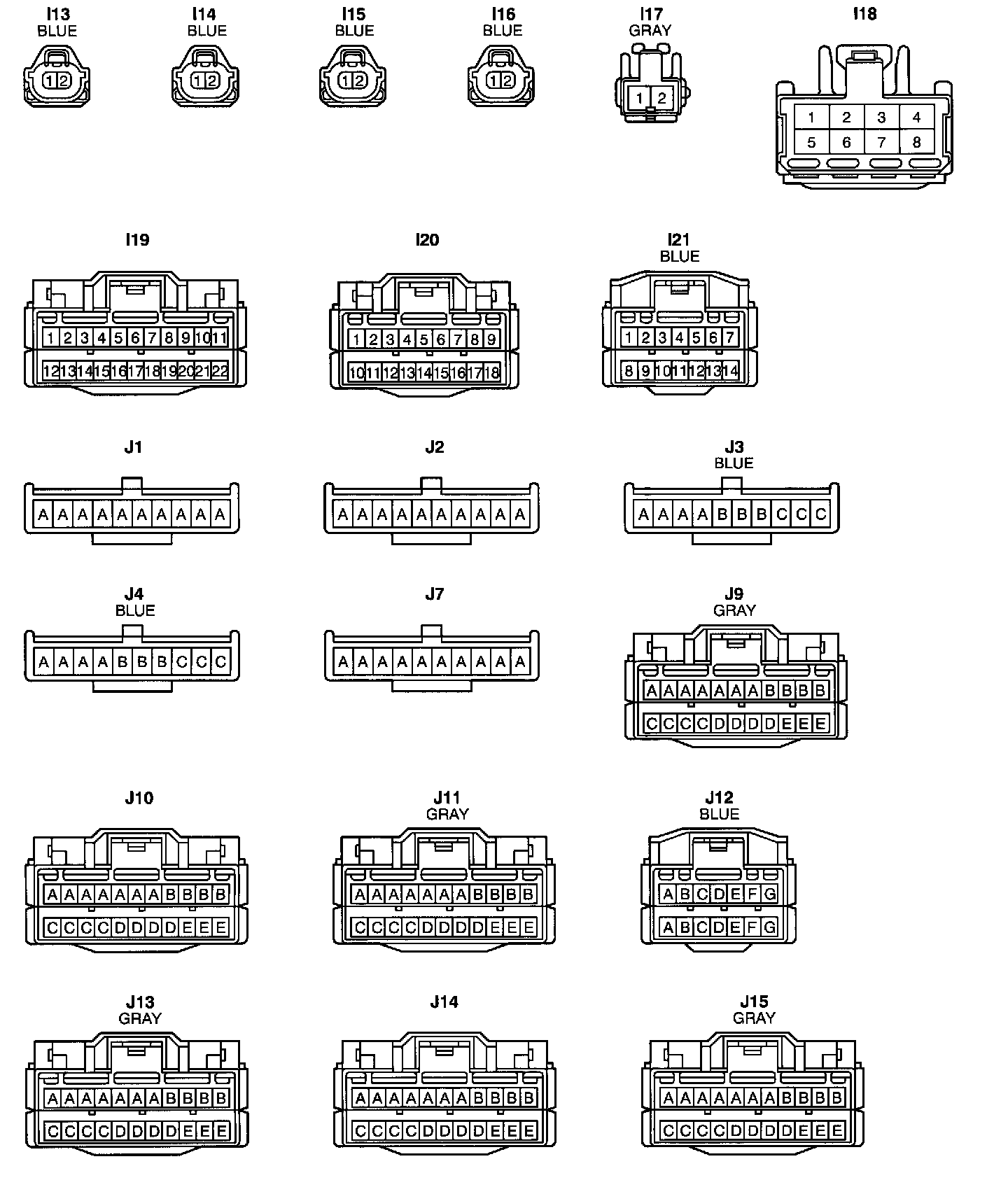

I13 - J15:

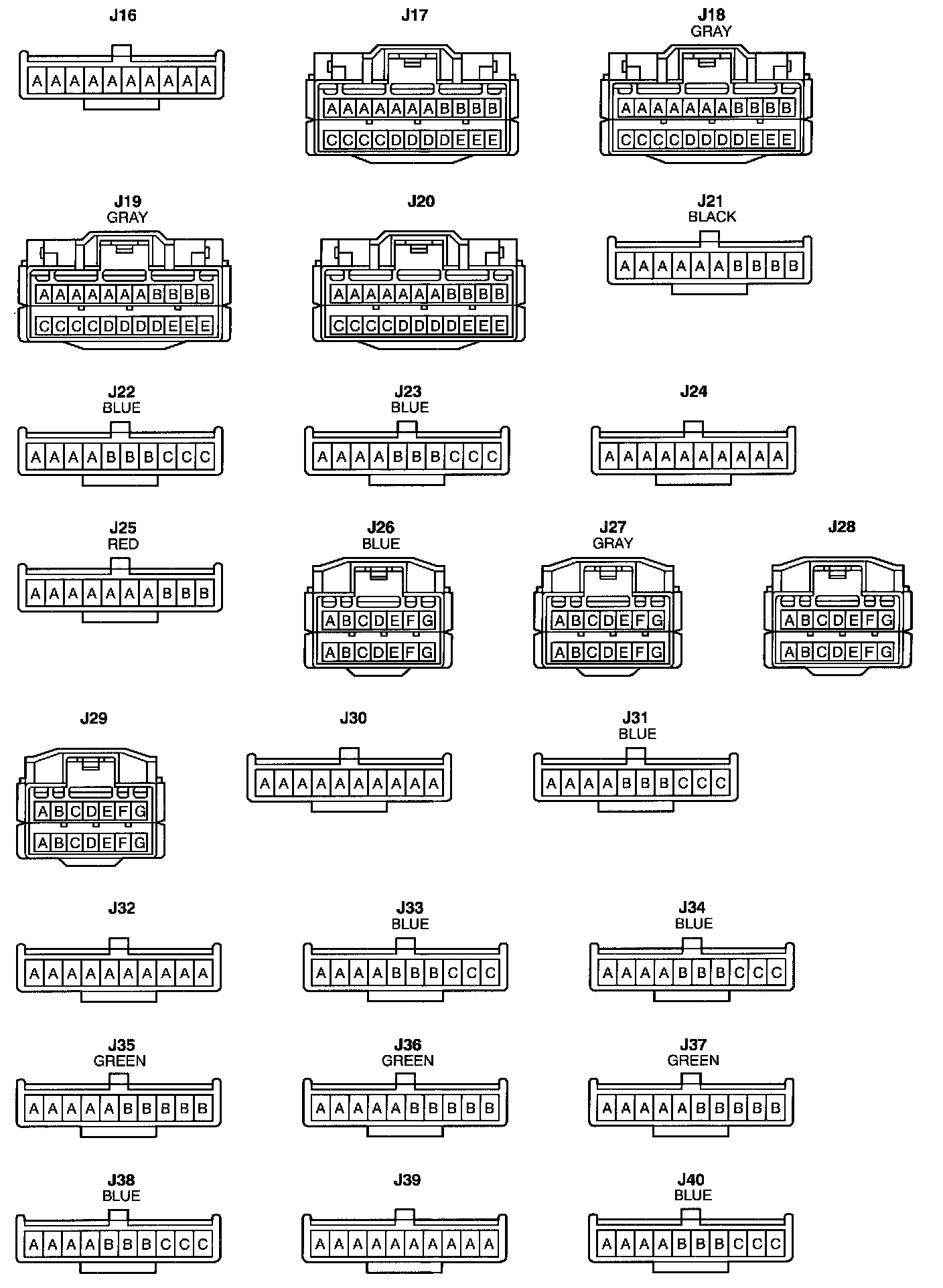

J16 - J40:

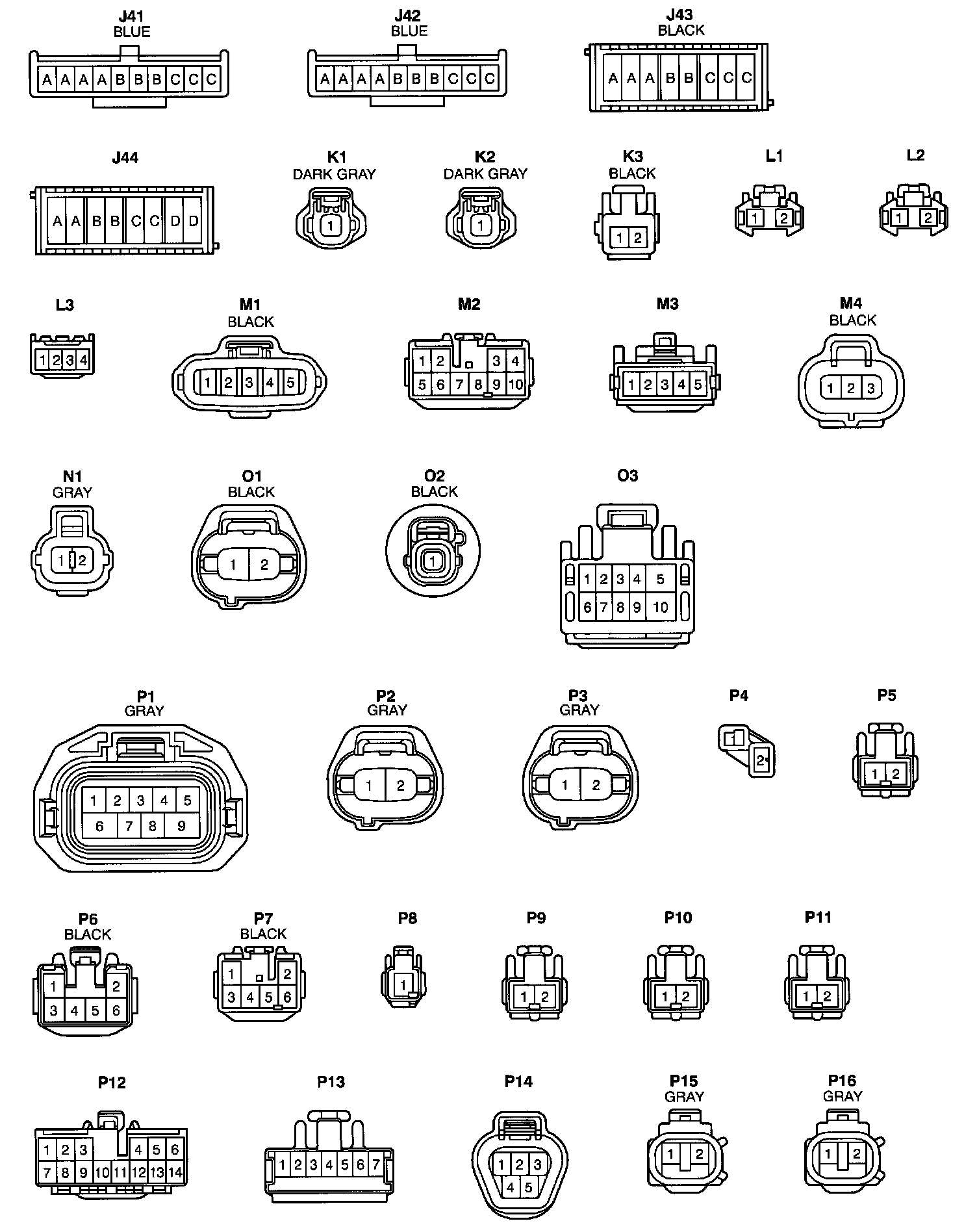

J41 - P16:

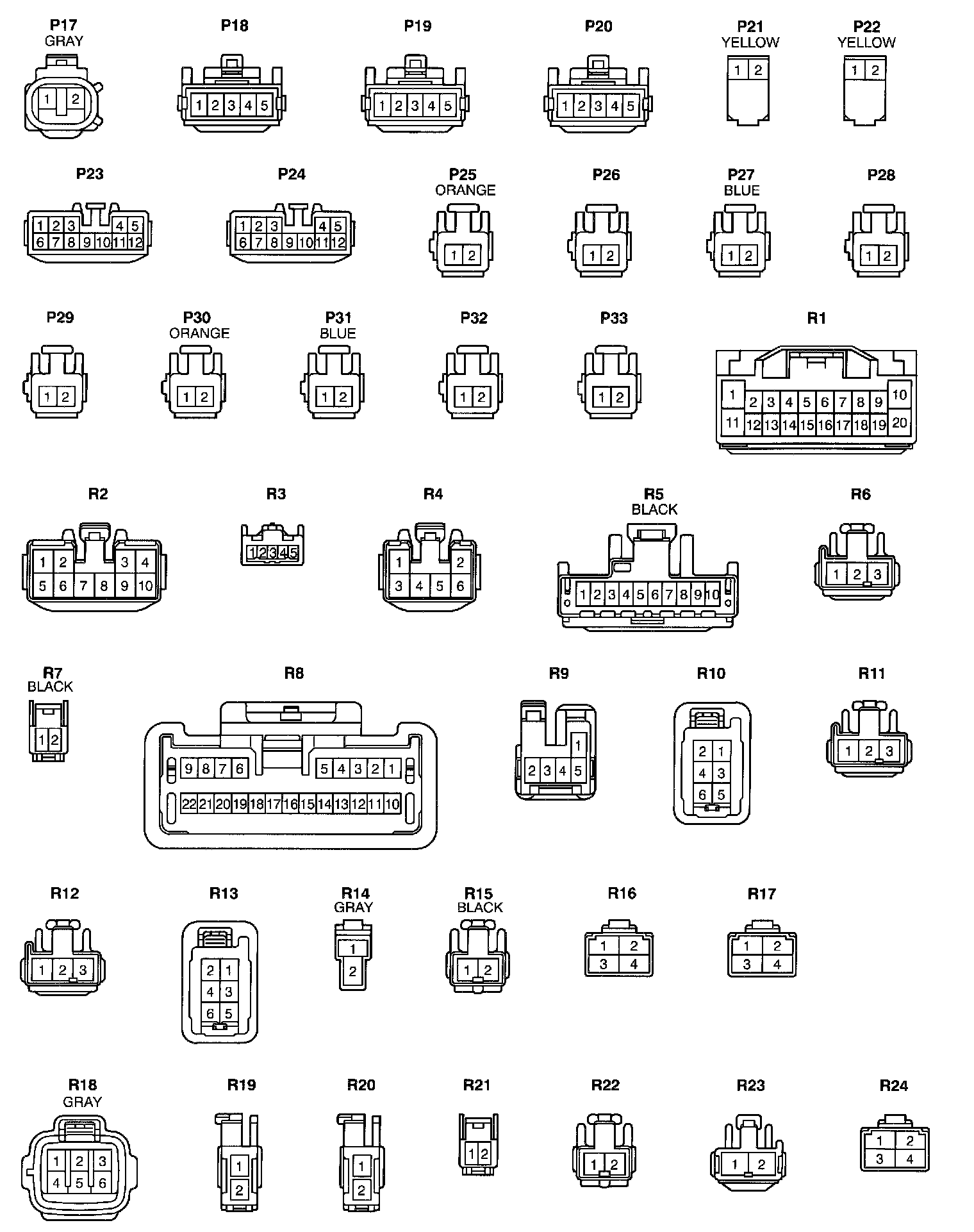

P17 - R24:

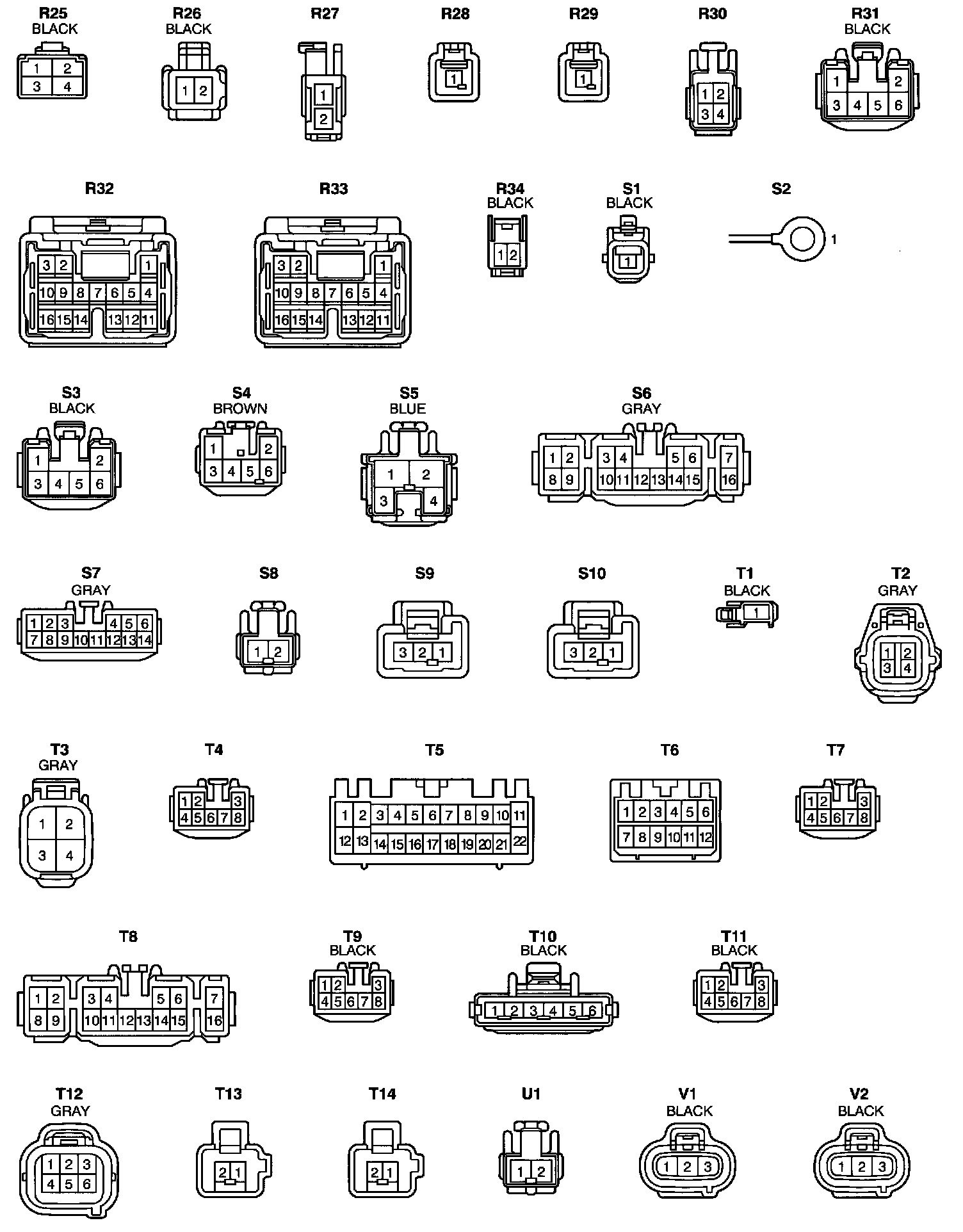

R25 - V2:

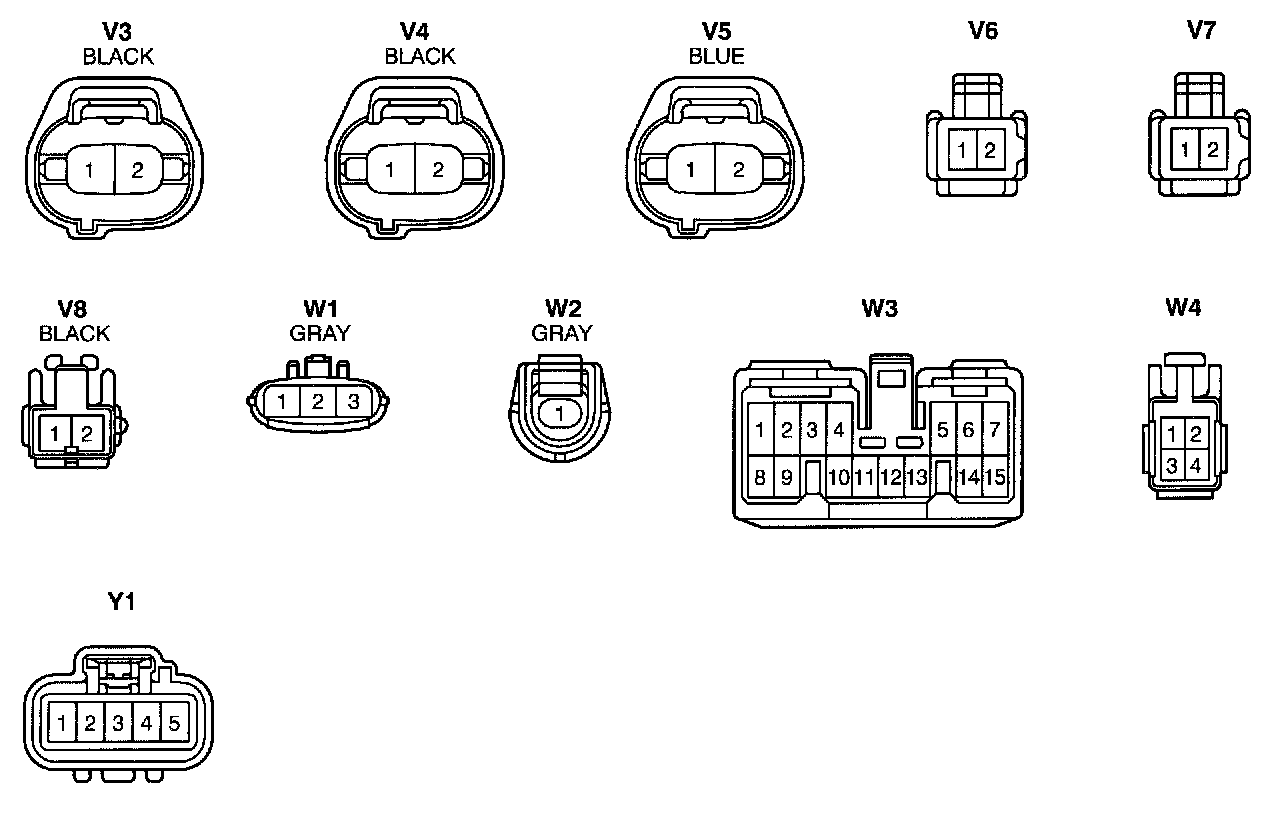

V3 - Y1:
