Headlamp Control Module
Headlamp Control Module

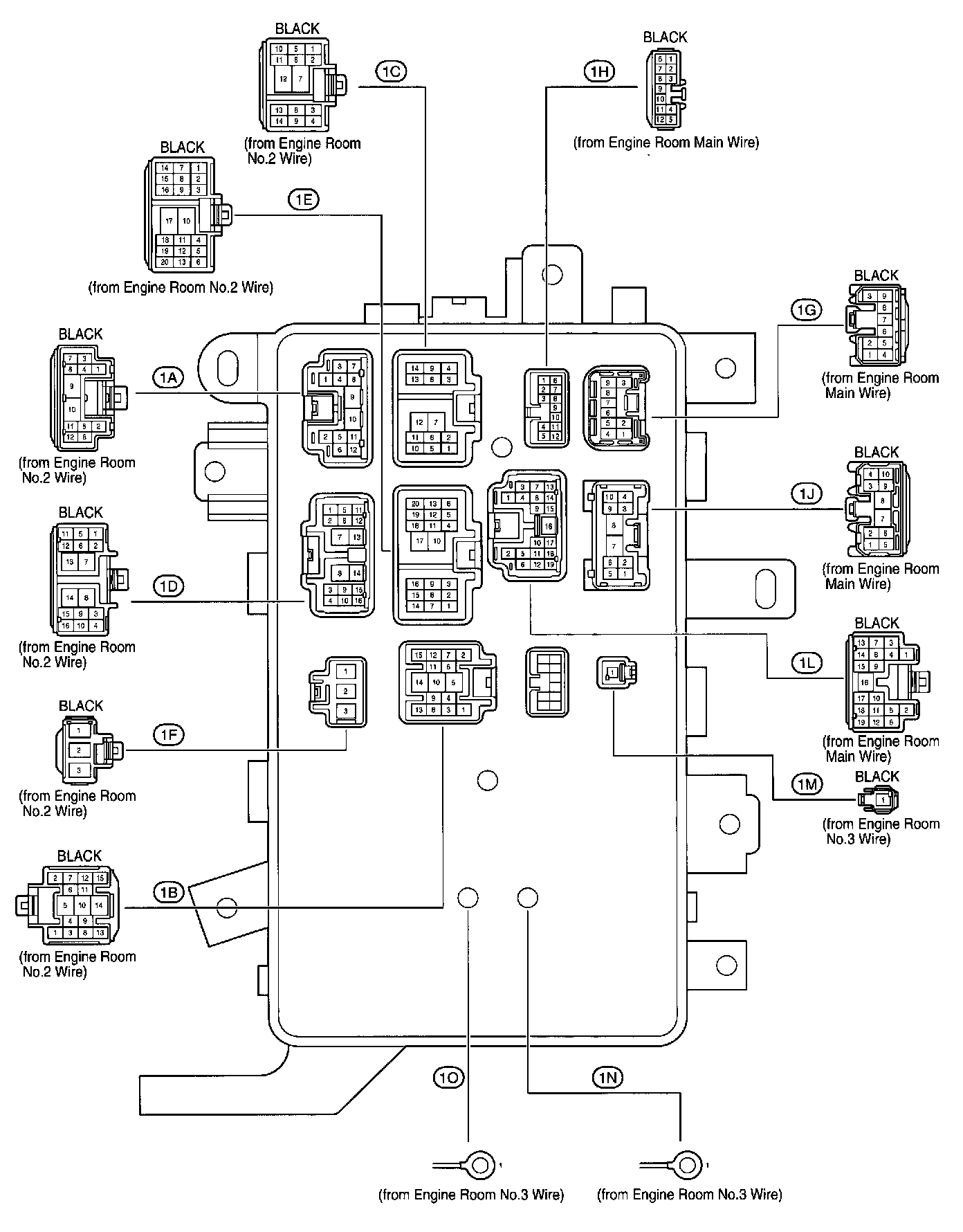

Fig 23 - Engine Room J/B - Engine Compartment Left:

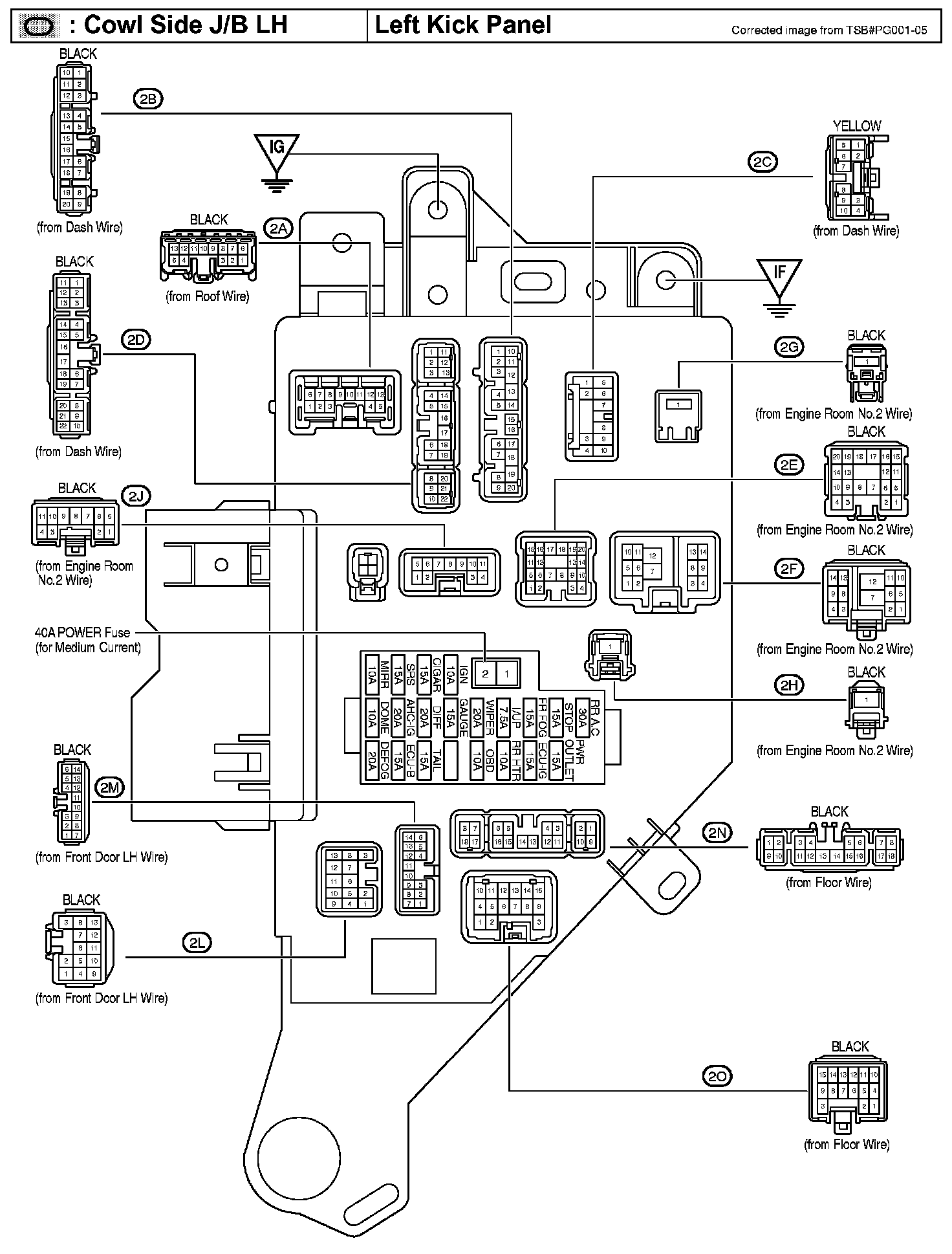

Fig 26 - Cowl Side J/B LH - Left Kick Panel:

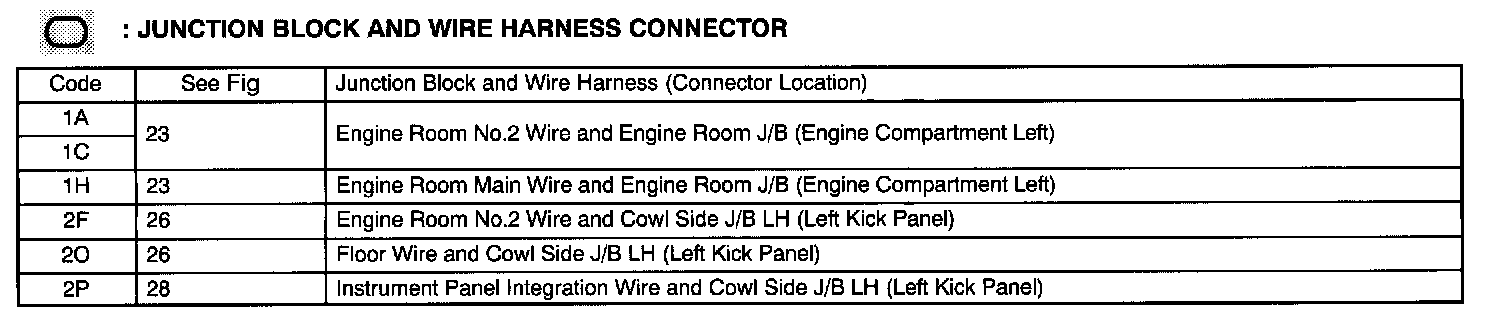

Junction Block And Wire Harness Connector:
