Compressor Clutch Relay: Testing and Inspection

INSPECTION

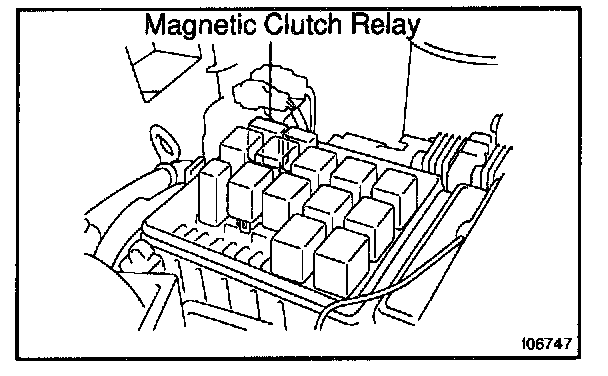

1. REMOVE MAGNETIC CLUTCH RELAY (Marking: MG CLT) FROM ENGINE ROOM RELAY BLOCK

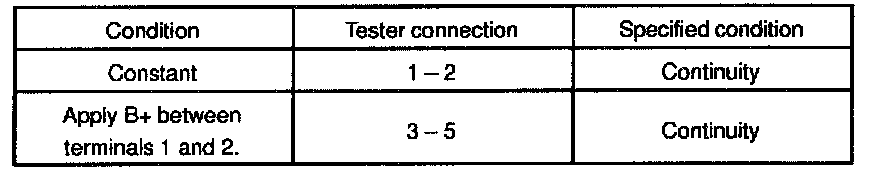

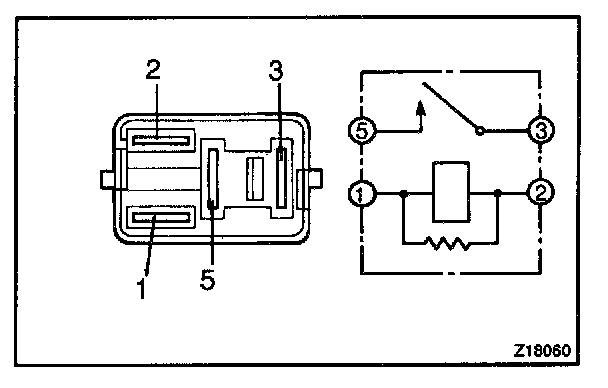

2. INSPECT MAGNETIC CLUTCH RELAY (Marking: MG CLT) CONTINUITY




If continuity is not as specified, replace the relay.

3. INSTALL RELAY TO ENGINE ROOM RELAY BLOCK
