Compressor Circuit

CIRCUIT DESCRIPTION
A/C amplifier switches the A/C magnetic clutch relay ON, thus turning the A/C compressor magnetic clutch ON.

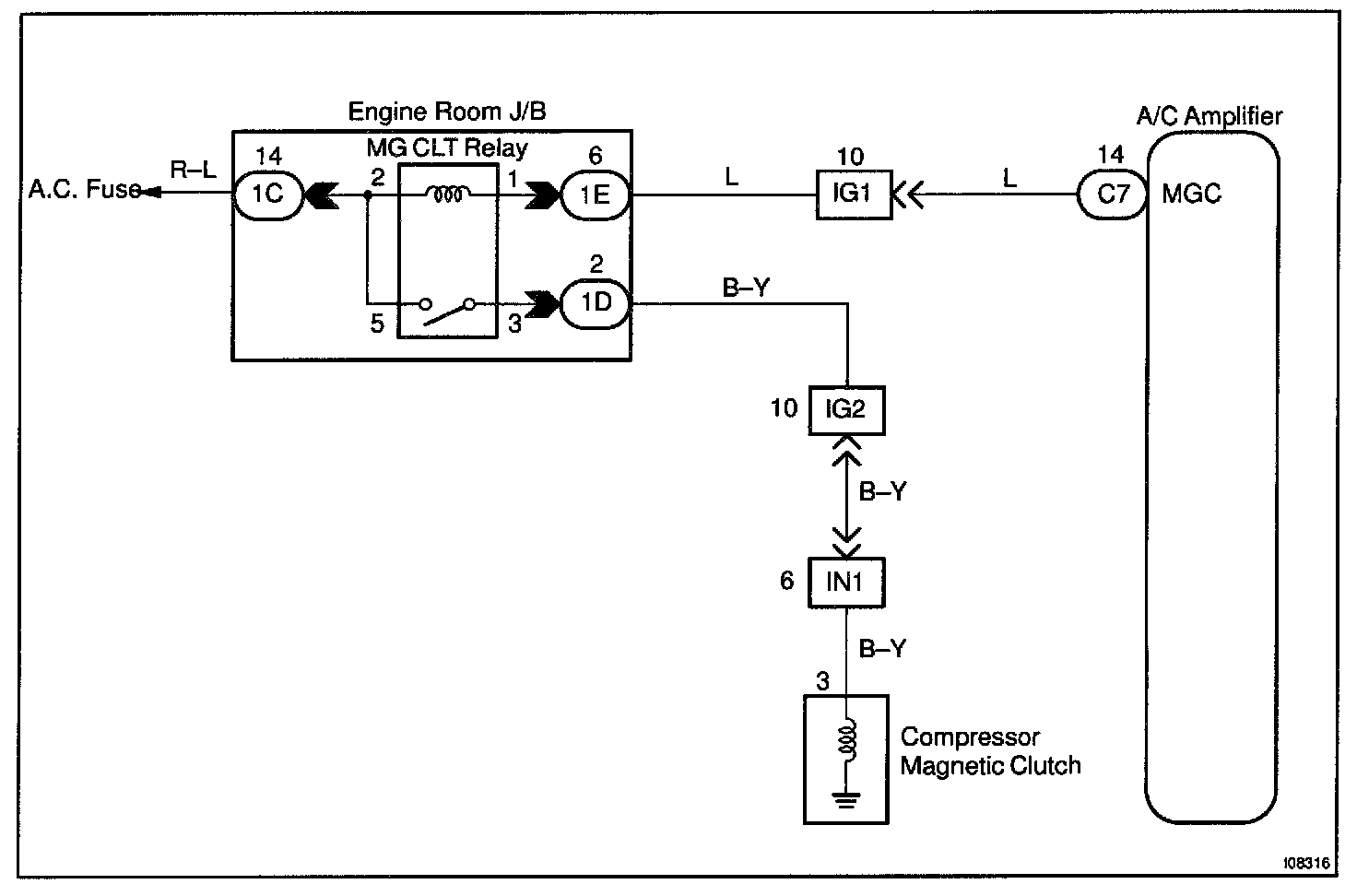

Wiring Diagram:

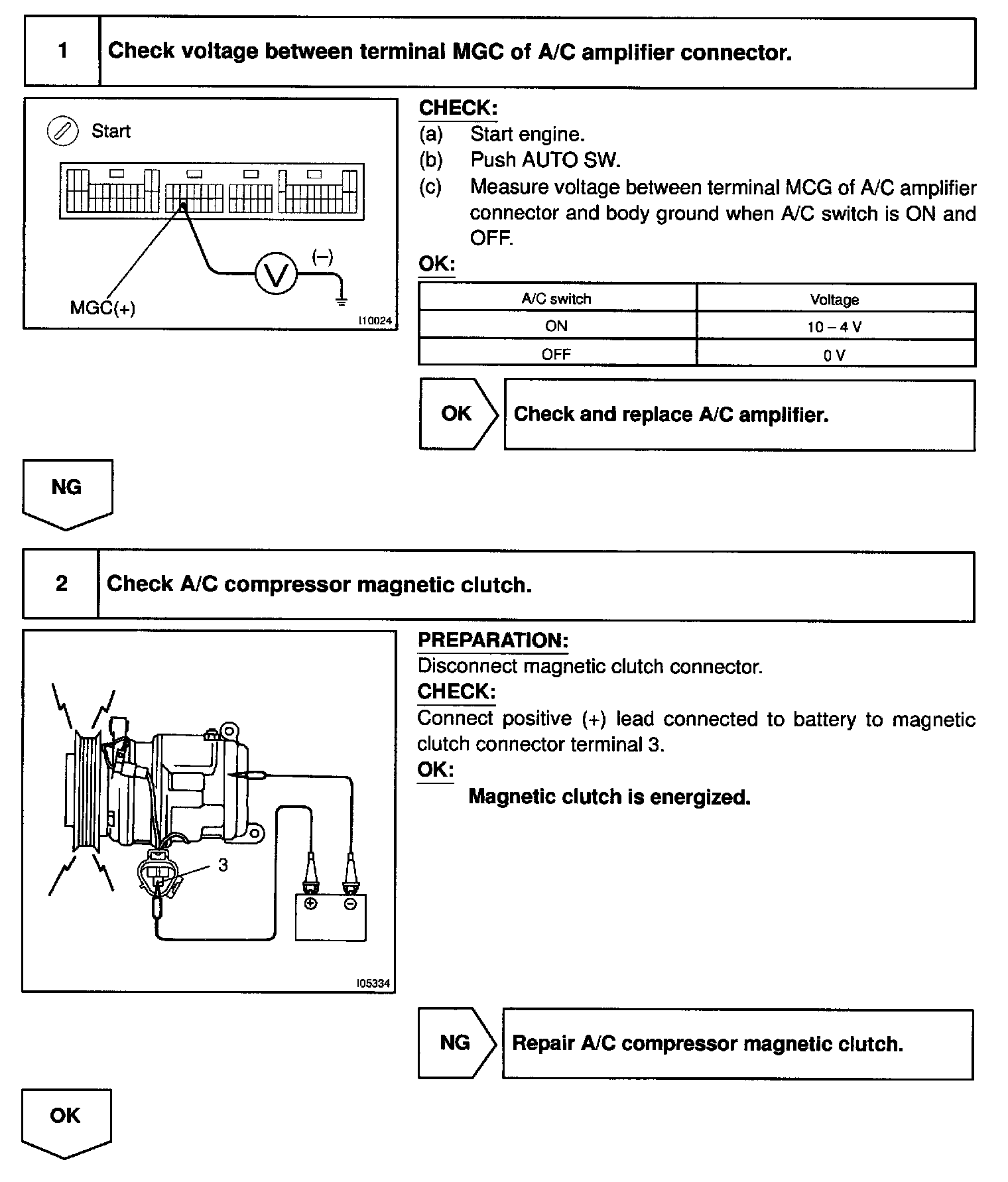

Steps 1 - 2:

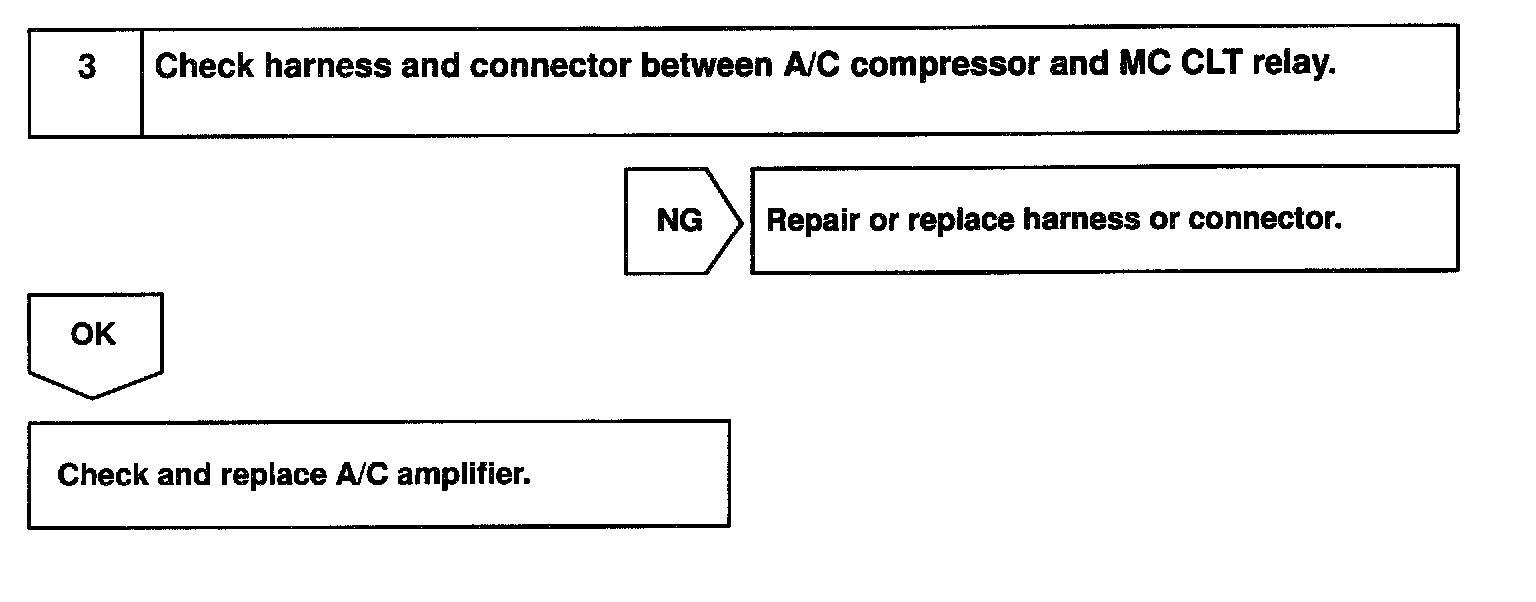

Step 3:




INSPECTION PROCEDURE
