Air Conditioning Control
REMOVALREMOVE A/C CONTROL ASSEMBLY
a.

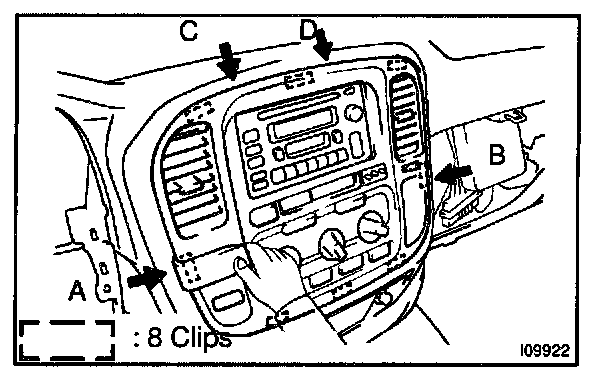

Using a moulding remover, remove the center cluster in order "A", "B", "C", "D", as shown in the illustration.
b.
Disconnect the connector.
INSTALLATION Installation is in the reverse order of removal
