Fuse: Application and ID

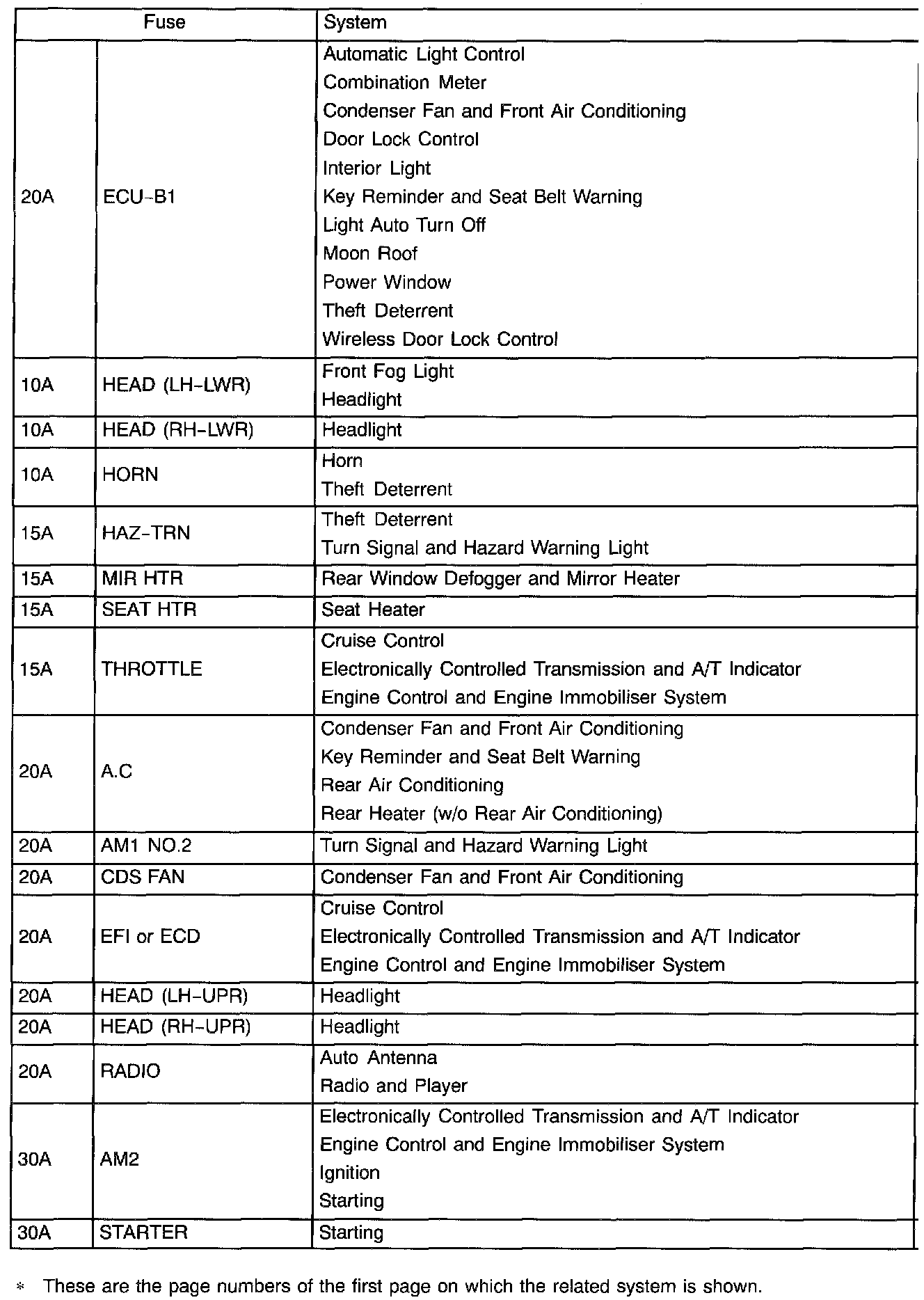

Power Source (Current Flow Chart) Engine Room J/B (Part 1 Of 2):

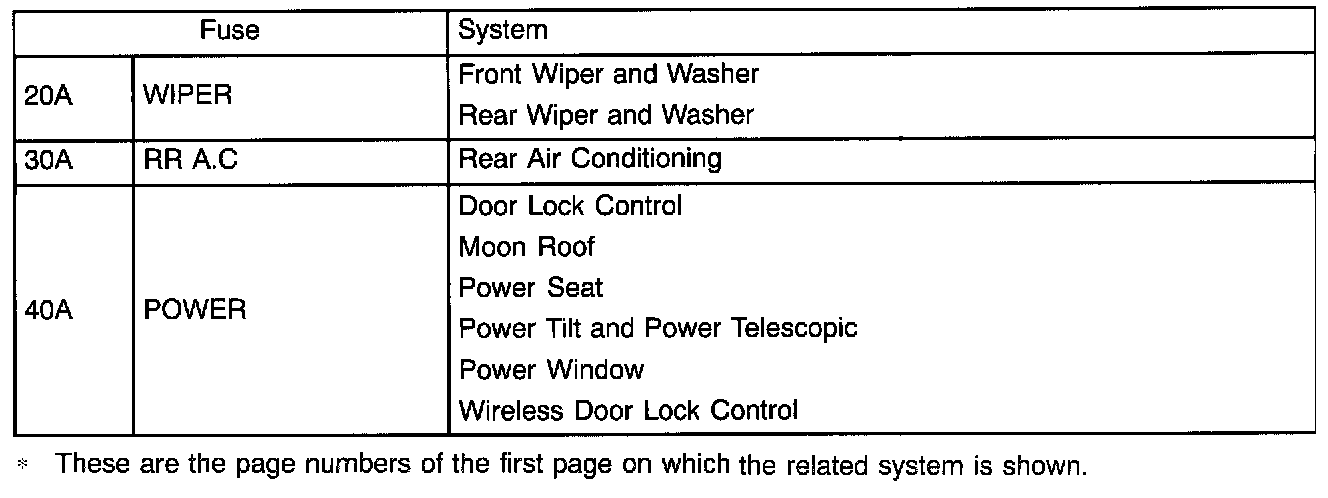

Power Source (Current Flow Chart) Engine Room J/B (Part 2 Of 2):

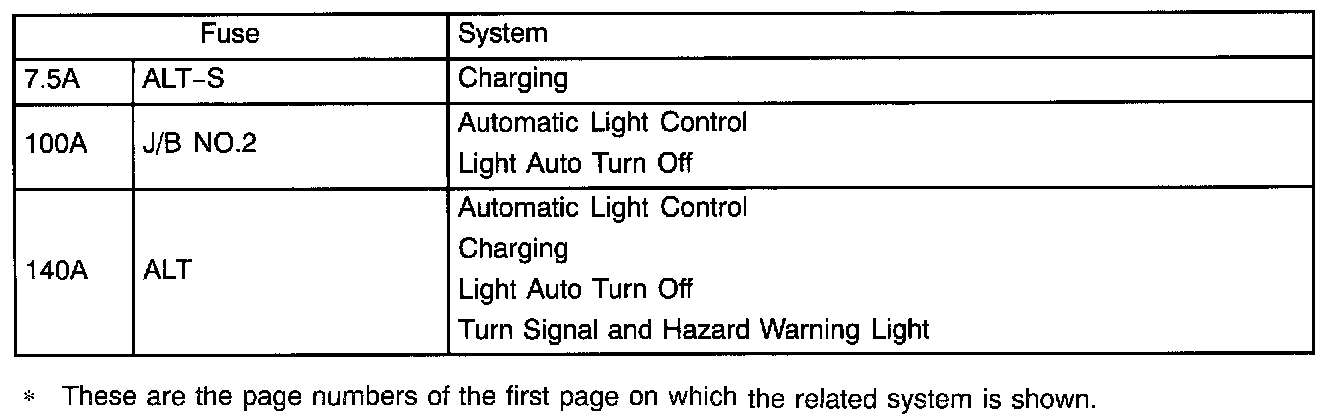

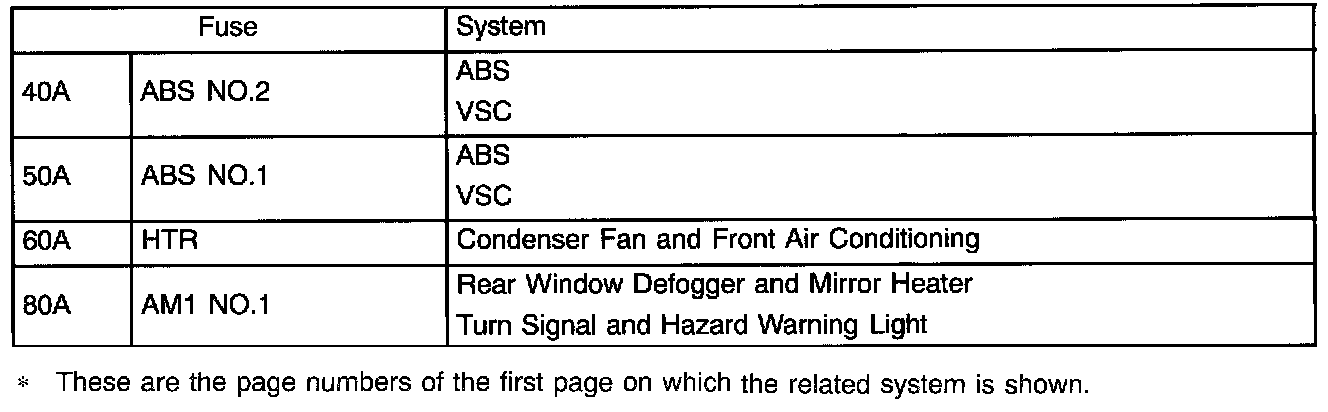

Power Source (Current Flow Chart) Fusible Link Block:

Engine Room Fuse Details

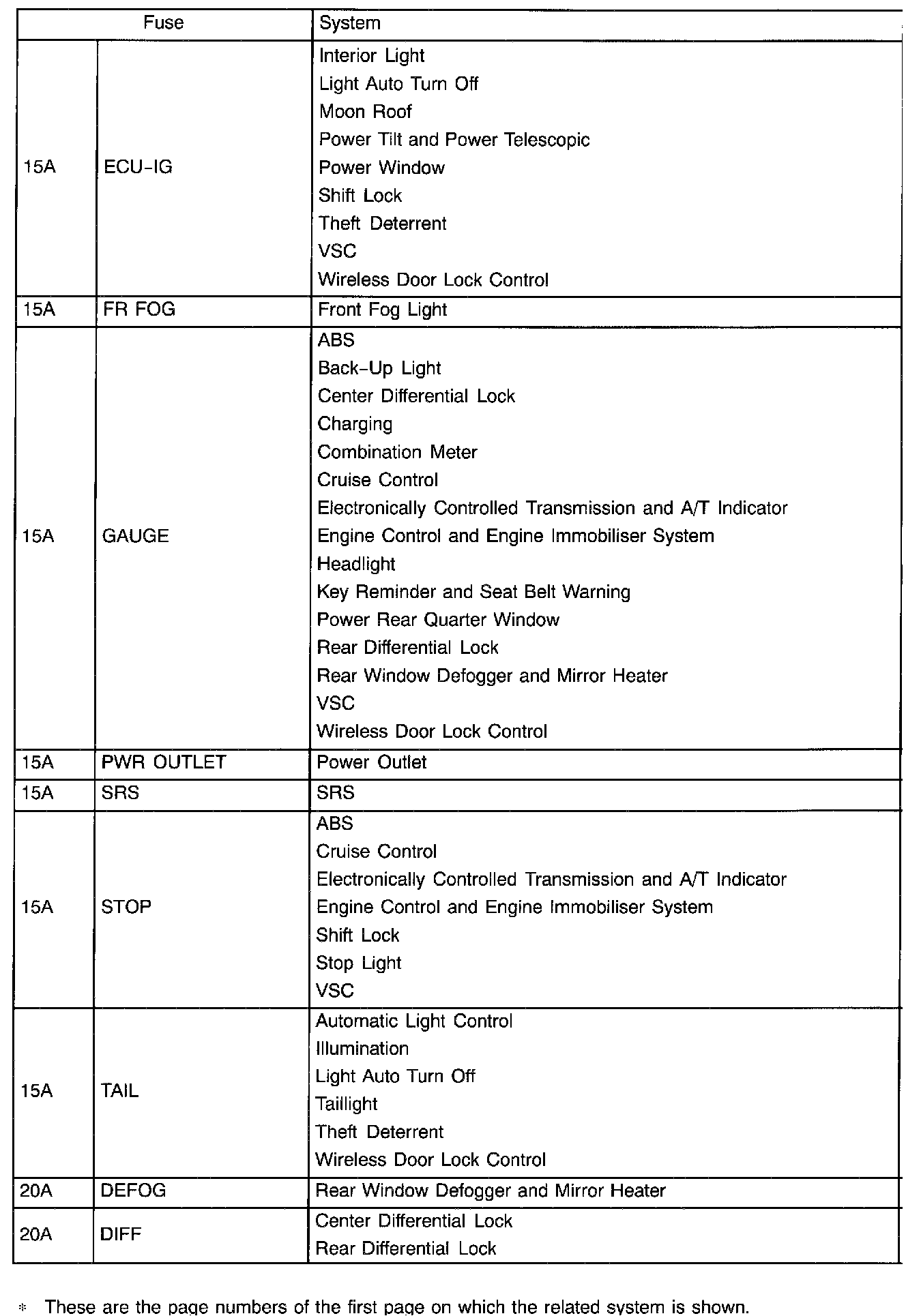

Power Source (Current Flow Chart) Cowl Side J/B LH (Part 1 Of 3):

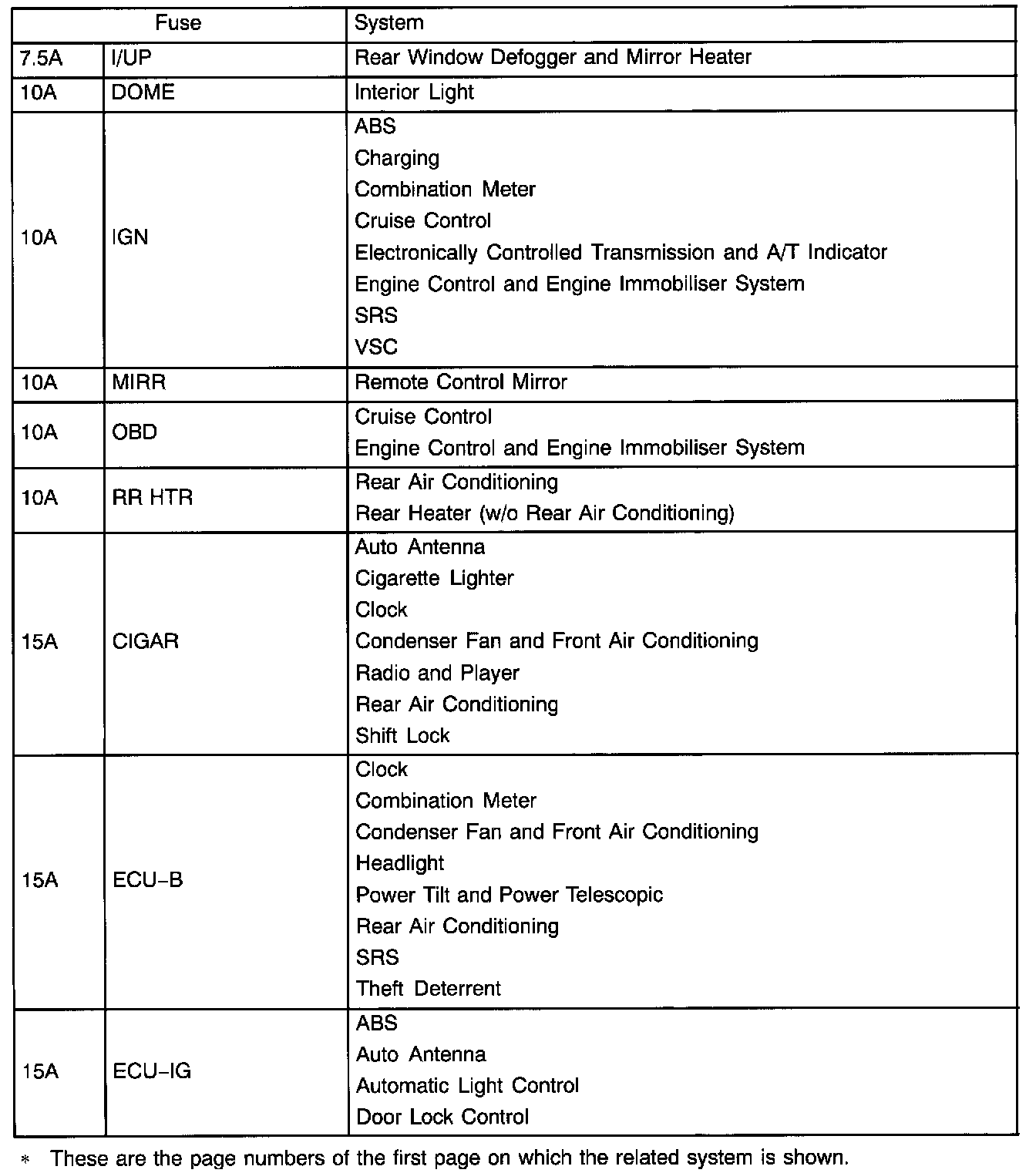

Power Source (Current Flow Chart) Cowl Side J/B LH (Part 2 Of 3):

Power Source (Current Flow Chart) Cowl Side J/B LH (Part 3 Of 3):

Cowl Side Fuse Details
