Relay Box: Locations

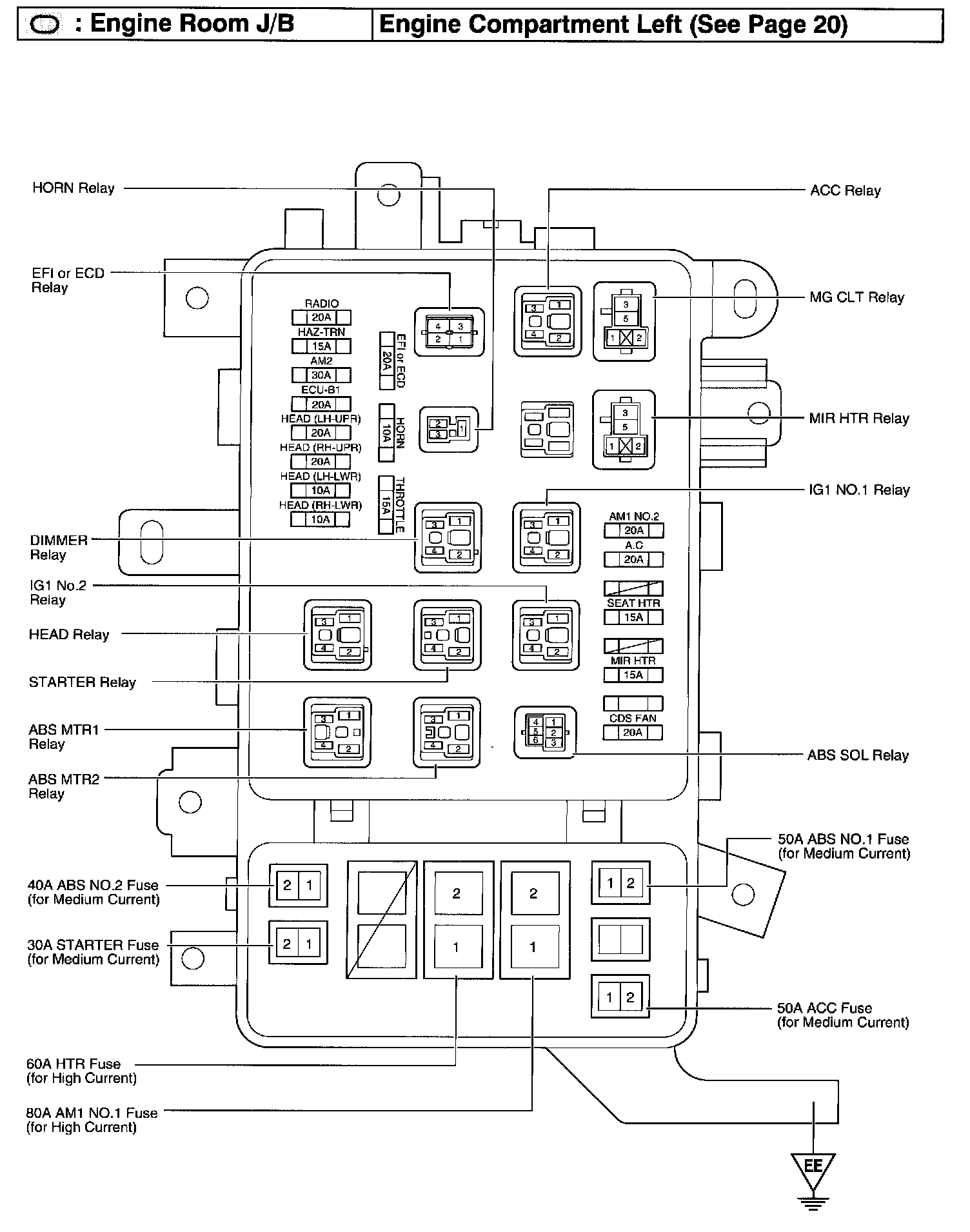

Fig 22 - Engine Room J/B - Engine Compartment Left:

Fig 26 - Cowl Side J/B LH - Left Kick Panel:

Fig 27 - Cowl Side J/B LH - Left Kick Panel:

Fig 33 - Cowl Side J/B RH - Right Kick Panel (Part 2 Of 2):

Fig 36 - Fusible Link Block:

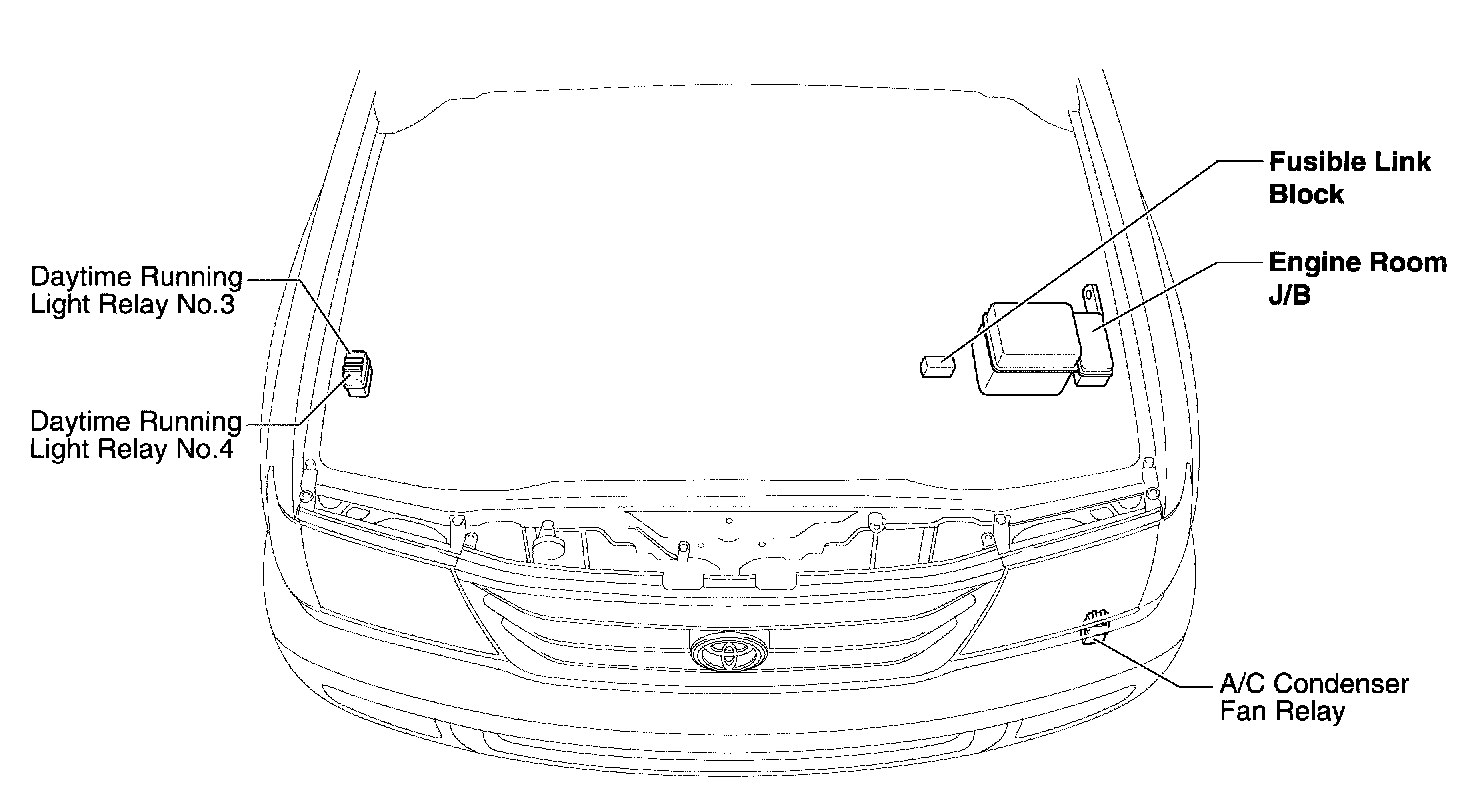

Engine Compartment:

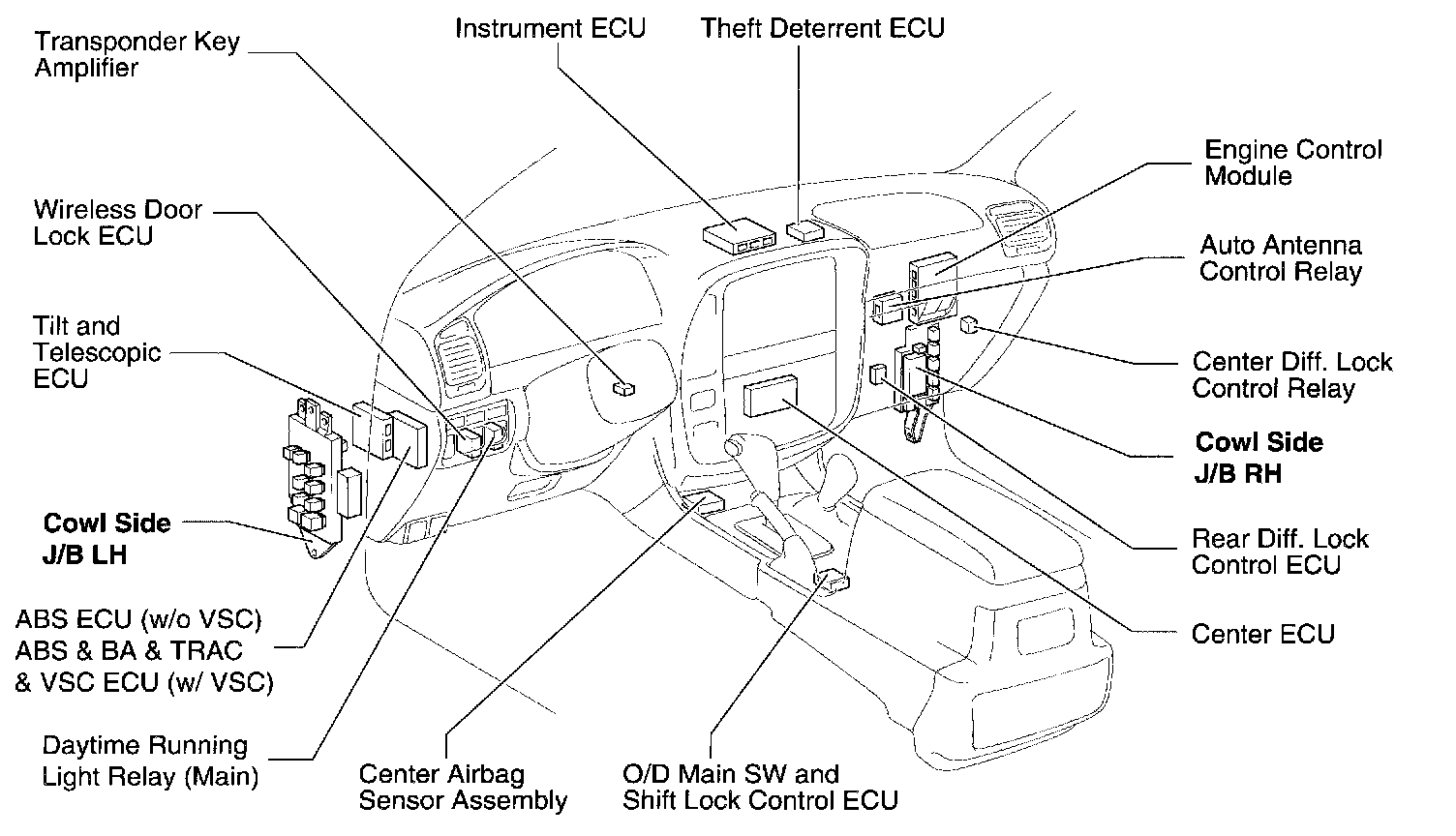

Instrument Panel:

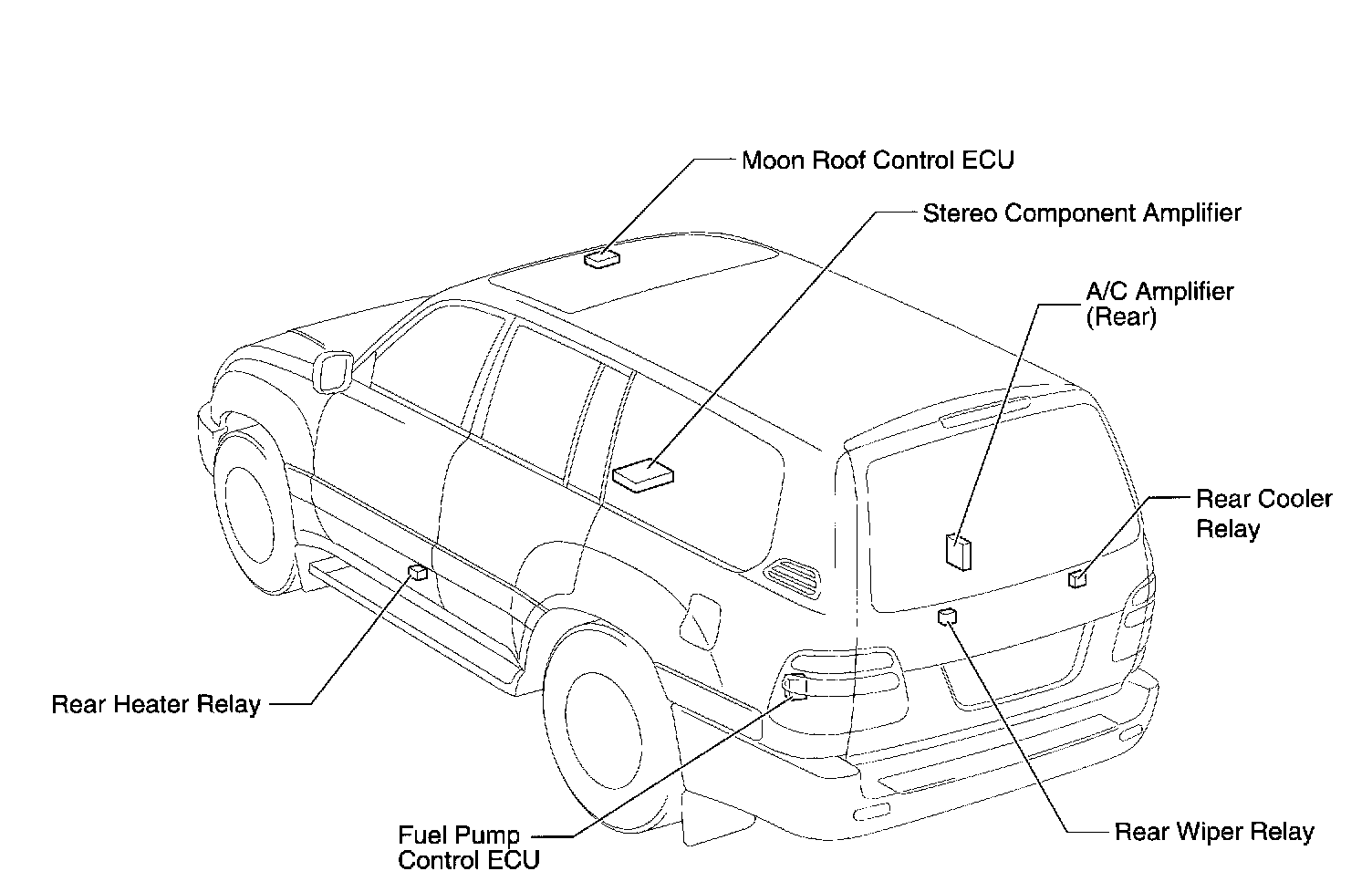

Body:
