Rear Wiper Motor and Relay Circuit
CIRCUIT DESCRIPTIONWiper motor is controlled by the Body ECU. Even CPU is in the failure, its circuit structure enables to operate the wiper with "High" mode.
Wiring Diagram:

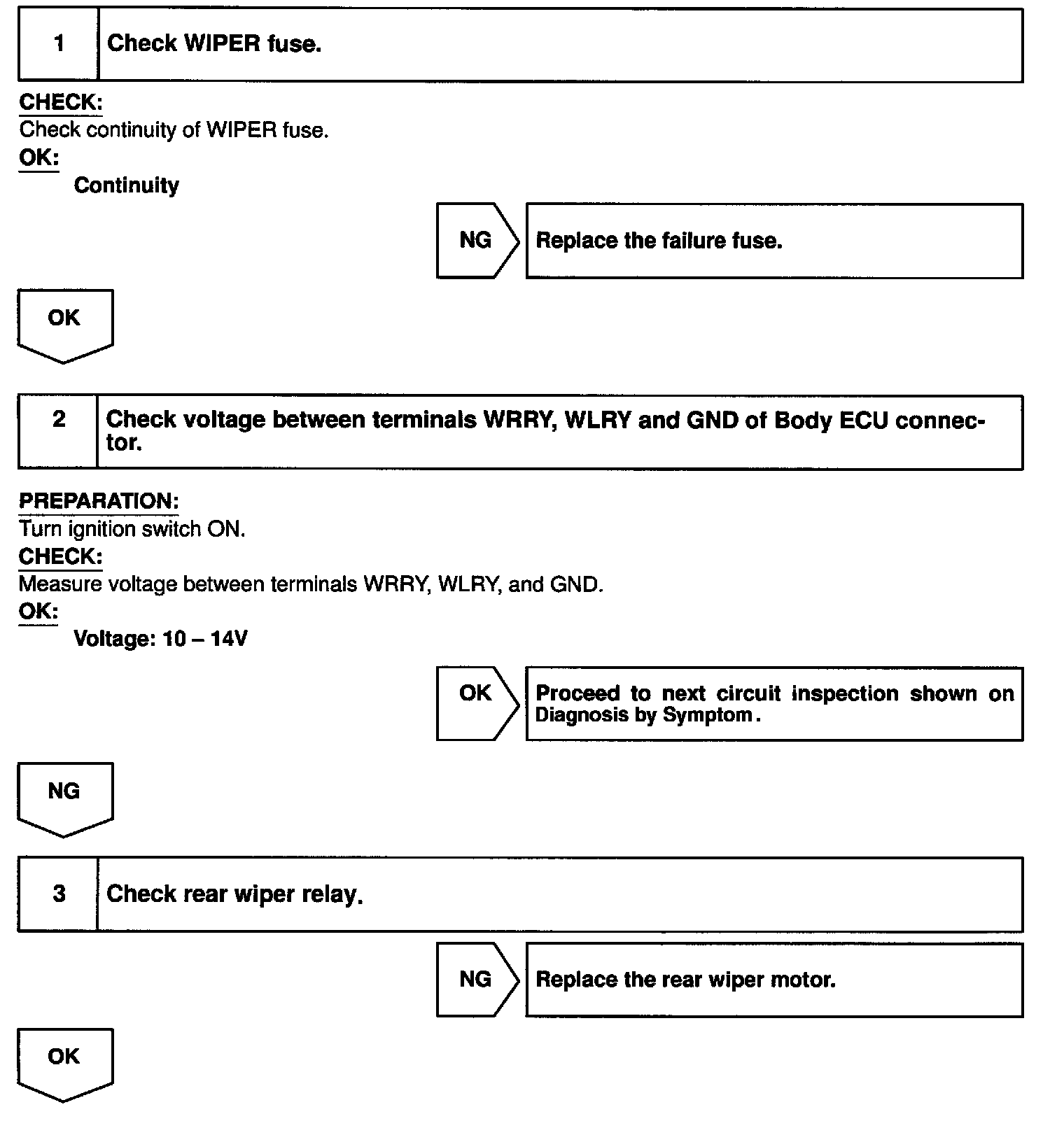

Steps 1 - 3:

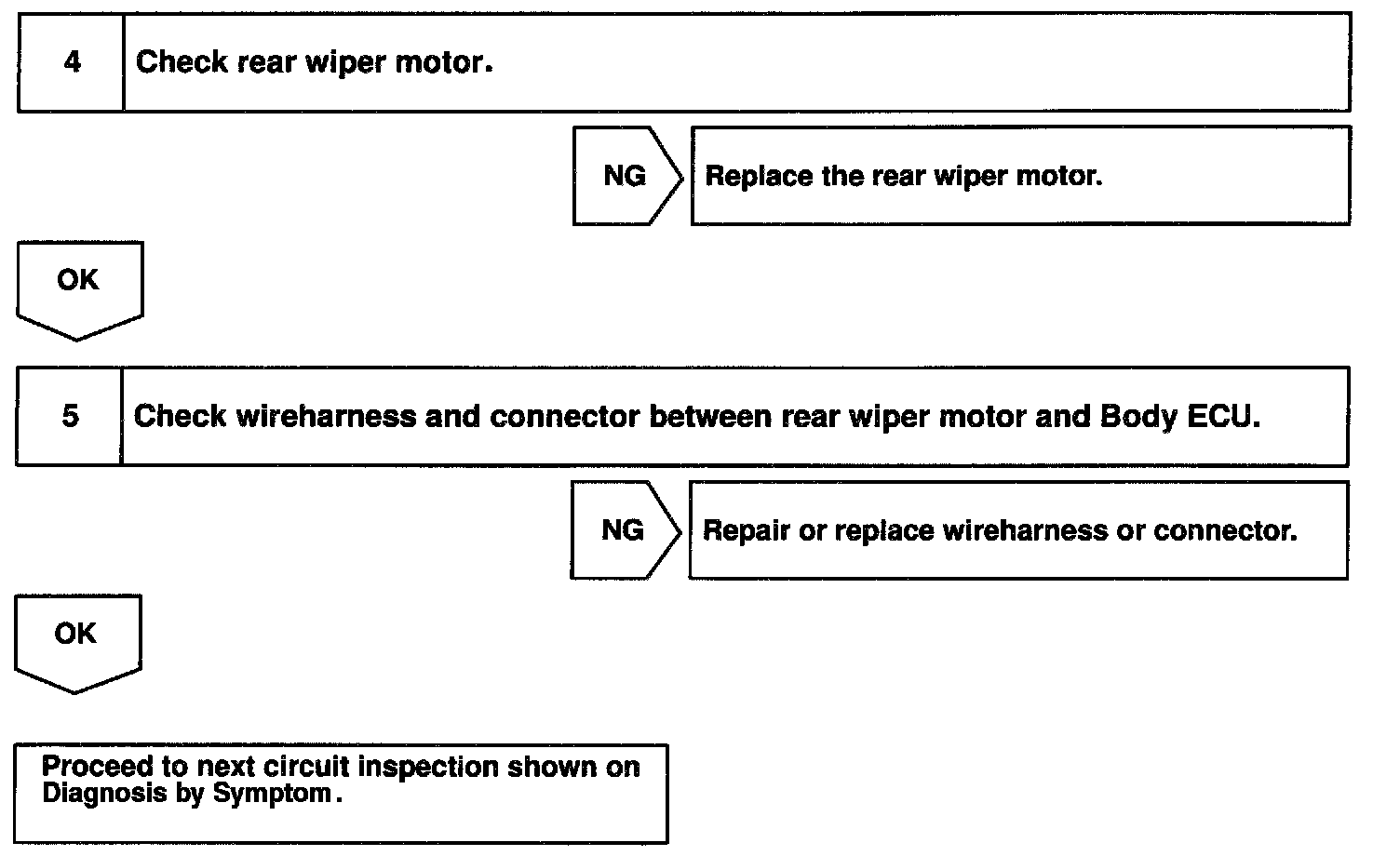

Steps 4 - 5:
INSPECTION PROCEDURE
